Product Details | ELECTRICAL SHIELD PLATE
5999-01-563-7527 A metallic or metallic coated item which is rigid or semirigid, flat, and generally smooth. Its thickness is small in comparison to both its length and width, and is designed to prevent or reduce stray electro-magnetic and/or electrostatic fields between components or items. It may be used as a mechanical guard. Excludes PLATE (as otherwise modified); SHIELD (as modified); and SPACER, PLATE.
Part Alternates: 81969951, 8196995-1, 5999-01-563-7527, 01-563-7527, 5999015637527, 015637527
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 MAY 2008 | 01-563-7527 | 02463 ( PLATE, ELECTRICAL SHIELD ) |
Drawings & Photos | NSN 5999-01-563-7527
Cross Reference | NSN 5999-01-563-7527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8196995-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-563-7527
Technical Data | NSN 5999-01-563-7527
| Characteristic | Specifications |
|---|---|

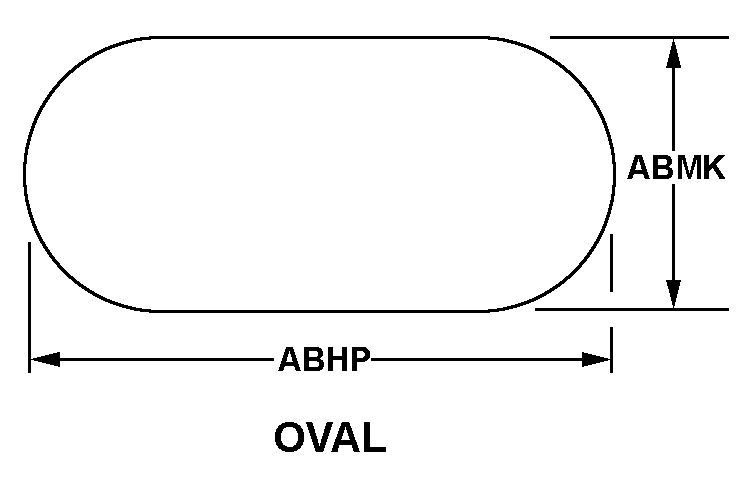

| BODY STYLE | 13F OVAL |
