Product Details | MOTOR-TACHOMETER GENERATOR
6105-00-246-3147 An item which is an electrical rotating machine combining both control motor and tachometer generator action. The control motor and tachometer generator may be contained in the same or separate housings. It is designed for servo application where instant response to input signal is essential. It is generally used in circuits where the output potential from the tachometer generator is fed back to prevent excessive oscillation and for assuring high stability in a servo loop. Excludes DYNAMOTOR; and MOTOR-GENERATOR.
Part Alternates: 10559002, 10559-002, 6105-00-246-3147, 00-246-3147, 6105002463147, 002463147
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 14 FEB 1969 | 00-246-3147 | 28454 ( MOTOR-TACHOMETER GENERATOR ) |

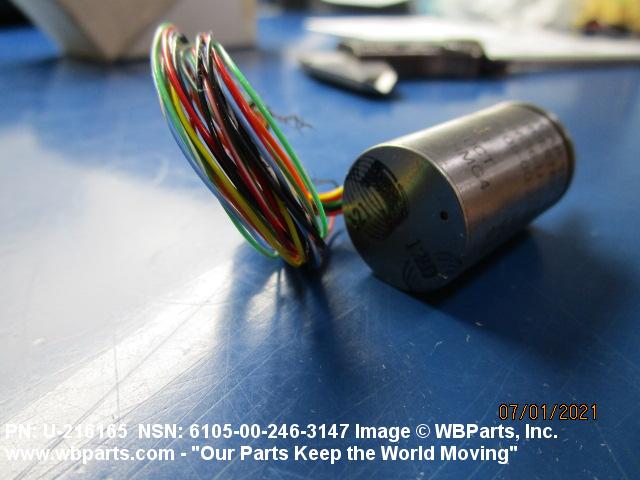

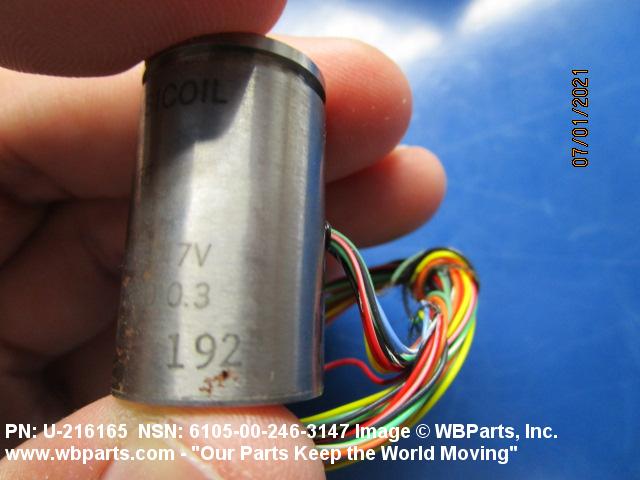

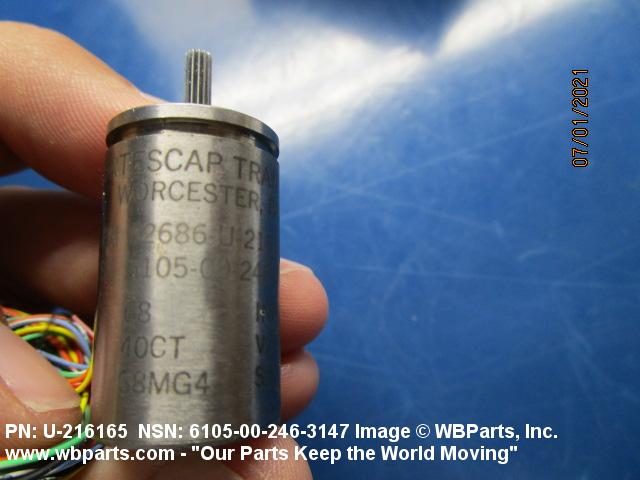

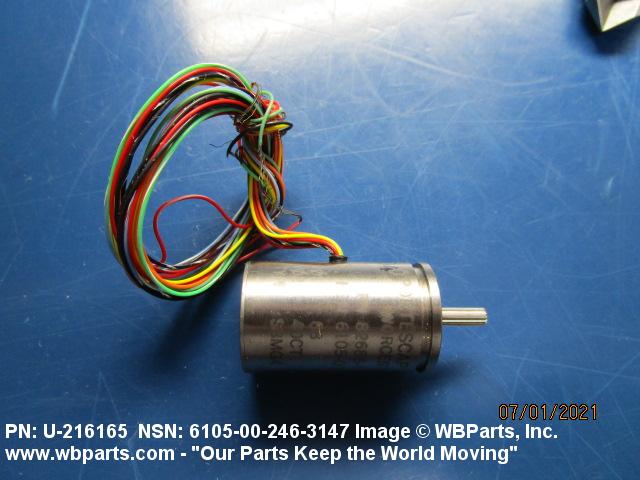

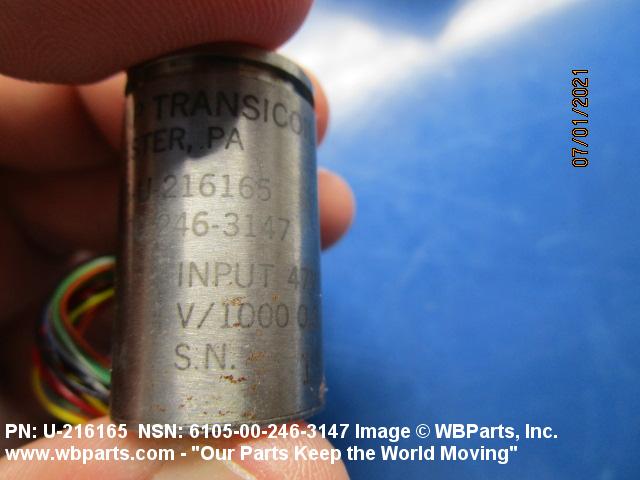

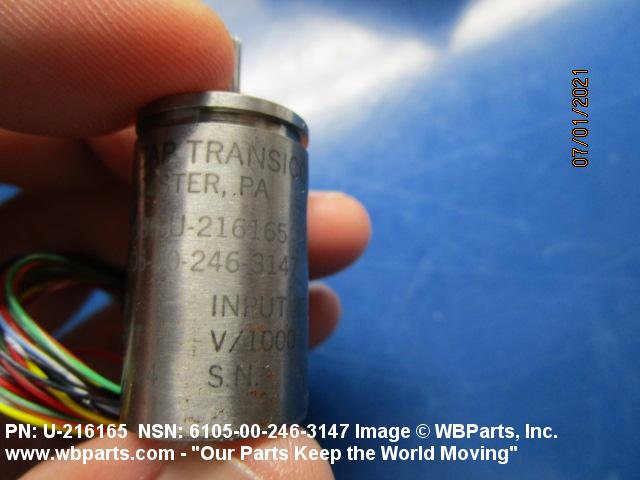

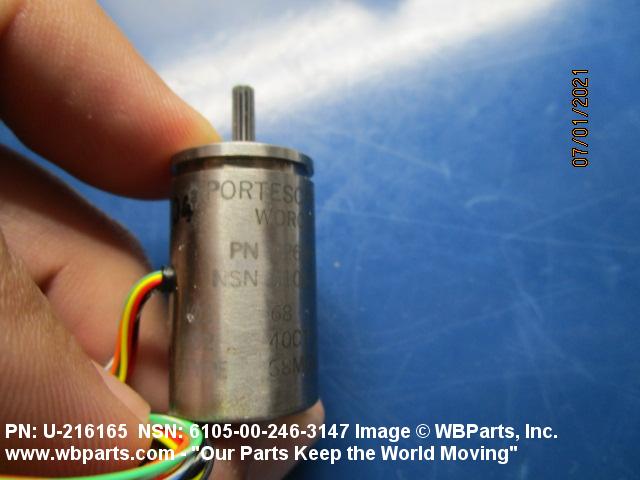

Drawings & Photos | NSN 6105-00-246-3147
Demand History | NSN 6105-00-246-3147
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-00-246-3147 | 2021-06-177 | 1 | Taiwan |
| 10559002 | 2013-04-95 | 1 | US |
| 6105-00-246-3147 | 2013-04-95 | 20 | US |
| 6105-00-246-3147 | 2008-09-248 | 3 | DIBBS |
| 6105-00-246-3147 | 2008-04-106 | 1 | Turkey |
Cross Reference | NSN 6105-00-246-3147
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10559-002 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6105-00-246-3147
Technical Data | NSN 6105-00-246-3147
| Characteristic | Specifications |
|---|---|

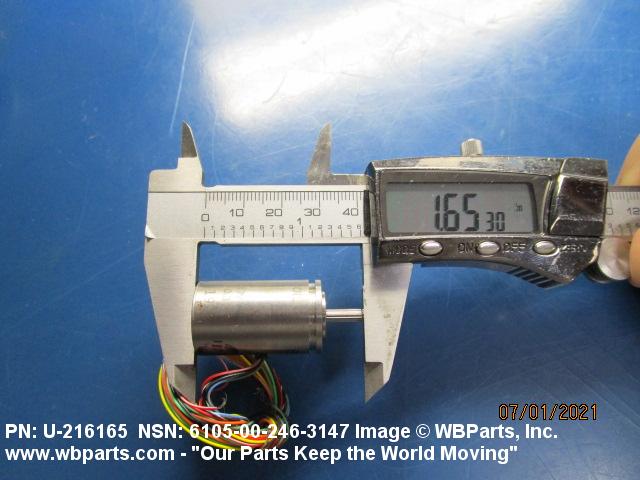

| OVERALL LENGTH | 1.660 INCHES |

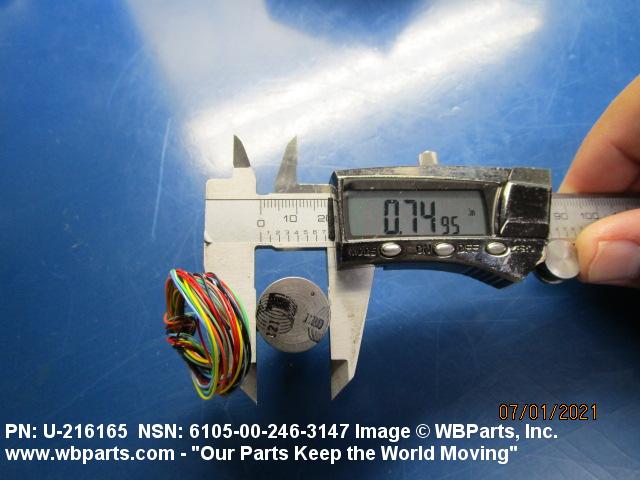

| OVERALL WIDTH | 0.750 INCHES |

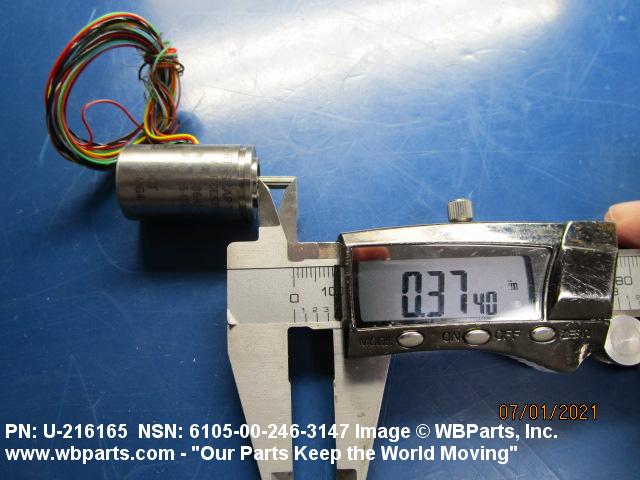

| LENGTH OF SHAFT FROM HOUSING | 0.380 INCHES SINGLE END |
| MOUNTING METHOD | CLAMP RING |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP COLLAR |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| FREQUENCY IN HERTZ | 400.0 OUTPUT |
| PHASE | SINGLE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 0.13 INCH-OUNCES STALLED |
| EXCITOR TYPE | SEPARATELY EXCITED |
| TEMP RATING | -55.0 OPERATING DEG CELSIUS AND 100.0 OPERATING DEG CELSIUS |
| COOLING METHOD | NONVENTILATED |
| TERMINAL TYPE AND QUANTITY | 9 WIRE LEAD |
| CALIBRATION VOLTAGE OUTPUT TYPE IN VOLTS | 0.3 AC |
| CALIBRATION SPEED IN RPM | 1000.0 |
| CONTROL FIELD VOLTAGE TYPE AND RATING IN VOLTS | 20.0 AC AND 40.0 AC |
| ROTOR SPEED RATING IN RPM | 8400.0 SINGLE NO LOAD |

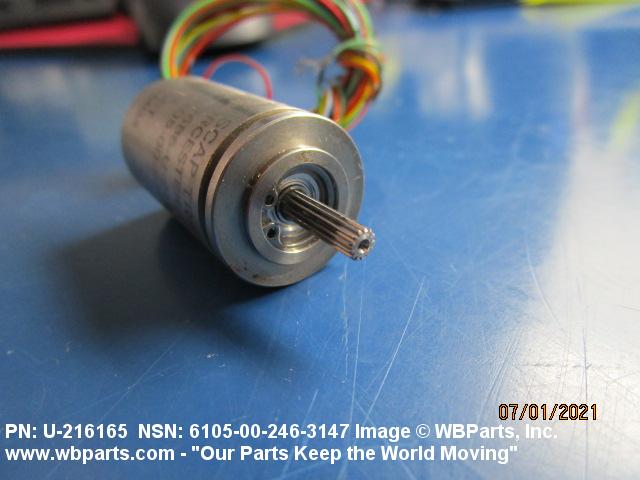

| SHAFT END CHARACTERISTIC | A14 SINGLE STYLE SINGLE END |
| SPLINE MINOR DIAMETER | 0.1083 INCHES NOMINAL SINGLE END |

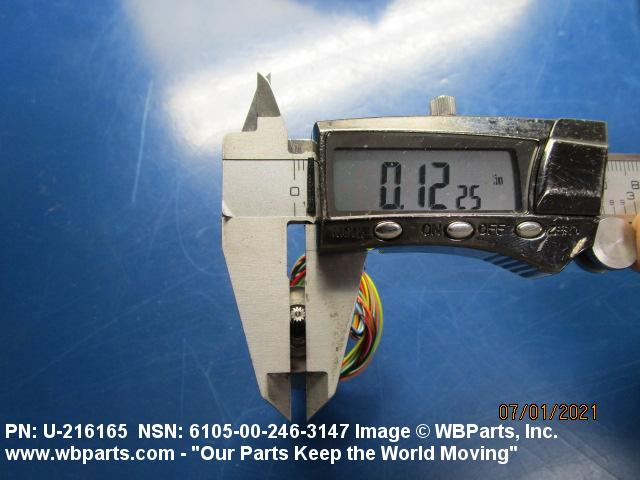

| SHAFT DIAMETER | 0.1250 INCHES NOMINAL SINGLE END |
| SPLINE LENGTH | 0.3100 INCHES NOMINAL SINGLE END |
| SPLINE QUANTITY | 13 SINGLE END |
| FEATURES PROVIDED | VERTICAL MOUNTING POSITION AND HORIZONTAL MOUNTING POSITION |
| MANUFACTURERS CODE | 10138 |
| DESIGN CONTROL REFERENCE | 10559-002 |
