NSN 6105-00-624-3997 1855115, 18-55-115, 18G4DAB1T8
Product Details | MOTOR-TACHOMETER GENERATOR
6105-00-624-3997 An item which is an electrical rotating machine combining both control motor and tachometer generator action. The control motor and tachometer generator may be contained in the same or separate housings. It is designed for servo application where instant response to input signal is essential. It is generally used in circuits where the output potential from the tachometer generator is fed back to prevent excessive oscillation and for assuring high stability in a servo loop. Excludes DYNAMOTOR; and MOTOR-GENERATOR.
Part Alternates: 1855115, 18-55-115, 18G4DAB1T8, 18G4D-AB1-T8, 6105-00-624-3997, 00-624-3997, 6105006243997, 006243997
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-624-3997 | 28454 ( MOTOR-TACHOMETER GENERATOR ) |

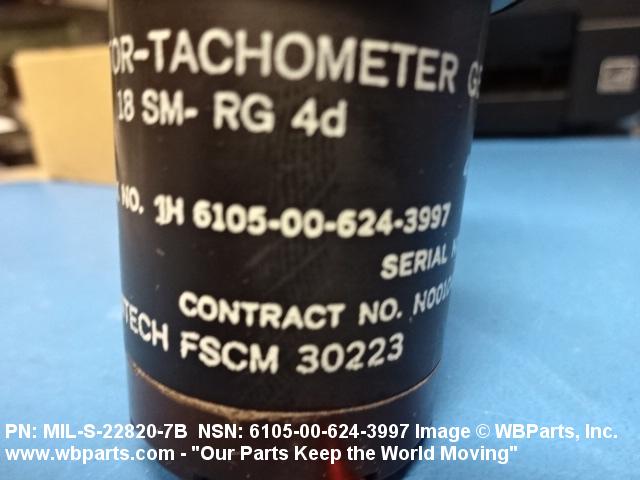

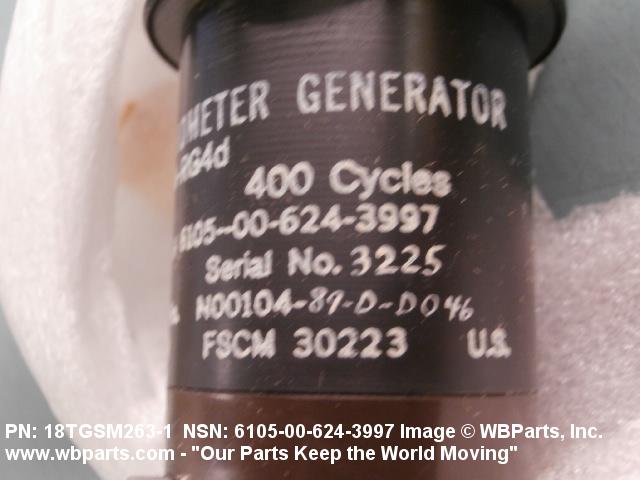

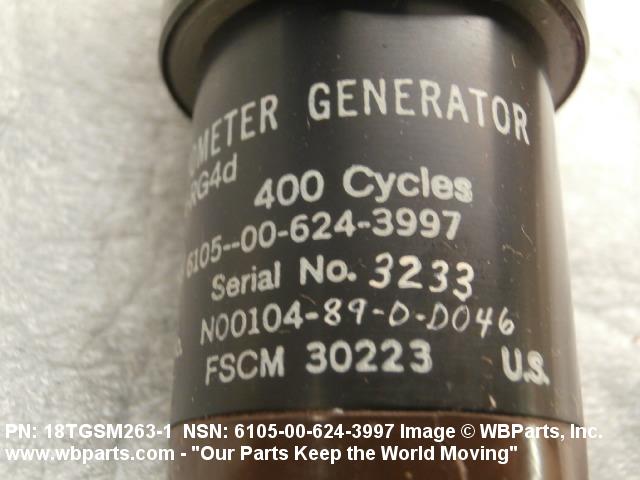

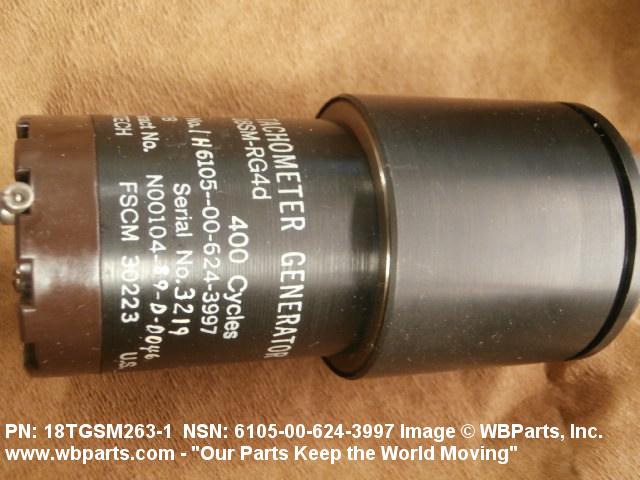

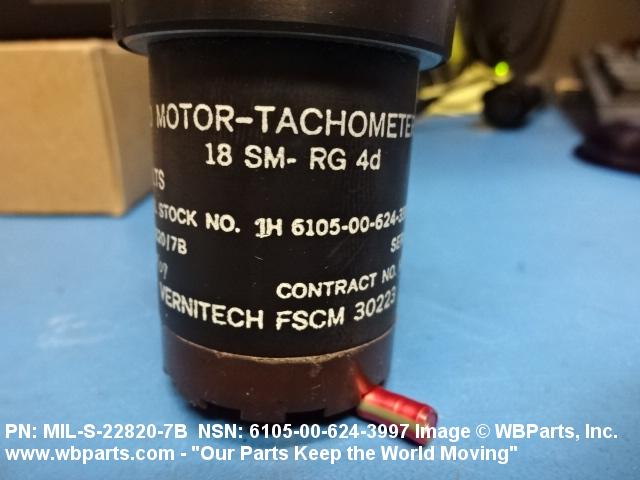

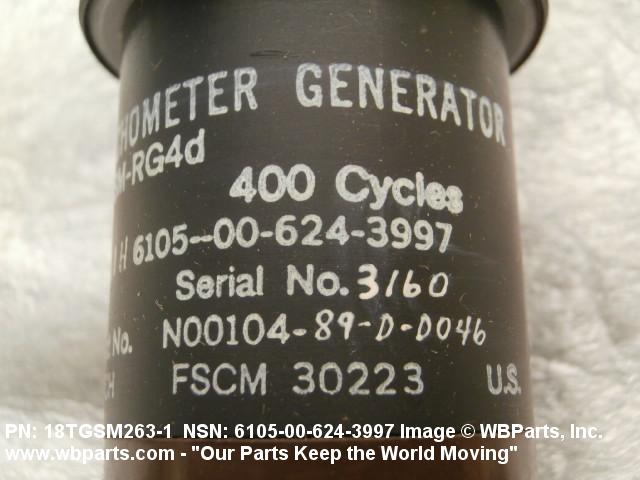

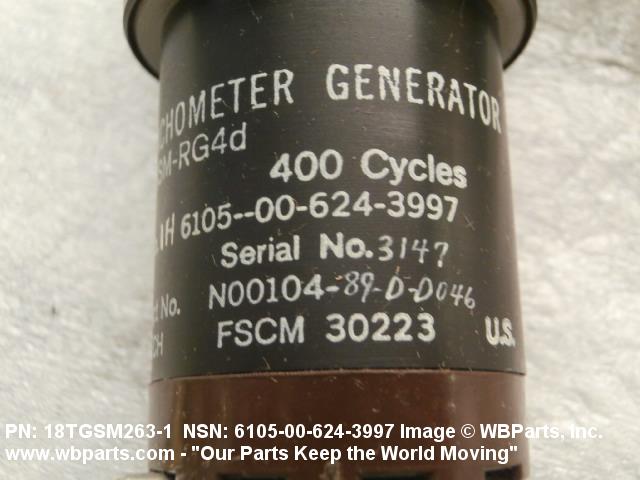

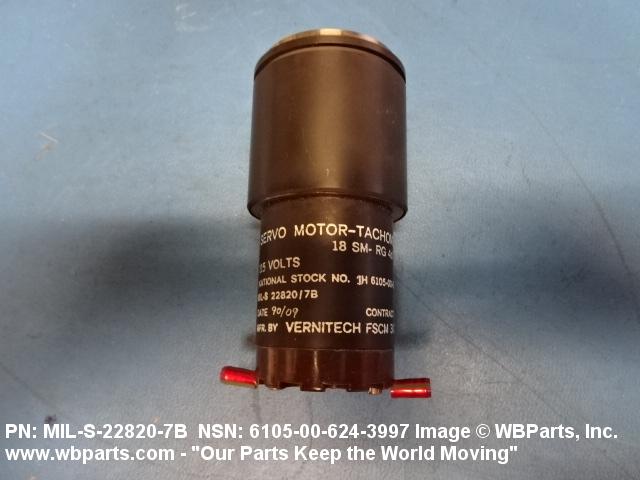

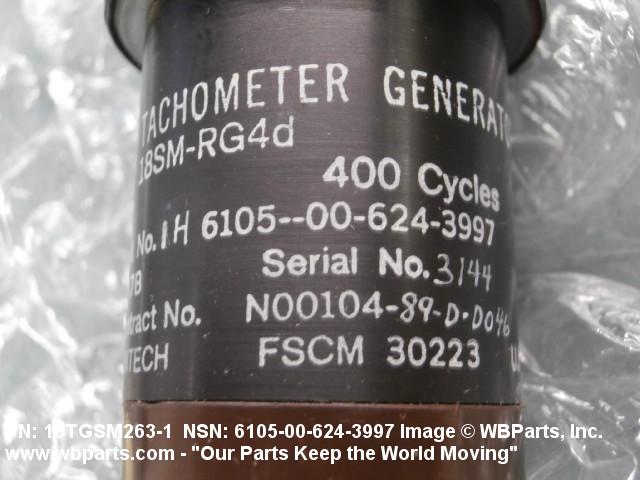

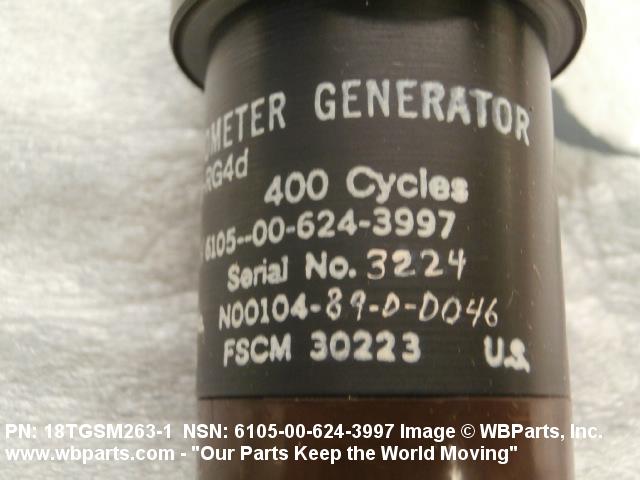

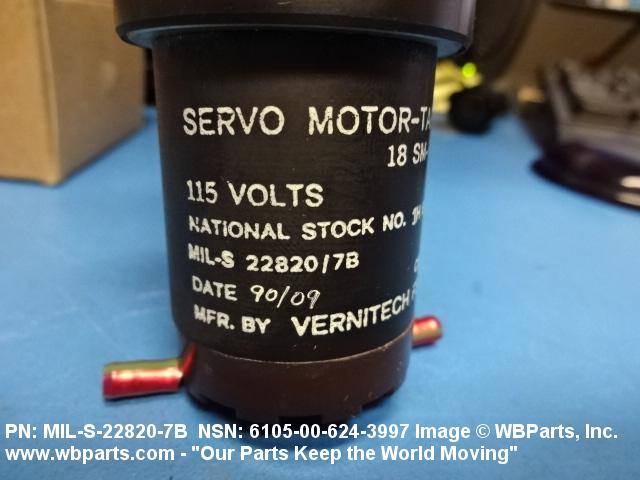

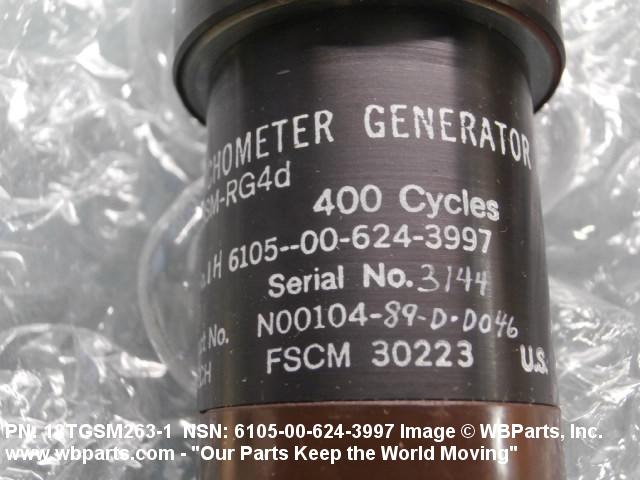

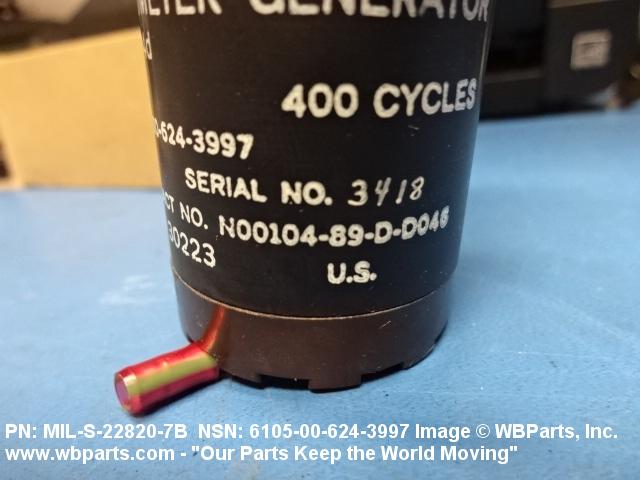

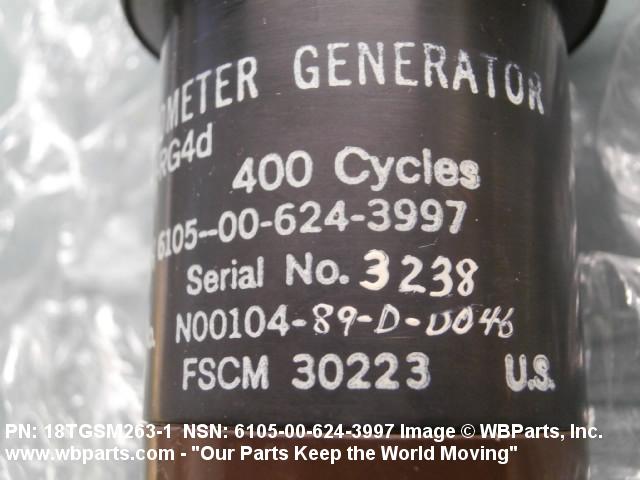

Drawings & Photos | NSN 6105-00-624-3997
Demand History | NSN 6105-00-624-3997
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-00-624-3997 | 2018-04-112 | 67 | DIBBS |
| 6105-00-624-3997 | 2018-03-68 | 28 | United States |
| 6105-00-624-3997 | 2018-03-67 | 17 | DIBBS |
| 6105-00-624-3997 | 2018-02-42 | 28 | DIBBS |
| 6105-00-624-3997 | 2018-01-01 | 14 | DIBBS |
| 6105-00-624-3997 | 2017-12-337 | 26 | DIBBS |
| 6105-00-624-3997 | 2015-12-364 | 31 | DIBBS |
| 6105-00-624-3997 | 2014-11-309 | 41 | US |
| 6105-00-624-3997 | 2014-10-287 | 41 | DIBBS |
| 6105-00-624-3997 | 2014-10-275 | 41 | DIBBS |
| 6105-00-624-3997 | 2014-07-182 | 1 | United States |
| 6105-00-624-3997 | 2014-06-162 | 18 | DIBBS |
| 6105-00-624-3997 | 2014-05-141 | 33 | DIBBS |
| 6105-00-624-3997 | 2014-03-63 | 1 | DIBBS-RFPs |
| 6105-00-624-3997 | 2013-11-332 | 32 | DIBBS |
| 6105-00-624-3997 | 2013-11-317 | 28 | DIBBS |
| 6105-00-624-3997 | 2013-05-121 | 45 | DIBBS |
| 6105-00-624-3997 | 2012-08-226 | 67 | DIBBS |
| 6105-00-624-3997 | 2012-04-114 | 20 | DIBBS |
| 6105-00-624-3997 | 2011-01-10 | 27 | DIBBS |
| 6105-00-624-3997 | 2010-12-361 | 28 | DIBBS |
| 6105-00-624-3997 | 2010-10-298 | 11 | DIBBS |
| 6105-00-624-3997 | 2010-05-144 | 13 | DIBBS |
| 6105-00-624-3997 | 2010-03-77 | 8 | DIBBS |
| 6105-00-624-3997 | 2010-03-70 | 13 | DIBBS |
| 6105-00-624-3997 | 2009-12-356 | 24 | DIBBS |
| 6105-00-624-3997 | 2009-05-148 | 35 | DIBBS |
| 6105-00-624-3997 | 2008-11-316 | 35 | DIBBS |
| 6105-00-624-3997 | 2008-01-18 | 62 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-00-624-3997
Related Products | NSN 6105-00-624-3997
Technical Data | NSN 6105-00-624-3997
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 4.291 INCHES |
| OVERALL WIDTH | 1.750 INCHES |
| OVERALL HEIGHT | 1.750 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.451 INCHES SINGLE END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 1.250 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| FREQUENCY IN HERTZ | 400.0 OUTPUT |
| PHASE | TWO INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 9.100 WATTS INPUT |
| TORQUE RATING AND TYPE | 2.35 INCH-OUNCES STALLED |
| EXCITOR TYPE | SEPARATELY EXCITED |
| COOLING METHOD | AIR TO AIR COOLED |

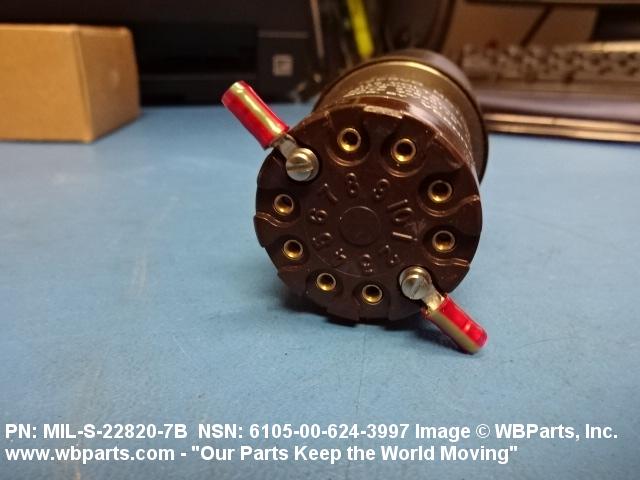

| TERMINAL TYPE AND QUANTITY | 10 SCREW |
| CALIBRATION VOLTAGE OUTPUT TYPE IN VOLTS | 3.2 AC |
| CALIBRATION SPEED IN RPM | 1000.0 |
| CONTROL FIELD VOLTAGE TYPE AND RATING IN VOLTS | 18.0 AC AND 36.0 AC |
| ROTOR SPEED RATING IN RPM | 4500.0 SINGLE NO LOAD |
| SHAFT END CHARACTERISTIC | A17 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.1770 INCHES NOMINAL SINGLE END |
| FULL TOOTH LENGTH | 0.4110 INCHES NOMINAL SINGLE END |
| TEETH QUANTITY | 15 SINGLE END |
| FEATURES PROVIDED | HORIZONTAL MOUNTING POSITION |
| MANUFACTURERS CODE | 67245 |
| DESIGN CONTROL REFERENCE | 18-55-115 |
Restrictions/Controls & Freight Information | NSN 6105-00-624-3997
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-624-3997
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
