Product Details | CONTROL MOTOR
6105-01-079-8762 A motor which is designed to be operated from two independent voltage sources, in such a way that variations in one voltage source will determine the direction and speed of the motor. In the alternating current type the voltages are usually applied to a split-phase stator, whereas in the direct current type, one voltage is applied to the stator and the other to the armature. Low inertia and rapid reversibility are inherent characteristics of this type of motor. See also SERVOMOTOR, AUTOMATIC PILOT.
Part Alternates: 50110302, 5011-03-02, 9100830001, 910-083-0001, 6105-01-079-8762, 01-079-8762, 6105010798762, 010798762
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 16 JUL 1979 | 01-079-8762 | 19258 ( MOTOR, CONTROL ) |

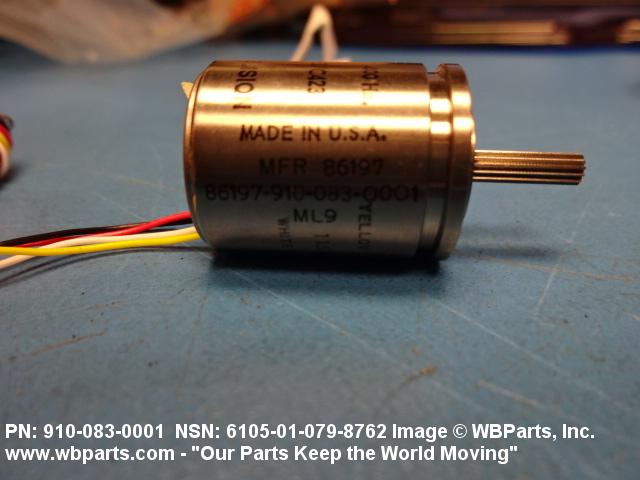

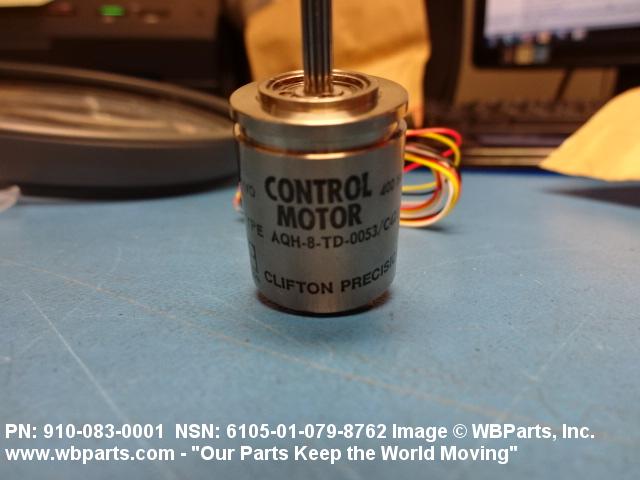

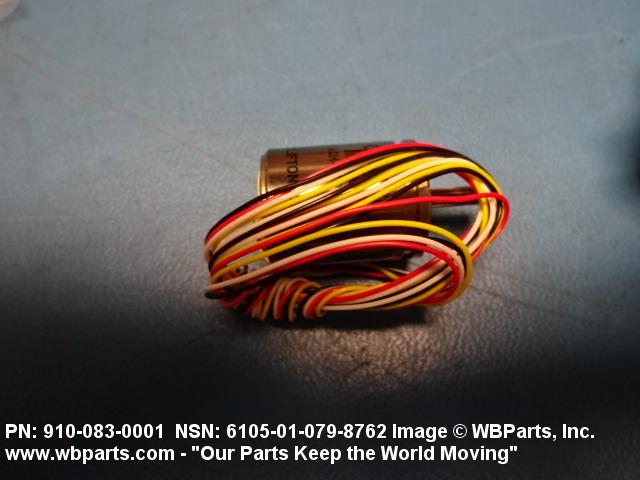

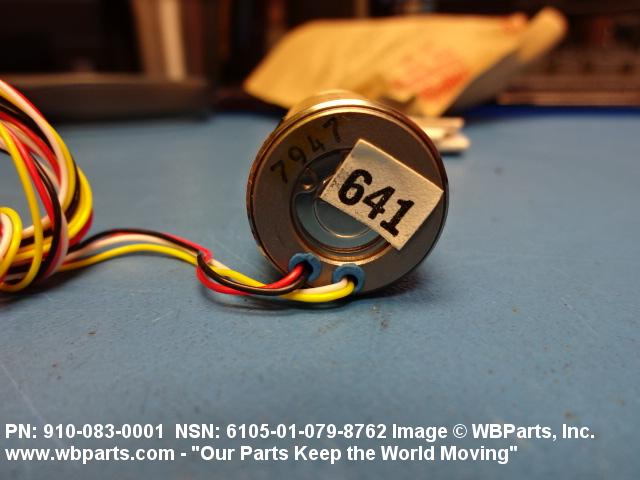

Drawings & Photos | NSN 6105-01-079-8762
Demand History | NSN 6105-01-079-8762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 910-083-0001 | 2023-03-14 | 6 | DIBBS |
| 910-083-0001 | 2022-03-16 | 6 | DIBBS |
| 910-083-0001 | 2021-09-13 | 2 | DIBBS |
| 910-083-0001 | 2021-07-13 | 4 | DIBBS |
| 910-083-0001 | 2021-07-07 | 2 | DIBBS |
| 910-083-0001 | 2021-04-26 | 1 | DIBBS |
| 910-083-0001 | 2021-04-20 | 1 | DIBBS |
| 910-083-0001 | 2020-12-15 | 2 | DIBBS |
| 910-083-0001 | 2020-09-14 | 1 | DIBBS |
| 6105-01-079-8762 | 2018-10-23 | 2 | us |
| 6105-01-079-8762 | 2018-10-09 | 2 | DIBBS |
| 6105-01-079-8762 | 2018-09-27 | 2 | DIBBS |
| 6105-01-079-8762 | 2016-11-28 | 2 | DIBBS |
| 6105-01-079-8762 | 2016-11-17 | 2 | DIBBS |
| 6105-01-079-8762 | 2015-11-12 | 4 | US |
| 6105-01-079-8762 | 2008-09-04 | 13 | DIBBS |
| 6105-01-079-8762 | 2008-07-08 | 12 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6105-01-079-8762
Related Products | NSN 6105-01-079-8762
6105-01-079-8763, 6105-01-079-8847, 6105-01-079-9688, 6105-01-079-9725, 6105-01-079-9924
Technical Data | NSN 6105-01-079-8762
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.450 INCHES |
| OVERALL WIDTH | 0.750 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.500 INCHES SINGLE END |
| MOUNTING METHOD | CLAMP RING |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| CURRENT TYPE | AC INPUT |
| FREQUENCY IN HERTZ | 400.0 INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| TEMP RATING | 45.0 AMBIENT DEG CELSIUS |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| MANUFACTURERS CODE | 1K426 |
| DESIGN CONTROL REFERENCE | 910-083-0001 |
Restrictions/Controls & Freight Information | NSN 6105-01-079-8762
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-079-8762
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
