Product Details | DIRECT CURRENT MOTOR
6105-01-121-6972 A motor which is designed for operation from a direct current source. Excludes MOTOR, ENGINE STARTER, ELECTRICAL. See also MOTOR, CONTROL.
Part Alternates: 10065550101, 10065550-101, 22105M-JY-01/D3, 22105M-JY-01/D361, 22105MJY01D3, 22105MJY01D361, 6105-01-121-6972, 01-121-6972, 6105011216972, 011216972
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 07 NOV 1981 | 01-121-6972 | 16350 ( MOTOR, DIRECT CURRENT ) |

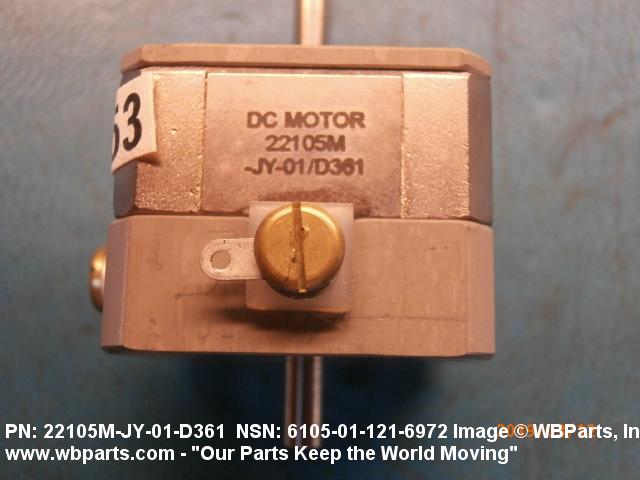

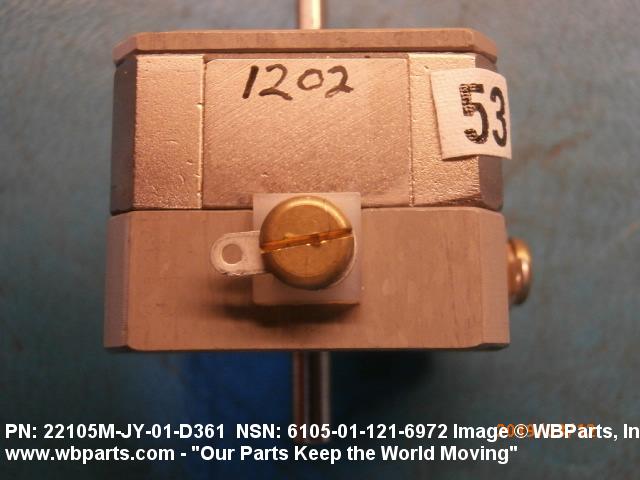

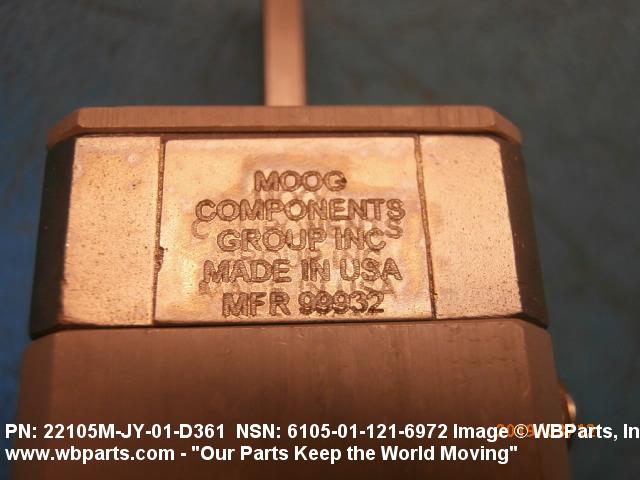

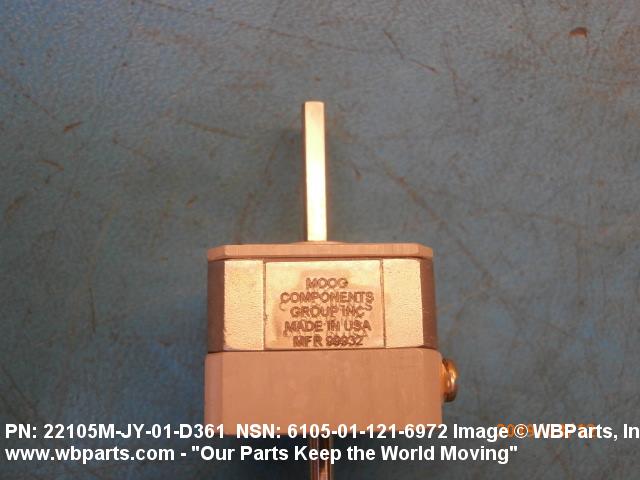

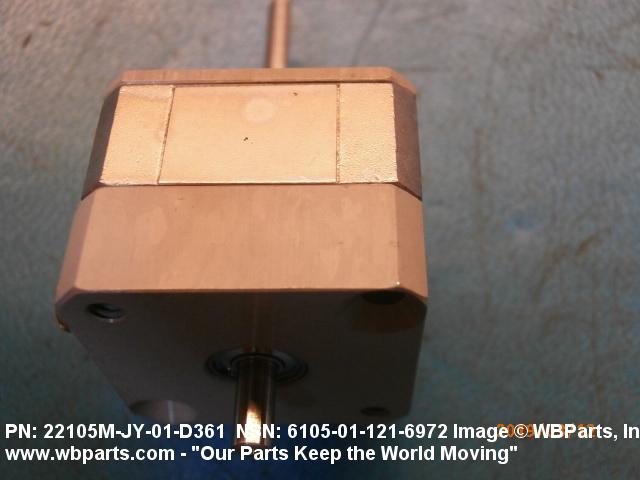

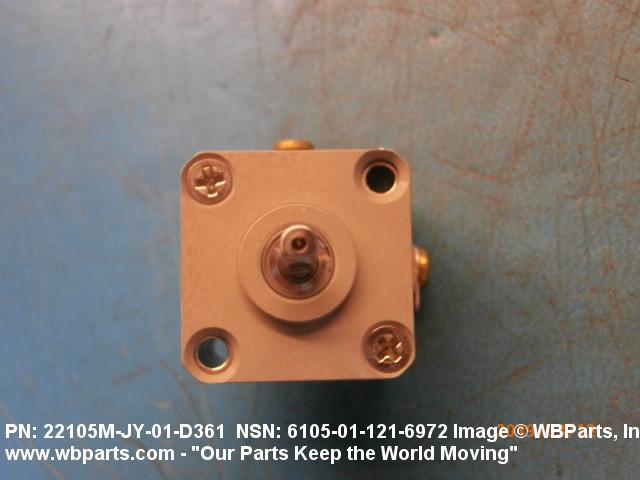

Drawings & Photos | NSN 6105-01-121-6972
Demand History | NSN 6105-01-121-6972
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-121-6972 | 2022-02-21 | 1 | US |
| 6105-01-121-6972 | 2022-02-13 | 1 | Taiwan |
| 6105-01-121-6972 | 2018-12-20 | 7 | Taiwan |
| 6105-01-121-6972 | 2018-11-06 | 7 | Taiwan |
| 6105-01-121-6972 | 2017-11-05 | 24 | DIBBS |
| 6105-01-121-6972 | 2017-04-10 | 37 | DIBBS |
| 6105-01-121-6972 | 2017-03-05 | 30 | DIBBS |
| 6105-01-121-6972 | 2017-02-06 | 23 | DIBBS |
| 6105-01-121-6972 | 2017-01-05 | 2 | Taiwan |
| 6105-01-121-6972 | 2015-09-30 | 56 | DIBBS |
| 6105-01-121-6972 | 2014-03-12 | 8 | DIBBS |
| 6105-01-121-6972 | 2014-02-25 | 8 | DIBBS |
| 6105-01-121-6972 | 2014-01-16 | 39 | DIBBS |
| 6105-01-121-6972 | 2014-01-01 | 39 | DIBBS |
| 6105-01-121-6972 | 2013-08-28 | 22 | DIBBS |
| 6105-01-121-6972 | 2011-09-02 | 58 | DIBBS |
| 6105-01-121-6972 | 2011-07-07 | 44 | DIBBS |
| 6105-01-121-6972 | 2010-04-01 | 77 | DIBBS |
| 6105-01-121-6972 | 2009-01-08 | 12 | DIBBS |
| 6105-01-121-6972 | 2008-11-25 | 26 | DIBBS |
| 6105-01-121-6972 | 2008-09-29 | 25 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6105-01-121-6972
Related Products | NSN 6105-01-121-6972
6105-01-121-6973, 6105-01-121-6974, 6105-01-121-7100, 6105-01-121-7394, 6105-01-121-7956
Technical Data | NSN 6105-01-121-6972
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.940 INCHES |
| OVERALL WIDTH | 1.210 INCHES |
| OVERALL HEIGHT | 1.210 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.750 INCHES FIRST END 0.248 INCHES SECOND END |
| MOUNTING METHOD | PAD |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.125 INCHES |
| NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.125 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| CURRENT RATING IN AMPS | 0.600 SINGLE INPUT |
| CURRENT RATING METHOD | LOAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 26.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 15.6000 WATTS OUTPUT |
| TORQUE RATING AND TYPE | 3.6 INCH-OUNCES RUNNING |
| COOLING METHOD | AMBIENT AIR |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| ROTOR SPEED RATING IN RPM | 5000.0 SINGLE NO LOAD |
| SHAFT END CHARACTERISTIC | A1 SINGLE STYLE IDENTICAL ENDS |
| SHAFT DIAMETER | 0.1050 INCHES NOMINAL FIRST END 0.1247 INCHES NOMINAL SECOND END |
| MANUFACTURERS CODE | 99932 |
| DESIGN CONTROL REFERENCE | 22105M-JY-01/D361 |
Restrictions/Controls & Freight Information | NSN 6105-01-121-6972
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB1 |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-121-6972
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | CW | TG:AIRBORNE RADAR AND MISCELLANEOUS ELECTRONIC EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
