NSN 6105-01-171-9646 HM3G001, 02518175, 025-18175
Product Details | ALTERNATING CURRENT MOTOR
6105-01-171-9646 A motor which is designed for operation from an alternating current source. See also MOTOR, CONTROL.
Part Alternates: HM3G001, 02518175, 025-18175, 6105-01-171-9646, 01-171-9646, 6105011719646, 011719646
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 15 FEB 1984 | 01-171-9646 | 00530 ( MOTOR, ALTERNATING CURRENT ) |
Drawings & Photos | NSN 6105-01-171-9646
Demand History | NSN 6105-01-171-9646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-171-9646 | 2019-01-14 | 1 | US |
| 6105-01-171-9646 | 2018-09-256 | 6 | United States |
| 6105-01-171-9646 | 2018-05-131 | 4 | United States |
| 6105-01-171-9646 | 2017-06-163 | 1 | United States |
| 6105-01-171-9646 | 2017-06-163 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-171-9646
Related Products | NSN 6105-01-171-9646
Technical Data | NSN 6105-01-171-9646
| Characteristic | Specifications |
|---|---|

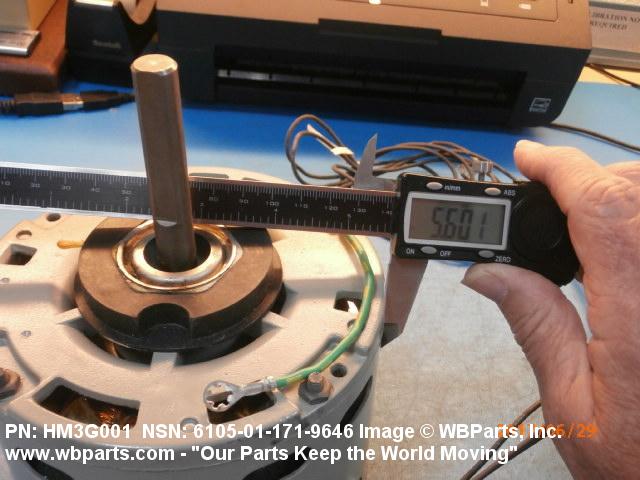

| OVERALL WIDTH | 5.625 INCHES |

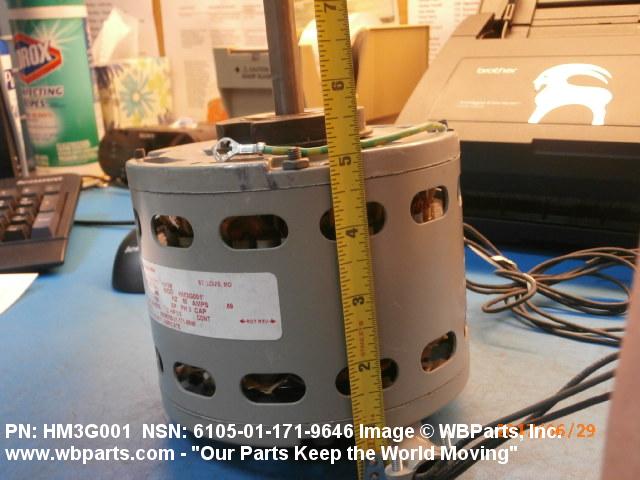

| OVERALL HEIGHT | 5.625 INCHES |
| INCLOSURE FEATURE | OPEN PROTECTED |
| FREQUENCY IN HERTZ | 60.0 INPUT |
| PHASE | THREE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 440.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 0.3333 HORSEPOWER OUTPUT |
| WINDING TYPE | INDUCTION-SQUIRREL CAGE |
| DUTY CYCLE | CONTINUOUS |
| TEMP RATING | 50.0 OPERATING DEG CELSIUS |
| ROTOR SPEED RATING IN RPM | 1200.0 SINGLE NO LOAD AND 1100.0 SINGLE FULL LOAD |
| SHAFT END CHARACTERISTIC | A5 SINGLE STYLE SINGLE END |

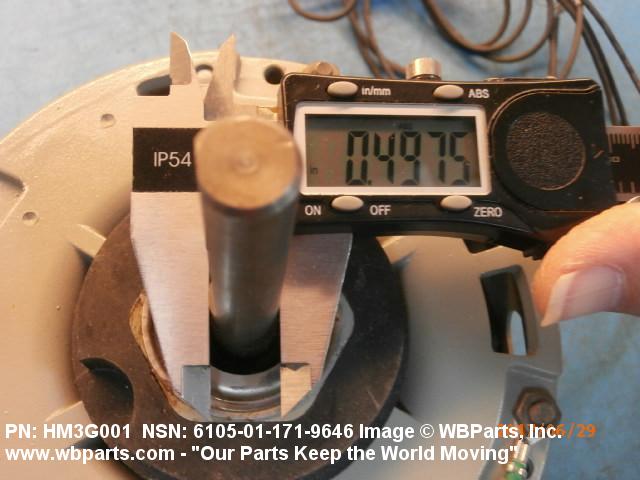

| SHAFT DIAMETER | 0.499 INCHES MINIMUM AND 0.500 INCHES MAXIMUM SINGLE END |
| FLATTED PORTION LENGTH | 2.0000 INCHES NOMINAL SINGLE END |

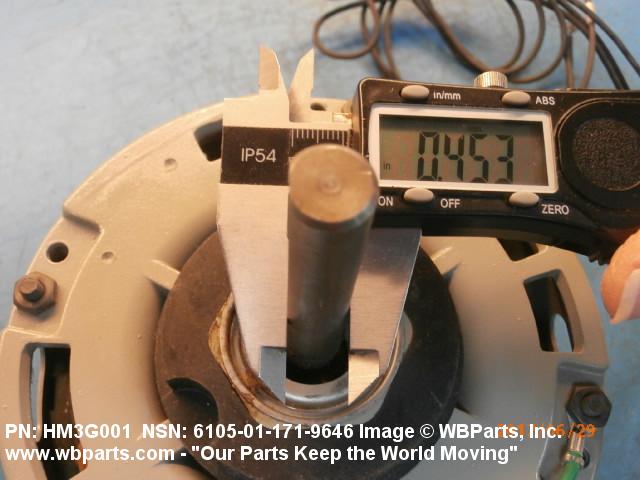

| FLAT DEPTH | 0.0470 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | HORIZONTAL MOUNTING POSITION |
Restrictions/Controls & Freight Information | NSN 6105-01-171-9646
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-171-9646
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
