NSN 6105-01-233-2342 FM86539, FM-86539, 801620-007
Product Details | ALTERNATING CURRENT MOTOR
6105-01-233-2342 A motor which is designed for operation from an alternating current source. See also MOTOR, CONTROL.
Part Alternates: FM86539, FM-86539, 801620-007, 460810, 5008264321, 500826-4321, 6105-01-233-2342, 01-233-2342, 6105012332342, 012332342, 801620007
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 28 MAY 1986 | 01-233-2342 | 00530 ( MOTOR, ALTERNATING CURRENT ) |

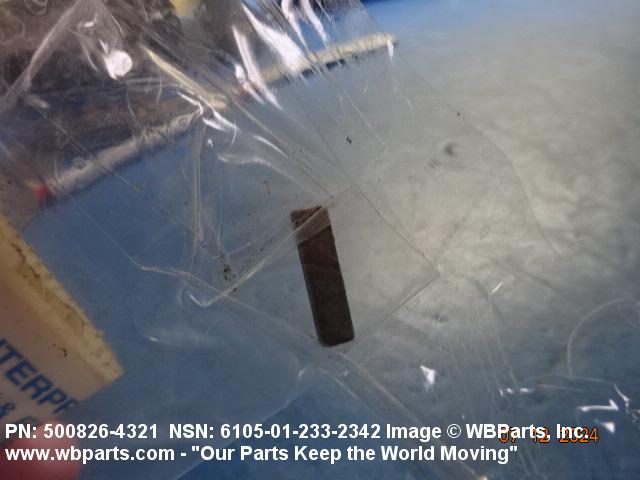

Drawings & Photos | NSN 6105-01-233-2342
Demand History | NSN 6105-01-233-2342
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-233-2342 | 2024-06-181 | 1 | United States |
| 6105-01-233-2342 | 2015-02-35 | 2 | DIBBS |
| 6105-01-233-2342 | 2014-10-281 | 2 | DIBBS |
| 6105-01-233-2342 | 2014-09-261 | 5 | DIBBS |
| 6105-01-233-2342 | 2013-12-355 | 3 | DIBBS |
| 6105-01-233-2342 | 2013-12-339 | 3 | DIBBS |
| 6105-01-233-2342 | 2013-11-308 | 2 | DIBBS |
| 6105-01-233-2342 | 2013-03-71 | 3 | DIBBS |
| 6105-01-233-2342 | 2013-02-33 | 5 | DIBBS |
| 6105-01-233-2342 | 2012-08-243 | 4 | DIBBS |
| 6105-01-233-2342 | 2012-03-79 | 4 | DIBBS |
| 6105-01-233-2342 | 2009-05-134 | 1 | DIBBS |
| 6105-01-233-2342 | 2008-10-291 | 6 | DIBBS |
Cross Reference | NSN 6105-01-233-2342
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 460810 | 50380 | RELIANCE ELECTRIC |
| 500826-4321 | 75477 | HOWDEN NORTH AMERICA INC. DBA HOWDEN NORTH AMERICA |
| 801620-007 | 09519 | NEW PHILADELPHIA FAN CO BUFFALO FORGE MARINE FANS |
| 801620-007 | 50380 | RELIANCE ELECTRIC |
| 801620-007 | 75477 | HOWDEN NORTH AMERICA INC. DBA HOWDEN NORTH AMERICA |
| FM-86539 | 38740 | RELIANCE ELECTRIC INDUSTRIAL CO MASTER DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-233-2342
Related Products | NSN 6105-01-233-2342
Technical Data | NSN 6105-01-233-2342
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF SINGLE END |
| SHAFT END CHARACTERISTIC | A2 SINGLE STYLE SINGLE END |
| SHAFT ROTATION DIRECTION | CLOCKWISE OR COUNTERCLOCKWISE SINGLE END |
| POWER RATING | 0.333 HORSEPOWER INPUT |
| LENGTH OF SHAFT FROM HOUSING | 2.400 INCHES SINGLE END |
| OVERALL WIDTH | 7.562 INCHES |
| OVERALL LENGTH | 10.750 INCHES |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 440.0 LINE TO LINE SINGLE INPUT |
| DUTY CYCLE | CONTINUOUS |
| FREQUENCY IN HERTZ | 60.0 INPUT |
| PHASE | THREE INPUT |
| NOMINAL THREAD SIZE | 0.500 INCHES SINGLE END |
| SHAFT DIAMETER | 0.625 INCHES NOMINAL SINGLE END |
| MOUNTING METHOD | FACE |
| THREAD CLASS | 2A SINGLE END |
| FRAME SIZE DESIGNATION | M48CZ |
| THREAD DIRECTION | RIGHT-HAND SINGLE END |
| COOLING METHOD | NONVENTILATED |
| OVERALL HEIGHT | 5.687 INCHES |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| TEMP RATING | 65.0 AMBIENT DEG CELSIUS |
| CURRENT RATING METHOD | NO LOAD |
| ROTOR SPEED RATING IN RPM | 3450.0 SINGLE NO LOAD |
| WINDING TYPE | INDUCTION-SQUIRREL CAGE |
| THREAD LENGTH | 0.750 INCHES NOMINAL SINGLE END |
Restrictions/Controls & Freight Information | NSN 6105-01-233-2342
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-233-2342
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
