NSN 6105-01-262-3330 ESPL35EMI, ESP-L35EMI, 31738
Product Details | ALTERNATING CURRENT MOTOR
6105-01-262-3330 A motor which is designed for operation from an alternating current source. See also MOTOR, CONTROL.
Part Alternates: ESPL35EMI, ESP-L35EMI, 31738, 6105-01-262-3330, 01-262-3330, 6105012623330, 012623330
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 27 AUG 1987 | 01-262-3330 | 00530 ( MOTOR, ALTERNATING CURRENT ) |

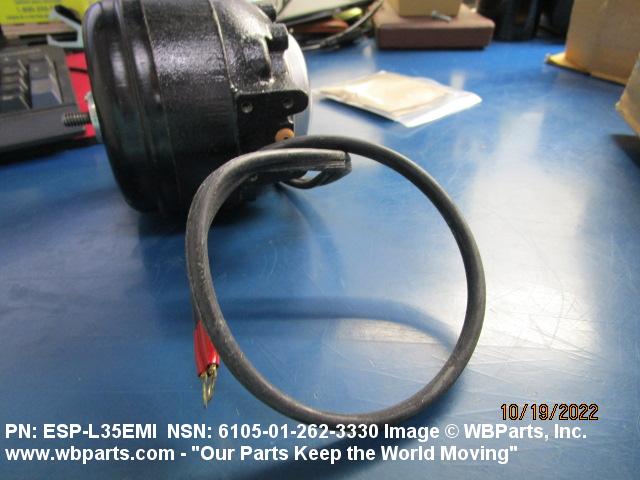

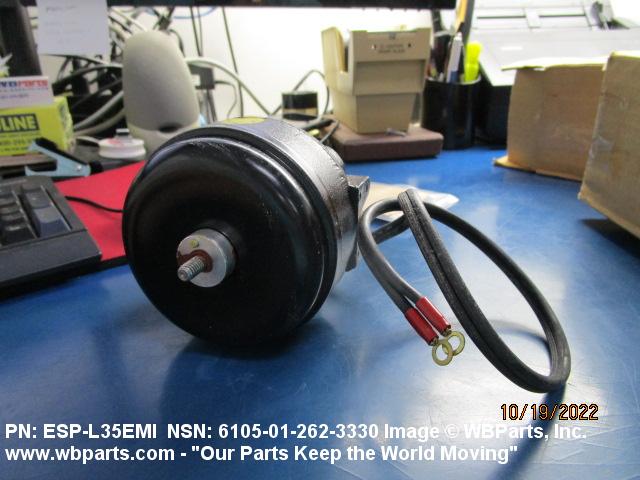

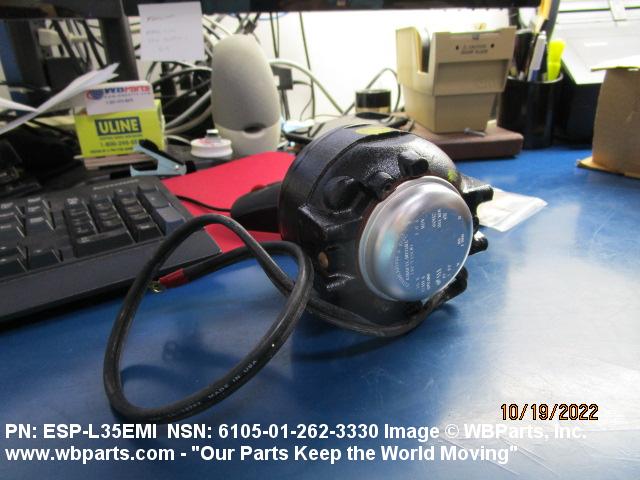

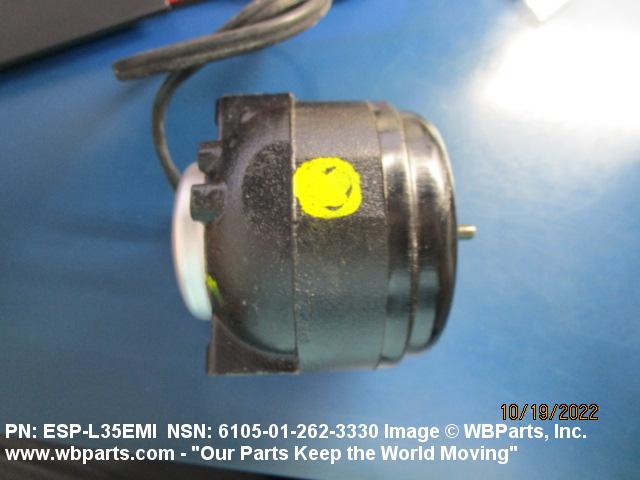

Drawings & Photos | NSN 6105-01-262-3330
Demand History | NSN 6105-01-262-3330
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-262-3330 | 2022-08-228 | 2 | El Salvador |
| 6105-01-262-3330 | 2016-01-23 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-262-3330
Related Products | NSN 6105-01-262-3330
Technical Data | NSN 6105-01-262-3330
| Characteristic | Specifications |
|---|---|
| SHAFT CENTER TO MOUNTING SURFACE DISTANCE | 7.340 INCHES SINGLE END |
| MOUNTING METHOD | PEDESTAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 6.500 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT RATING IN AMPS | 1.400 SINGLE INPUT |
| FREQUENCY IN HERTZ | 60.0 INPUT |
| PHASE | SINGLE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO LINE SINGLE INPUT |
| POWER RATING | 35.0 WATTS OUTPUT |
| WINDING TYPE | INDUCTION-SHADED POLE |
| DUTY CYCLE | CONTINUOUS |
| TEMP RATING | 120.0 OPERATING DEG CELSIUS |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE SINGLE END |
| ROTOR SPEED RATING IN RPM | 1550.0 SINGLE FULL LOAD |
| SHAFT END CHARACTERISTIC | A5 SINGLE STYLE SINGLE END |
| FEATURES PROVIDED | THERMAL PROTECTIVE DEVICE AND HORIZONTAL MOUNTING POSITION |
Restrictions/Controls & Freight Information | NSN 6105-01-262-3330
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-262-3330
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
