NSN 6105-01-394-8593 W0701, 13229E6155, 01-394-8593
Product Details | ALTERNATING CURRENT MOTOR
6105-01-394-8593 A motor which is designed for operation from an alternating current source. See also MOTOR, CONTROL.
Part Alternates: W0701, 13229E6155, 6105-01-394-8593, 01-394-8593, 6105013948593, 013948593
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01-394-8593 | 00530 ( MOTOR, ALTERNATING CURRENT ) |

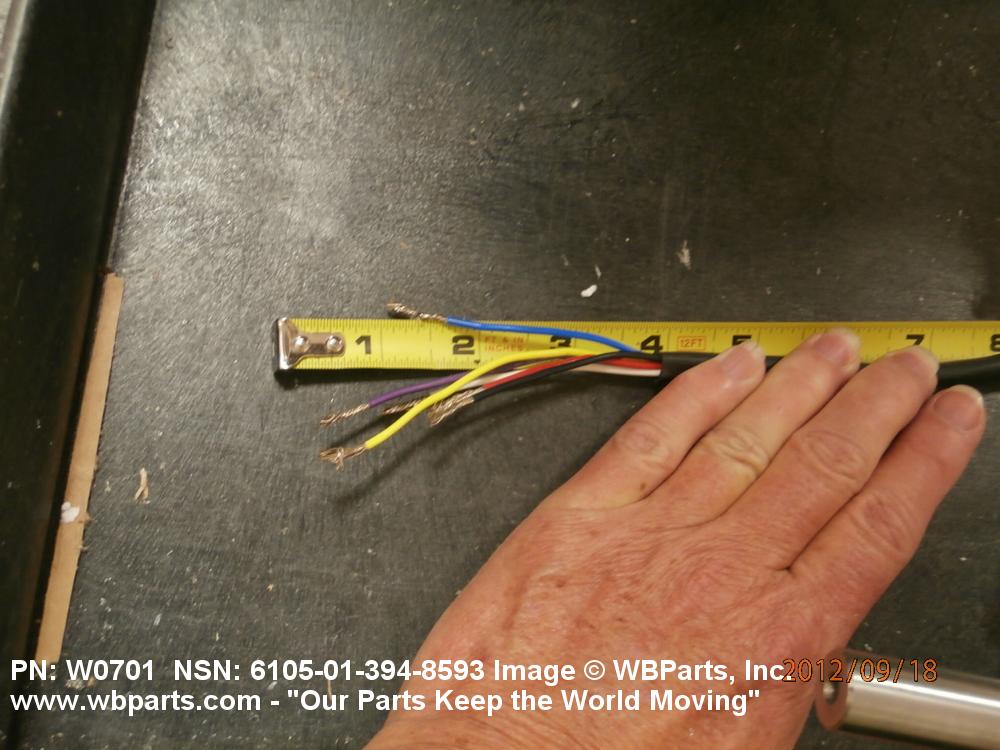

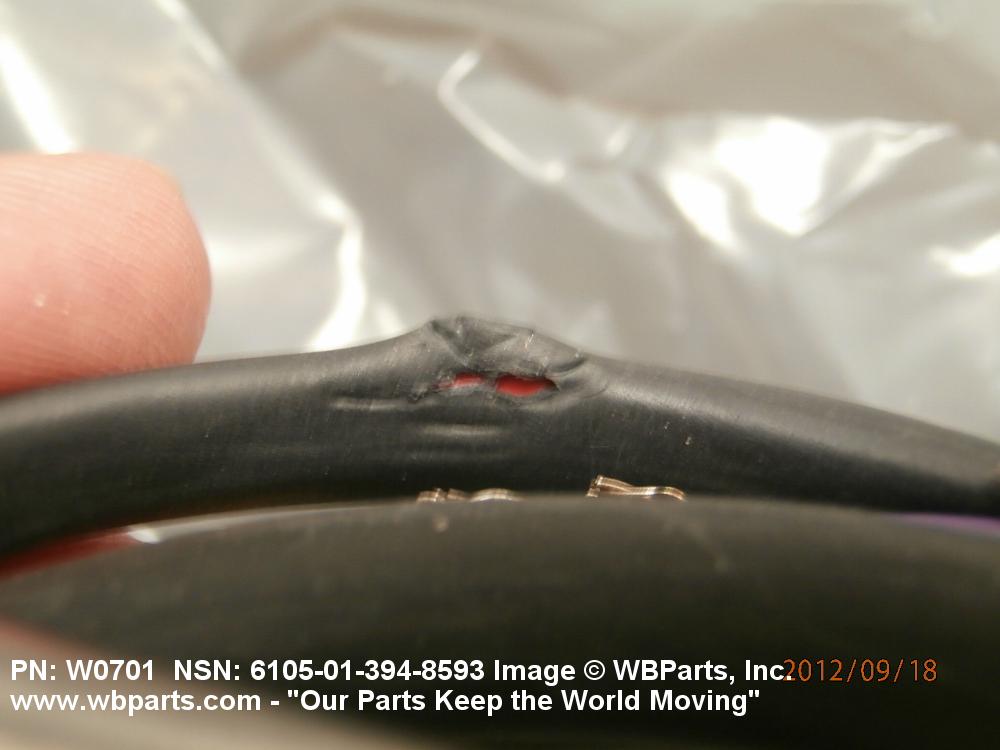

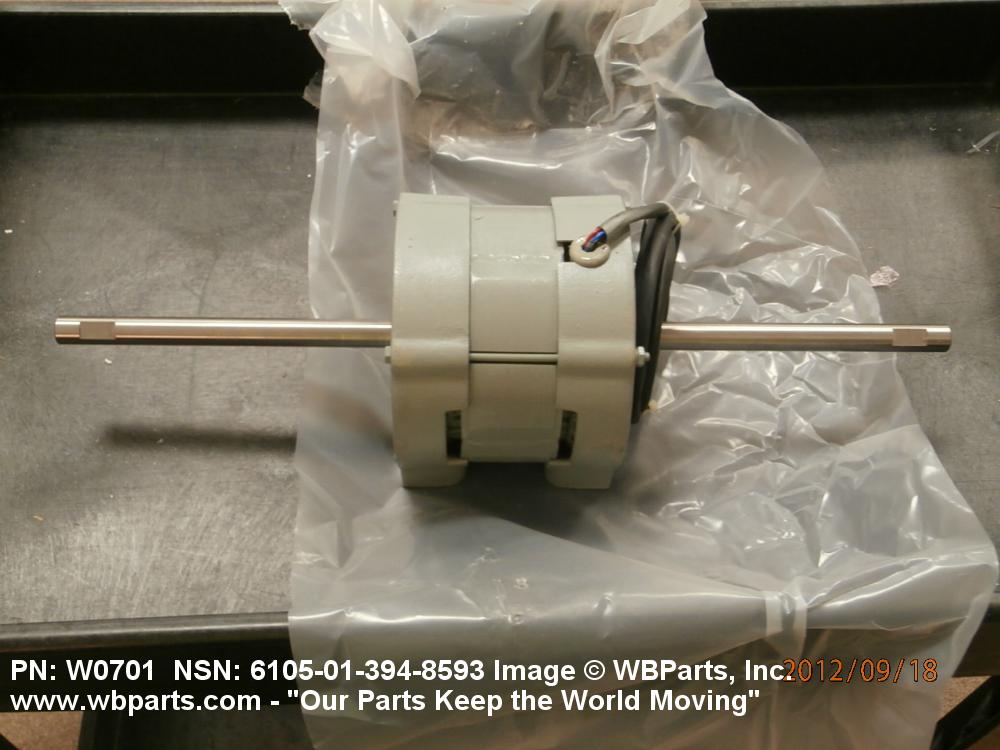

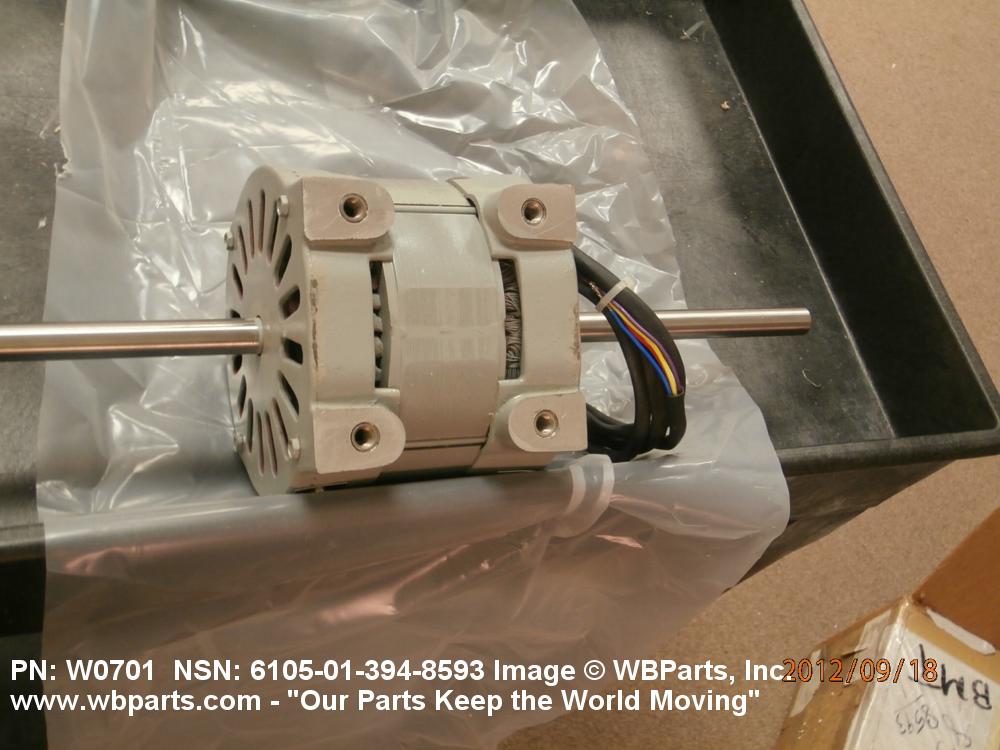

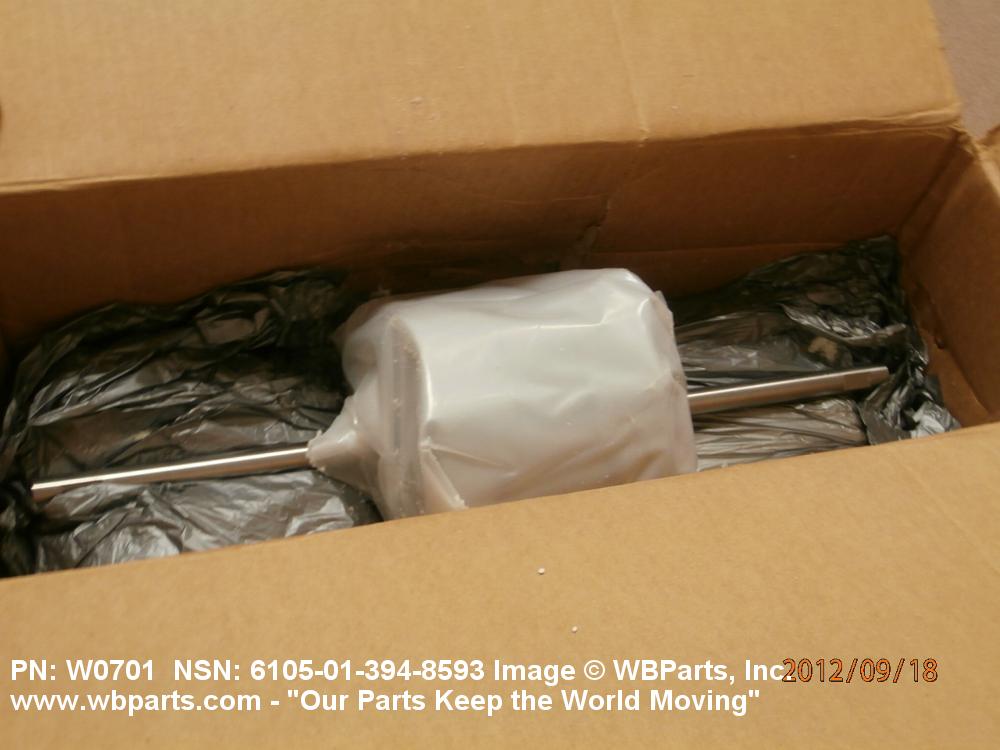

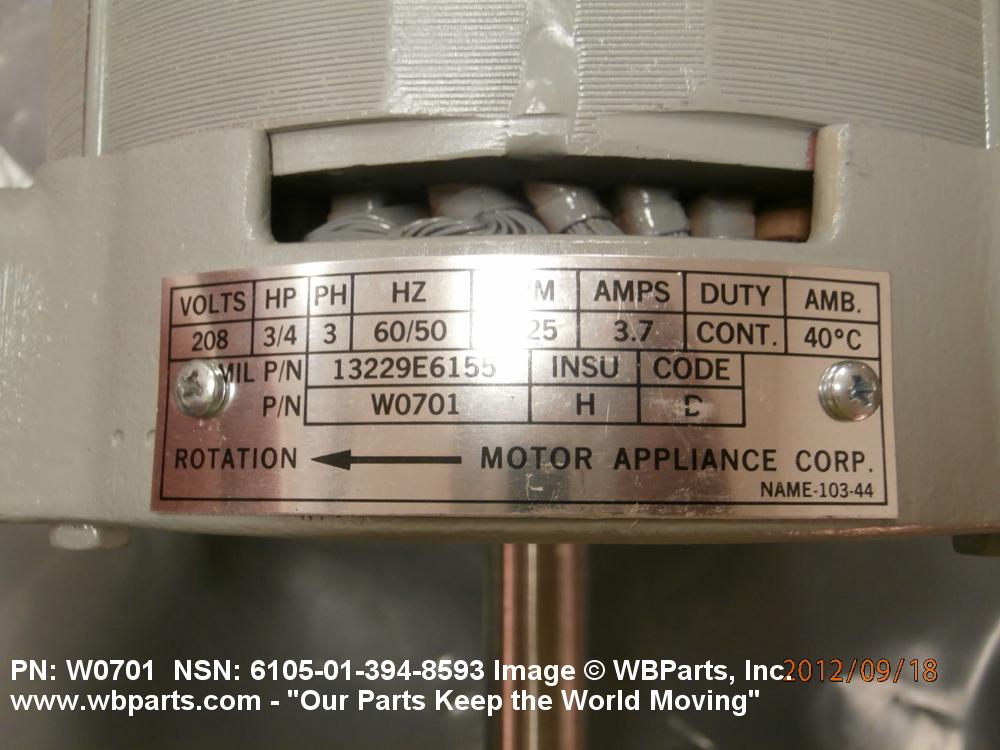

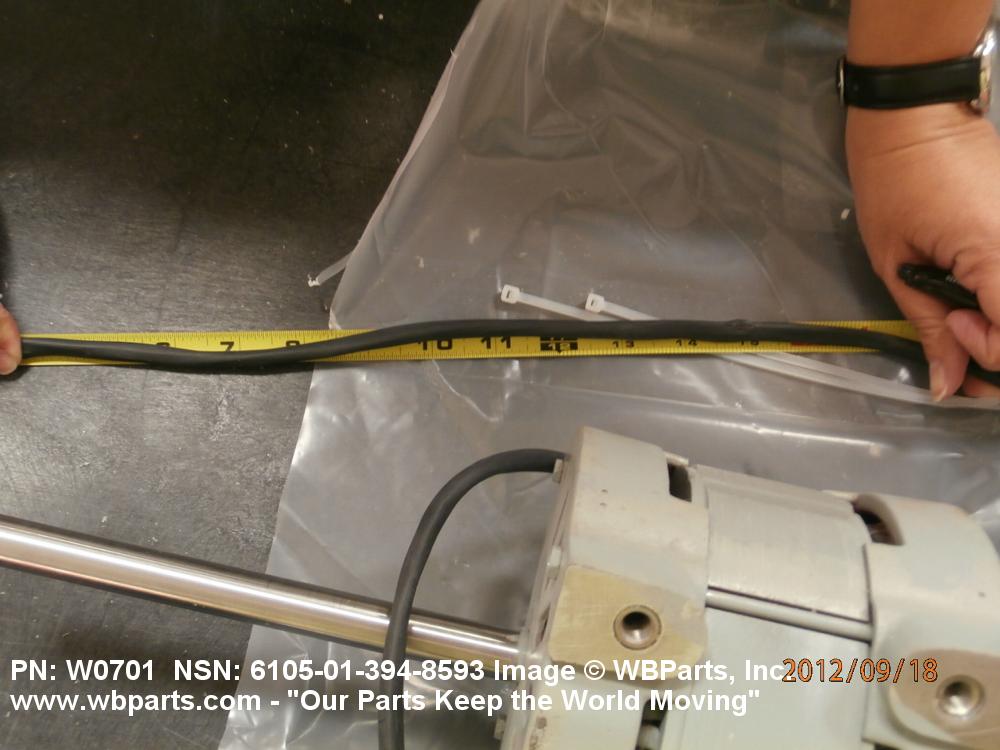

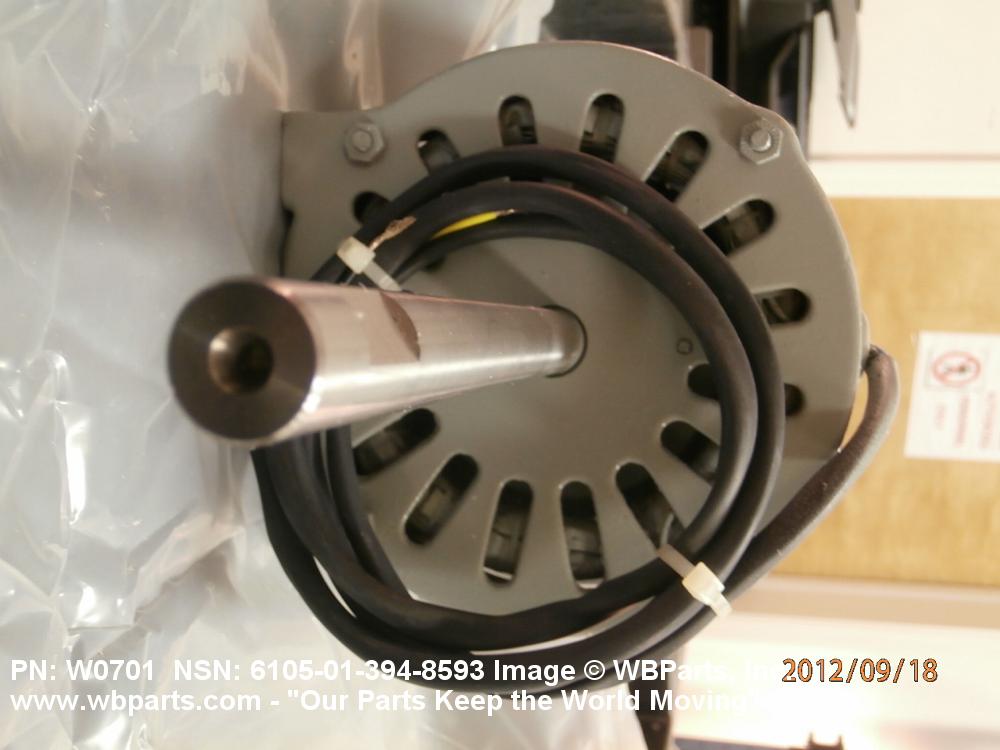

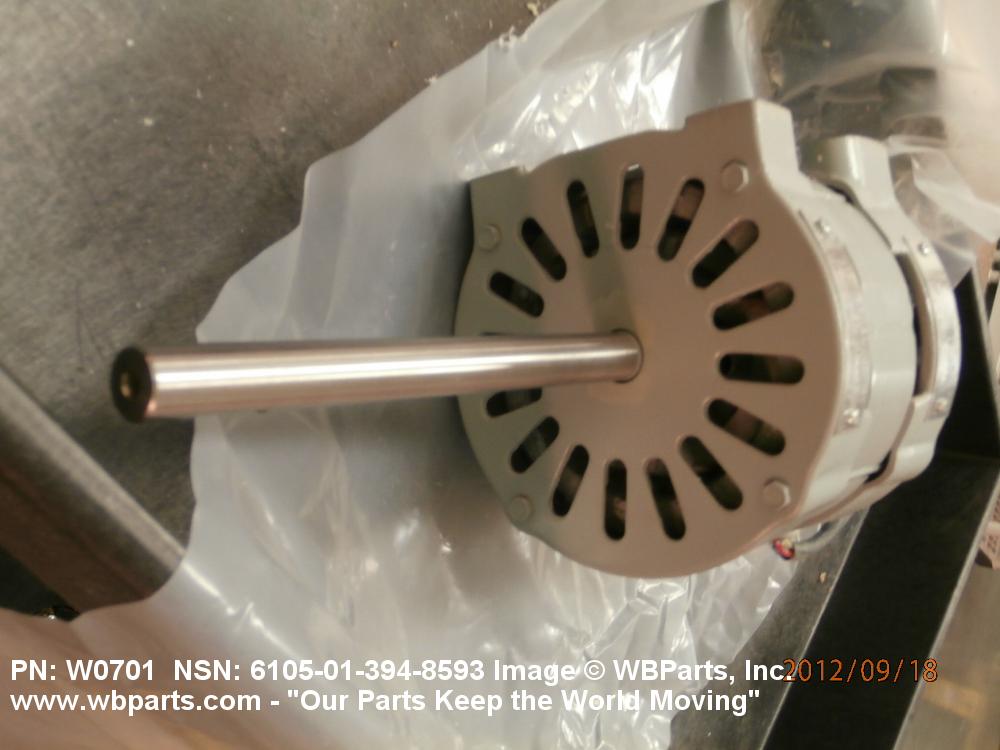

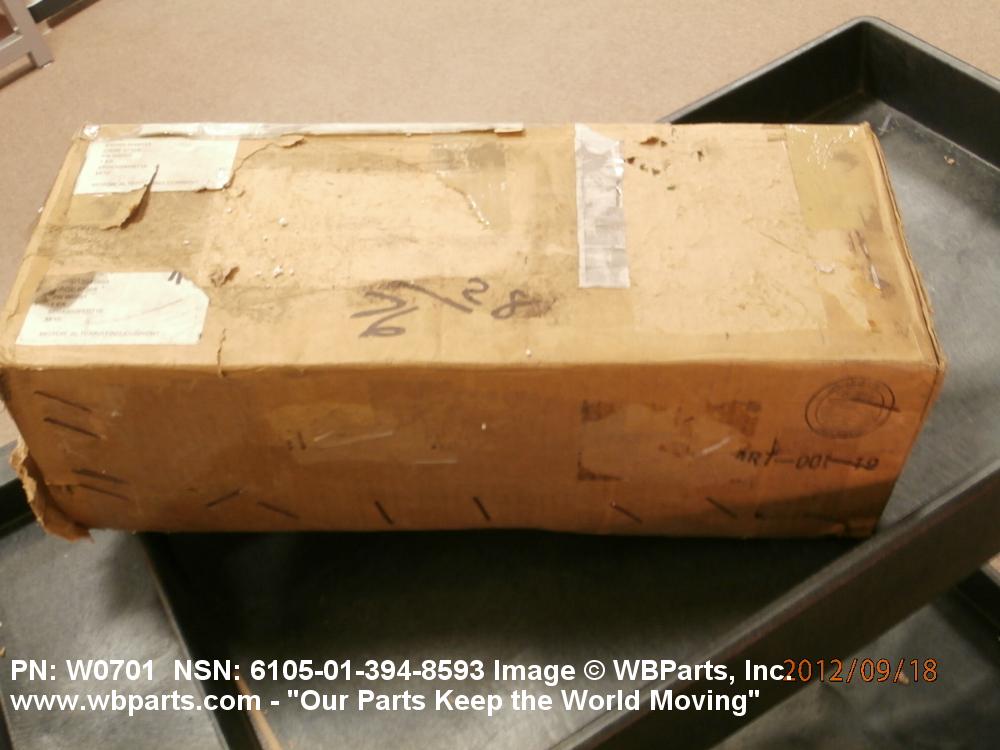

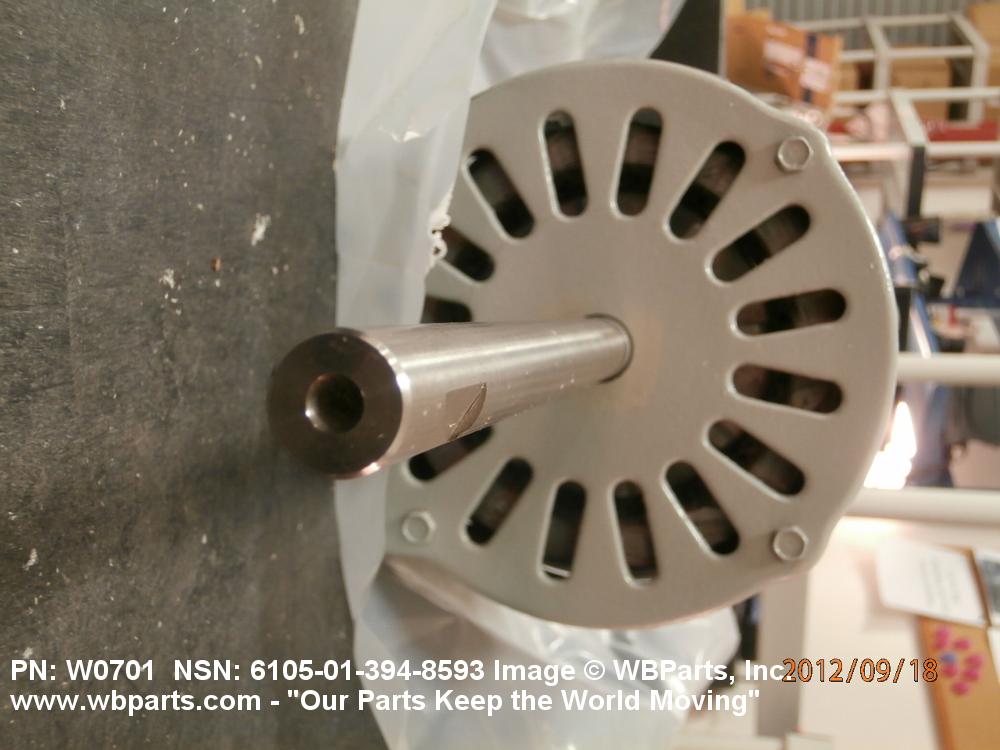

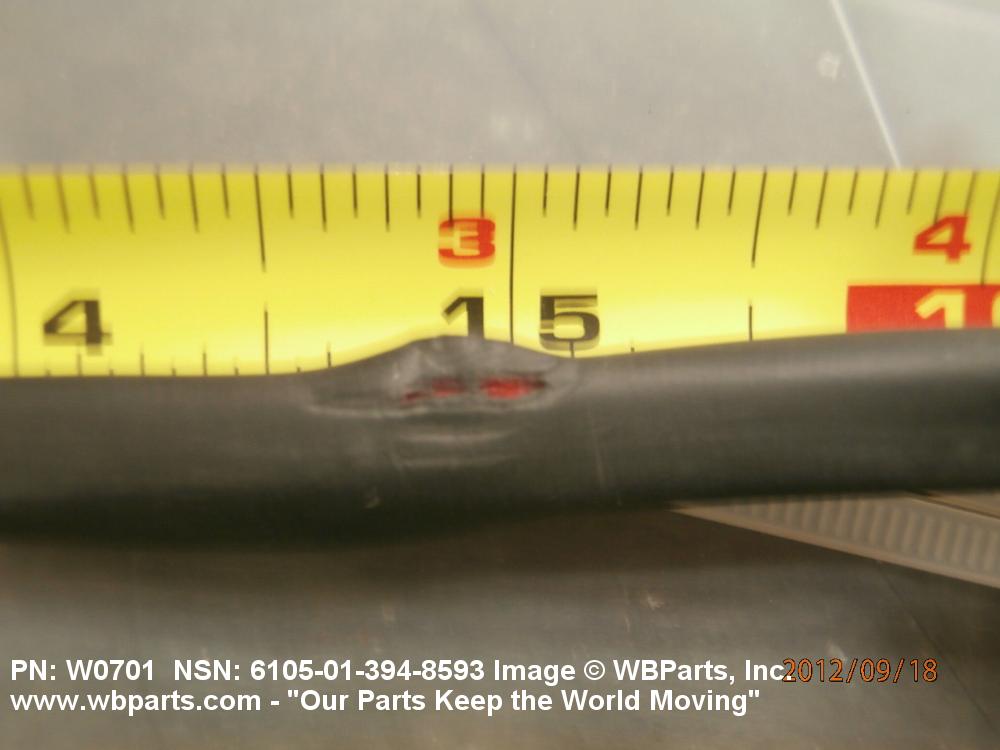

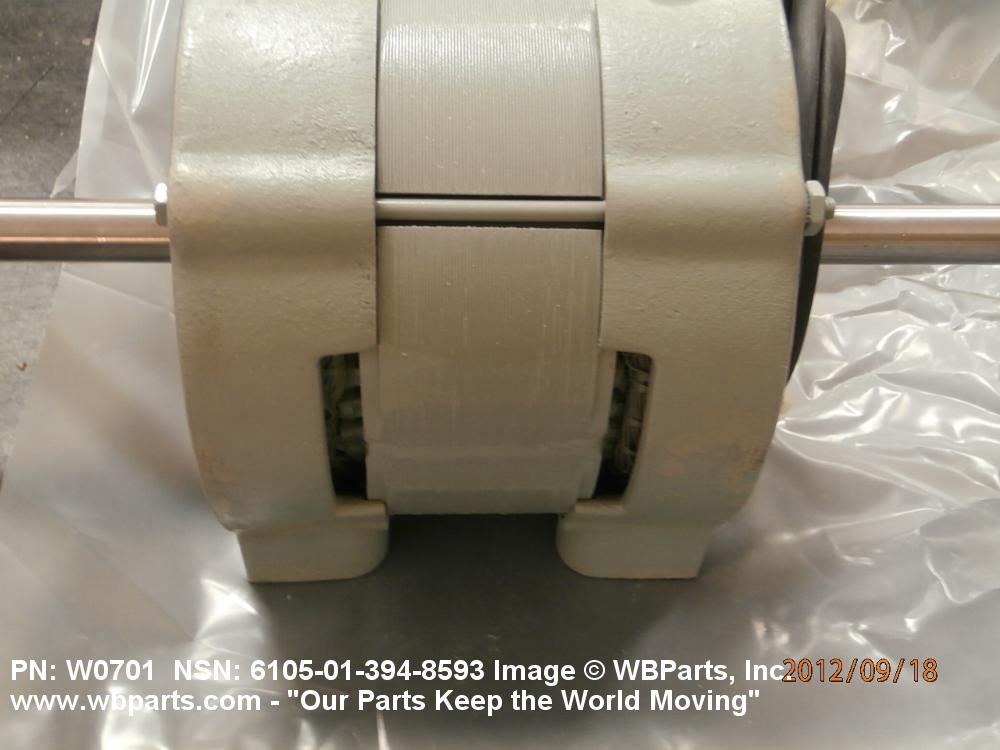

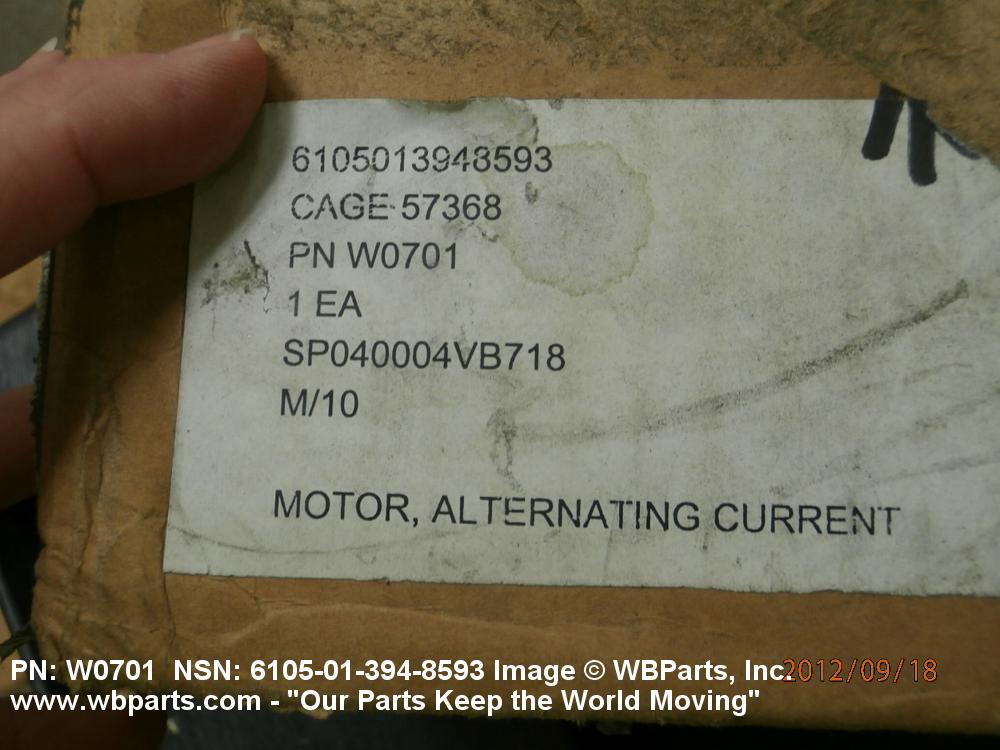

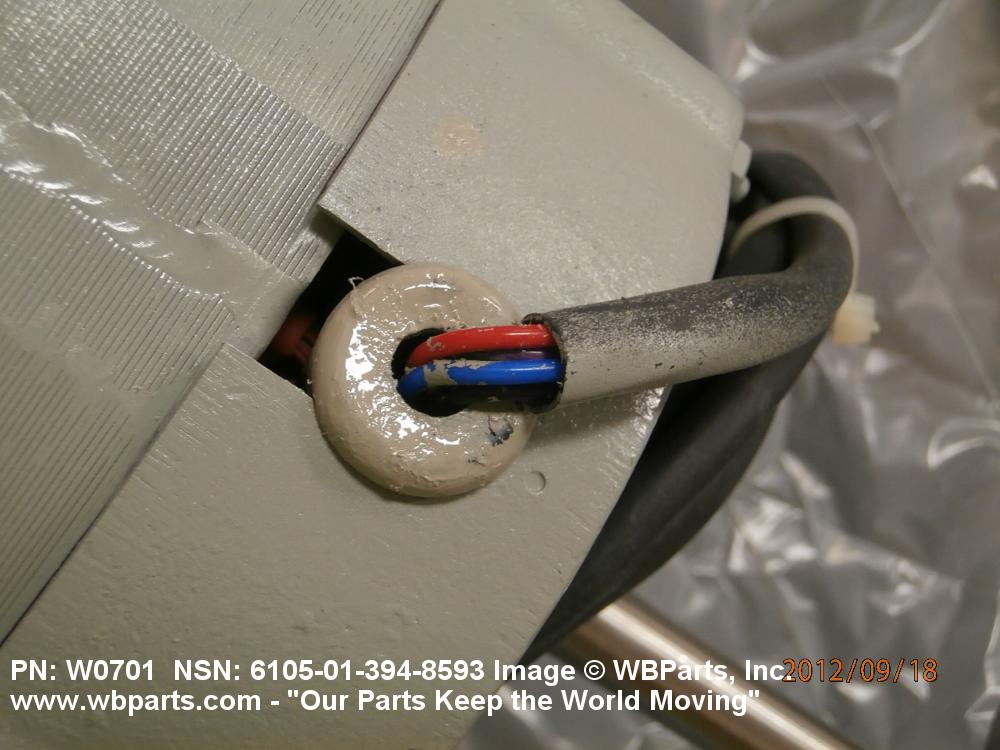

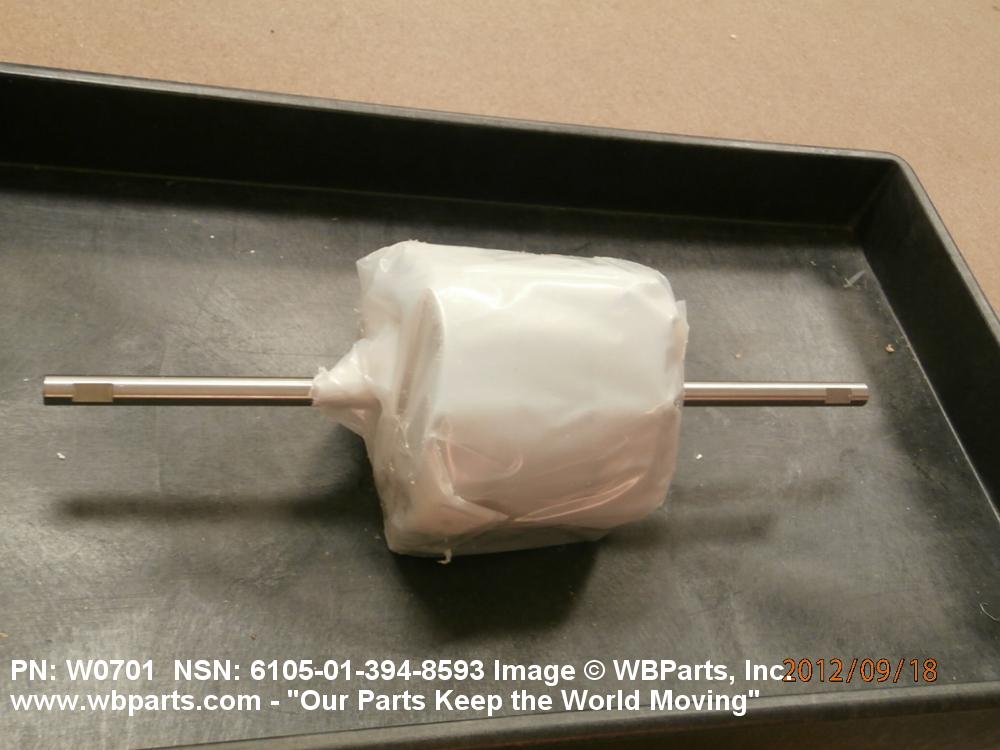

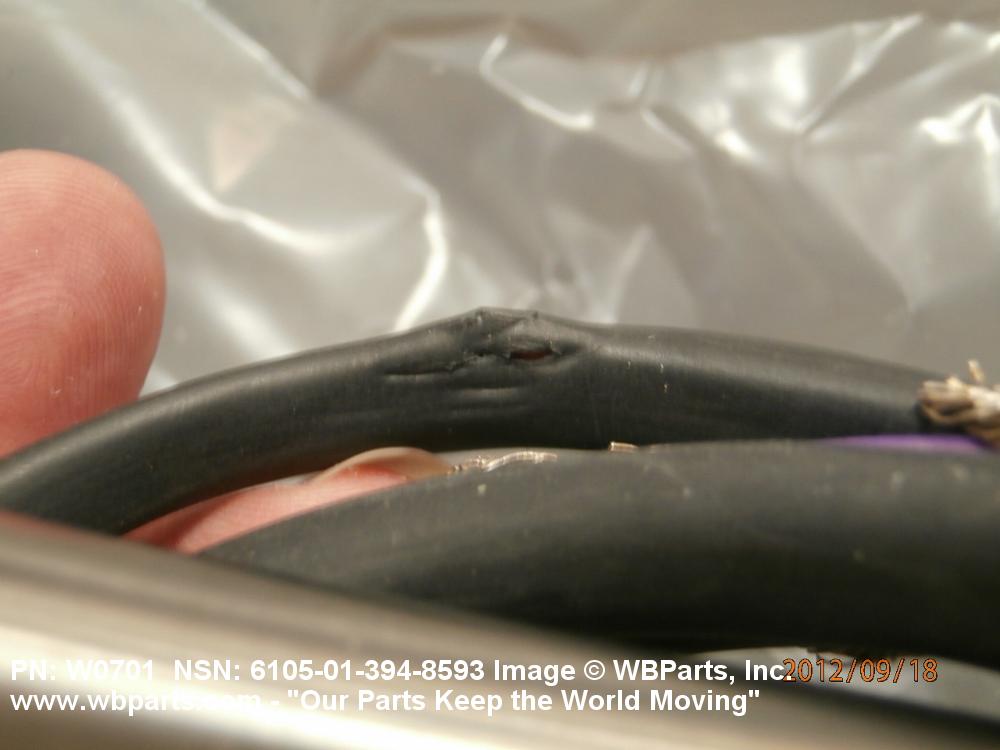

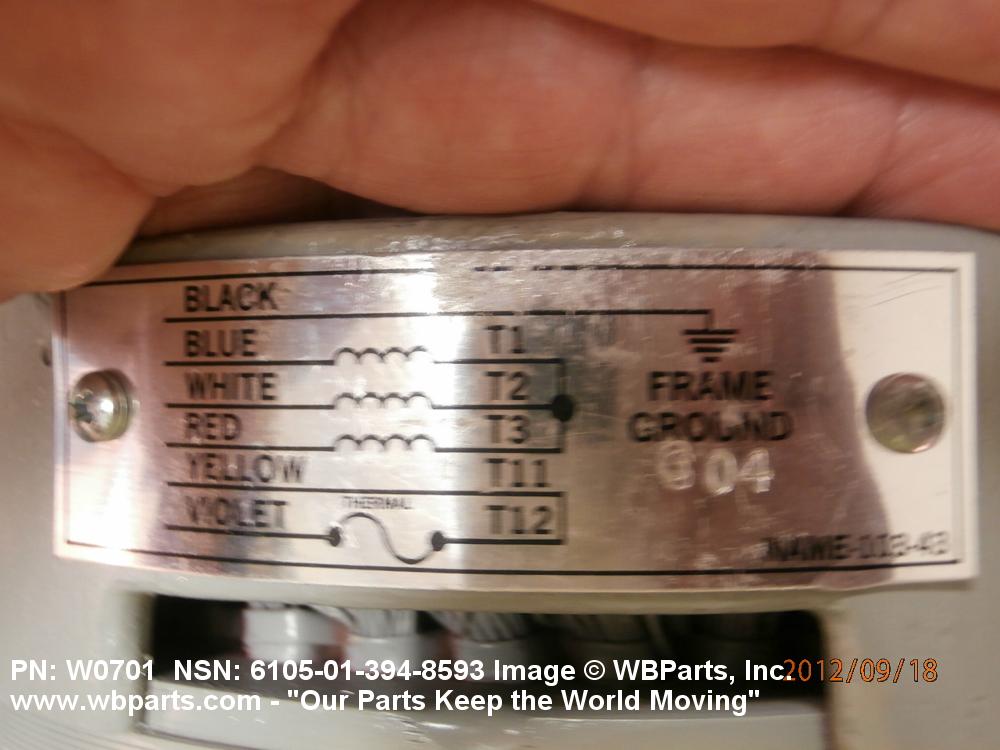

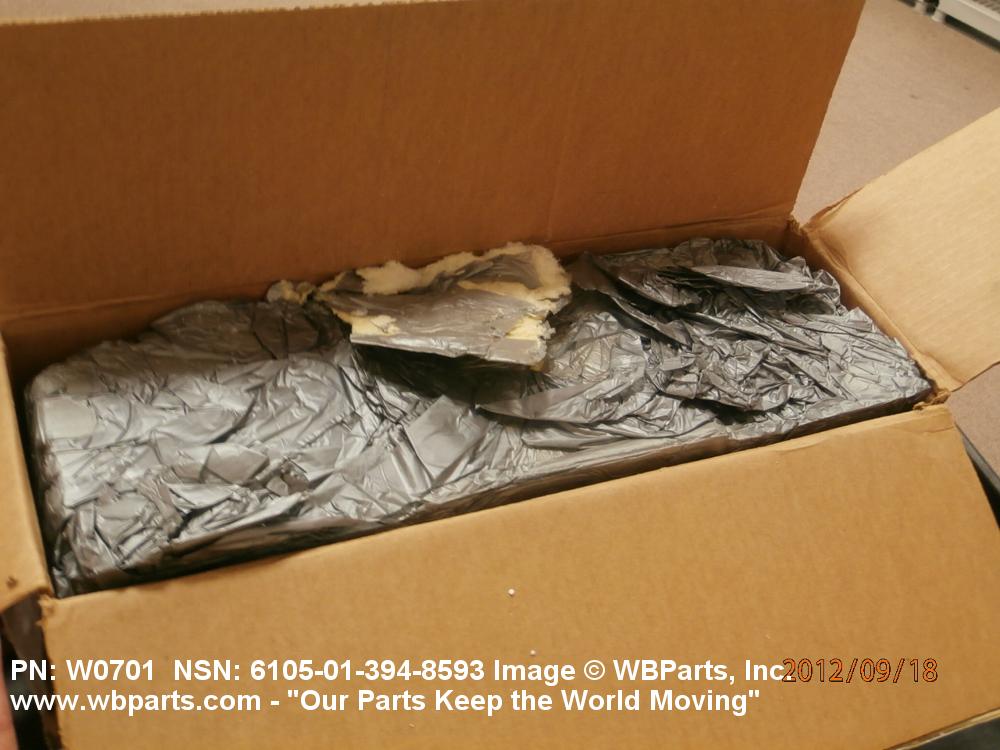

Drawings & Photos | NSN 6105-01-394-8593
Demand History | NSN 6105-01-394-8593
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-394-8593 | 2012-08-236 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-394-8593
Related Products | NSN 6105-01-394-8593
Technical Data | NSN 6105-01-394-8593
| Characteristic | Specifications |
|---|---|
| MOUNTING METHOD | PEDESTAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | NEMA |
| FRAME SIZE DESIGNATION | MG1 |
| CURRENT RATING IN AMPS | 3.700 SINGLE INPUT |
| CURRENT RATING METHOD | LOAD |
| FREQUENCY IN HERTZ | 60.0 INPUT |
| PHASE | THREE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 208.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 0.750 HORSEPOWER OUTPUT |
| DUTY CYCLE | CONTINUOUS |
| TEMP RATING | 40.0 AMBIENT DEG CELSIUS |
| COOLING METHOD | FAN COOLED |
| ROTOR SPEED RATING IN RPM | 1725.0 SINGLE FULL LOAD |
Restrictions/Controls & Freight Information | NSN 6105-01-394-8593
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
