Product Details | ELECTRICAL SYSTEM PROTECTION PANEL
6110-00-091-9436 A panel which is specifically designed to provide one or more kinds of protection for any or all equipment used in an electrical system. Protection provided may be such as differential current protection, reverse phase sequence connection protection, over-excitation protection, under-speed protection, over-voltage protection, fault protection, under-voltage protection, surge protection, etc. May control the generator(s) operation. Incorporates into a single item the system protection formerly placed at various points in the electrical system. For panels designed for the protection of power line feeders only, see PANEL, POWER DISTRIBUTION and PANEL, FUSE. For items designed to transfer the load from one power source to an alternate power source, see SWITCHING UNIT, POWER TRANSFER.
Part Alternates: M22438/2-001 , M224382001, M22438-2-001, MILP22438, MIL-P-22438, MILP224382, MILP22438-2, 6110-00-091-9436, 00-091-9436, 6110000919436, 000919436
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-091-9436 | 05933 ( PANEL, PROTECTION, ELECTRICAL SYSTEM ) |

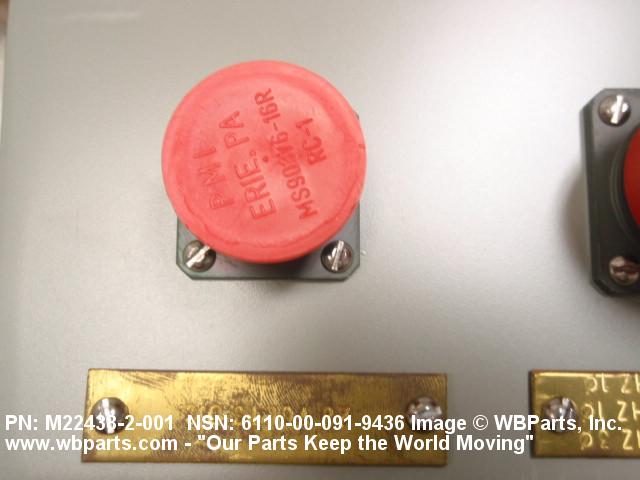

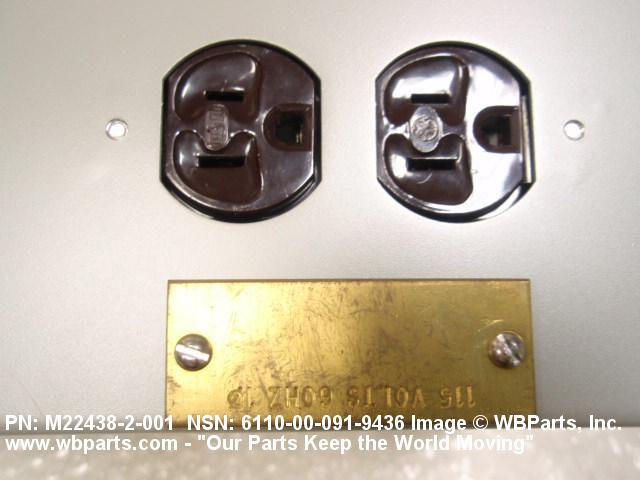

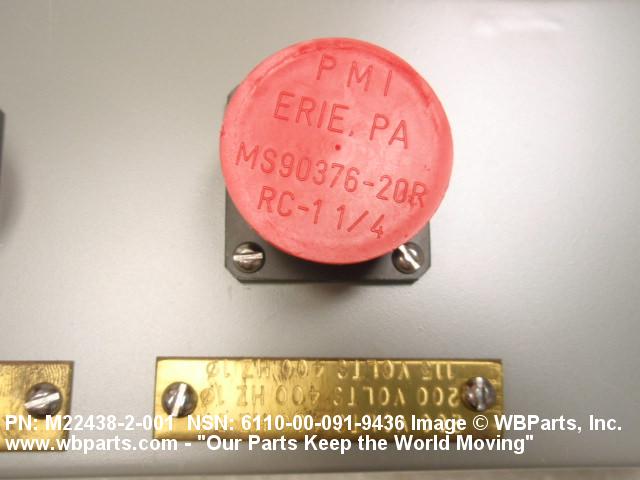

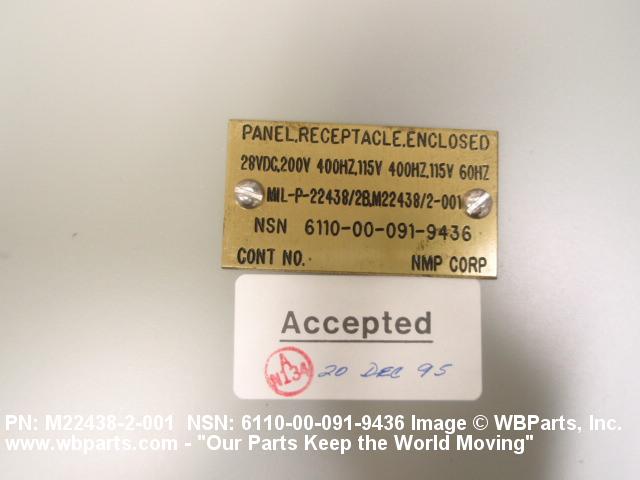

Drawings & Photos | NSN 6110-00-091-9436
Demand History | NSN 6110-00-091-9436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6110-00-091-9436 | 2022-02-02 | 2 | DIBBS |
| 6110-00-091-9436 | 2021-05-09 | 1 | DIBBS |
| 6110-00-091-9436 | 2021-02-15 | 6 | DIBBS |
| 6110-00-091-9436 | 2013-05-29 | 4 | DIBBS |
| 6110-00-091-9436 | 2013-03-19 | 5 | DIBBS |
| 6110-00-091-9436 | 2010-04-30 | 1 | United States |
| 6110-00-091-9436 | 2008-09-08 | 4 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6110-00-091-9436
6110-00-092-1482, 6110-00-092-4980, 6110-00-092-5063, 6110-00-092-5112, 6110-00-092-5115
Technical Data | NSN 6110-00-091-9436
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | ALUM ALLOY;11.50 IN. L,8.876 IN. W,3.876 IN. HG |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-22438 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILP22438-2 |
Restrictions/Controls & Freight Information | NSN 6110-00-091-9436
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-00-091-9436
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
