NSN 6110-00-144-0043 00-144-0043, 001440043
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY
6110-00-144-0043 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL, having one or more ends processed or terminated in fittings which provide for connection to other items. Excludes items having branches or forks. Excludes LEAD, TEST and CABLE AND CONDUIT ASSEMBLY, ELECTRICAL.20611350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance132500004935000059950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 6110-00-144-0043, 00-144-0043, 6110001440043, 001440043
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 00-144-0043 | 00782 ( CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL ) |
Drawings & Photos | NSN 6110-00-144-0043
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6110-00-144-0043
Technical Data | NSN 6110-00-144-0043
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS PLASTIC 1ST POSITION JACKET CABLE |
| ROUND CONDUCTOR SIZE | 16 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 26 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 30 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 2 SINGLES |
| COLOR | BLACK 1ST POSITION COVER FIRST CONDUCTOR WHITE 2ND POSITION COVER SECOND CONDUCTOR |

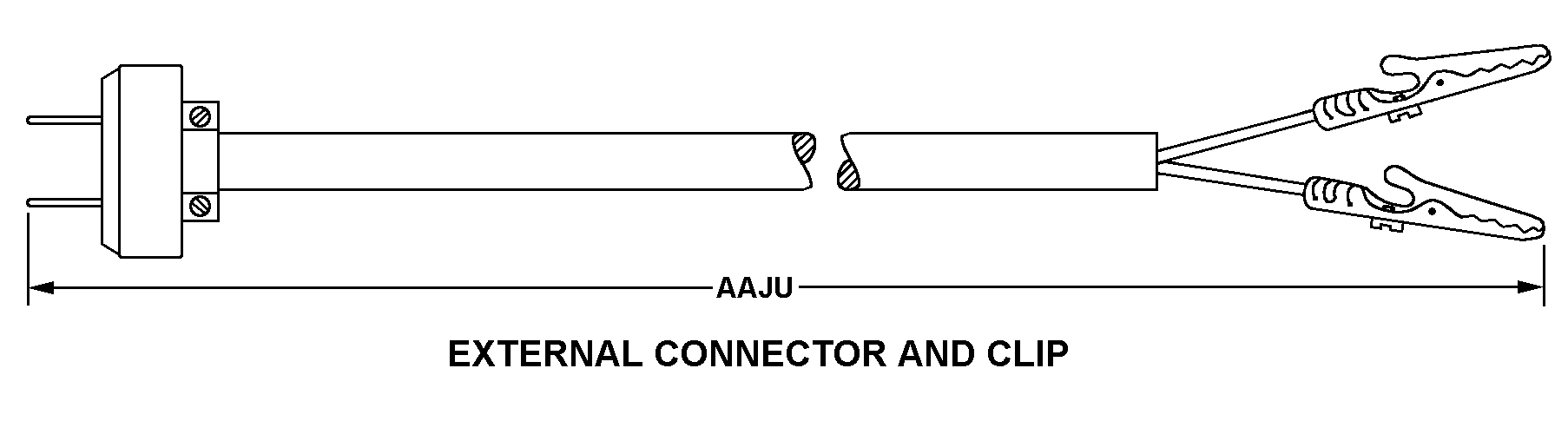

| STYLE DESIGNATOR | 25 EXTERNAL CONNECTOR AND CLIP |
| OVERALL LENGTH | 15.000 FEET |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.353 INCHES NOMINAL |
| III FSC APPLICATION DATA | FOR USE WITH CONTROLLER,MOTOR |
Restrictions/Controls & Freight Information | NSN 6110-00-144-0043
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
