NSN 6110-00-500-0046 A40A1704, 00-500-0046, 005000046
Product Details | VOLTAGE REGULATOR
6110-00-500-0046 A component within a single inclosure or provided with a single mounting specifically designed to control automatically the voltage output of an electrical system within certain required limits, regardless of variations of the effective load or of input voltages within a specific range. Does not include items in which regulation is accomplished solely by transformer action. See also REGULATOR SET, VOLTAGE. Excludes REGULATOR, ENGINE GENERATOR.20259630018Electronic Modules61100028Electrical Control Equipment
Part Alternates: A40A1704, 6110-00-500-0046, 00-500-0046, 6110005000046, 005000046
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-500-0046 | 00176 ( REGULATOR, VOLTAGE ) |

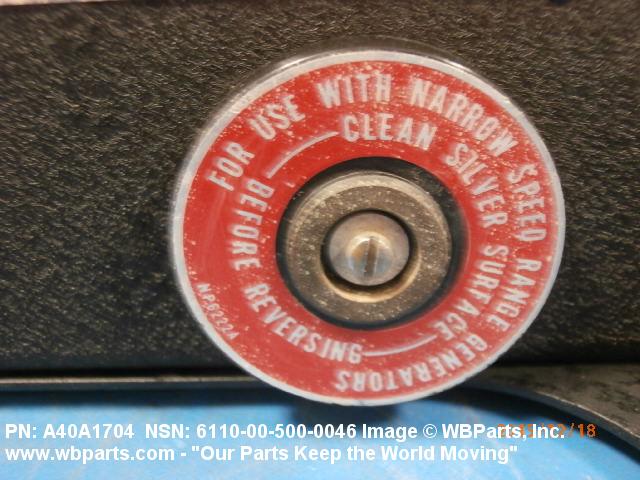

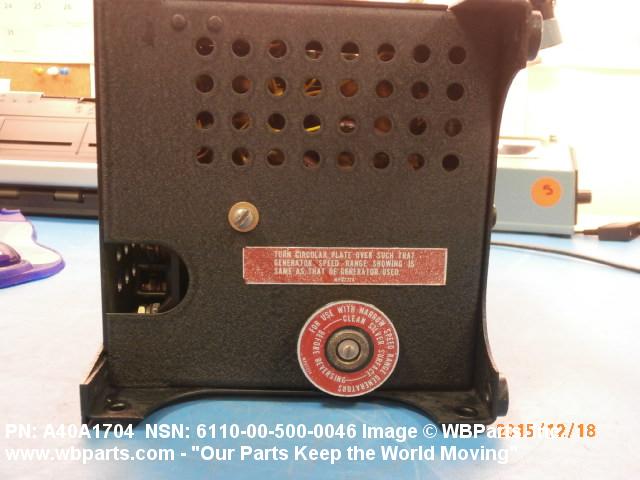

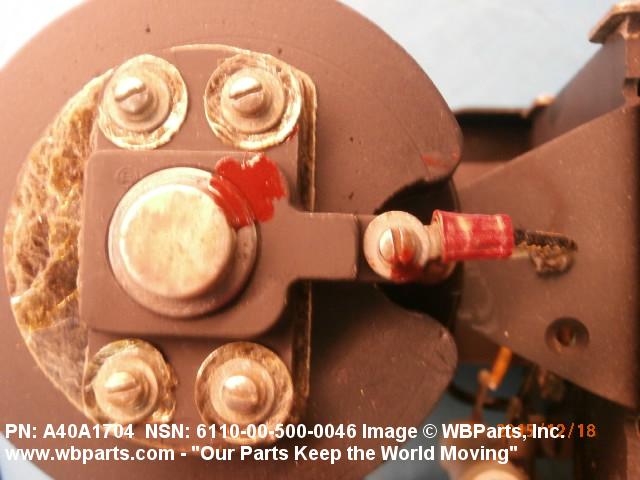

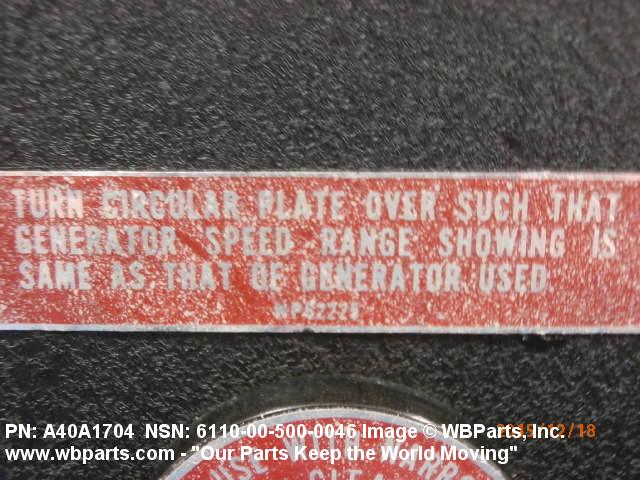

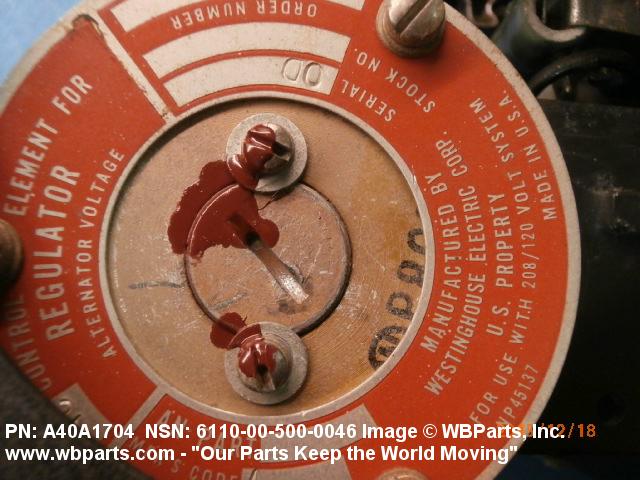

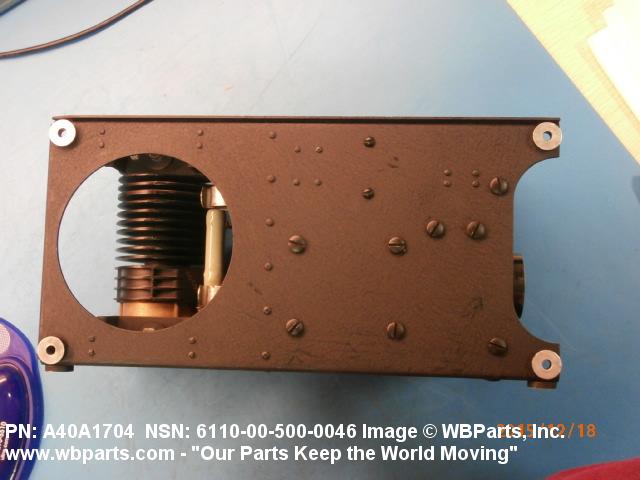

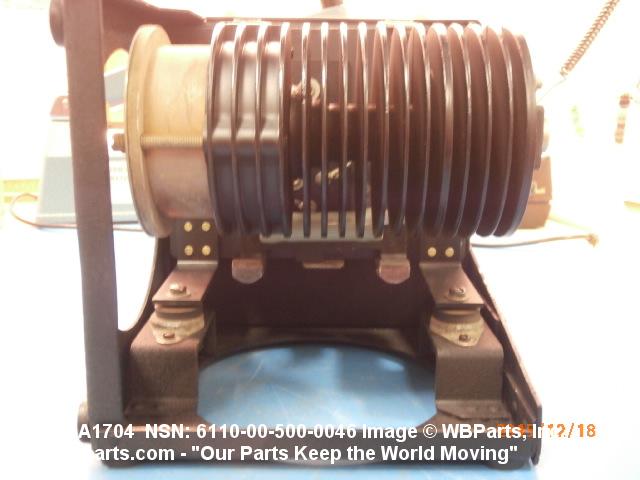

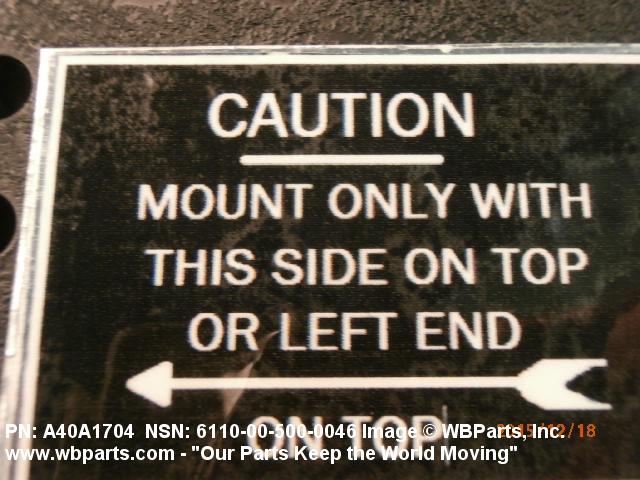

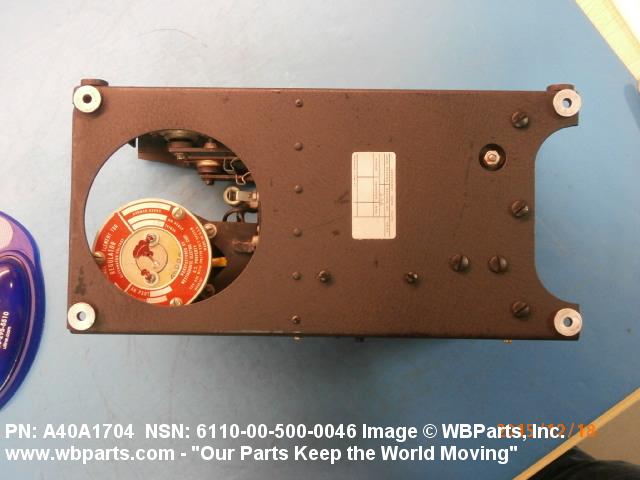

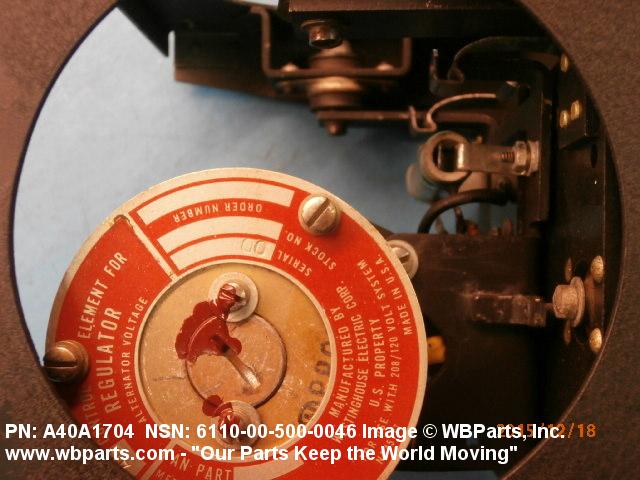

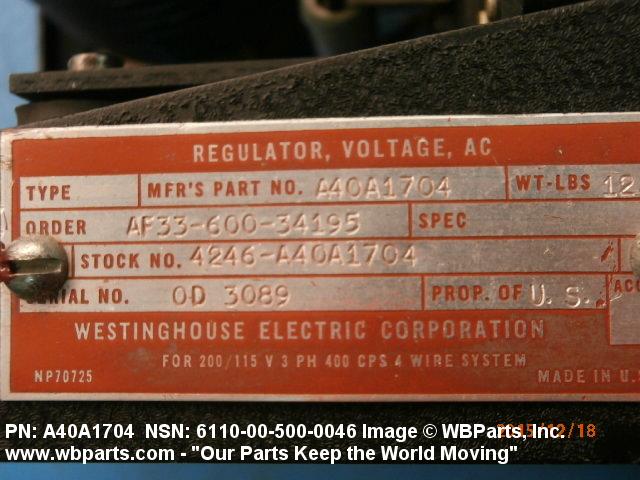

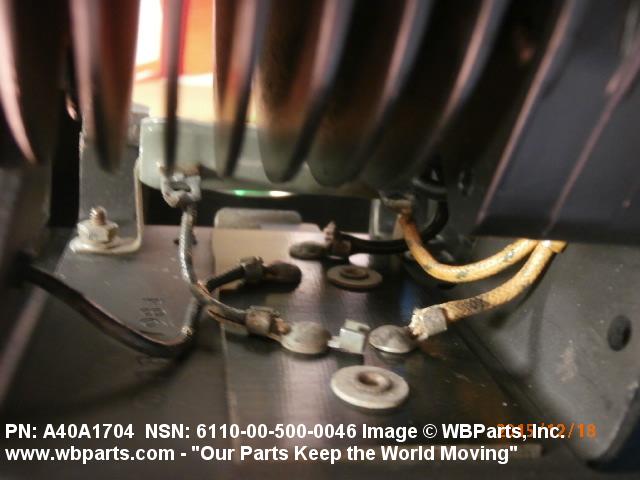

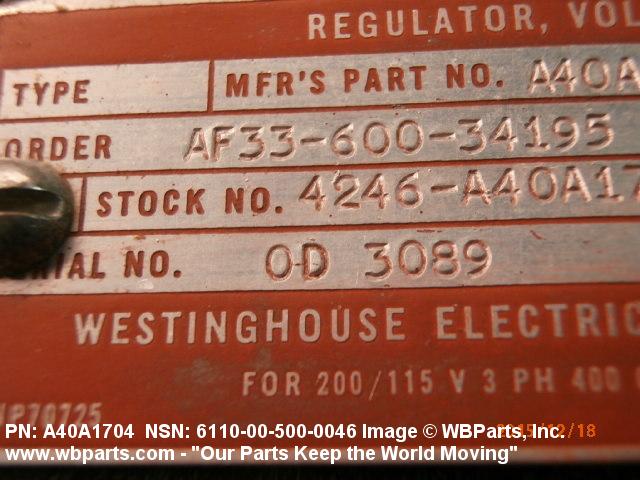

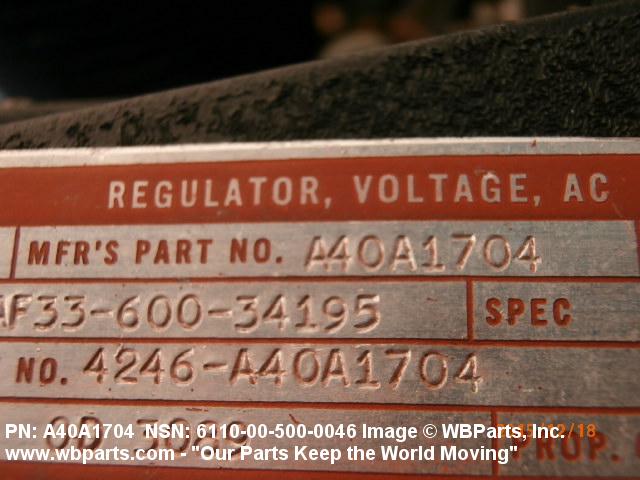

Drawings & Photos | NSN 6110-00-500-0046
Demand History | NSN 6110-00-500-0046
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6110-00-500-0046 | 2015-01-13 | 1 | United States |
| 6110-00-500-0046 | 2013-06-162 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6110-00-500-0046
Related Products | NSN 6110-00-500-0046
Technical Data | NSN 6110-00-500-0046
| Characteristic | Specifications |
|---|---|
| REGULATION METHOD | MAGNETIC AMPLIFIER |
| CIRCUIT TYPE | PARALLEL |
| COMPENSATION PROVIDED | INDIVIDUAL DROOP |
| INPUT CURRENT TYPE | AC |
| INPUT VOLTAGE RATING IN VOLTS | 120.0 NOMINAL AND 208.0 NOMINAL |
| INPUT FREQUENCY RATING IN HERTZ | 400.0 NOMINAL |
| INPUT PHASE | THREE |
| REGULATION PERCENT | 2.50 |
| POWER RATING | 90.0 WATTS NOMINAL |
| RECOVERY TIME | NOT RATED |
| OPERATING TEMP RANGE | -55.0 TO 71.0 DEG CELSIUS |
| INCLOSURE FEATURE | DRIPPROOF |
| OVERALL WIDTH | 6.062 INCHES NOMINAL |
| OVERALL LENGTH | 11.750 INCHES NOMINAL |
| OVERALL HEIGHT | 6.125 INCHES NOMINAL |
| MOUNTING METHOD | HOLES |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.185 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 5.000 INCHES NOMINAL AND 11.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | A40A1704 |
Restrictions/Controls & Freight Information | NSN 6110-00-500-0046
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062920 | REGULATORS INDUCTION/VOLTAGE SUB2 |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-00-500-0046
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | HY | SX:ELECTRICAL CONTROL & DISTRIBUTION EQUIPMENT AIRBORNE ELECTRICAL GENERATORS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
