NSN 6110-00-635-7128 IC5900M1, MILC2174, MIL-C-2174
Product Details | MOTOR STARTER
6110-00-635-7128 A device primarily designed to control the supply circuit(s) of a motor in order to accelerate the motor from rest to normal speed. Includes manual starters with overload protection and manual, automatic or semiautomatic starters consisting of combinations of items such as relays, resistors, switches, circuit breakers, etc. Excludes RELAY-SWITCH; CIRCUIT BREAKER; SWITCH (as modified) and RELAY (as modified). For devices, which in addition to starting and stopping, reverse, select and/or regulate the speed of a motor, see CONTROLLER (as modified).
Part Alternates: IC5900M1, MILC2174, MIL-C-2174, T5134938G3, 5134938G3, 6110-00-635-7128, 00-635-7128, 6110006357128, 006357128
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-635-7128 | 00905 ( STARTER, MOTOR ) |

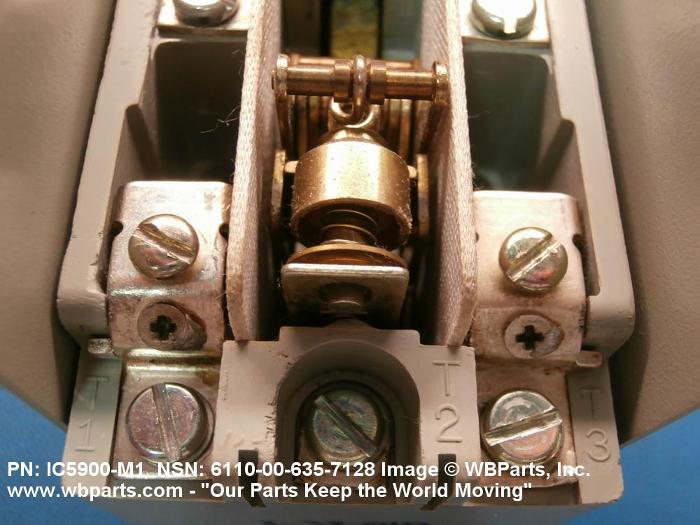

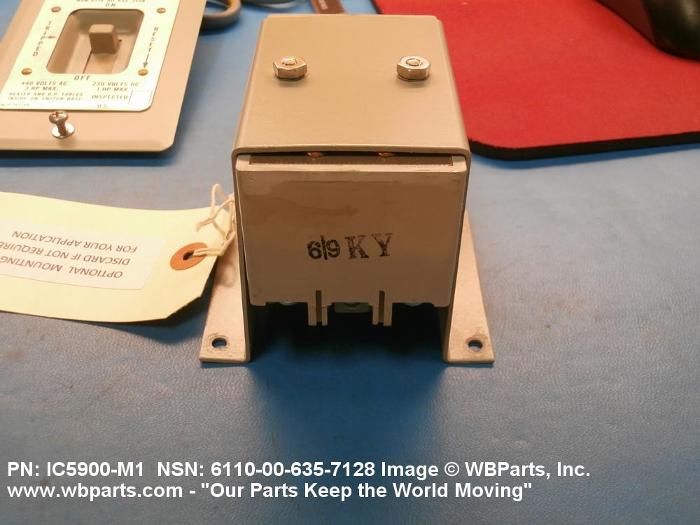

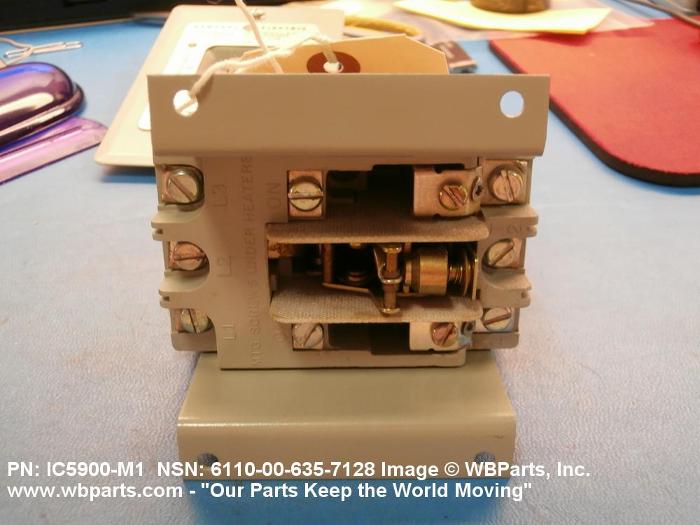

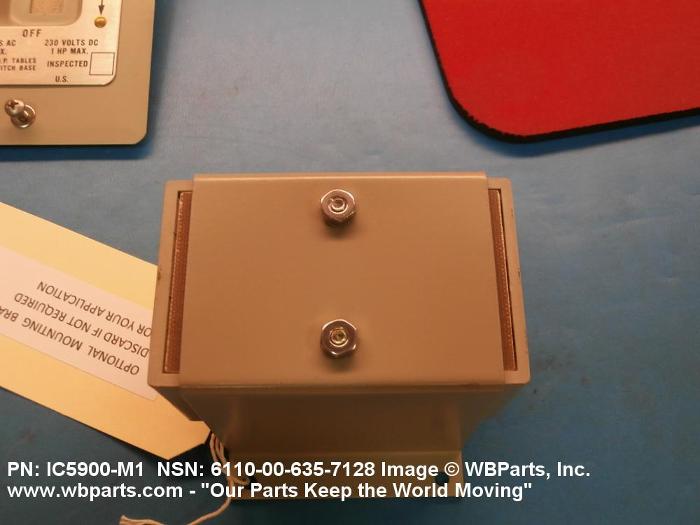

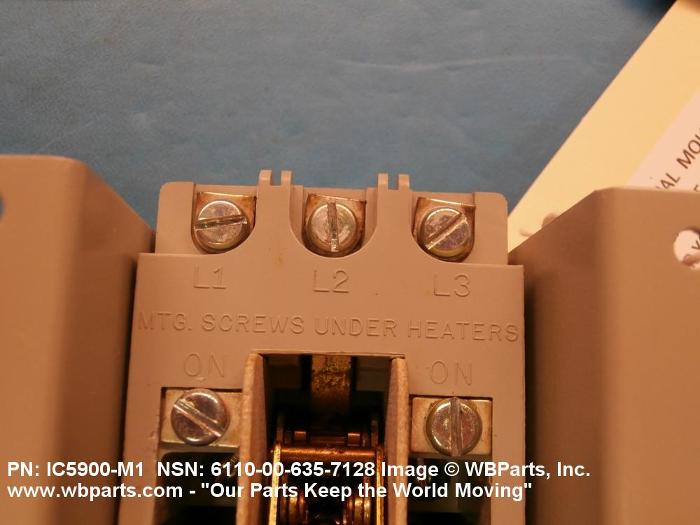

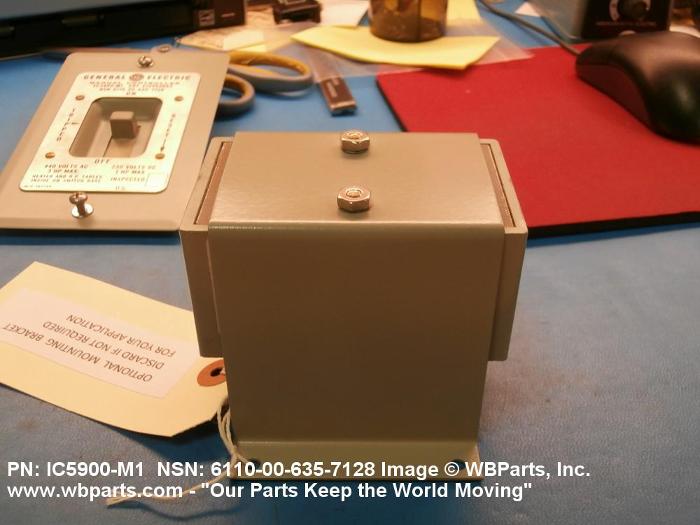

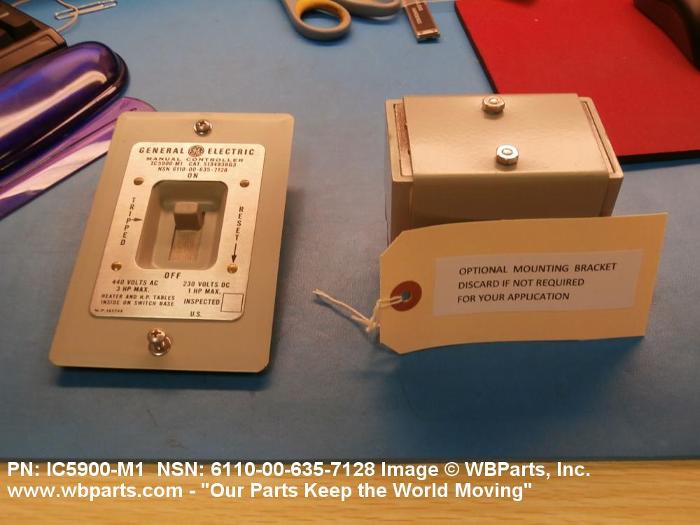

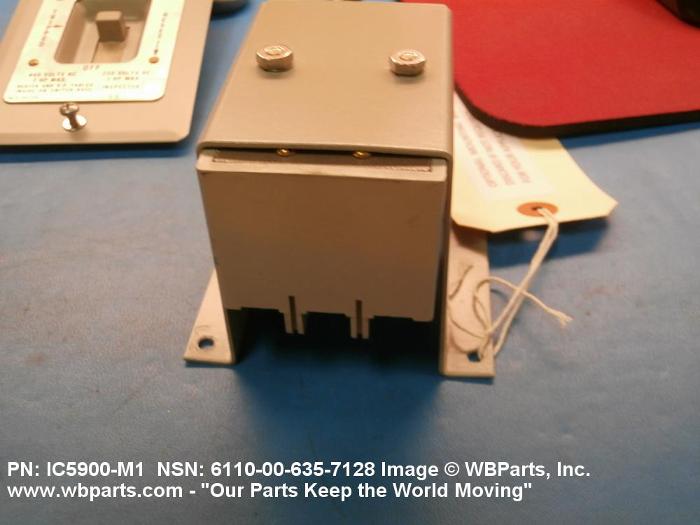

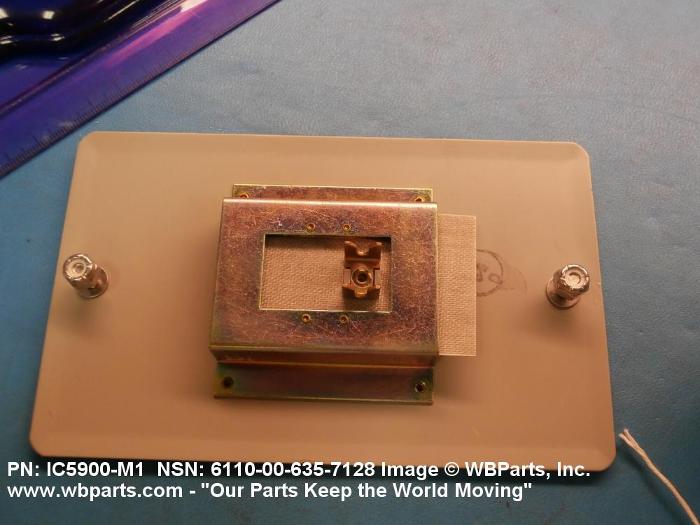

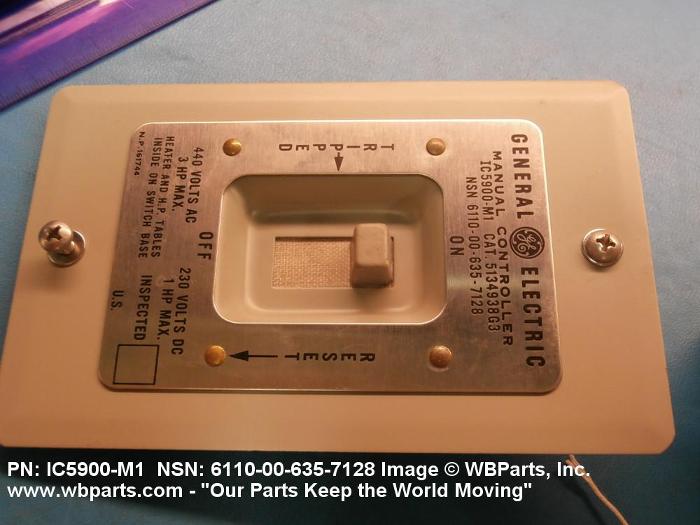

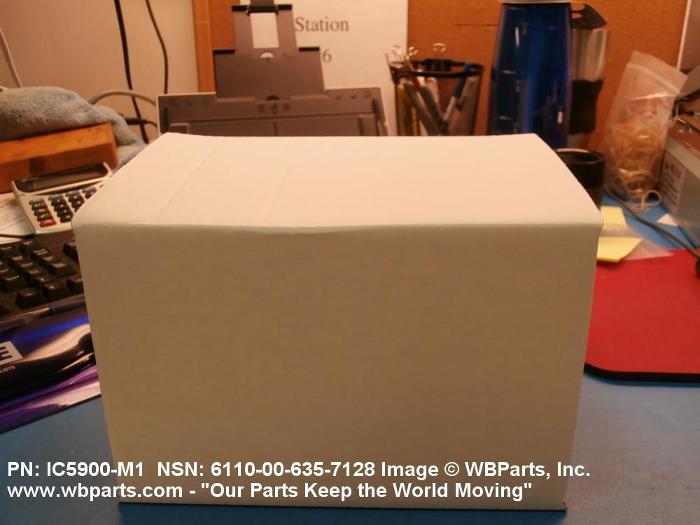

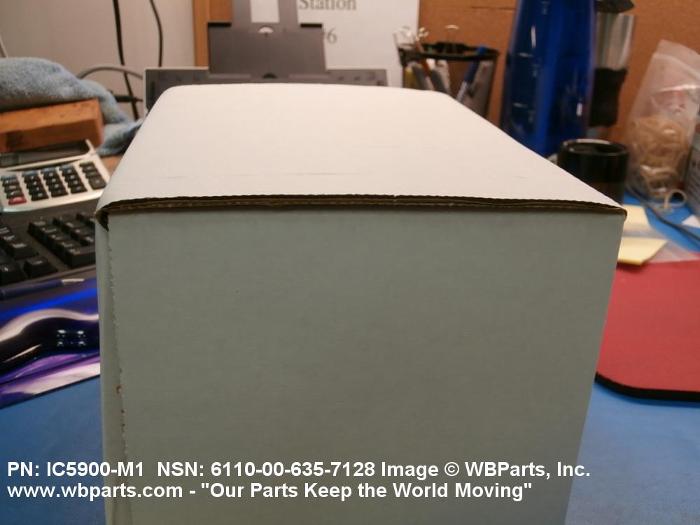

Drawings & Photos | NSN 6110-00-635-7128
Demand History | NSN 6110-00-635-7128
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| IC5900M1 | 2025-10-300 | 1 | DIBBS |
| T5134938G3 | 2025-10-300 | 1 | DIBBS |
| 6110-00-635-7128 | 2025-08-237 | 1 | US |
| IC5900M1 | 2025-08-233 | 1 | DIBBS |
| T5134938G3 | 2025-08-233 | 1 | DIBBS |
| IC5900M1 | 2025-07-201 | 1 | DIBBS |
| T5134938G3 | 2025-07-201 | 1 | DIBBS |
| IC5900M1 | 2024-07-200 | 1 | DIBBS |
| T5134938G3 | 2024-07-200 | 1 | DIBBS |
| IC5900M1 | 2023-08-236 | 3 | DIBBS |
| T5134938G3 | 2023-08-236 | 3 | DIBBS |
| IC5900M1 | 2021-07-193 | 2 | DIBBS |
| T5134938G3 | 2021-07-193 | 2 | DIBBS |
| IC5900M1 | 2020-11-307 | 2 | DIBBS |
| T5134938G3 | 2020-11-307 | 2 | DIBBS |
| 6110-00-635-7128 | 2018-09-270 | 4 | DIBBS |
| 6110-00-635-7128 | 2018-09-259 | 4 | DIBBS |
| 6110-00-635-7128 | 2018-06-165 | 2 | DIBBS |
| 6110-00-635-7128 | 2018-04-91 | 2 | DIBBS |
| 6110-00-635-7128 | 2018-01-09 | 3 | DIBBS |
| 6110-00-635-7128 | 2017-11-316 | 2 | DIBBS |
| 6110-00-635-7128 | 2017-09-258 | 2 | DIBBS |
| 6110-00-635-7128 | 2017-09-247 | 2 | DIBBS |
| 6110-00-635-7128 | 2017-03-89 | 3 | DIBBS |
| 6110-00-635-7128 | 2017-03-78 | 3 | DIBBS |
| 6110-00-635-7128 | 2017-01-22 | 2 | DIBBS |
| 6110-00-635-7128 | 2016-11-315 | 3 | US |
| 6110-00-635-7128 | 2016-03-91 | 2 | DIBBS |
| 6110-00-635-7128 | 2014-05-142 | 8 | DIBBS |
| 6110-00-635-7128 | 2013-05-135 | 7 | US |
| 6110-00-635-7128 | 2013-05-128 | 7 | DIBBS |
| 6110-00-635-7128 | 2013-01-28 | 3 | United States |
| 6110-00-635-7128 | 2012-12-348 | 3 | DIBBS |
| IC5900M1 | 2010-09-265 | 0 | US |
| IC5900M1 | 2010-09-265 | 1 | US |
| 6110-00-635-7128 | 2007-08-233 | 8 | DIBBS |
| 6110-00-635-7128 | 2007-02-36 | 12 | DIBBS |
Cross Reference | NSN 6110-00-635-7128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5134938G3 | 34700 | GENERAL ELECTRIC CO INSTRUMENTATION AND COMPUTER SERVICE |
| IC5900M1 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| MIL-C-2174 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| T5134938G3 | 34700 | GENERAL ELECTRIC CO INSTRUMENTATION AND COMPUTER SERVICE |
| T5134938G3 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6110-00-635-7128
Related Products | NSN 6110-00-635-7128
Technical Data | NSN 6110-00-635-7128
| Characteristic | Specifications |
|---|---|
| OPERATING VOLTAGE CHARACTERISTIC | FULL |
| AC VOLTAGE RATING | 440.0 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | THREE |
| DC VOLTAGE RATING | 230.0 VOLTS NOMINAL |
| DIRECT CURRENT RATING IN AMPS | 15.0 |
| HORSEPOWER RATING | 1.000 AND 3.000 |
| CONTROL TYPE | LOCAL |
| ACTUATION METHOD | MANUAL |
| PERFORMANCE TYPE | MANUAL |
| LOAD PROTECTION TYPE | OVERLOAD OR UNDERVOLTAGE RELEASE |
| DUTY CYCLE | CONTINUOUS |
| AMBIENT TEMP | 50.0 DEG CELSIUS |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| REVERSIBLE FEATURE | NOT INCLUDED |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| OVERALL LENGTH | 3.750 INCHES NOMINAL |
| OVERALL HEIGHT | 6.000 INCHES NOMINAL |
| MOUNTING CONFIGURATION | TWO 0.199 IN. DIA MTG HOLES SPACED 5-1/8 IN. C TO C |
| NONDEFINITIVE SPEC/STD DATA | 0 SIZE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-2174 |
Restrictions/Controls & Freight Information | NSN 6110-00-635-7128
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 130395 | STARTERS OR STARTER MOTORS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-00-635-7128
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
