Product Details | MAGNETIC CONTACTOR
6110-01-005-1937 An item consisting of contacts, a magnetic core, and a coil with or without inclosure which is used to repeatedly establish and break a circuit. The item does not provide overload protection and is not used in line to control any other electrical controls. Excludes RELAY, ELECTROMAGNETIC and STARTER, MOTOR.l circuit. Exludes RELAY, ELECTRO-MAGNETIC and STARTER, MOTOR.
Part Alternates: IC5181C106A6XAAX, IC518C106A6XAAX, 177B5396PC4, 1C5181C106A6XAAX, 6110-01-005-1937, 01-005-1937, 6110010051937, 010051937
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 22 JUN 1975 | 01-005-1937 | 31517 ( CONTACTOR, MAGNETIC ) |

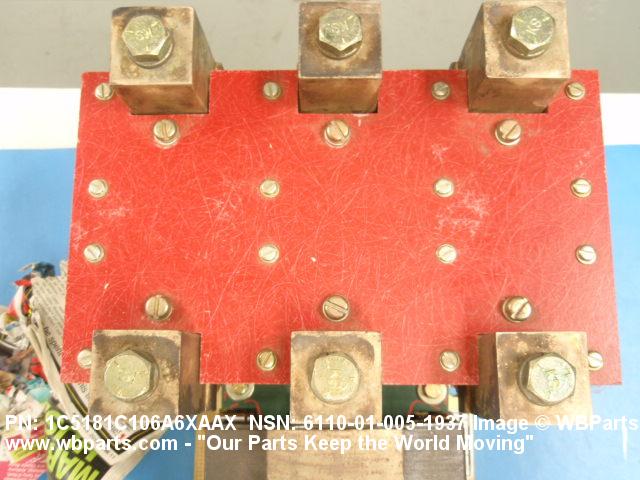

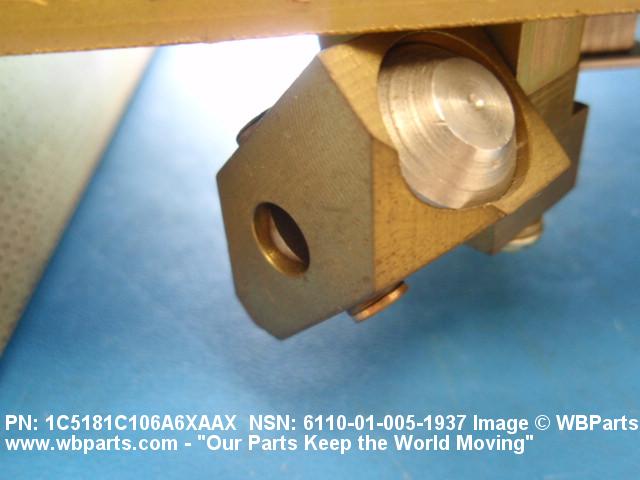

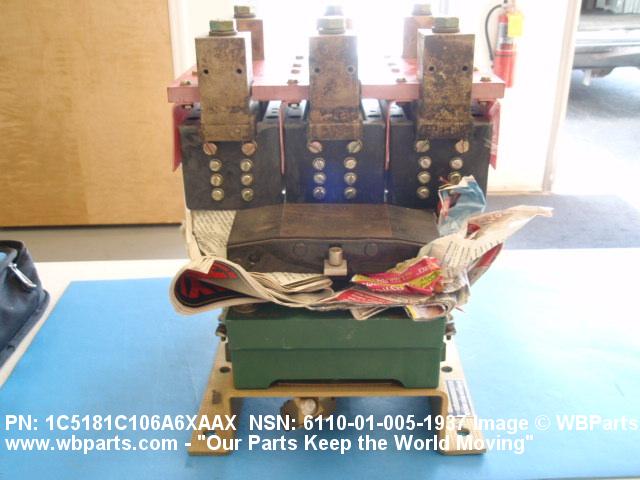

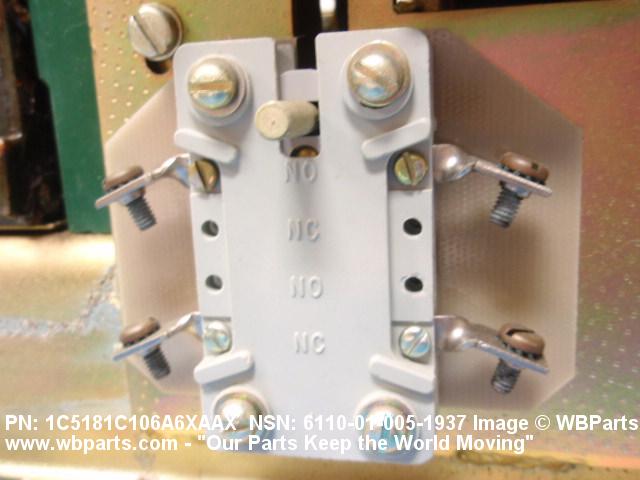

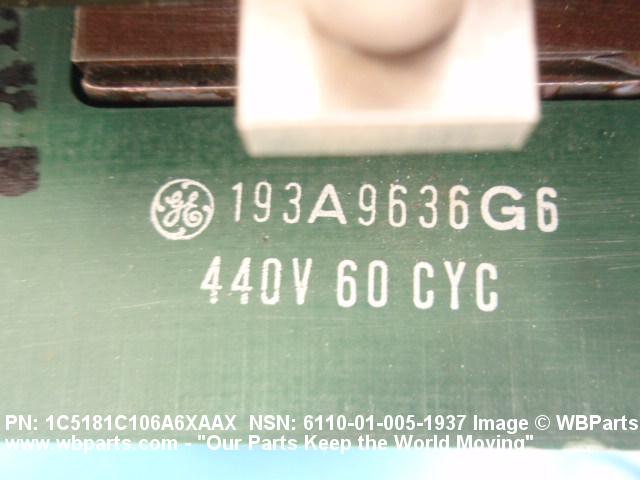

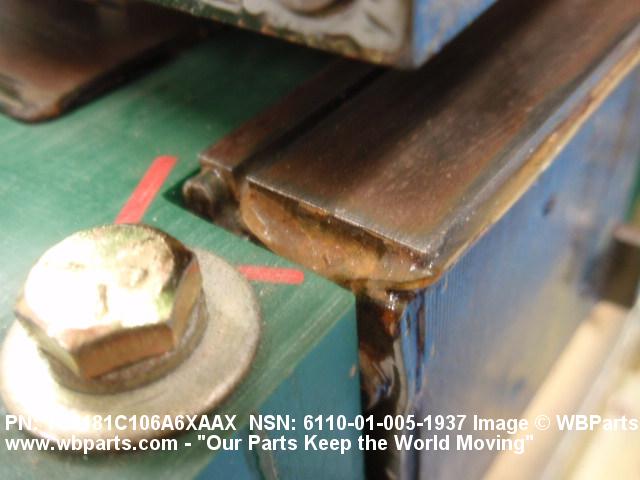

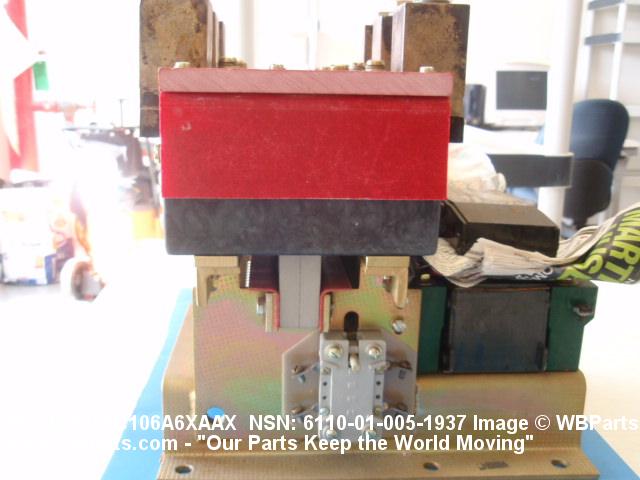

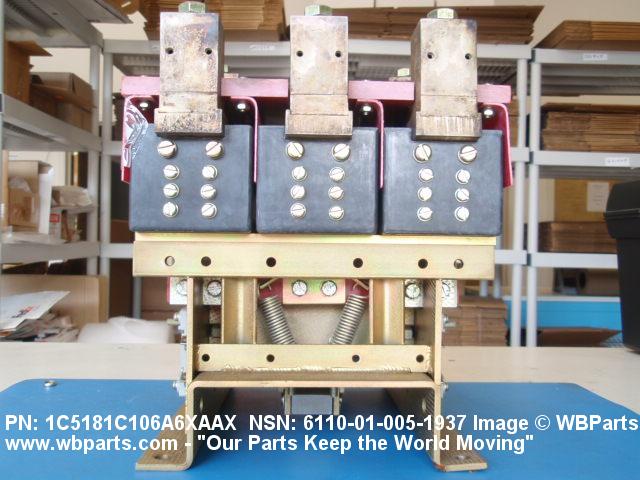

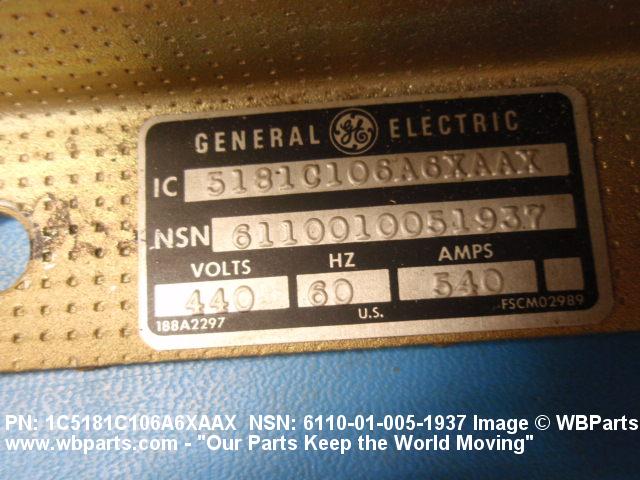

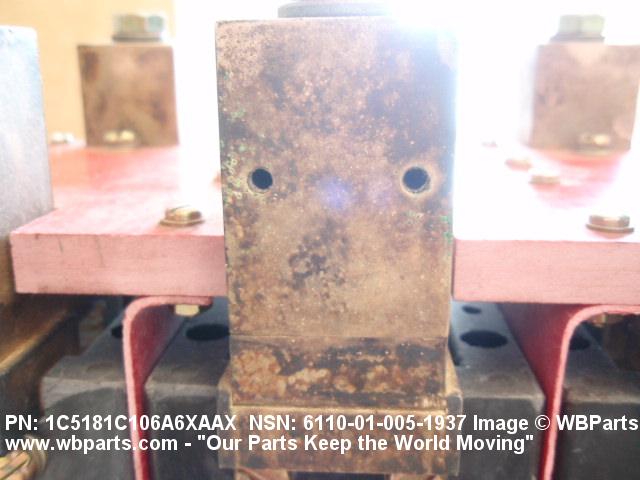

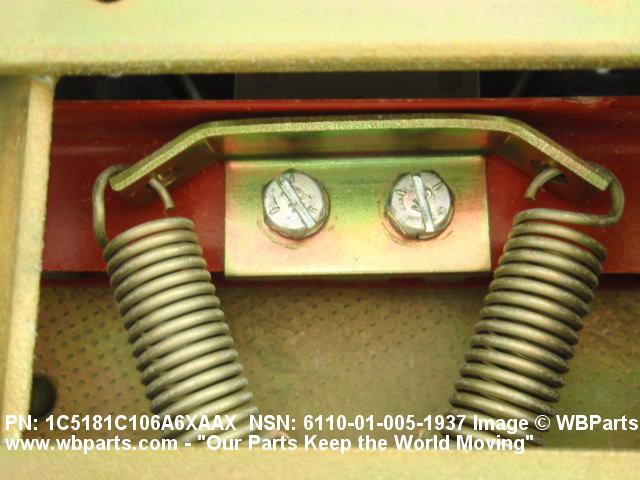

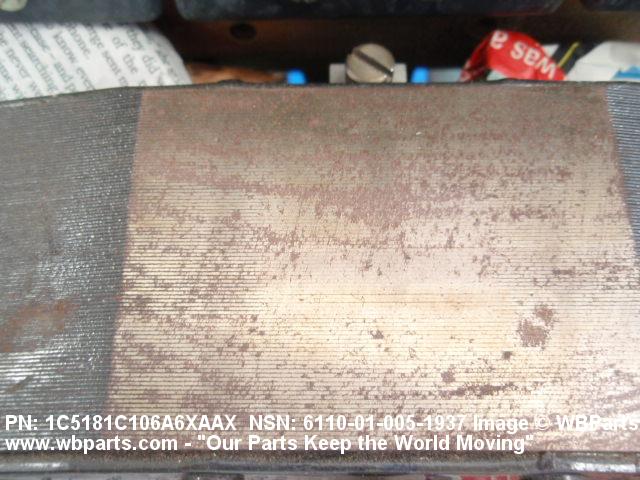

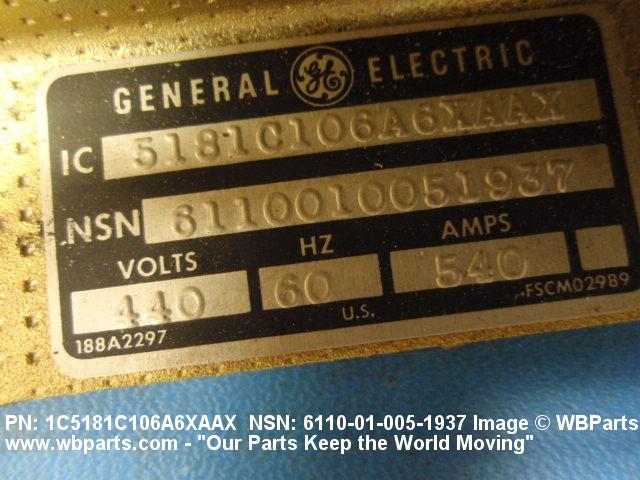

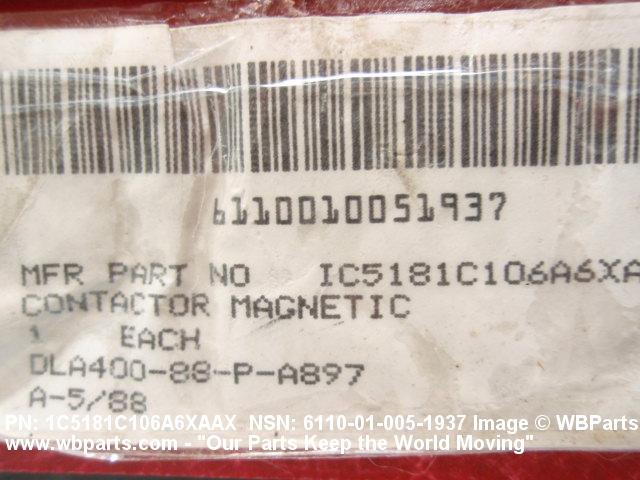

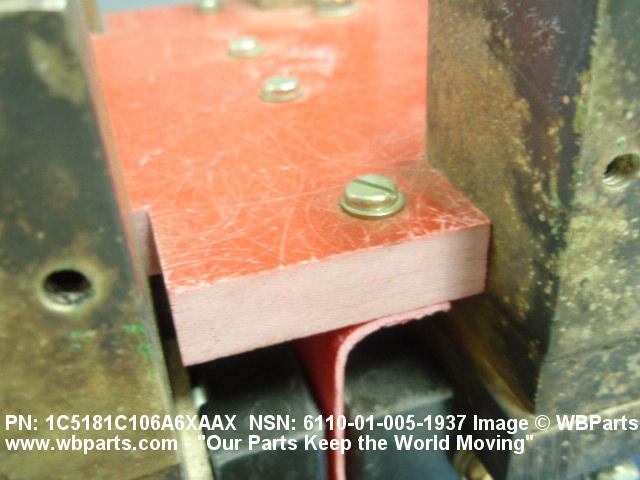

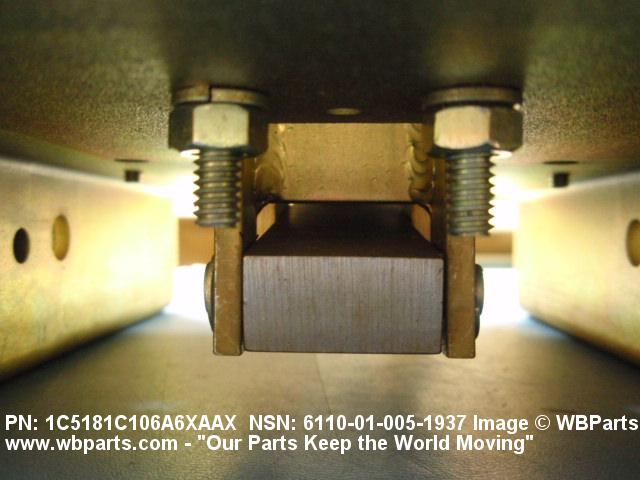

Drawings & Photos | NSN 6110-01-005-1937
Demand History | NSN 6110-01-005-1937
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1C5181C106A6XAAX | 2024-05-02 | 1 | DIBBS |
| IC518C106A6XAAX | 2024-05-02 | 1 | DIBBS |
| 6110-01-005-1937 | 2023-11-30 | 1 | US |
| 1C5181C106A6XAAX | 2023-08-10 | 1 | DIBBS |
| IC518C106A6XAAX | 2023-08-10 | 1 | DIBBS |
| 1C5181C106A6XAAX | 2020-03-09 | 4 | DIBBS |
| 1C5181C106A6XAAX | 2020-02-27 | 4 | DIBBS |
| 1C5181C106A6XAAX | 2020-02-21 | 5 | DIBBS |
| 1C5181C106A6XAAX | 2020-02-06 | 5 | DIBBS |
| 1C5181C106A6XAAX | 2020-01-23 | 1 | DIBBS |
| 1C5181C106A6XAAX | 2019-09-26 | 2 | DIBBS |
| 6110-01-005-1937 | 2015-04-29 | 1 | DIBBS |
| 6110-01-005-1937 | 2015-04-15 | 2 | DIBBS |
| 6110-01-005-1937 | 2015-03-26 | 2 | DIBBS |
| 6110-01-005-1937 | 2015-03-15 | 2 | DIBBS |
| 6110-01-005-1937 | 2014-06-14 | 2 | United States |
| 6110-01-005-1937 | 2014-06-02 | 2 | DIBBS |
| 6110-01-005-1937 | 2014-05-22 | 2 | DIBBS |
| 6110-01-005-1937 | 2013-07-19 | 2 | DIBBS |
| 6110-01-005-1937 | 2013-07-04 | 2 | DIBBS |
| 6110-01-005-1937 | 2011-06-04 | 3 | United States |
| 6110-01-005-1937 | 2011-06-01 | 3 | DIBBS |
| 6110-01-005-1937 | 2010-05-06 | 1 | United States |
| 6110-01-005-1937 | 2010-04-13 | 1 | DIBBS |
Cross Reference | NSN 6110-01-005-1937
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 177B5396PC4 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 1C5181C106A6XAAX | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| IC5181C106A6XAAX | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| IC518C106A6XAAX | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6110-01-005-1937
Related Products | NSN 6110-01-005-1937
6110-01-005-2188, 6110-01-005-2189, 6110-01-005-2190, 6110-01-005-2191, 6110-01-005-2192
Technical Data | NSN 6110-01-005-1937
| Characteristic | Specifications |
|---|---|
| NATIONAL ELECTRICAL MANUFACTURERS ASSOCIATION STANDARDS DESIGN | DESIGNED PER NEMA STD |
| SIZE DESIGNATOR | 6 |
| OPERATING VOLTAGE CHARACTERISTIC | FULL |
| AC VOLTAGE RATING | 440.0 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | THREE |
| AMP SIZE RATING | 540.0 |
| HORSEPOWER RATING | 400.000 |
| CONTROL TYPE | LOCAL |
| ACTUATION METHOD | MAGNETIC |
| ACTUATOR VOLTAGE | 440.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| CIRCUIT PROTECTION FUSE | NOT PROVIDED |
| PERFORMANCE TYPE | AUTOMATIC |
| DUTY CYCLE | CONTINUOUS |
| AMBIENT TEMP | 50.0 DEG CELSIUS |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DRIPPROOF |
| INCLOSURE FEATURE | OPEN |
| OVERALL WIDTH | 10.500 INCHES NOMINAL |
| OVERALL LENGTH | 12.380 INCHES NOMINAL |
| OVERALL HEIGHT | 11.900 INCHES NOMINAL |
| MOUNTING CONFIGURATION | SIX 27/64 IN. DIA MTG HOLES FOR 3/8 IN. DIA BOLTS |
| ACCESSORY | INCLUDED |
| ACCESSORY LOCATION | INTERNAL |
| ACCESSORY CONTROLLING AGENCY | GENERAL ELECTRIC CO |
| ACCESSORY IDENTIFYING NUMBER | XAAX CATALOG NO. |
Restrictions/Controls & Freight Information | NSN 6110-01-005-1937
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-01-005-1937
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
