Product Details | MOTOR STARTER
6110-01-147-0653 A device primarily designed to control the supply circuit(s) of a motor in order to accelerate the motor from rest to normal speed. Includes manual starters with overload protection and manual, automatic or semiautomatic starters consisting of combinations of items such as relays, resistors, switches, circuit breakers, etc. Excludes RELAY-SWITCH; CIRCUIT BREAKER; SWITCH (as modified) and RELAY (as modified). For devices, which in addition to starting and stopping, reverse, select and/or regulate the speed of a motor, see CONTROLLER (as modified).
Part Alternates: 6962H168A3, 6110-01-147-0653, 01-147-0653, 6110011470653, 011470653
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 10 FEB 1983 | 01-147-0653 | 00905 ( STARTER, MOTOR ) |

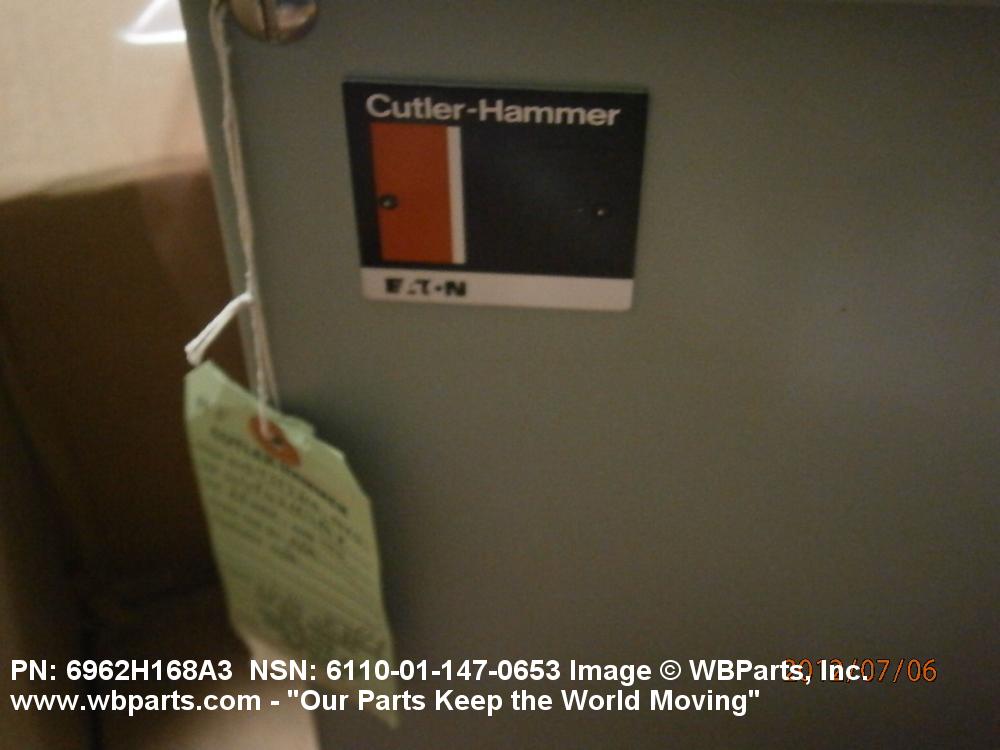

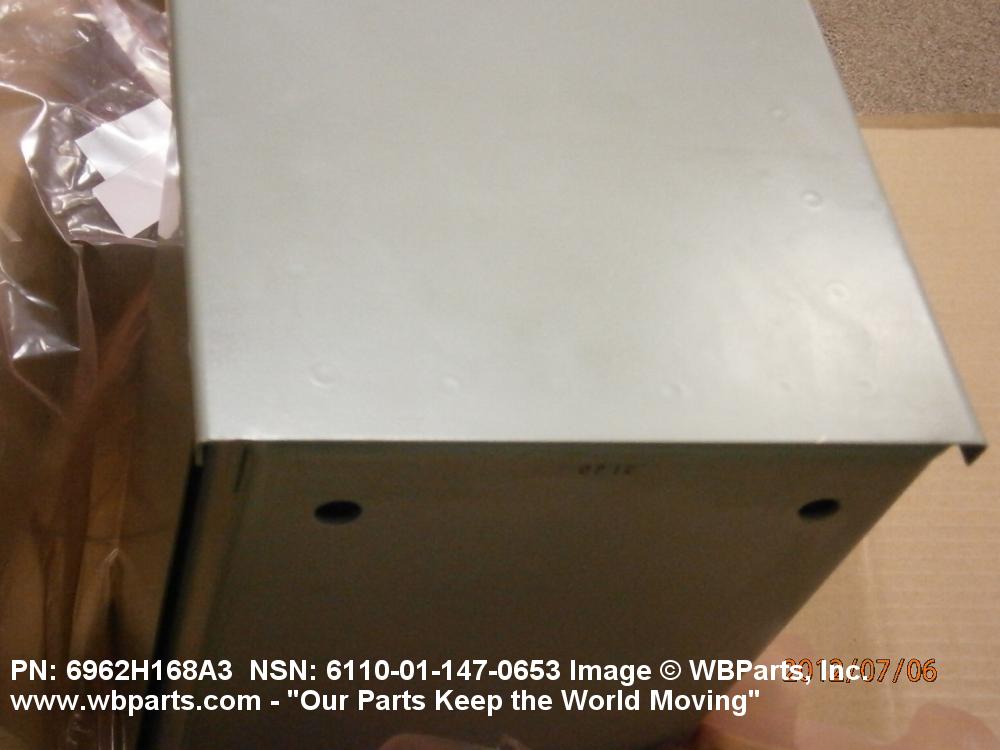

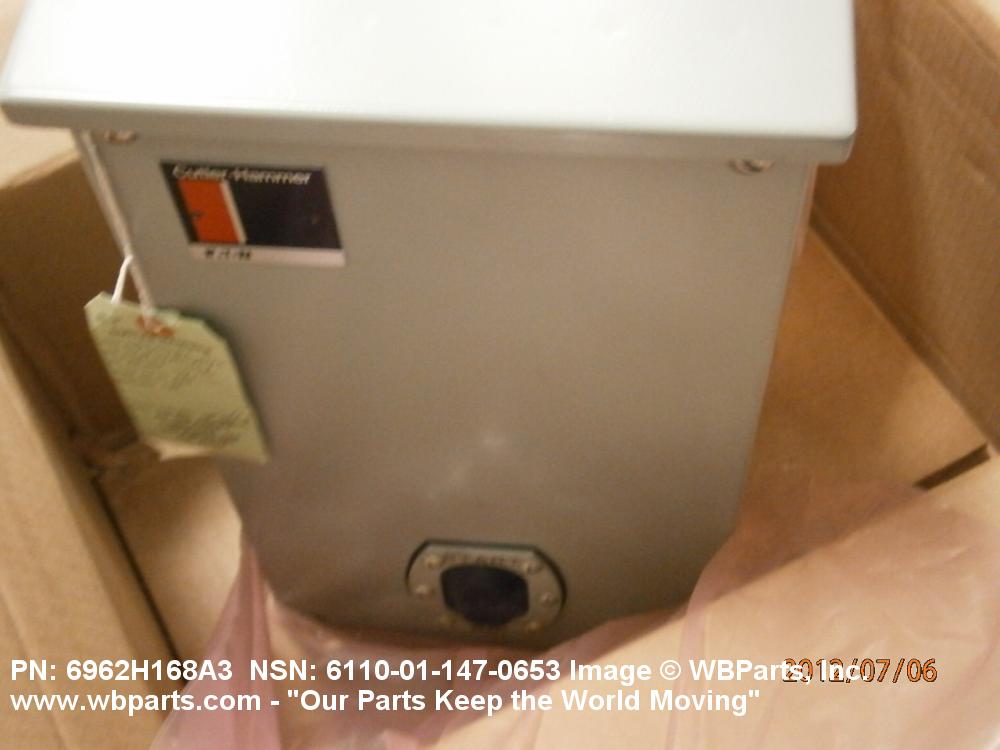

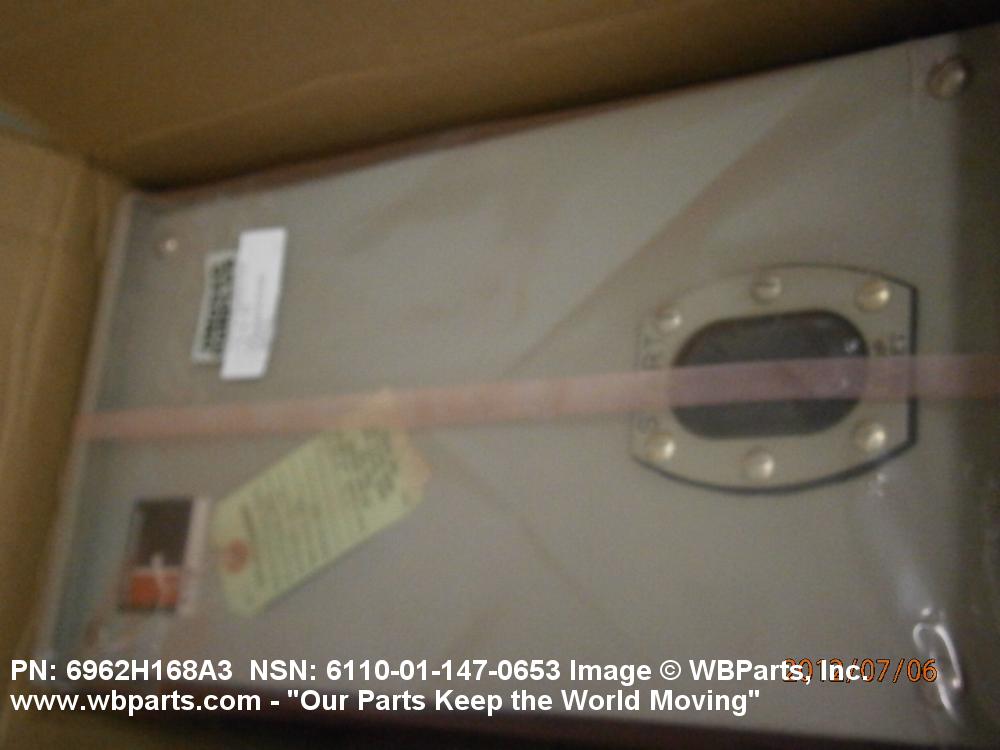

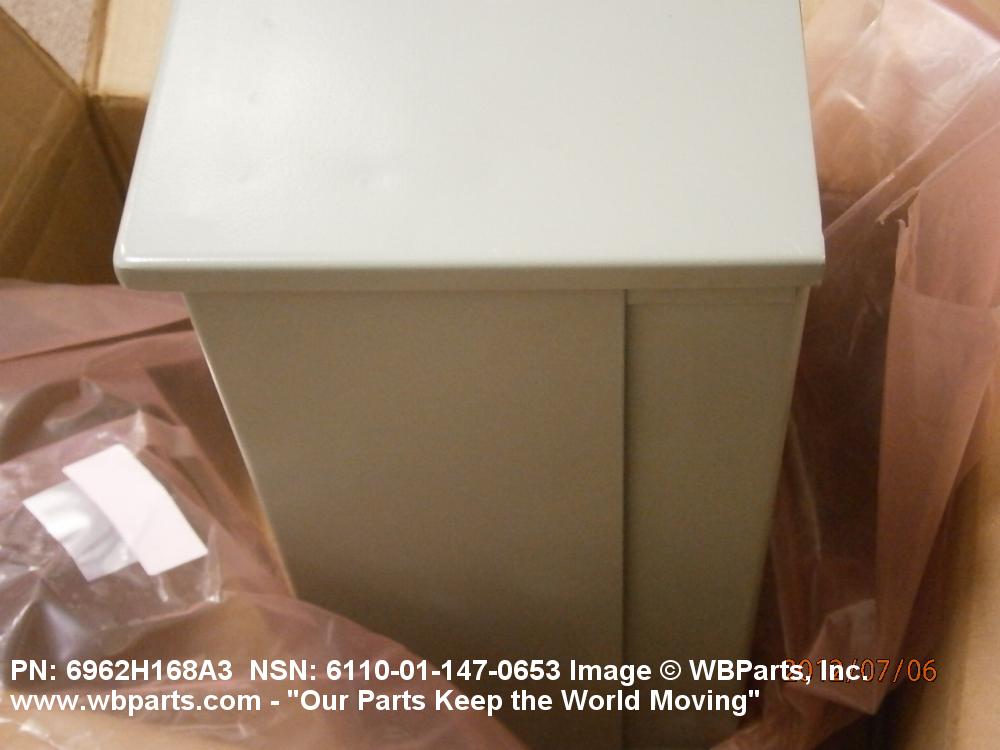

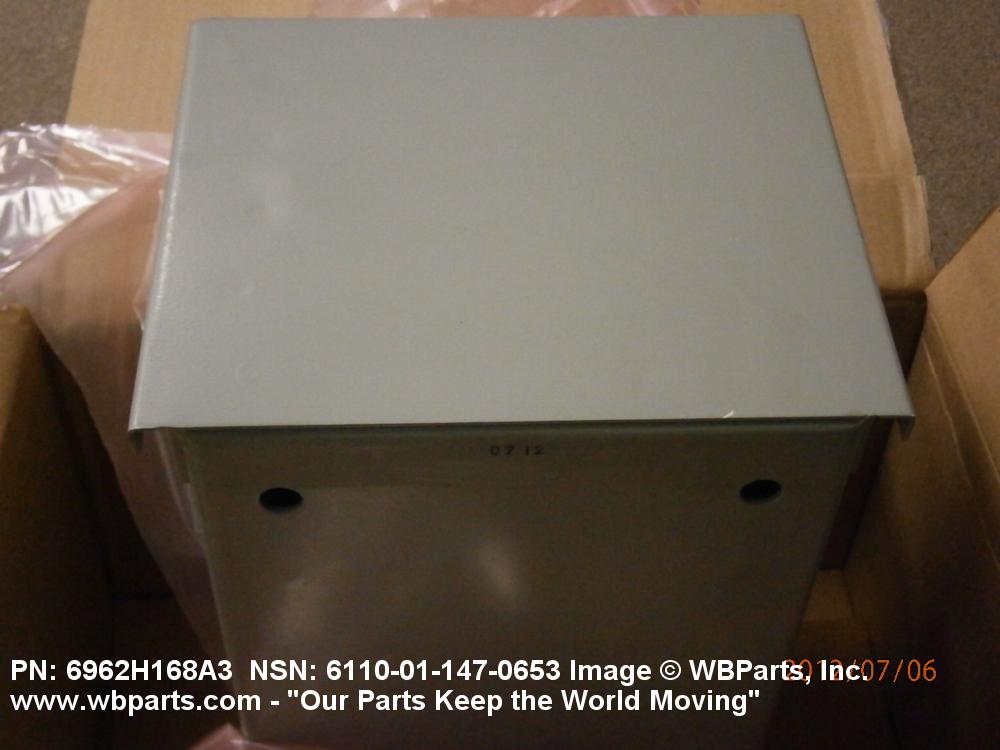

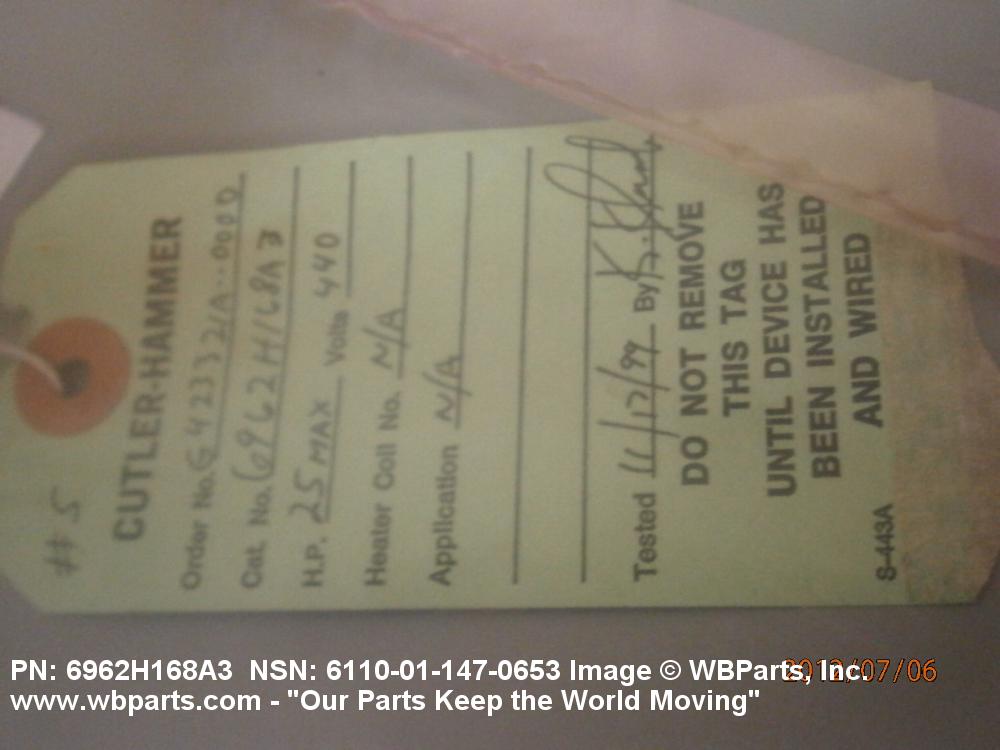

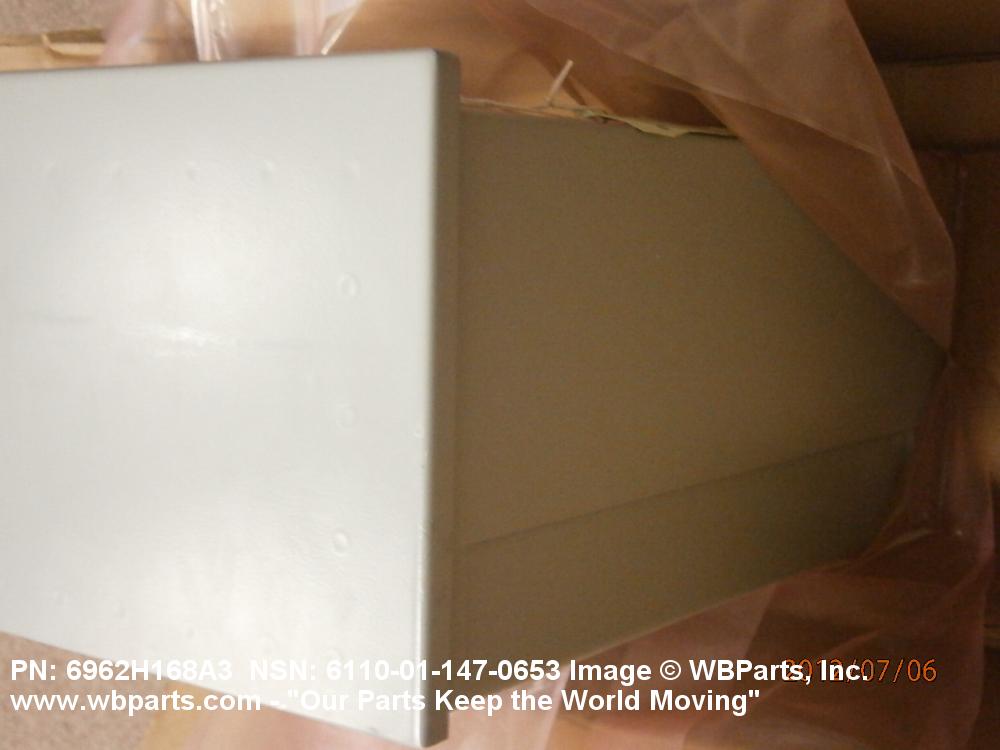

Drawings & Photos | NSN 6110-01-147-0653
Demand History | NSN 6110-01-147-0653
Cross Reference | NSN 6110-01-147-0653
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6962H168A3 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6110-01-147-0653
6110-01-147-0654, 6110-01-147-0655, 6110-01-147-0656, 6110-01-147-1423, 6110-01-147-2397
Technical Data | NSN 6110-01-147-0653
| Characteristic | Specifications |
|---|---|
| NATIONAL ELECTRICAL MANUFACTURERS ASSOCIATION STANDARDS DESIGN | DESIGNED PER NEMA STD |
| SIZE DESIGNATOR | 2 |
| OPERATING VOLTAGE CHARACTERISTIC | FULL |
| AC VOLTAGE RATING | 440.0 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | THREE |
| HORSEPOWER RATING | 25.000 |
| CONTROL TYPE | LOCAL |
| ACTUATION METHOD | MAGNETIC |
| ACTUATOR VOLTAGE | 440.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| CIRCUIT PROTECTION FUSE | PROVIDED |
| FUSE ACCOMMODATION QUANTITY | 1 |
| FUSE CURRENT RATING IN AMPS | 10.0 |
| PERFORMANCE TYPE | AUTOMATIC |
| LOAD PROTECTION TYPE | OVERLOAD AND UNDERVOLTAGE |
| DUTY CYCLE | CONTINUOUS |
| AMBIENT TEMP | 50.0 DEG CELSIUS |
| SPEED ADJUSTMENTS | 0 TO FULL SPEED |
| REVERSIBLE FEATURE | NOT INCLUDED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DRIPPROOF |
| INCLOSURE FEATURE | DRIPPROOF |
| OVERALL WIDTH | 9.380 INCHES NOMINAL |
| OVERALL LENGTH | 17.300 INCHES NOMINAL |
| OVERALL HEIGHT | 8.060 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR 17/32 IN. DIA HOLES ON 14-1/2 IN. BY 6 IN. CENTERS |
| SWITCH FUNCTIONAL POSITIONS | START AND STOP |
| ACCESSORY | NOT INCLUDED |
| MANUFACTURERS CODE | 27192 |
| DESIGN CONTROL REFERENCE | 6962H168A3 |
Restrictions/Controls & Freight Information | NSN 6110-01-147-0653
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 130395 | STARTERS OR STARTER MOTORS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-01-147-0653
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
