NSN 6110-01-265-2750 A200M2CACD, A200M2CVCD, 01-265-2750
Product Details | MOTOR STARTER
6110-01-265-2750 A device primarily designed to control the supply circuit(s) of a motor in order to accelerate the motor from rest to normal speed. Includes manual starters with overload protection and manual, automatic or semiautomatic starters consisting of combinations of items such as relays, resistors, switches, circuit breakers, etc. Excludes RELAY-SWITCH; CIRCUIT BREAKER; SWITCH (as modified) and RELAY (as modified). For devices, which in addition to starting and stopping, reverse, select and/or regulate the speed of a motor, see CONTROLLER (as modified).
Part Alternates: A200M2CACD, A200M2CVCD, 6110-01-265-2750, 01-265-2750, 6110012652750, 012652750
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 11 OCT 1987 | 01-265-2750 | 00905 ( STARTER, MOTOR ) |

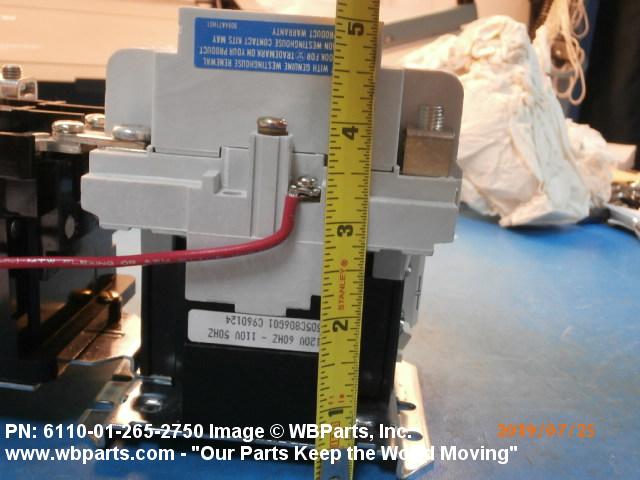

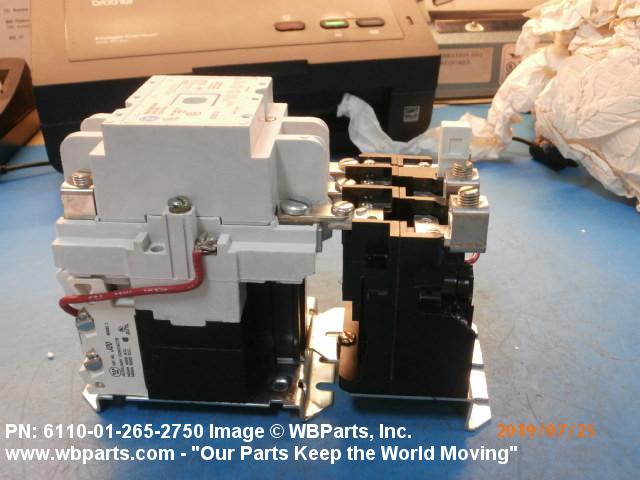

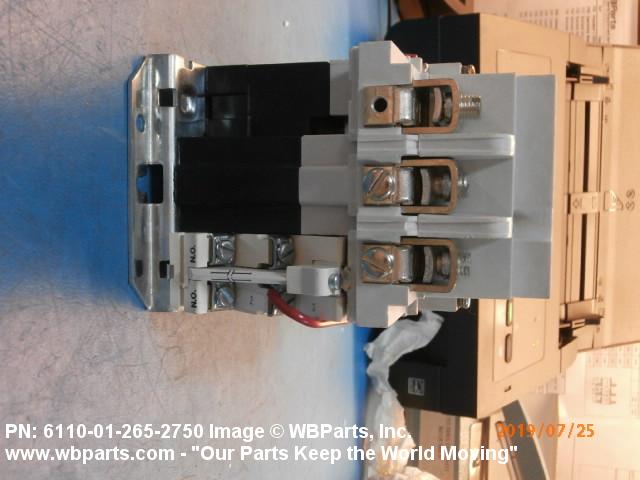

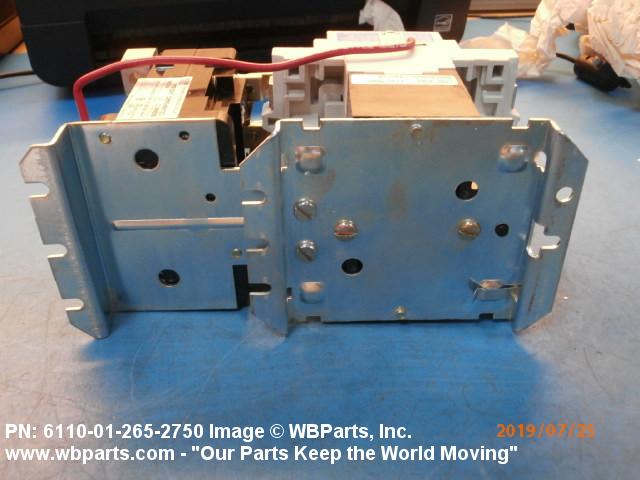

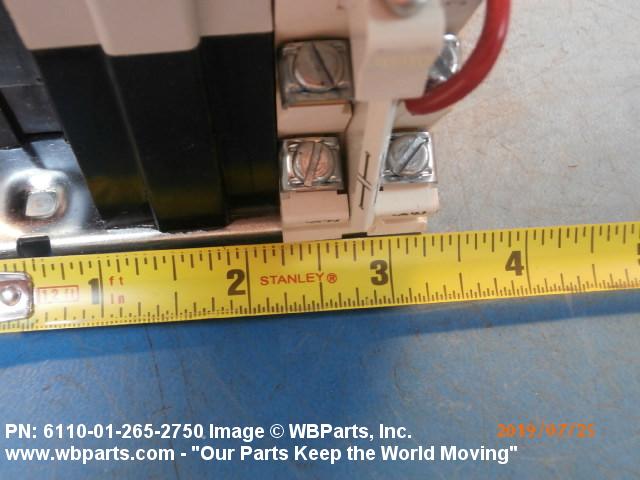

Drawings & Photos | NSN 6110-01-265-2750
Demand History | NSN 6110-01-265-2750
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A200M2CACD | 2023-06-152 | 5 | DIBBS |
| A200M2CACD | 2023-04-96 | 3 | DIBBS |
| A200M2CACD | 2023-03-61 | 1 | DIBBS |
| A200M2CACD | 2022-09-262 | 1 | DIBBS |
| A200M2CACD | 2022-07-200 | 1 | DIBBS |
| A200M2CACD | 2019-07-199 | 3 | United States |
| 6110-01-265-2750 | 2016-02-35 | 2 | DIBBS |
| 6110-01-265-2750 | 2016-01-11 | 2 | DIBBS |
| 6110-01-265-2750 | 2015-12-364 | 1 | DIBBS |
| 6110-01-265-2750 | 2015-12-354 | 1 | DIBBS |
| 6110-01-265-2750 | 2011-08-237 | 2 | DIBBS |
| 6110-01-265-2750 | 2010-08-239 | 2 | DIBBS |
| 6110-01-265-2750 | 2008-08-214 | 4 | DIBBS |
| 6110-01-265-2750 | 2007-02-36 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6110-01-265-2750
Related Products | NSN 6110-01-265-2750
Technical Data | NSN 6110-01-265-2750
| Characteristic | Specifications |
|---|---|
| NATIONAL ELECTRICAL MANUFACTURERS ASSOCIATION STANDARDS DESIGN | DESIGNED PER NEMA STD |
| SIZE DESIGNATOR | 2 |
| AMP SIZE RATING | 50.0 |
| CONTROL TYPE | LOCAL OR REMOTE |
| ACTUATION METHOD | MAGNETIC |
| ACTUATOR VOLTAGE | 120.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| INCLOSURE FEATURE | OPEN |
| OVERALL WIDTH | 3.312 INCHES NOMINAL |
| OVERALL LENGTH | 4.938 INCHES NOMINAL |
| OVERALL HEIGHT | 7.688 INCHES NOMINAL |
| SPECIAL FEATURES | CONTAINS AMBIENT COMPENSATED OVERLOAD RELAY WITH AUTO-RESET |
Restrictions/Controls & Freight Information | NSN 6110-01-265-2750
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 130395 | STARTERS OR STARTER MOTORS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-01-265-2750
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
