NSN 6110-01-310-3810 M23928/1-02DP, M23928102DP, MIL-DTL-23928/1C
Product Details | POWER DISTRIBUTION PANEL
6110-01-310-3810 A panel designed for connecting, disconnecting and protecting power line feeders and/or direct control of specific electric devices such as lights, motors, electronic equipment, etc. See also FUSE BOX; SWITCH BOX; DISTRIBUTION BOX; and PANEL, POWER BUS, CIRCUIT BREAKER.
Part Alternates: M23928/1-02DP, M23928102DP, MIL-DTL-23928/1C, MILDTL239281C, MIL-P-23928/01, MILP2392801, 6110-01-310-3810, 01-310-3810, 6110013103810, 013103810
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 02 NOV 1989 | 01-310-3810 | 02794 ( PANEL, POWER DISTRIBUTION ) |

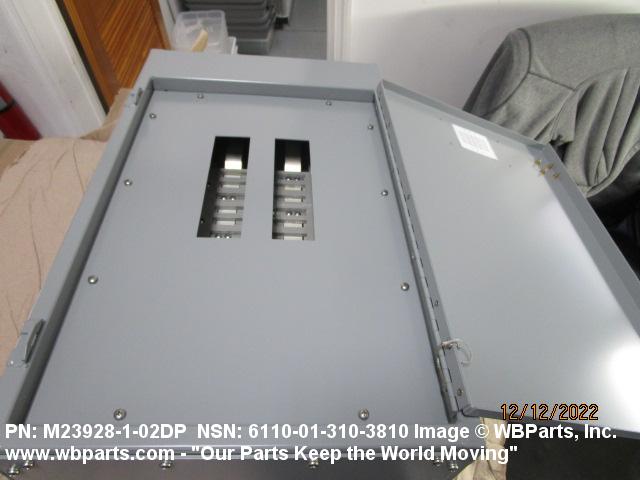

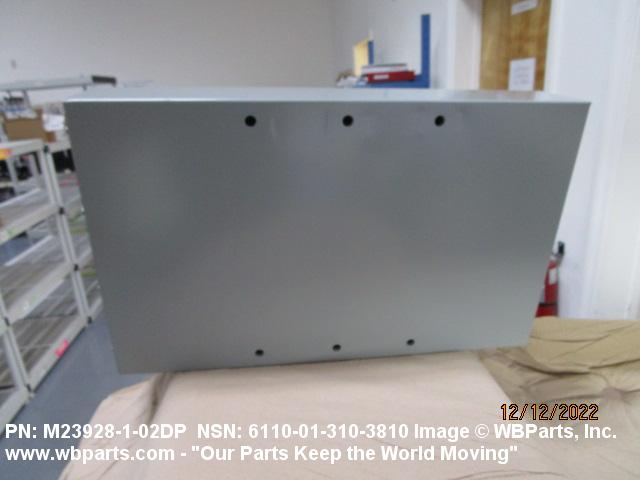

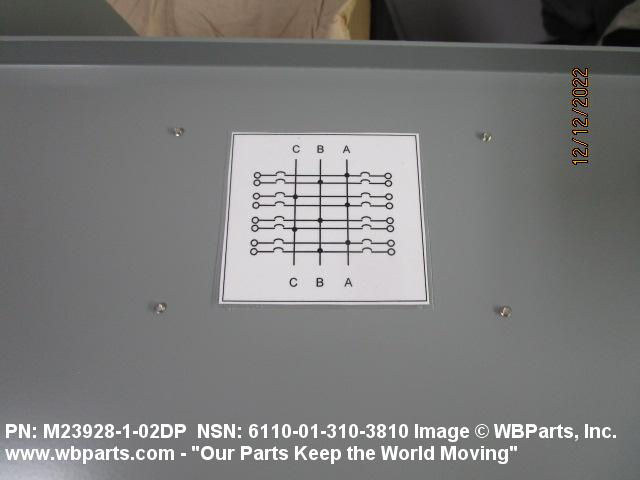

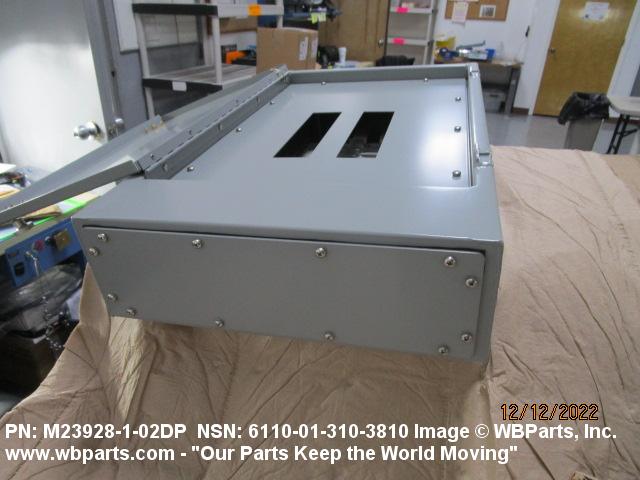

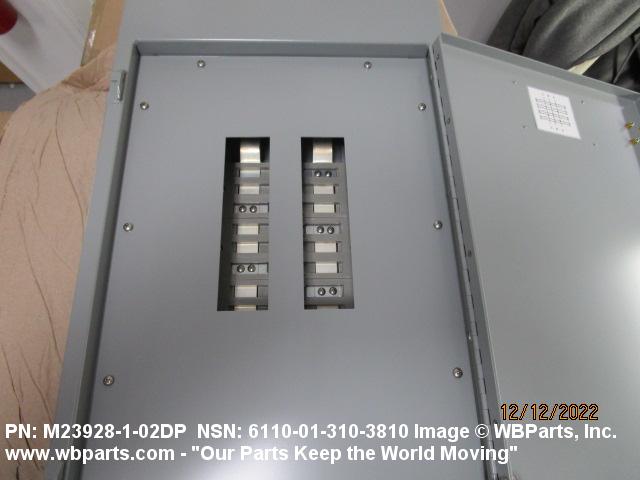

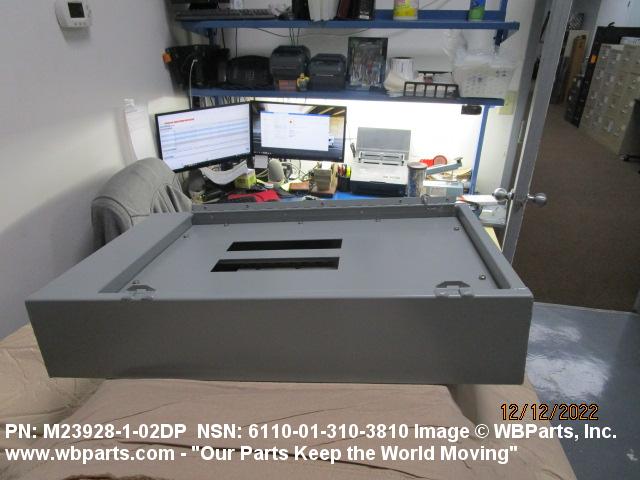

Drawings & Photos | NSN 6110-01-310-3810
Demand History | NSN 6110-01-310-3810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6110-01-310-3810 | 2024-08-228 | 6 | DIBBS |
| 6110-01-310-3810 | 2022-11-320 | 3 | United States |
| 6110-01-310-3810 | 2022-03-79 | 1 | DIBBS |
| 6110-01-310-3810 | 2021-07-199 | 1 | DIBBS |
| 6110-01-310-3810 | 2018-09-270 | 6 | DIBBS |
| 6110-01-310-3810 | 2018-06-163 | 6 | DIBBS |
| 6110-01-310-3810 | 2014-03-72 | 7 | DIBBS |
| 6110-01-310-3810 | 2011-06-171 | 10 | DIBBS |
| 6110-01-310-3810 | 2010-05-127 | 10 | DIBBS |
| 6110-01-310-3810 | 2006-05-139 | 8 | DIBBS |
| 6110-01-310-3810 | 2006-04-101 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6110-01-310-3810
Technical Data | NSN 6110-01-310-3810
| Characteristic | Specifications |
|---|---|
| INCLOSURE FEATURE | DRIPPROOF |
| PANEL QUANTITY | 1 |
| CURRENT RATING IN AMPS | 300.0 |
| INPUT VOLTAGE RATING | 125.0 AC VOLTS NOMINAL AND 125.0 DC VOLTS NOMINAL |

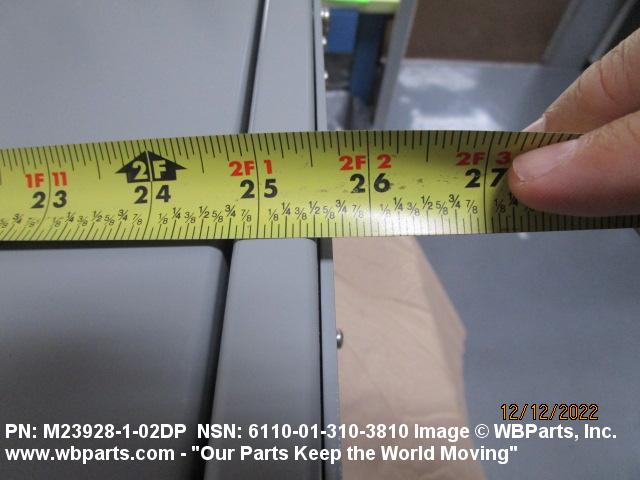

| OVERALL HEIGHT | 25.500 INCHES NOMINAL |

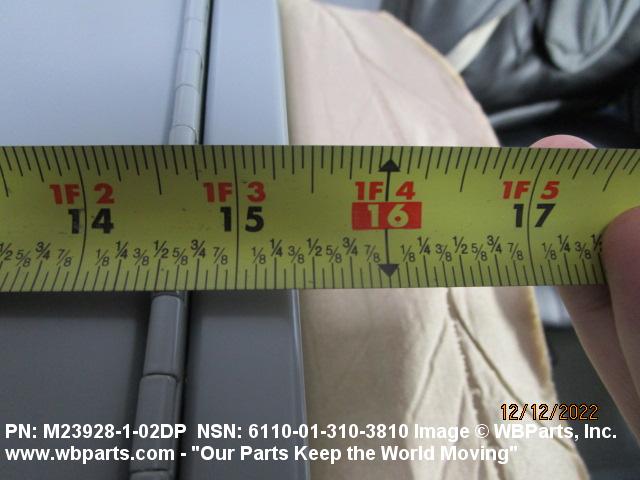

| OVERALL WIDTH | 15.440 INCHES MAXIMUM |
| OVERALL DEPTH | 6.500 INCHES MAXIMUM |
| PANEL MATERIAL | ALUMINUM |
| MOUNTING METHOD | PANEL |
| TEST DATA DOCUMENT | 81349-MIL-P-23928 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-23928/1C |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M23928/1-02DP |
Restrictions/Controls & Freight Information | NSN 6110-01-310-3810
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | ZC | Canada ZD ZE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-01-310-3810
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
