NSN 6115-00-243-7754 PE95WSIGTRAILERK52, 00-243-7754, 002437754
Product Details | TRAILER MOUNTED GASOLINE ENGINE GENERATOR SET
6115-00-243-7754 A generator set using a gasoline engine as the prime mover, the complete unit being mounted on a trailer in order to provide a mobile power source.
Part Alternates: PE95WSIGTRAILERK52, 6115-00-243-7754, 00-243-7754, 6115002437754, 002437754
Electric Wire, and Power and Distribution Equipment | Generators and Generator Sets, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-243-7754 | 16375 ( GENERATOR SET, GASOLINE ENGINE, TRAILER MOUNTED ) |
Drawings & Photos | NSN 6115-00-243-7754
Cross Reference | NSN 6115-00-243-7754
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PE95WSIGTRAILERK52 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6115-00-243-7754
Technical Data | NSN 6115-00-243-7754
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC |
| AC WATTAGE RATING | 5.0 KILOWATTS |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| LINE TO LINE VOLTAGE IN VOLTS | 115.0 |
| POWER FACTOR IN PERCENT | 80.0 |
| EXCITOR TYPE | SELF-EXCITED |
| AMBIENT TEMP IN DEG CELSIUS | NOT RATED |
| TEMP RISE RATING IN DEG CELSIUS FOR CONTINUOUS OPERATION | NOT RATED |
| PRIME MOVER MANUFACTURER NAME | D. W. ONAN AND SONS |
| PRIME MOVER IDENTIFYING NUMBER | ONY MODEL NO. |
| RADIO INTERFERENCE SUPPRESSION | INCLUDED |
| WINTERIZATION FEATURE | NOT INCLUDED |
| WHEEL QUANTITY | 2 |
| BODY TYPE | BOX |
| BODY MATERIAL | STEEL |
| LOAD CAPACITY | 1.00 TONS |

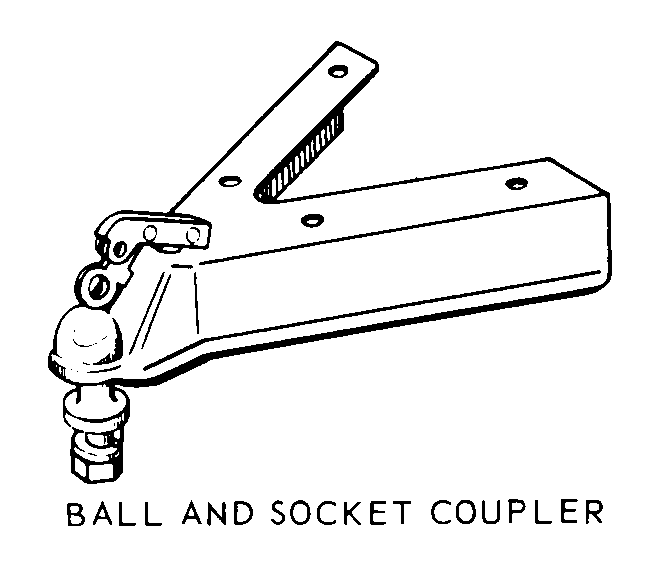

| HITCH/COUPLER STYLE | 2 BALL AND SOCKET COUPLER |
Restrictions/Controls & Freight Information | NSN 6115-00-243-7754
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062080 | GENERATORS-ENGINES COMBINED |
| Less than car load rating | Q | 70 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
