NSN 6115-01-029-8787 UT1015JC, UT10-15JC, 01-029-8787
Product Details | TRAILER MOUNTED GASOLINE ENGINE GENERATOR SET
6115-01-029-8787 A generator set using a gasoline engine as the prime mover, the complete unit being mounted on a trailer in order to provide a mobile power source.
Part Alternates: UT1015JC, UT10-15JC, 6115-01-029-8787, 01-029-8787, 6115010298787, 010298787
Electric Wire, and Power and Distribution Equipment | Generators and Generator Sets, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 24 OCT 1976 | 01-029-8787 | 16375 ( GENERATOR SET, GASOLINE ENGINE, TRAILER MOUNTED ) |
Drawings & Photos | NSN 6115-01-029-8787
Cross Reference | NSN 6115-01-029-8787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UT10-15JC | 55441 | D AND O EQUIPMENT CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6115-01-029-8787
Technical Data | NSN 6115-01-029-8787
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC |
| AC WATTAGE RATING | 15.0 KILOWATTS |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| LINE TO LINE VOLTAGE IN VOLTS | 120.0 AND 240.0 |
| LINE TO NEUTRAL VOLTAGE IN VOLTS | 110.0 AND 220.0 |
| POWER FACTOR IN PERCENT | 100.0 |
| AMBIENT TEMP IN DEG CELSIUS | 110.0 |
| TEMP RISE RATING IN DEG CELSIUS FOR CONTINUOUS OPERATION | NOT RATED |
| MANUFACTURER NAME | D AND O EQUIPMENT COMPANY |
| IDENTIFYING NUMBER | UT10-15JC MODEL NO. |
| PRIME MOVER MANUFACTURER NAME | ONAN MOTOR DIV OF ONAN CORP |
| PRIME MOVER IDENTIFYING NUMBER | SERIES JC MODEL NO. |
| RADIO INTERFERENCE SUPPRESSION | INCLUDED |
| WINTERIZATION FEATURE | INCLUDED |
| WHEEL QUANTITY | 2 |
| BODY TYPE | BOX AND CHASSIS W/FENDER |
| BODY MATERIAL | STEEL |
| LOAD CAPACITY | 1.00 TONS |

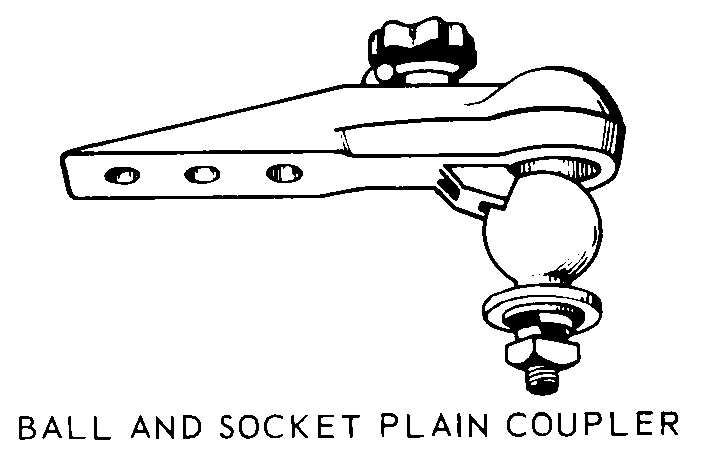

| HITCH/COUPLER STYLE | 1 BALL AND SOCKET PLAIN COUPLER |
Restrictions/Controls & Freight Information | NSN 6115-01-029-8787
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
