Product Details | GENERATOR ROTOR
6115-01-077-8103 A rotor which is a part of an alternating current generator. See also ARMATURE, GENERATOR.20429200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving61150041Generators and Generator Sets, Electrical66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: 81321, 813211, 81321-1, 6115-01-077-8103, 01-077-8103, 6115010778103, 010778103
Electric Wire, and Power and Distribution Equipment | Generators and Generator Sets, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 31 MAY 1979 | 01-077-8103 | 00462 ( ROTOR, GENERATOR ) |

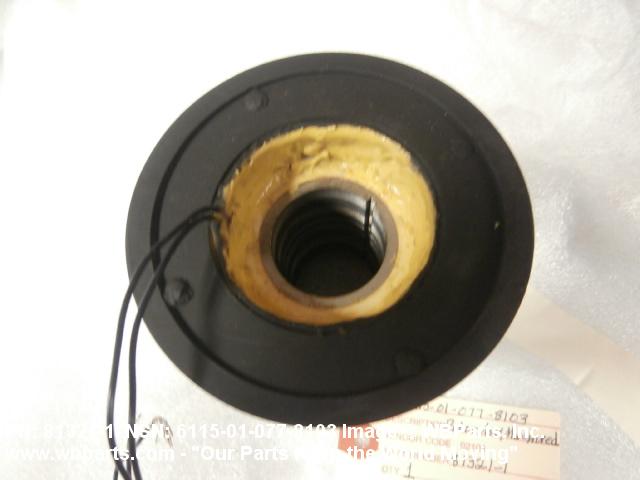

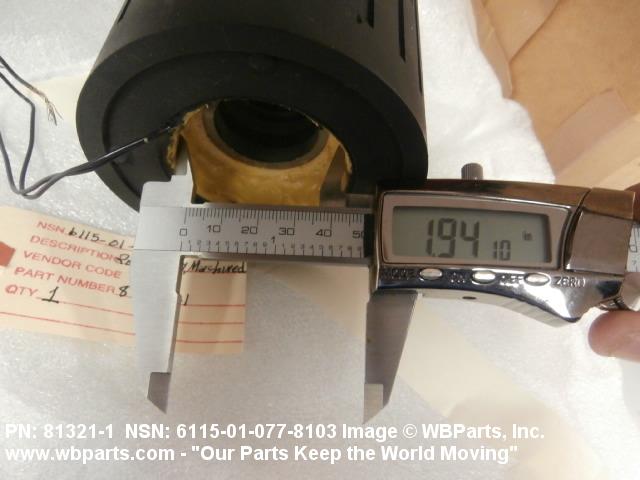

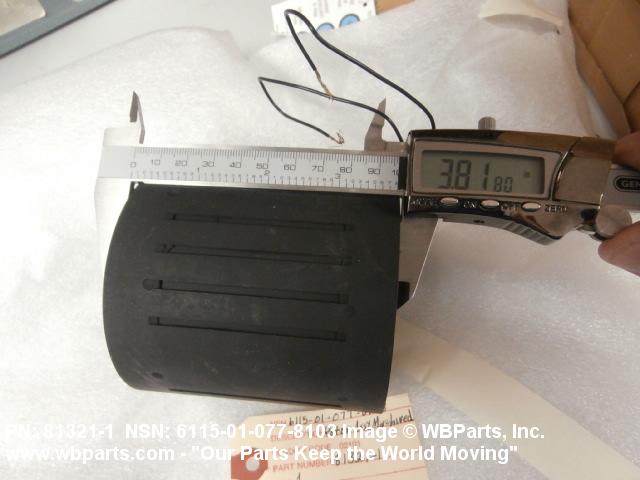

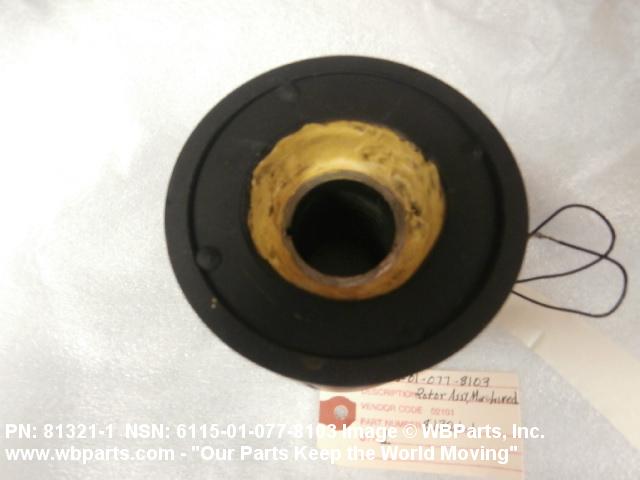

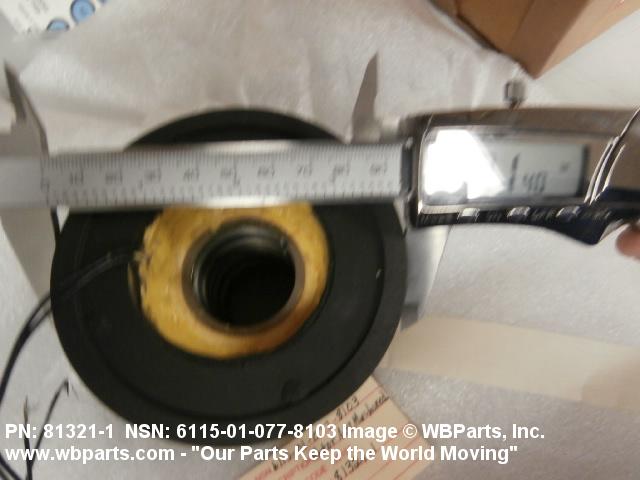

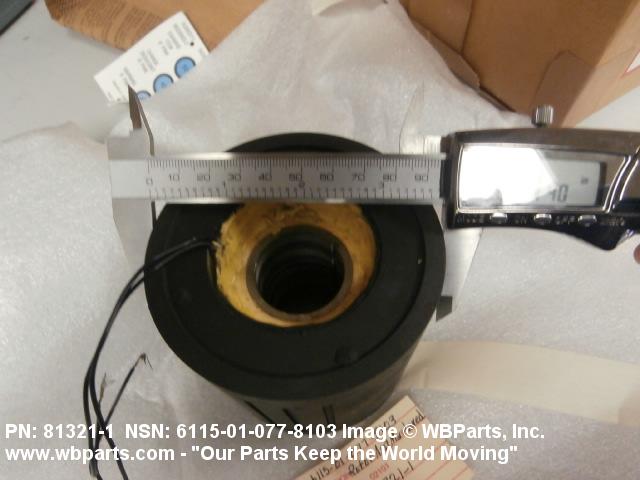

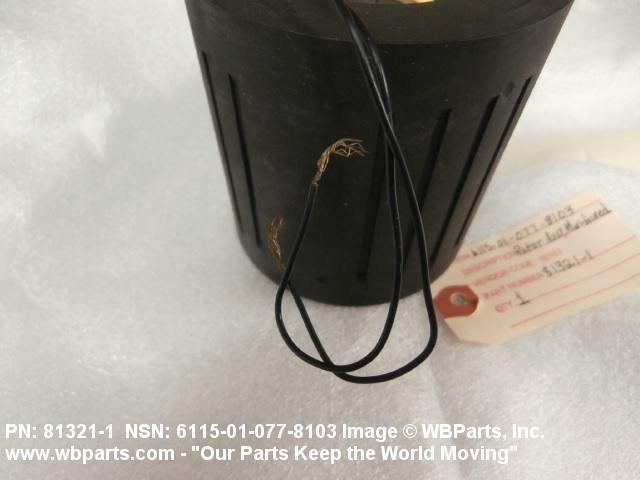

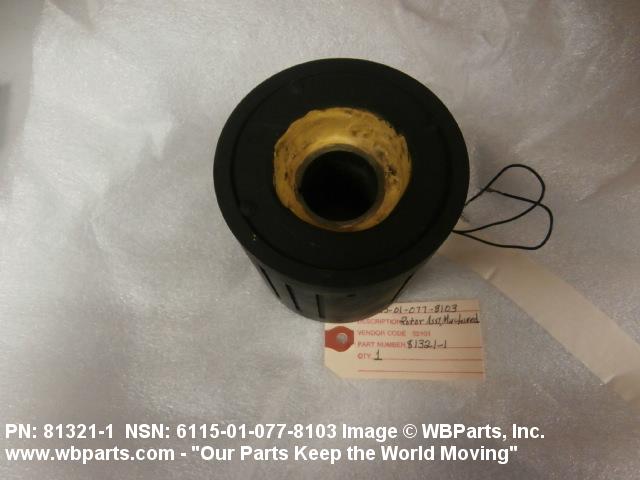

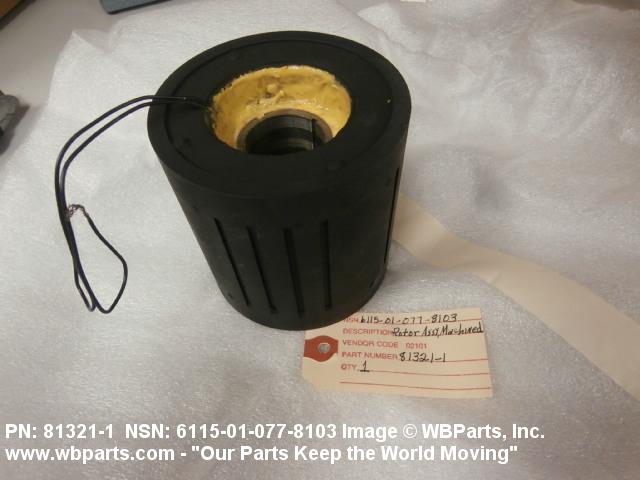

Drawings & Photos | NSN 6115-01-077-8103
Demand History | NSN 6115-01-077-8103
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 81321-1 | 2019-02-21 | 4 | DIBBS |
| 6115-01-077-8103 | 2018-04-11 | 18 | DIBBS |
| 6115-01-077-8103 | 2017-10-24 | 5 | DIBBS |
| 6115-01-077-8103 | 2017-10-23 | 5 | DIBBS |
| 6115-01-077-8103 | 2017-08-31 | 2 | DIBBS |
| 6115-01-077-8103 | 2016-05-19 | 5 | United States |
| 6115-01-077-8103 | 2016-05-09 | 5 | DIBBS |
| 6115-01-077-8103 | 2016-04-28 | 5 | DIBBS |
| 6115-01-077-8103 | 2016-03-17 | 1 | DIBBS |
| 6115-01-077-8103 | 2016-03-06 | 1 | DIBBS |
| 6115-01-077-8103 | 2016-02-08 | 3 | DIBBS |
| 6115-01-077-8103 | 2016-01-03 | 3 | DIBBS |
| 6115-01-077-8103 | 2014-01-14 | 5 | DIBBS |
| 6115-01-077-8103 | 2013-01-03 | 14 | DIBBS |
| 6115-01-077-8103 | 2009-07-23 | 14 | DIBBS |
| 6115-01-077-8103 | 2006-06-13 | 0 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6115-01-077-8103
Related Products | NSN 6115-01-077-8103
6115-01-078-0429, 6115-01-078-0430, 6115-01-078-3044, 6115-01-078-3256, 6115-01-078-4725
Technical Data | NSN 6115-01-077-8103
| Characteristic | Specifications |
|---|---|

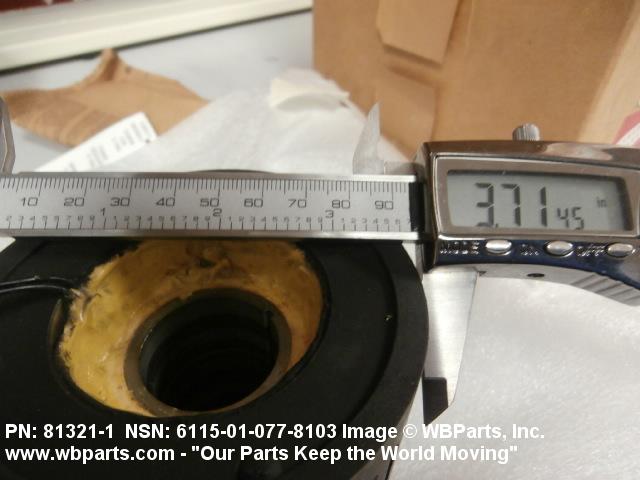

| OVERALL DIAMETER | 3.7090 INCHES MINIMUM AND 3.7110 INCHES MAXIMUM |
| SPECIAL FEATURES | ACRYLIC LACQUER,BLACK,PER MIL-L-81352,FED STD 595 COLOR 37038,AND INCLUDES WIRE LEADS |
| III END ITEM IDENTIFICATION | 6115-01-026-9460 GENERATOR AC |
| MANUFACTURERS CODE | 02101 |
| DESIGN CONTROL REFERENCE | 81321-1 |
Restrictions/Controls & Freight Information | NSN 6115-01-077-8103
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB3 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6115-01-077-8103
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
