NSN 6130-00-237-7958 SCA13489, VB12A, VB12ALLLETTERS
Product Details | INTERRUPTER VIBRATOR
6130-00-237-7958 An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.
Part Alternates: SCA13489, VB12A, VB12ALLLETTERS, RA96A, 2711563VB12, 271-1563VB12, 48K60393, 860VIBRAT0R, 6130-00-237-7958, 00-237-7958, 6130002377958, 002377958
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-237-7958 | 00743 ( VIBRATOR, INTERRUPTER ) |
Drawings & Photos | NSN 6130-00-237-7958
Cross Reference | NSN 6130-00-237-7958
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 271-1563VB12 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 48K60393 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 48K60393 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 860VIBRAT0R | 37942 | YOSEMITE INVESTMENT INC DBA NORTH AMERICAN CAPACITOR CO |
| RA96A | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SCA13489 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| VB12A | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| VB12ALLLETTERS | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-00-237-7958
Technical Data | NSN 6130-00-237-7958
| Characteristic | Specifications |
|---|---|
| INPUT VOLTAGE RATING | 6.0 DC VOLTS NOMINAL |
| INPUT CURRENT RATING | 5.0 AMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| OUTPUT FREQUENCY RATING | 108.1 HERTZ MINIMUM AND 121.9 HERTZ MAXIMUM |
| REED TYPE | SINGLE |
| HERMETICALLY SEALED FEATURE | PROVIDED |
| OVERALL DIAMETER | 1.510 INCHES NOMINAL |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |

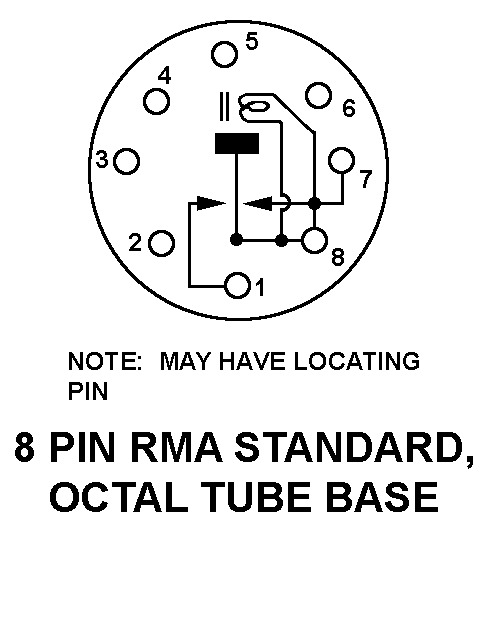

| BASE CONNECTION WIRING STYLE | E1 8 PIN STANDARD OCTAL TUBE |
| SPECIAL FEATURES | MOISTURE AND FUNGUS RESISTANT;MARKED VB-12-A |
| III END ITEM IDENTIFICATION | TYPE NO. PE-120.0 |
Restrictions/Controls & Freight Information | NSN 6130-00-237-7958
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
