Product Details | SELF-RECTIFYING VIBRATOR
6130-00-655-2284 An electromechanical device which interrupts the direct current input by means of a coil-driven vibrating armature (reed) whose contacts alternately open and close the direct current circuit. It is equipped with a second set of contacts which operate in synchronism with the first set and are mounted on either the same or a separate (split) armature to rectify the stepped-up alternating current voltage obtained from an external transformer secondary to produce a pulsating direct current output. For items designed to operate over a wide and comparatively high frequency range and whose coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.
Part Alternates: 12VD6H, 6130-00-655-2284, 00-655-2284, 6130006552284, 006552284
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-655-2284 | 00744 ( VIBRATOR, SELF-RECTIFYING ) |
Drawings & Photos | NSN 6130-00-655-2284
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-00-655-2284
Technical Data | NSN 6130-00-655-2284
| Characteristic | Specifications |
|---|---|
| INPUT VOLTAGE RATING | 12.0 DC VOLTS NOMINAL |
| INPUT CURRENT RATING | 22.0 AMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| OUTPUT FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| REED TYPE | DUAL |
| PHASE ANGLE IN DEG | NOT RATED |
| DWELL TIME RATING IN DEG | NOT RATED |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| OVERALL LENGTH | 5.938 INCHES NOMINAL |
| OVERALL WIDTH | 2.719 INCHES NOMINAL |
| OVERALL HEIGHT | 3.375 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | NOT PROVIDED |

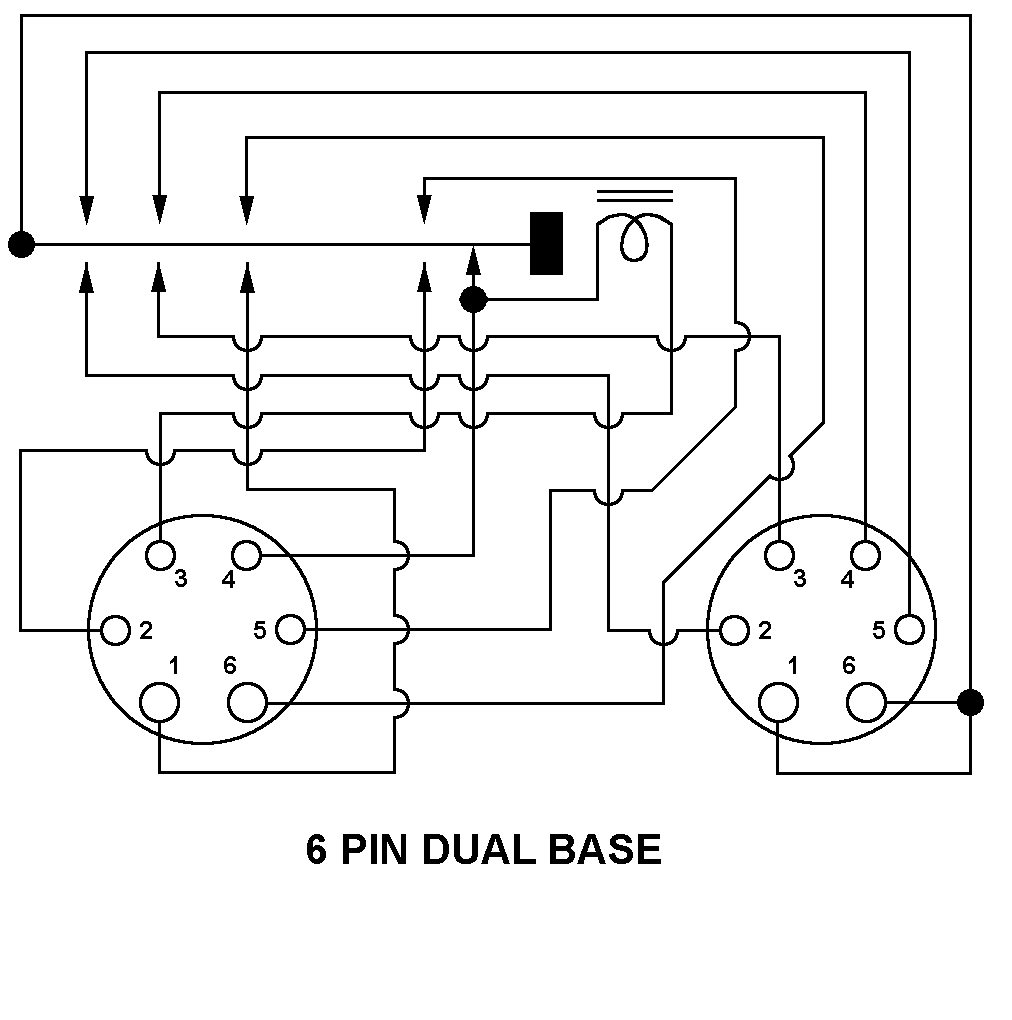

| BASE CONNECTION WIRING STYLE | F1 6 PIN DUAL BASE |
