NSN 6130-01-256-2085 MPS334, MPS-334, MPS334C

Product Details | POWER SUPPLY

6130-01-256-2085 A component which converts available alternating current or direct current electrical power into a form required to operate another component or set. The item may consist of a combination of an INVERTOR, VIBRATOR; VIBRATOR, INTERRUPTER; VIBRATOR, SELF-RECTIFYING; INVERTOR, POWER, STATIC; with a transformer and rectifier(s) employing electron tubes, semiconductor diode or metallic (dry disc) type components, or the synchronized secondary contact(s) of a VIBRATOR, SELF-RECTIFYING; or may consist of electron tubes, semiconductor diode or metallic (dry disc) type rectifiers and capacitors in transformerless (alternating current-direct current type) circuits which may be of the voltage-multiplier type. The item may incorporate a FILTER, DIRECT CURRENT POWER and provisions for regulation of input and/or output voltage. The item may have special input, output, control or other facilities for applications in specialized environments such as medical, dental or other operations. Excludes battery chargers and rotating machinery types of items, such as motor generators and dynamotors.20461200044Transformers: Distribution and Power Station61300035Converters, Electrical, Nonrotating65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies

Part Alternates: MPS334, MPS-334, MPS334C, 723989-801, 535493, 5354931, 535493-1, 535493-801, 6130-01-256-2085, 01-256-2085, 6130012562085, 012562085, 535493801, 723989801

Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	03 JUN 1987	01-256-2085	00740 ( POWER SUPPLY )

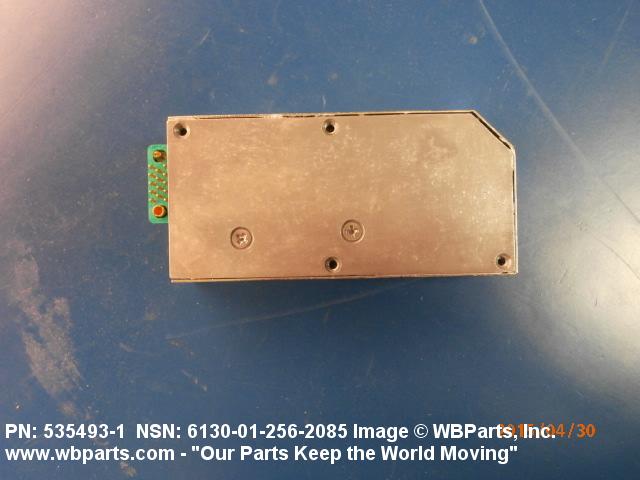

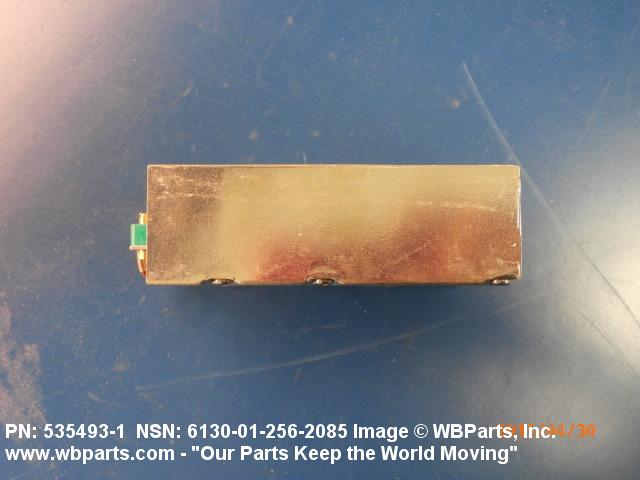

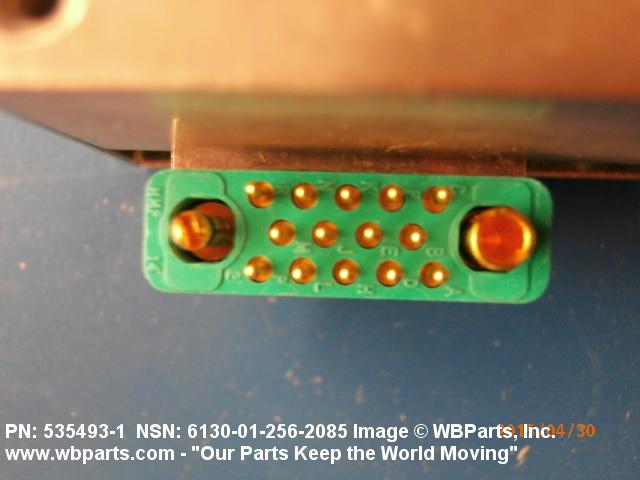

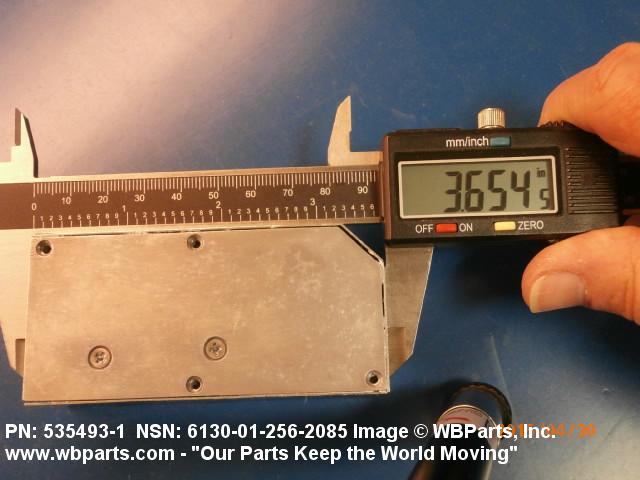

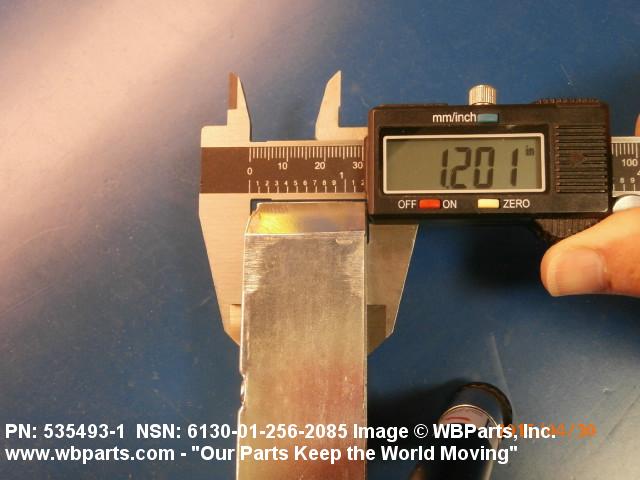

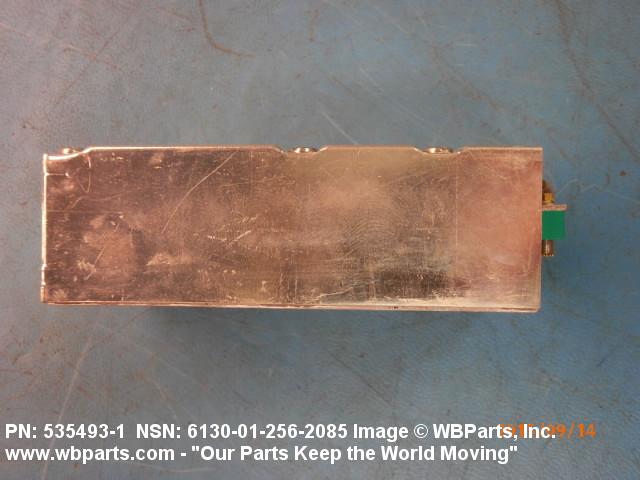

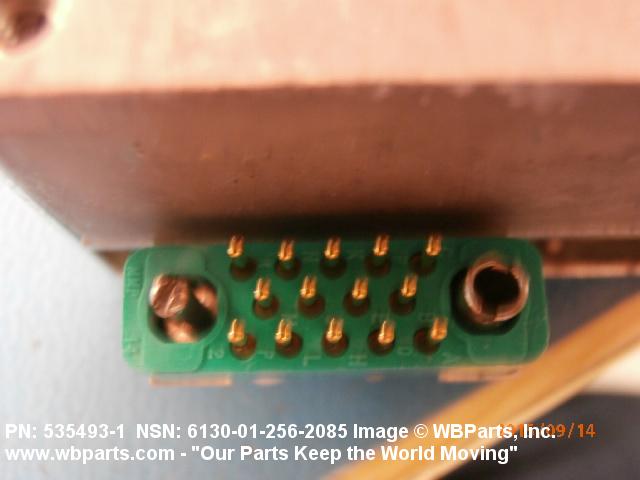

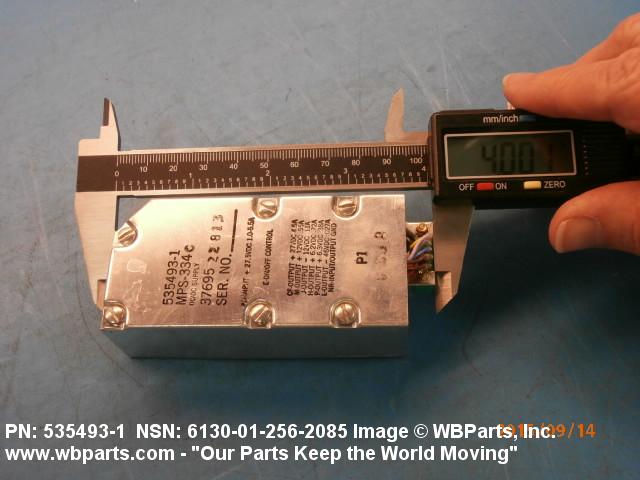

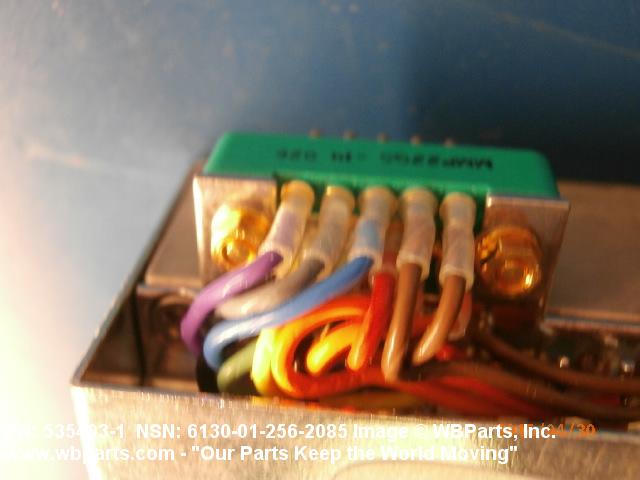

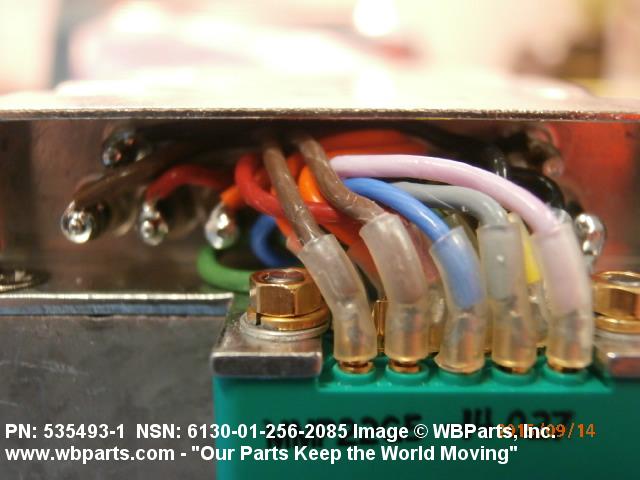

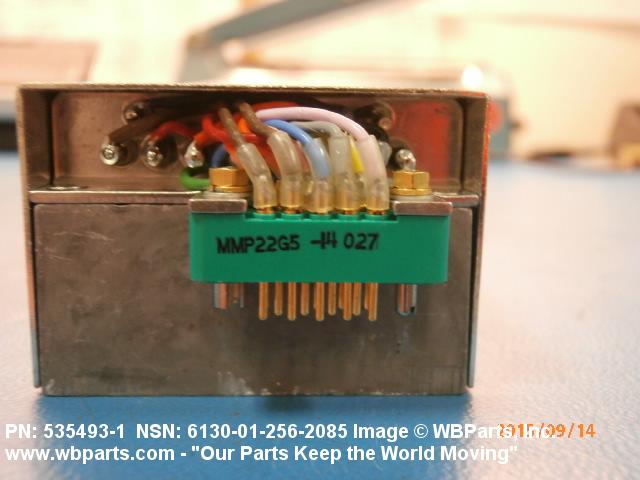

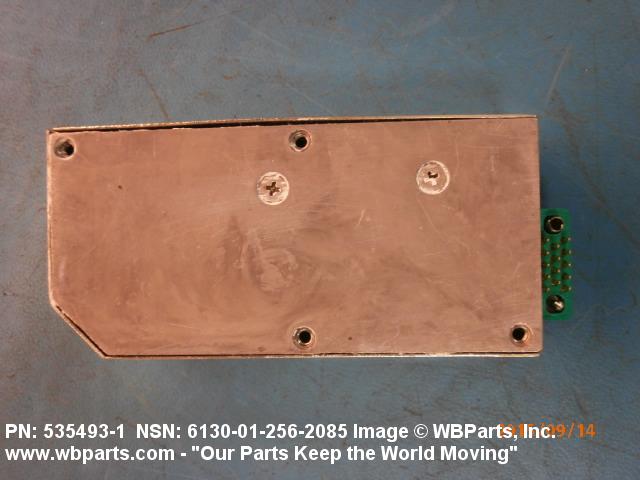

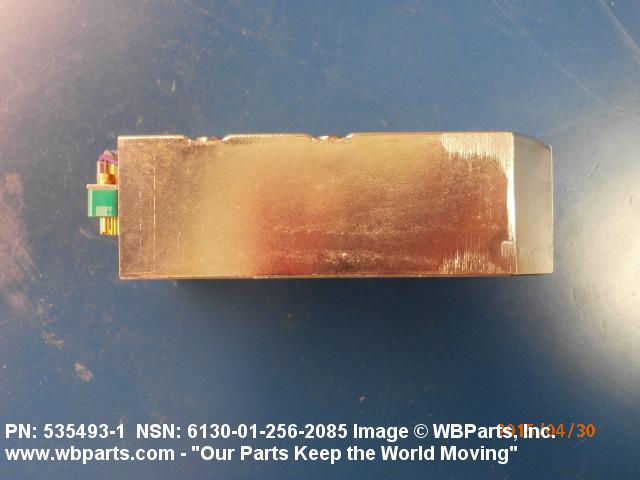

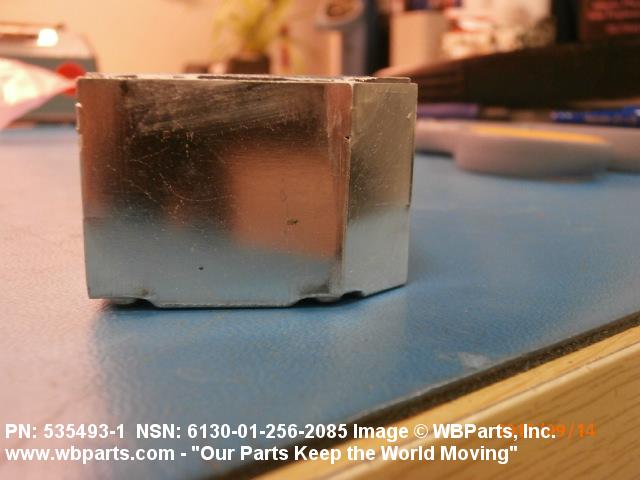

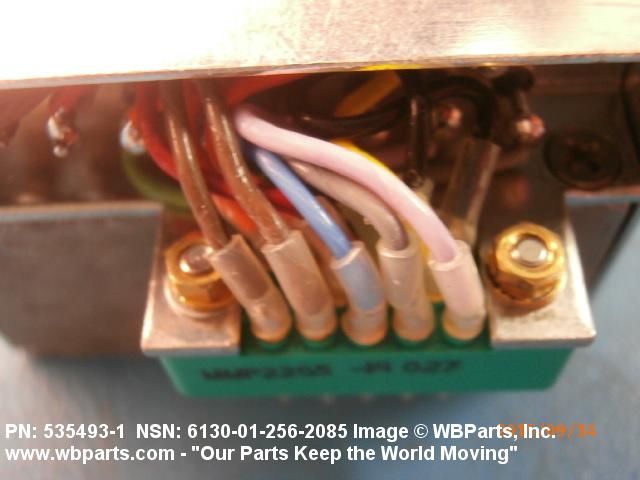

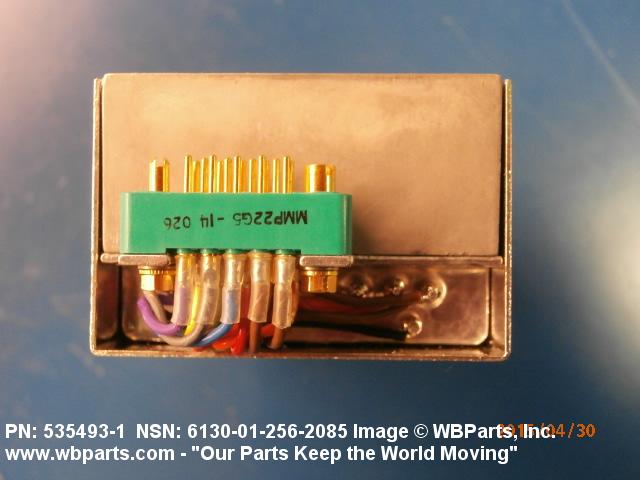

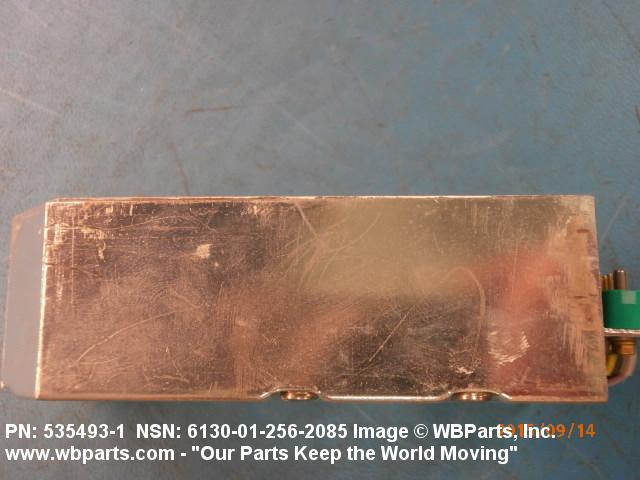

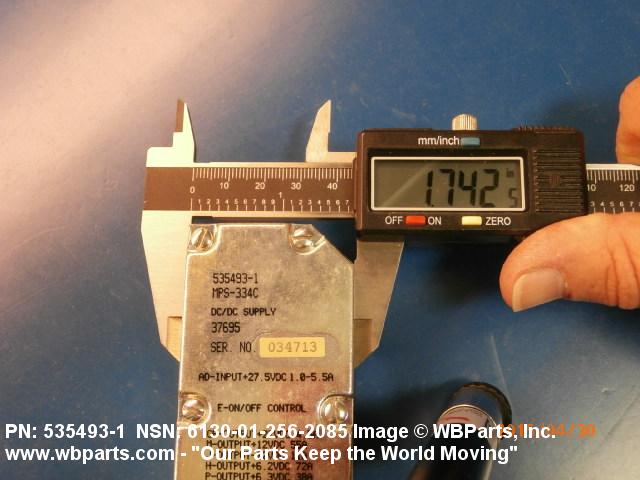

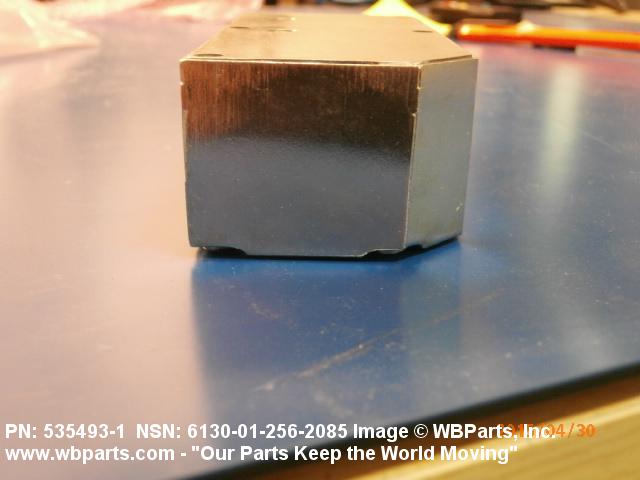

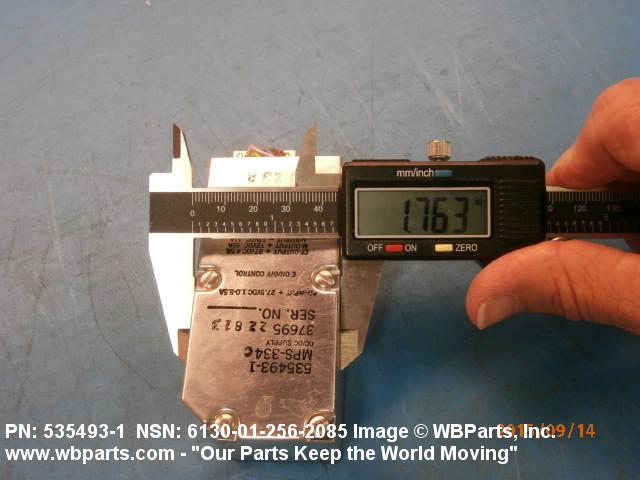

Drawings & Photos | NSN 6130-01-256-2085

Part Number	Request Date	QTY	Origin
6130-01-256-2085	2025-05-133	21	KR
6130-01-256-2085	2025-05-129	21	KR
6130-01-256-2085	2025-02-48	21	Korea
6130-01-256-2085	2024-06-163	5	Denmark
6130-01-256-2085	2024-06-163	10	Denmark
6130-01-256-2085	2024-03-91	10	KR
6130-01-256-2085	2024-03-89	10	KR
6130-01-256-2085	2023-07-201	3	Korea
6130-01-256-2085	2023-07-193	1	TH
6130-01-256-2085	2023-02-44	348	US
6130-01-256-2085	2022-06-167	2	US
6130-01-256-2085	2022-04-96	35	KR
6130-01-256-2085	2022-04-95	35	KR
6130-01-256-2085	2022-03-88	3	Korea
6130-01-256-2085	2022-02-34	3	Korea
6130-01-256-2085	2022-02-34	3	Korea
6130-01-256-2085	2021-03-88	1	us
6130-01-256-2085	2020-11-324	4	US
6130-01-256-2085	2019-10-280	6	PK
6130-01-256-2085	2018-09-253	1	US
6130-01-256-2085	2018-08-236	20	KR
6130-01-256-2085	2018-08-236	20	Taiwan
6130-01-256-2085	2018-08-235	20	KR
6130-01-256-2085	2018-07-192	20	KR
6130-01-256-2085	2018-05-133	20	KR
6130-01-256-2085	2016-09-246	2	US
5354931	2016-07-208	7	United States
6130-01-256-2085	2016-01-31	2	United States
6130-01-256-2085	2015-07-211	1	Spain
6130-01-256-2085	2015-07-208	4	TW
6130-01-256-2085	2015-03-64	1	Spain
6130-01-256-2085	2014-03-78	1	PR
5354931	2013-12-350	3	SG
535493801	2013-10-279	1	US
6130-01-256-2085	2013-08-217	44	KR
5354931	2012-03-65	103	Taiwan
6130-01-256-2085	2012-02-59	10	TH
5354931	2011-11-318	2	US
535493801	2011-04-109	1	TW
5354931	2011-03-66	2	TH
5354931	2011-02-46	2	us
6130-01-256-2085	2009-04-111	2	US
6130-01-256-2085	2009-04-105	50	Turkey

Cross Reference | NSN 6130-01-256-2085

Part Number	Cage Code	Manufacturer
535493	37695	RAYTHEON COMPANY DBA RAYTHEON
535493-1	37695	RAYTHEON COMPANY DBA RAYTHEON
535493-1	U9259	FEL AVIONICS LIMITED
535493-801	37695	RAYTHEON COMPANY DBA RAYTHEON
723989-801	37695	RAYTHEON COMPANY DBA RAYTHEON
MPS-334	37695	RAYTHEON COMPANY DBA RAYTHEON
MPS334C	37695	RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6130-01-256-2085

Compare

Related Products | NSN 6130-01-256-2085

6130-01-256-2089, 6130-01-256-2295, 6130-01-256-2461, 6130-01-256-2462, 6130-01-256-2463

Restrictions/Controls & Freight Information | NSN 6130-01-256-2085

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	Y	Information is in the Hazardous Materials Information System (HMIS)
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Hazardous Control Code:	N1	Not Regulated as Hazardous NON HAZARDOUS
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062900	RECTIFIERS NOI/BATTERY ELIMINATORS
Less than car load rating	M	85
Less than truck load rating	M	85.0
Water commodity Code	738	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 6130-01-256-2085

Category	Code	Description
Materiel Category and Inventory Manager	G	Communications and Electronics Equipment, Electronics Materiel
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	1	REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic Code	Q	Avionics
Weapons Systems/End Item or Homogeneous Group	Q2	AN/ARC-164
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	B16	US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	D	When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level.
Acquisition Advice Codes	M	RESTRICTED REQUISITIONS-MAJOR OVERHAUL (Service/Agency use only.) # Items (Assemblies and/or component parts) which for lack of specialized tools, test equipment, etc., can be used only by major overhaul activities. Base, post, camp or station activities will not requisition unless authorized to perform major overhaul function.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Materiel Management Aggregation Code	BY	TG:AIRBORNE COMMUNICATION EQUIPMENT
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	RO	Major repair.
Source of Supply	FLZ	Warner Robins Air Logistics Center Robins AFB, GA 31098-5609
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	T	AF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice Codes	M	RESTRICTED REQUISITIONS-MAJOR OVERHAUL (Service/Agency use only.) # Items (Assemblies and/or component parts) which for lack of specialized tools, test equipment, etc., can be used only by major overhaul activities. Base, post, camp or station activities will not requisition unless authorized to perform major overhaul function.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	7R	Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia
Special Material ID	FP	PATROLAIRCRAFT(P3C)
Source of Supply	N32	Naval Inventory Control Point Philadelphia, PA 19111-5098
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Reparability	H	Depot Level Reparable
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
