NSN 6130-01-279-7398 SPS2344A, 52046846, 5204684-6
Product Details | POWER SUPPLY
6130-01-279-7398 A component which converts available alternating current or direct current electrical power into a form required to operate another component or set. The item may consist of a combination of an INVERTOR, VIBRATOR; VIBRATOR, INTERRUPTER; VIBRATOR, SELF-RECTIFYING; INVERTOR, POWER, STATIC; with a transformer and rectifier(s) employing electron tubes, semiconductor diode or metallic (dry disc) type components, or the synchronized secondary contact(s) of a VIBRATOR, SELF-RECTIFYING; or may consist of electron tubes, semiconductor diode or metallic (dry disc) type rectifiers and capacitors in transformerless (alternating current-direct current type) circuits which may be of the voltage-multiplier type. The item may incorporate a FILTER, DIRECT CURRENT POWER and provisions for regulation of input and/or output voltage. The item may have special input, output, control or other facilities for applications in specialized environments such as medical, dental or other operations. Excludes battery chargers and rotating machinery types of items, such as motor generators and dynamotors.20461200044Transformers: Distribution and Power Station61300035Converters, Electrical, Nonrotating65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies
Part Alternates: SPS2344A, 52046846, 5204684-6, 6130-01-279-7398, 01-279-7398, 6130012797398, 012797398
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 24 MAY 1988 | 01-279-7398 | 00740 ( POWER SUPPLY ) |

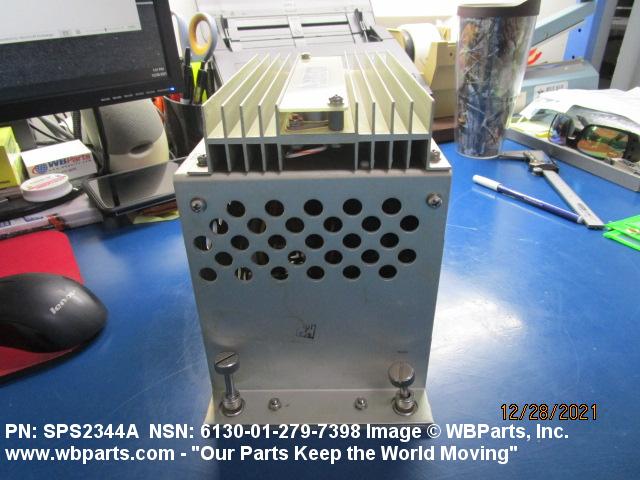

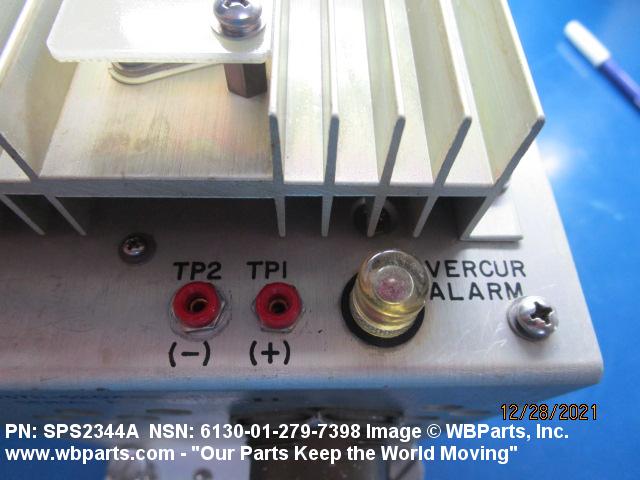

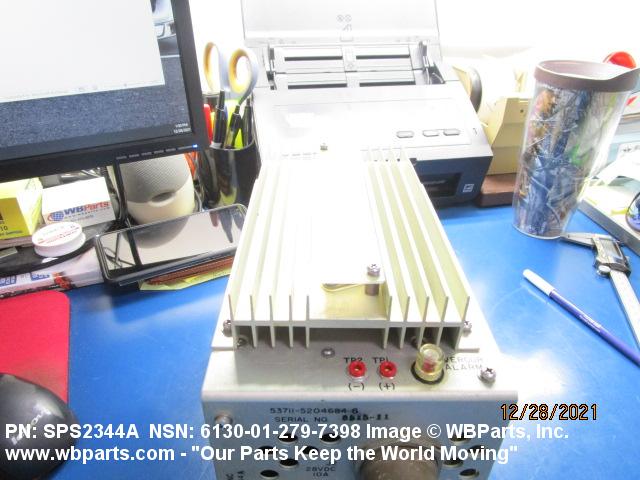

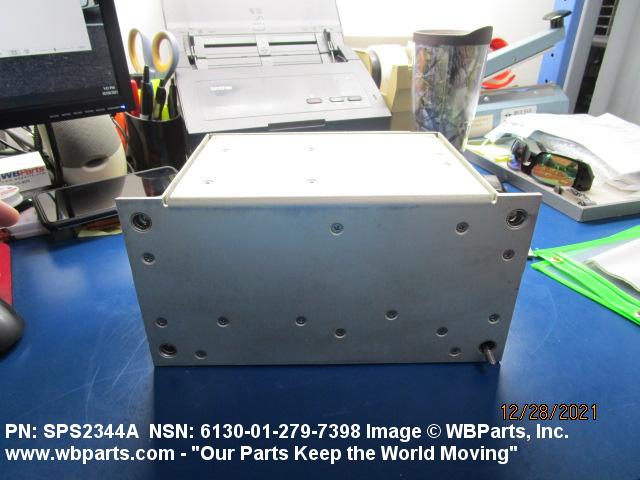

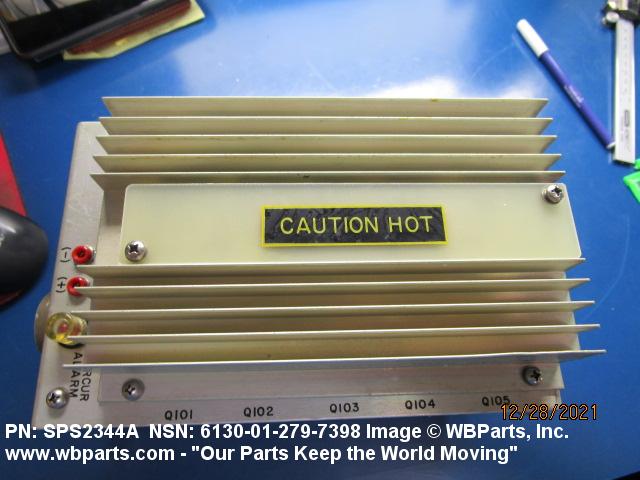

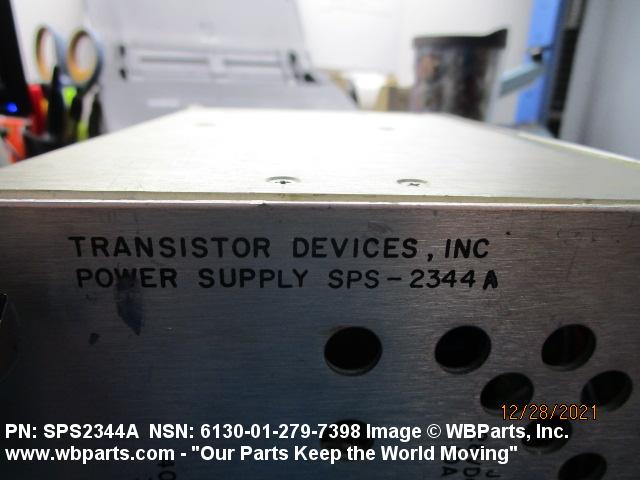

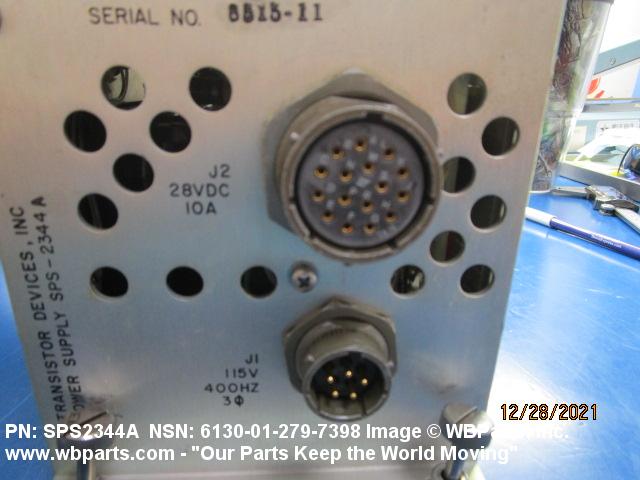

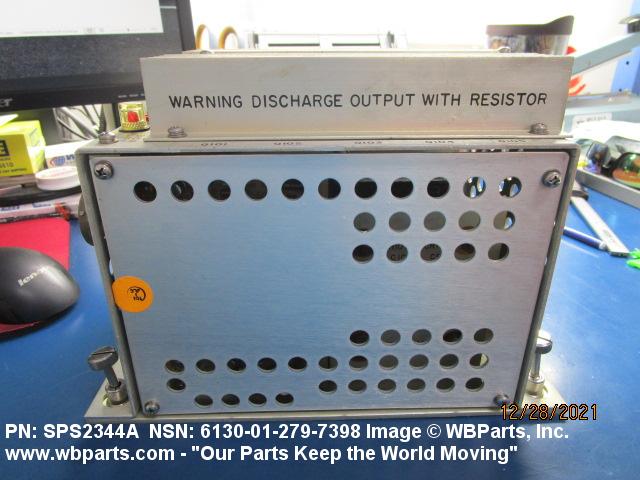

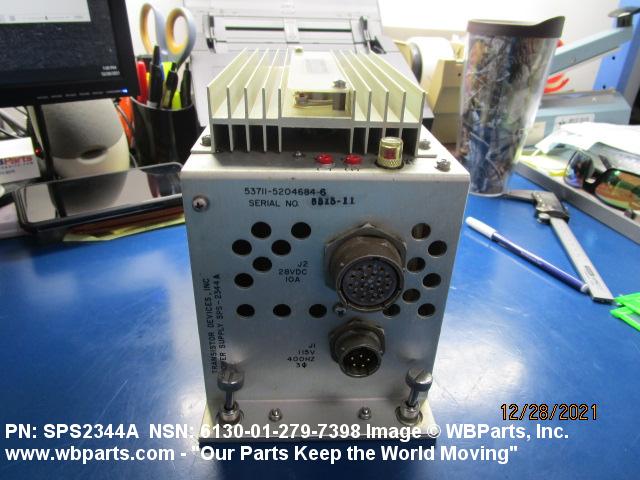

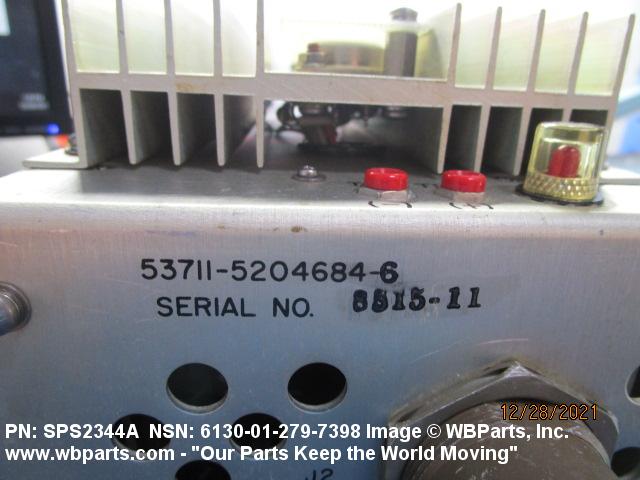

Drawings & Photos | NSN 6130-01-279-7398
Demand History | NSN 6130-01-279-7398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 012797398 | 2024-08-232 | 3 | United States |
| 6130-01-279-7398 | 2022-06-159 | 1 | United States |
| 6130-01-279-7398 | 2021-11-308 | 1 | United States |
| 6130-01-279-7398 | 2021-09-258 | 1 | United States |
| 6130-01-279-7398 | 2021-01-12 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-01-279-7398
Technical Data | NSN 6130-01-279-7398
| Characteristic | Specifications |
|---|---|
| OUTPUT VOLTAGE RATING | 28.0 DC VOLTS NOMINAL SINGLE POWER OUTPUT |
| OUTPUT CURRENT RATING | 10.0 DC AMPERES NOMINAL SINGLE POWER OUTPUT |
| RIPPLE VOLTAGE AT FULL LOAD | 5.0 MILLIVOLTS PEAK SINGLE POWER OUTPUT |
| OUTPUT CONTROL TYPE | VOLTAGE ADJUSTMENT SINGLE POWER OUTPUT |
| OUTPUT CONNECTION QUANTITY | 1 SINGLE POWER OUTPUT |
| OUTPUT CONNECTION TYPE | CONNECTOR, RECEPTACLE SINGLE POWER OUTPUT |
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| INPUT VOLTAGE RATING | 103.5 AC VOLTS MINIMUM AND 126.5 AC VOLTS MAXIMUM SINGLE OPERATING POWER RQMT |
| INPUT FREQUENCY RATING | 380.0 HERTZ MINIMUM AND 420.0 HERTZ MAXIMUM SINGLE OPERATING POWER RQMT |
| INPUT CONNECTION TYPE | CONNECTOR, RECEPTACLE SINGLE OPERATING POWER RQMT |
| INPUT CONNECTION QUANTITY | 1 SINGLE OPERATING POWER RQMT |
| POWER SUPPLY EFFICIENCY LINE | 30.0 |
| VENTILATION DESIGN TYPE | AIR COOLED |
| OVERALL LENGTH | 10.050 INCHES NOMINAL |
| OVERALL WIDTH | 5.200 INCHES NOMINAL |
| OPERATING AMBIENT TEMP RANGE | 0.1 TO 65.0 DEG CELSIUS |
| FEATURES PROVIDED | OVER VOLTAGE PROTECTOR |
| III END ITEM IDENTIFICATION | T-1348/SPG CG 59-63,TRANSMITTER,RADAR |
Restrictions/Controls & Freight Information | NSN 6130-01-279-7398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6130-01-279-7398
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
