NSN 6130-01-546-5201 MS181032, MS18103-2, 01-546-5201
Product Details | POWER SUPPLY
6130-01-546-5201 A component which converts available alternating current or direct current electrical power into a form required to operate another component or set. The item may consist of a combination of an INVERTOR, VIBRATOR; VIBRATOR, INTERRUPTER; VIBRATOR, SELF-RECTIFYING; INVERTOR, POWER, STATIC; with a transformer and rectifier(s) employing electron tubes, semiconductor diode or metallic (dry disc) type components, or the synchronized secondary contact(s) of a VIBRATOR, SELF-RECTIFYING; or may consist of electron tubes, semiconductor diode or metallic (dry disc) type rectifiers and capacitors in transformerless (alternating current-direct current type) circuits which may be of the voltage-multiplier type. The item may incorporate a FILTER, DIRECT CURRENT POWER and provisions for regulation of input and/or output voltage. The item may have special input, output, control or other facilities for applications in specialized environments such as medical, dental or other operations. Excludes battery chargers and rotating machinery types of items, such as motor generators and dynamotors.20461200044Transformers: Distribution and Power Station61300035Converters, Electrical, Nonrotating65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies
Part Alternates: MS181032, MS18103-2, 6130-01-546-5201, 01-546-5201, 6130015465201, 015465201
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 19 DEC 2006 | 01-546-5201 | 00740 ( POWER SUPPLY ) |

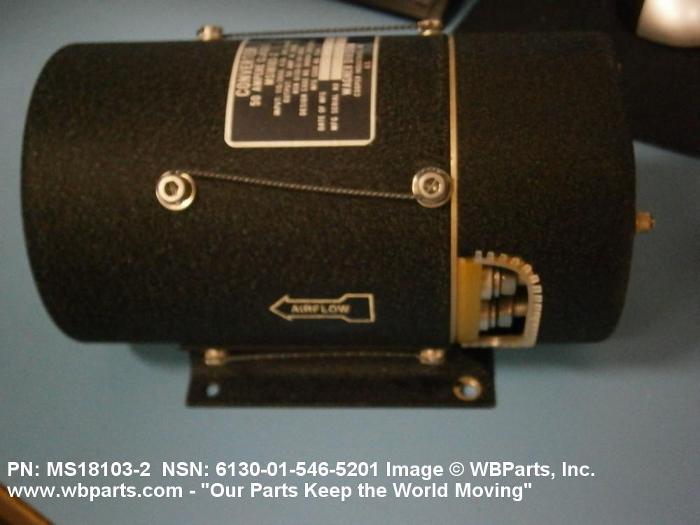

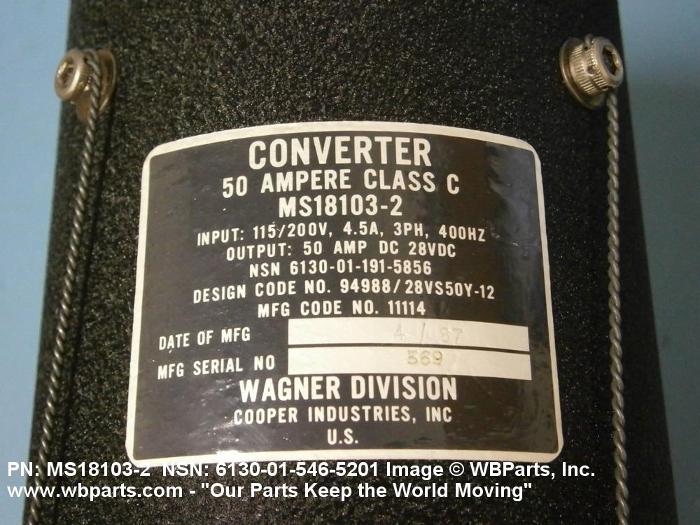

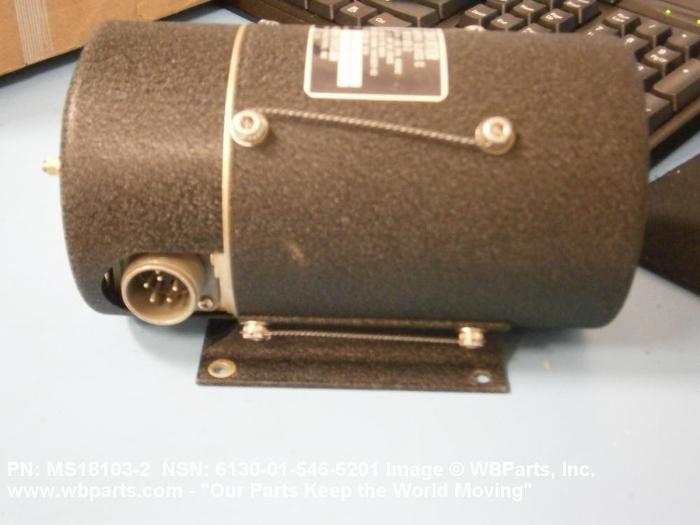

Drawings & Photos | NSN 6130-01-546-5201
Demand History | NSN 6130-01-546-5201
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS181032 | 2022-09-249 | 9 | US |
| 6130-01-546-5201 | 2022-06-172 | 1 | United States |
| 6130-01-546-5201 | 2022-05-144 | 10 | US |
| 6130-01-546-5201 | 2022-05-129 | 1 | United States |
| 6130-01-546-5201 | 2022-05-126 | 1 | United States |
| 6130-01-546-5201 | 2020-10-297 | 300 | US |
| 6130-01-546-5201 | 2019-02-59 | 16 | US |
| 6130-01-546-5201 | 2015-10-280 | 1 | US |
| MS181032 | 2013-01-11 | 3 | United States |
| MS181032 | 2011-10-300 | 1 | United States |
| MS181032 | 2011-10-298 | 34 | United States |
| MS181032 | 2011-01-03 | 39 | United States |
Cross Reference | NSN 6130-01-546-5201
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS18103-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-01-546-5201
Technical Data | NSN 6130-01-546-5201
| Characteristic | Specifications |
|---|---|
| OUTPUT VOLTAGE RATING | 33.2 DC VOLTS NOMINAL 1ST POWER OUTPUT 30.2 DC VOLTS NOMINAL 2ND POWER OUTPUT 28.8 DC VOLTS NOMINAL 3RD POWER OUTPUT 28.2 DC VOLTS NOMINAL 4TH POWER OUTPUT 27.6 DC VOLTS NOMINAL 5TH POWER OUTPUT 27.2 DC VOLTS NOMINAL 6TH POWER OUTPUT 26.9 DC VOLTS NOMINAL 7TH POWER OUTPUT |
| OUTPUT CURRENT RATING | 0.5 DC AMPERES MINIMUM AND 50.0 DC AMPERES MAXIMUM 1ST POWER OUTPUT |
| INPUT VOLTAGE RATING | 112.5 AC VOLTS MINIMUM AND 117.6 AC VOLTS MAXIMUM SINGLE OPERATING POWER RQMT |
| INPUT FREQUENCY RATING | 380.0 HERTZ MINIMUM AND 420.0 HERTZ MAXIMUM SINGLE OPERATING POWER RQMT |
| INPUT PHASE | SINGLE SINGLE OPERATING POWER RQMT |
| INPUT CONNECTION TYPE | RECEPTACLE, ELECTRICAL SINGLE OPERATING POWER RQMT |
| INPUT CONNECTION QUANTITY | 1 SINGLE OPERATING POWER RQMT |
| VENTILATION DESIGN TYPE | SINGLE FAN |
| OVERALL LENGTH | 7.300 INCHES NOMINAL |
| OVERALL WIDTH | 4.125 INCHES NOMINAL |
| OVERALL HEIGHT | 4.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE PROCE | MS18103-2 SSING |
Restrictions/Controls & Freight Information | NSN 6130-01-546-5201
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
