NSN 6140-01-188-0062 011880062
Product Details | BATTERY RETAINER
6140-01-188-0062 An item designed to position and/or restrain the movement of one or more batteries in their normal mounting position. See also TRAY, BATTERY and BATTERY BOX.
Part Alternates: 011880062
Electric Wire, and Power and Distribution Equipment | Batteries, Rechargeable
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01-188-0062 | 02890 ( RETAINER, BATTERY ) |
Drawings & Photos | NSN 6140-01-188-0062
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6140-01-188-0062
Related Products | NSN 6140-01-188-0062
Technical Data | NSN 6140-01-188-0062
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A36 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PRIMER AND ENAMEL AND PHOSPHATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-P-1757 COLOR Y,COMP G FED SPEC 1ST TREATMENT RESPONSE AND TT-E-529 CLASS A OR B COLOR NO. 24052 (GREEN) FED SPEC 2ND TREATMENT RESPONSE AND MIL-P-16232 TYPE M,CLASS 1 OR 2 MIL SPEC 3RD TREATMENT RESPONSE |

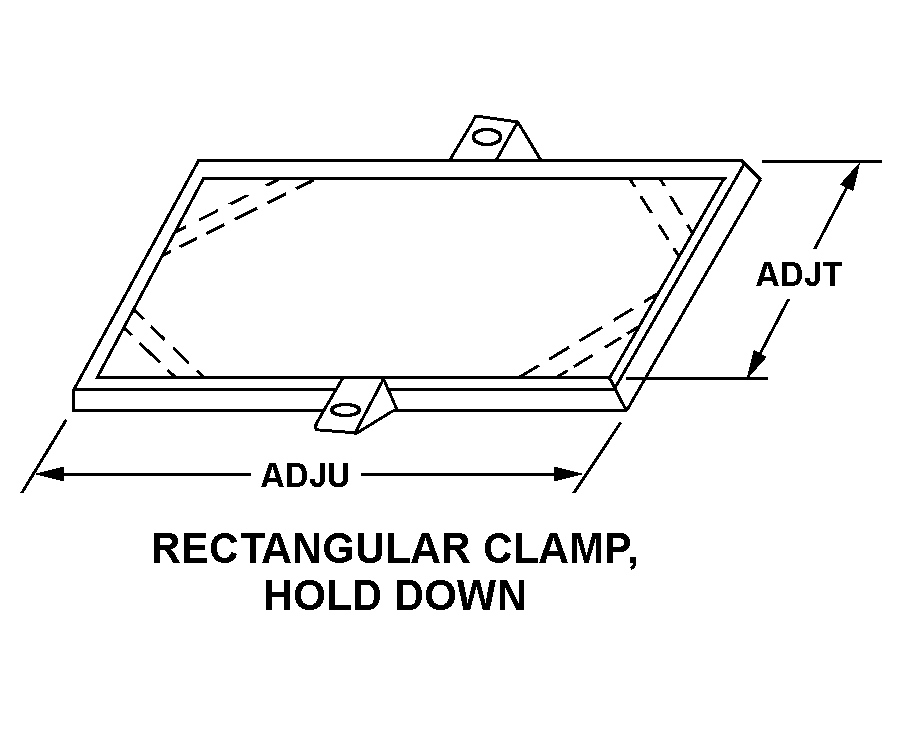

| STYLE DESIGNATOR | 85B RECTANGULAR CLAMP, HOLD DOWN |
| INSIDE WIDTH | 15.750 INCHES NOMINAL |
| INSIDE LENGTH | 28.500 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SLOT |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 SLOT ALL MOUNTING FACILITIES |
| MOUNTING SLOT WIDTH | 0.406 INCHES NOMINAL ALL MOUNTING FACILITIES |
| MOUNTING SLOT LENGTH | 0.500 INCHES NOMINAL ALL MOUNTING FACILITIES |
| SPECIAL FEATURES | 250 MICRO INCH FINISH OVER ALL |
| MANUFACTURERS CODE | 20418 |
| DESIGN CONTROL REFERENCE | 000-25-1614-1 |
Restrictions/Controls & Freight Information | NSN 6140-01-188-0062
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
