NSN 6145-00-013-8651 MS21985169, MS21985-16-9, M16878/25BJE9

Product Details | ELECTRICAL WIRE

6145-00-013-8651 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.

Part Alternates: MS21985169, MS21985-16-9, M16878/25BJE9, M16878/4-BJE9, M1687825BJE9, M168784BJE9, M22759/11-16-9, M2275911169, M22759-11-16-9, AS22759/11, AS2275911, BMS13-16TYPE1 CLASS1 SIZE24, BMS1316TYPE1CLASS1SIZE24, E16U9, E759/11/16-9-SPC, E75911169SPC, GT519403219, GT519403-2-19, MIL-W-16878/4-16E9, MILW16878416E9, MILW168784E169, MILW16878-4E16-9, MILW168984E169, MILW16898-4E16-9, MIL-W-22759/11, MILW2275911, 76079045851, 760-79045-851, 128C999E16AA999, 209025516WHT, 2090255-16WHT, 41705619, 417056-19, 5710009206, 571-0009-206, 6145-00-013-8651, 00-013-8651, 6145000138651, 000138651

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	15 MAY 1968	00-013-8651	00798 ( WIRE, ELECTRICAL )

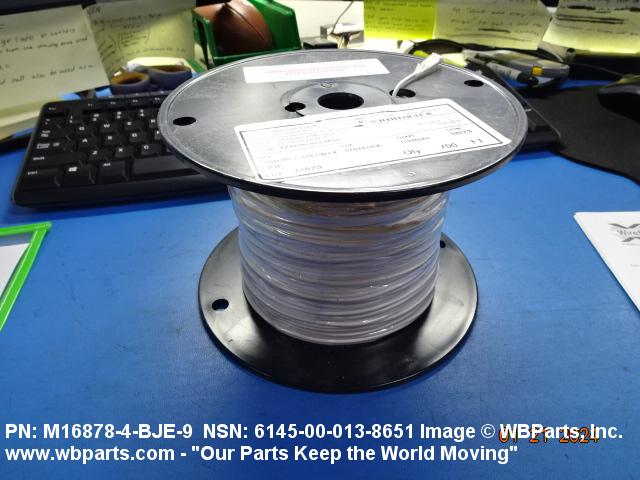

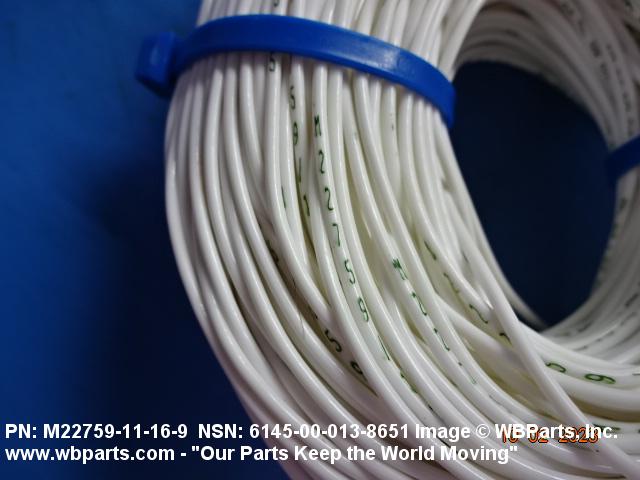

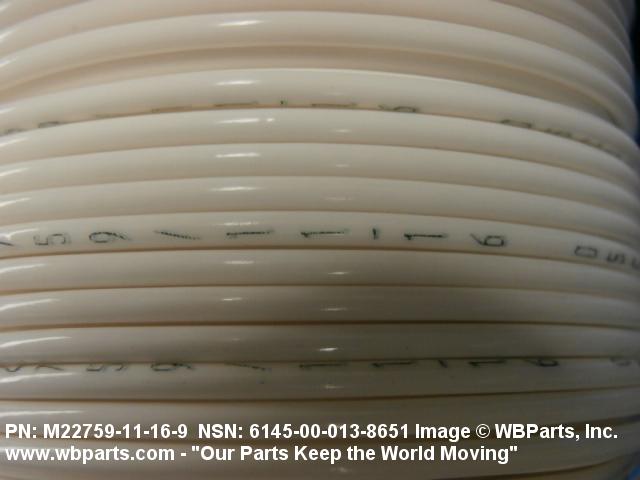

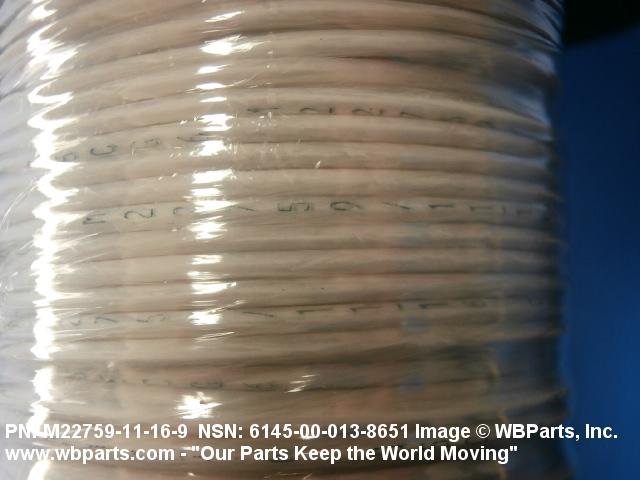

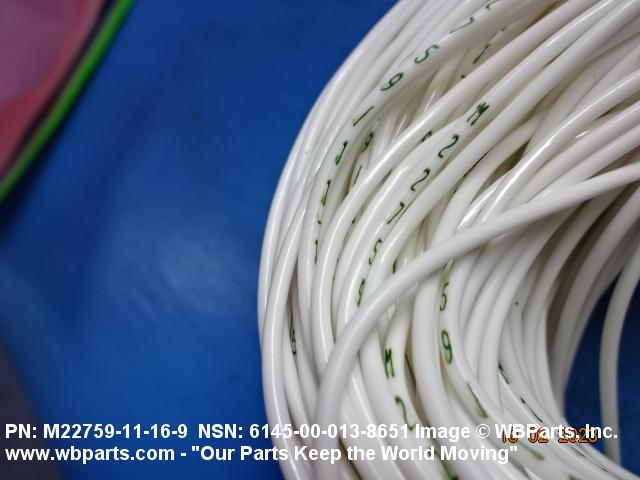

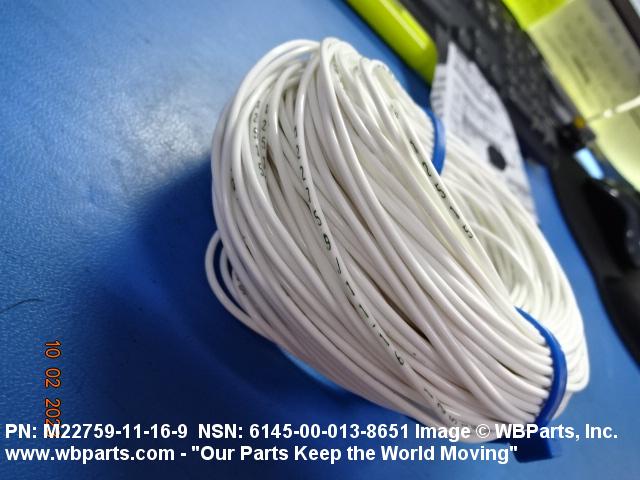

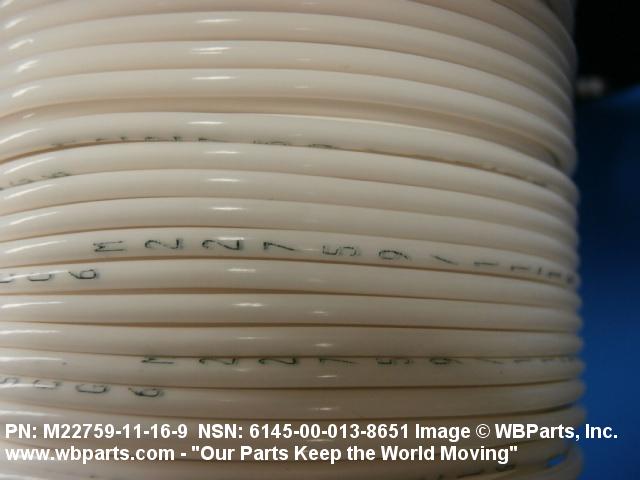

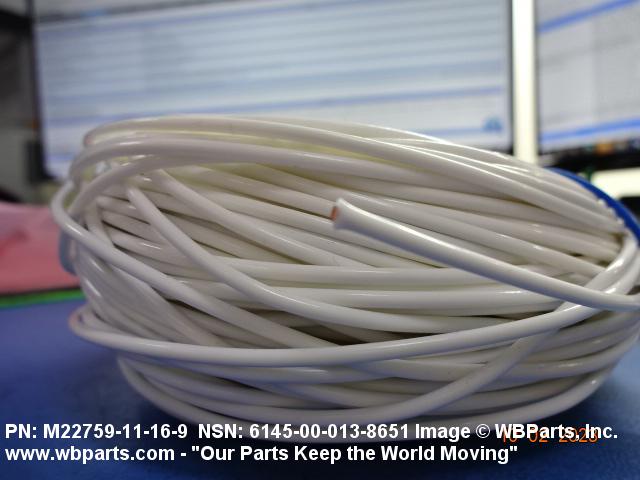

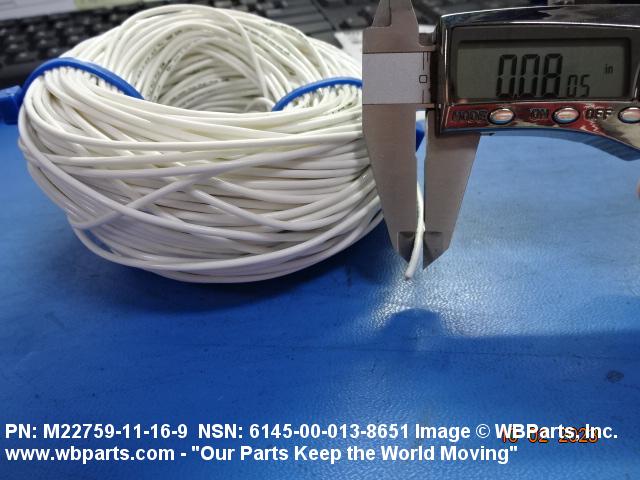

Drawings & Photos | NSN 6145-00-013-8651

Part Number	Request Date	QTY	Origin
6145-00-013-8651	2025-05-142	46351	DIBBS
6145-00-013-8651	2025-03-76	6	United States
M2275911169	2025-02-57	100	United States
6145-00-013-8651	2024-01-02	700	United States
6145-00-013-8651	2023-11-324	51649	DIBBS
6145-00-013-8651	2023-10-299	45209	DIBBS
6145-00-013-8651	2023-09-268	6	United States
6145-00-013-8651	2023-08-219	34706	DIBBS
6145-00-013-8651	2023-07-191	28601	DIBBS
6145-00-013-8651	2023-03-68	28494	DIBBS
6145-00-013-8651	2022-08-215	16690	DIBBS
6145-00-013-8651	2022-07-202	31392	DIBBS
6145-00-013-8651	2022-05-125	3163	DIBBS
6145-00-013-8651	2022-04-97	23671	DIBBS
6145-00-013-8651	2022-01-25	2962	DIBBS
6145-00-013-8651	2022-01-18	2084	DIBBS
6145-00-013-8651	2022-01-13	2962	DIBBS
6145-00-013-8651	2022-01-06	3720	DIBBS
6145-00-013-8651	2022-01-06	2084	DIBBS
6145-00-013-8651	2021-12-360	3720	DIBBS
6145-00-013-8651	2021-11-319	21582	DIBBS
6145-00-013-8651	2021-11-308	21582	DIBBS
6145-00-013-8651	2021-10-287	18414	DIBBS
6145-00-013-8651	2021-09-266	8634	DIBBS
6145-00-013-8651	2021-09-255	8634	DIBBS
M2275911169	2021-02-35	21525	United States
6145-00-013-8651	2021-01-14	2084	DIBBS
6145-00-013-8651	2021-01-13	4374	DIBBS
6145-00-013-8651	2021-01-04	6075	DIBBS
6145-00-013-8651	2020-12-345	8499	DIBBS
6145-00-013-8651	2020-11-317	2371	DIBBS
6145-00-013-8651	2020-07-212	3391	DIBBS
6145-00-013-8651	2020-07-203	10095	DIBBS
6145-00-013-8651	2020-05-135	6328	DIBBS
M2275911169	2020-05-127	525	Greece
6145-00-013-8651	2019-07-186	28000	DIBBS
6145-00-013-8651	2019-06-175	28000	DIBBS
M2275911169	2019-03-78	5900	TR
6145-00-013-8651	2018-06-161	23500	DIBBS
6145-00-013-8651	2018-02-38	77500	DIBBS
6145-00-013-8651	2017-09-271	20000	DIBBS
6145-00-013-8651	2017-07-191	55230	DIBBS
6145-00-013-8651	2017-07-190	55230	DIBBS
6145-00-013-8651	2017-03-82	35000	DIBBS
M2275911169	2016-04-104	2112	United States
M2275911169	2015-06-153	1143	NL
M2275911169	2015-02-36	100	United States
6145-00-013-8651	2015-02-36	49000	DIBBS
M2275911169	2015-02-33	100	United States
MILW2275911	2015-02-33	100	United States
M2275911169	2014-10-302	20	Spain
6145-00-013-8651	2014-10-297	15500	DIBBS
6145-00-013-8651	2014-07-199	61000	DIBBS
E16U9	2013-08-214	120	US
6145-00-013-8651	2012-07-202	6000	DIBBS
6145-00-013-8651	2012-07-195	21500	DIBBS
MILW2275911	2012-07-187	1	US
6145-00-013-8651	2012-06-166	54000	DIBBS
6145-00-013-8651	2012-04-104	13000	DIBBS
M2275911169	2012-03-82	1	us
6145-00-013-8651	2012-02-38	9000	DIBBS
6145-00-013-8651	2011-11-334	140	UK
6145-00-013-8651	2011-06-166	31500	DIBBS
M168784BJE9	2011-05-151	2900	KR
6145-00-013-8651	2011-04-104	40500	DIBBS
6145-00-013-8651	2010-12-342	46500	US
6145-00-013-8651	2010-11-328	1	TW
6145-00-013-8651	2010-10-288	5500	DIBBS
6145-00-013-8651	2010-09-258	9300	RO
6145-00-013-8651	2010-04-116	4000	DIBBS
M168784BJE9	2008-08-223	2000	Indonesia
M168784BJE9	2008-08-223	2000	Indonesia
6145-00-013-8651	2008-07-200	1000	DIBBS
6145-00-013-8651	2008-06-156	211000	DIBBS

Cross Reference | NSN 6145-00-013-8651

Part Number	Cage Code	Manufacturer
128C999E16AA999	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
2090255-16WHT	53711	NAVAL SEA SYSTEMS COMMAND
417056-19	96214	RAYTHEON COMPANY DBA RAYTHEON
571-0009-206	94756	BOEING COMPANY, THE DBA BOEING
760-79045-851	0DHG4	GULF COAST HOLDINGS INC DBA UNIDYNAMICS
AS22759/11	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BMS13-16TYPE1 CLASS1 SIZE24	81205	THE BOEING COMPANY DBA BOEING
E16U9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
E759/11/16-9-SPC	F5688	AXON CABLE
GT519403-2-19	04236	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS
M16878/25BJE9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M16878/4-BJE9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M22759-11-16-9	0X4C9	ALLIED WIRE & CABLE, INC.
M22759/11-16-9	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M22759/11-16-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-16878/4-16E9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-22759/11	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILW16878-4E16-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILW16898-4E16-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21985-16-9	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-00-013-8651

Compare

Related Products | NSN 6145-00-013-8651

6145-00-013-8655, 6145-00-013-9939, 6145-00-014-5447, 6145-00-014-5722, 6145-00-014-5723

Technical Data | NSN 6145-00-013-8651

Characteristic	Specifications
CONDUCTOR FORM	STRANDED SINGLE CONDUCTOR
MATERIAL	COPPER CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	SILVER CORE CONDUCTOR ALL CONDUCTORS
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE	16 AWG SINGLE CONDUCTOR
STRAND QUANTITY PER CONDUCTOR	19 SINGLE CONDUCTOR
STRAND AWG SIZE PER CONDUCTOR	30 SINGLE CONDUCTOR
COLOR	WHITE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR
VOLTAGE RATING	600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND
CROSS SECTION OUTSIDE DIAMETER	0.075 INCHES NOMINAL
TEMP RATING	200.0 DEG CELSIUS
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	SURFACE SINGLE CONDUCTOR SILVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-W-22759/11
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M22759/11-16-9

Restrictions/Controls & Freight Information | NSN 6145-00-013-8651

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	030310	CABLE OR WIRE
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	743	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6145-00-013-8651

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot
