NSN 6145-00-105-9457 AWCC0200, AWC-C0200 , C0200
Product Details | RADIO FREQUENCY CABLE
6145-00-105-9457 An item consisting of electrical conductors separated from each other by a continuous homogeneous dielectric (including porous types and touching and/or interlocking beads or spacers), and designed primarily for the conduction of radio frequency energy. Includes a single conductor inclosed in an outer concentric conductor (coaxial) with or without a protective sheath; two or more coaxial cables laid parallel with an outer electrical shield and/or common sheath; two or more parallel conductors with an outer electrical shield and/or a common sheath; two or more individually insulated twisted conductors with or without an electrical shield and/or protective covering. All types have low-loss or special characteristics at high frequencies. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, RADIO FREQUENCY. See also LINE, RADIO FREQUENCY TRANSMISSION.
Part Alternates: AWCC0200, AWC-C0200 , C0200, C-0200, DA14021, 6145-00-105-9457, 00-105-9457, 6145001059457, 001059457
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 08 JUL 1968 | 00-105-9457 | 00779 ( CABLE, RADIO FREQUENCY ) |

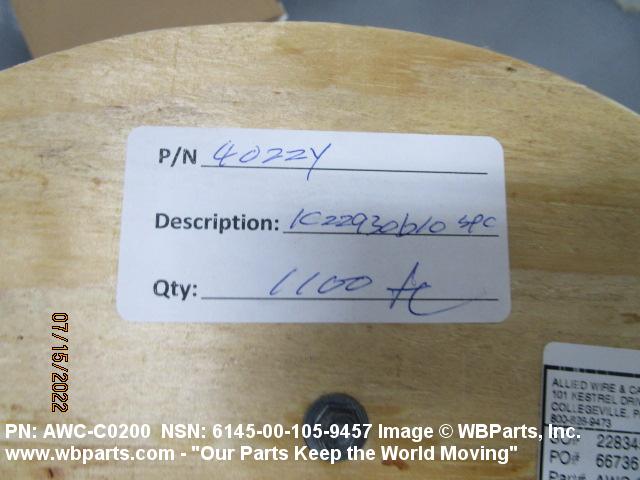

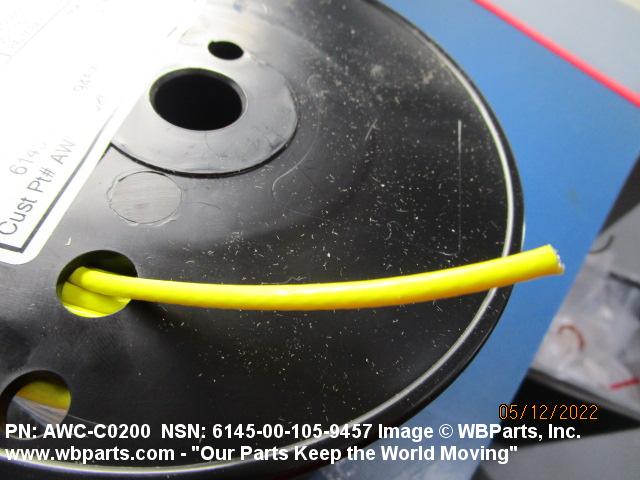

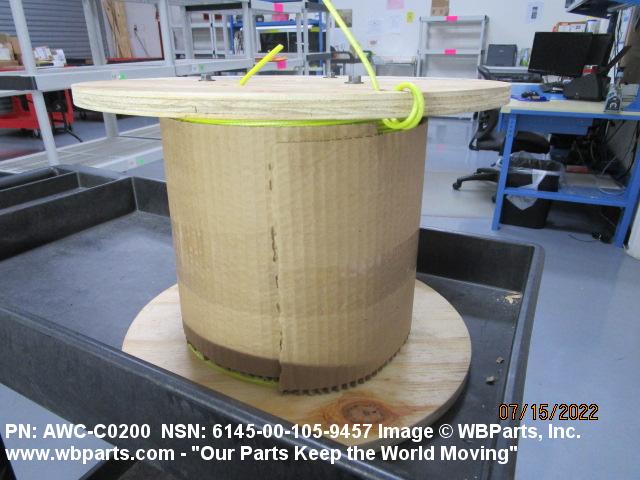

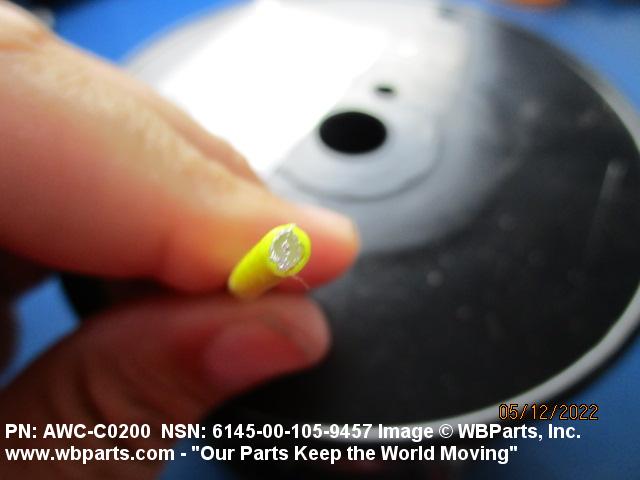

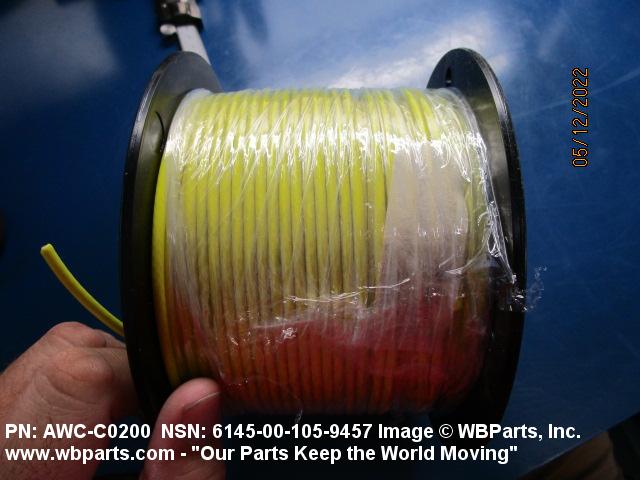

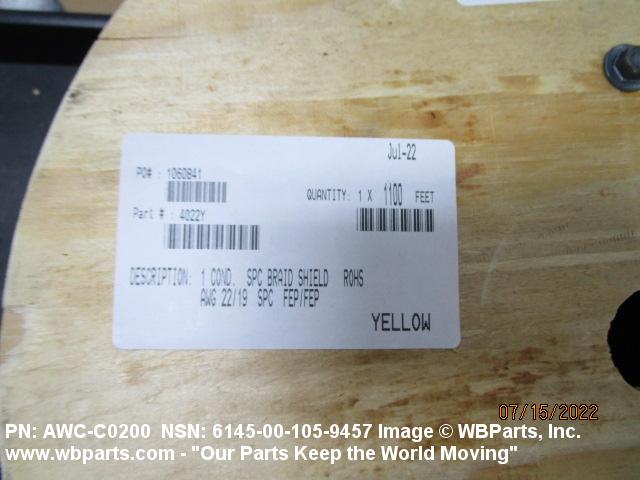

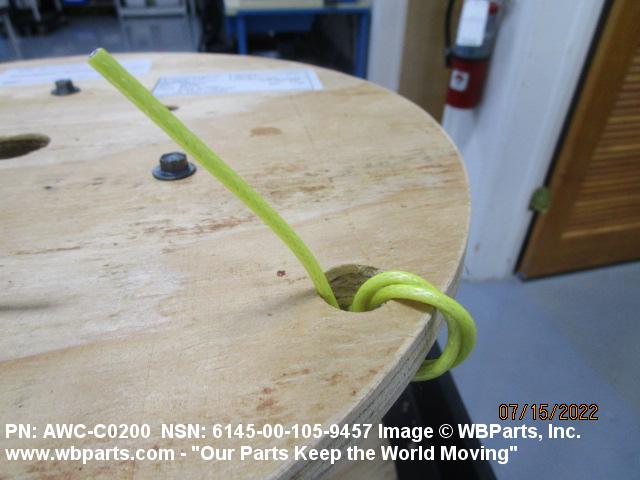

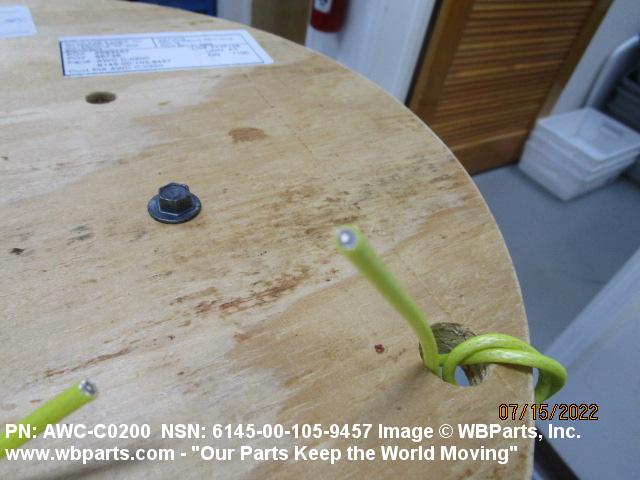

Drawings & Photos | NSN 6145-00-105-9457
Demand History | NSN 6145-00-105-9457
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AWCC0200 | 2024-05-135 | 100 | Canada |
| DA14021 | 2024-05-135 | 100 | Canada |
| AWCC0200 | 2024-01-11 | 200 | Canada |
| AWCC0200 | 2023-11-324 | 100 | US |
| 6145-00-105-9457 | 2023-02-51 | 200 | United States |
| 6145-00-105-9457 | 2022-05-125 | 1000 | Canada |
| 6145-00-105-9457 | 2022-05-122 | 400 | Canada |
| 6145-00-105-9457 | 2022-03-83 | 200 | Canada |
| 6145-00-105-9457 | 2021-11-328 | 50 | United States |
| 6145-00-105-9457 | 2008-10-287 | 1925 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-00-105-9457
Restrictions/Controls & Freight Information | NSN 6145-00-105-9457
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-00-105-9457
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
