NSN 6145-00-538-8222 M13486/1-9, M1348619, AMS101404007
Product Details | ELECTRICAL WIRE
6145-00-538-8222 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M13486/1-9, M1348619, AMS101404007, AMS10140-4007 , AMS-QQ-A-200/8 , AMSQQA2008, AND101404007, AND10140-4007 , MIL-C-13486/1, MILC134861, QQ-A-200/8 , QQA2008, 15C02213250, 15C02213-250, 1MA140C0310029, 1MA140C03-10029 , 58349R, 7056677, 812475, 6145-00-538-8222, 00-538-8222, 6145005388222, 005388222
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-538-8222 | 00798 ( WIRE, ELECTRICAL ) |

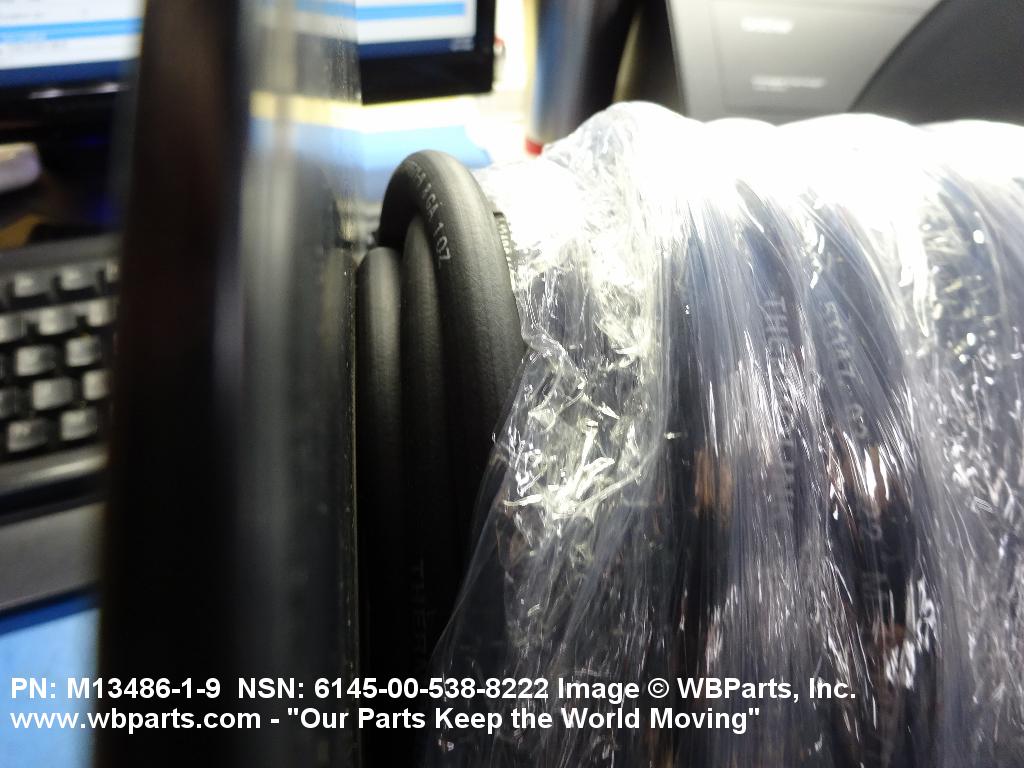

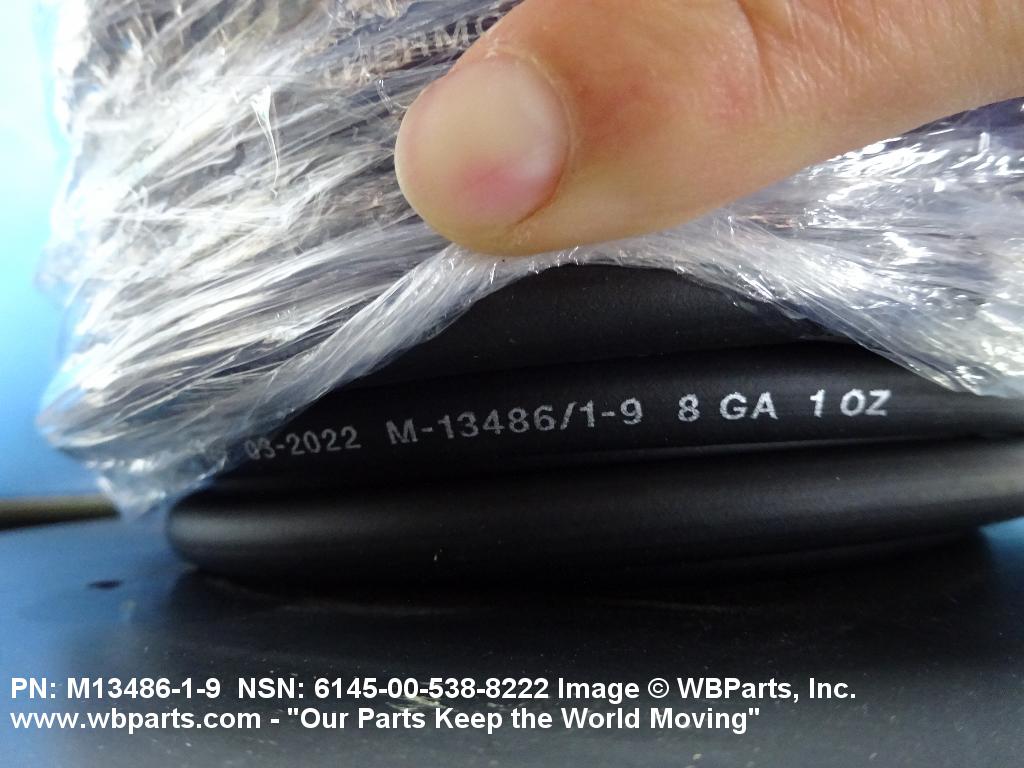

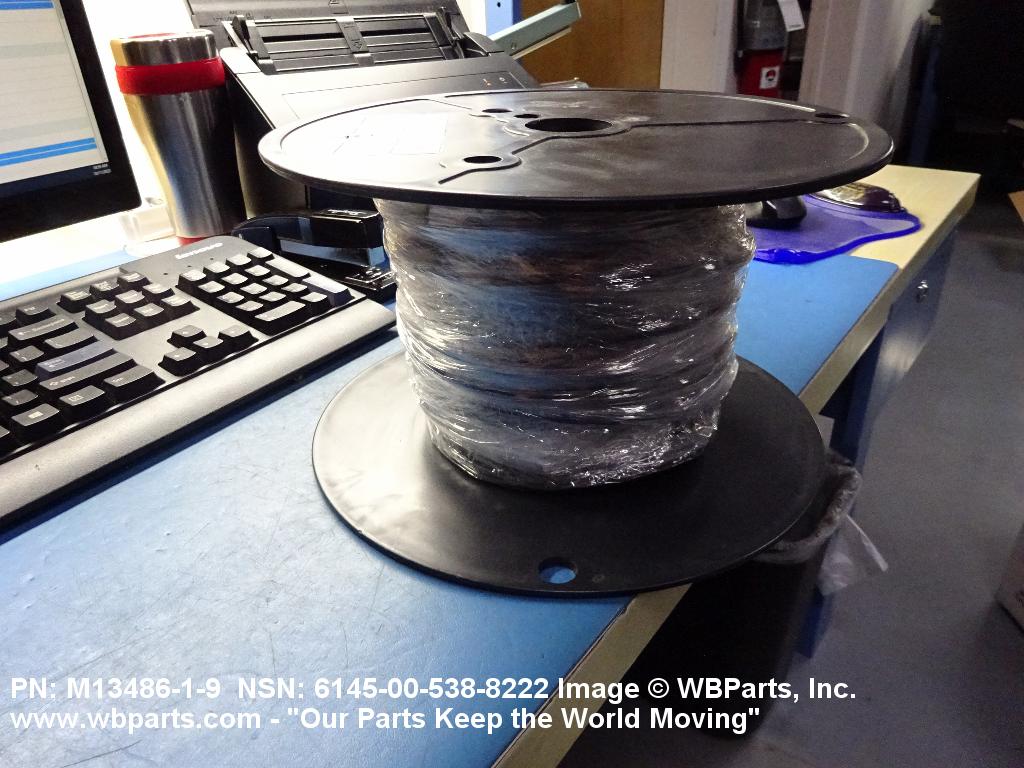

Drawings & Photos | NSN 6145-00-538-8222
Demand History | NSN 6145-00-538-8222
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-00-538-8222 | 2024-12-346 | 4000 | DIBBS |
| 6145-00-538-8222 | 2024-06-176 | 4000 | DIBBS |
| QQA2008 | 2024-04-93 | 200 | United States |
| 6145-00-538-8222 | 2022-09-259 | 60 | United States |
| 6145-00-538-8222 | 2021-10-304 | 3540 | DIBBS |
| 6145-00-538-8222 | 2021-08-228 | 6031 | DIBBS |
| 6145-00-538-8222 | 2021-08-216 | 6031 | DIBBS |
| 6145-00-538-8222 | 2021-08-214 | 500 | United States |
| 6145-00-538-8222 | 2021-07-210 | 500 | United States |
| M1348619 | 2021-06-152 | 600 | US |
| 6145-00-538-8222 | 2020-02-59 | 1 | BH |
| 6145-00-538-8222 | 2018-11-323 | 14761 | DIBBS |
| 6145-00-538-8222 | 2018-09-270 | 14761 | DIBBS |
| 6145-00-538-8222 | 2017-02-32 | 45 | MANUAL |
| 6145-00-538-8222 | 2014-07-203 | 11500 | DIBBS |
| 6145-00-538-8222 | 2014-07-182 | 1000 | DIBBS |
| 6145-00-538-8222 | 2014-06-171 | 3000 | DIBBS |
| 6145-00-538-8222 | 2012-12-356 | 7267 | DIBBS |
| 6145-00-538-8222 | 2012-08-215 | 3916 | DIBBS |
| 6145-00-538-8222 | 2011-02-40 | 5022 | DIBBS |
| 6145-00-538-8222 | 2010-10-295 | 3071 | DIBBS |
| 6145-00-538-8222 | 2007-09-254 | 150 | UM |
| 6145-00-538-8222 | 2007-09-248 | 5000 | US |
Cross Reference | NSN 6145-00-538-8222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15C02213-250 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 58349R | 80072 | H20 TANK INC U S MOTORS DIV |
| 6145001653735 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6145005388222 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7056677 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 812475 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| M13486/1-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-13486/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-00-538-8222
Related Products | NSN 6145-00-538-8222
Technical Data | NSN 6145-00-538-8222
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR RUBBER CHLOROSULFONATED POLYETHYLENE CLASS CSM 1ST POSITION SHEATH SINGLE CONDUCTOR RUBBER CHLOROPRENE CLASS CR 2ND POSITION PRIMARY INSULATION SINGLE CONDUCTOR FIBER SYNTHETIC 3RD POSITION BRAID, NON-METALLIC SINGLE CONDUCTOR RUBBER POLYCHLOROPRENE 4TH POSITION SHEATH SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-343,SOFT FED SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR MIL-C-13486 MIL SPEC SINGLE MATERIAL RESPONSE 2ND POSITION PRIMARY INSULATION SINGLE CONDUCTOR |
| SURFACE TREATMENT | TIN CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 8 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 133 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 29 SINGLE CONDUCTOR |
| COLOR | BLACK 1ST POSITION COVER SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

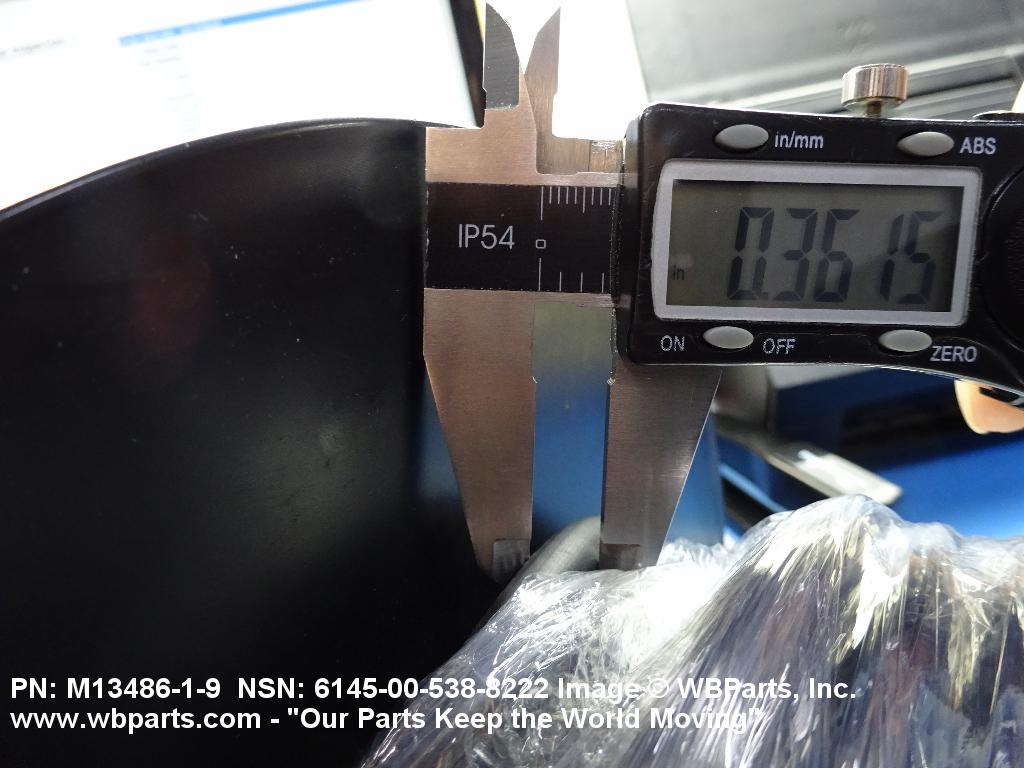

| CROSS SECTION OUTSIDE DIAMETER | 0.360 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-13486/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M13486/1-9 |
Restrictions/Controls & Freight Information | NSN 6145-00-538-8222
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104420 | BEAMS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-00-538-8222
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
