NSN 6145-00-822-3481 M16878/4BFA9, M168784BFA9, M96345

Product Details | ELECTRICAL WIRE

6145-00-822-3481 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.

Part Alternates: M16878/4BFA9, M168784BFA9, M96345, M96-345, NEMA HP3, NEMAHP3, S273MR136P504, S273MR136P904, SMB6015256, SMB601525-6, HMS211322291, HMS2-1132-22-9-1, HP3EXBFA9, HP3-EXBFA9, HP3EXFAB9, HP3-EXFAB9, G2500995, G250099-5, TX22122, TX22-122, TX221229, TX-22-122-9, WTE22A, WTE22A9, XE22-122 NATURAL, XE22122NATURAL, MIL-W-16878/4, MILW168784, 8006.22/1/, 8006221, 9901196, 990119-6, 9954213, 995421-3, 9991339, 999133-9, 11553624-1, 1819813, 22TE1249, 22-TE-124-9, 2459124, 25491746, 2549174-6, 273MR163P009REVA, 4280108000, 428-0108-000, 1100049, 11-00049, 110065C9, 1100-65C-9, 1132229TYPE1, 1132-22-9TYPE1, 428-4824-00, 4284824000, 428-4824-000, 60915761, 6091576-1, 6145-00-822-3481, 00-822-3481, 6145008223481, 115536241, 428482400, 008223481

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1962	00-822-3481	00798 ( WIRE, ELECTRICAL )

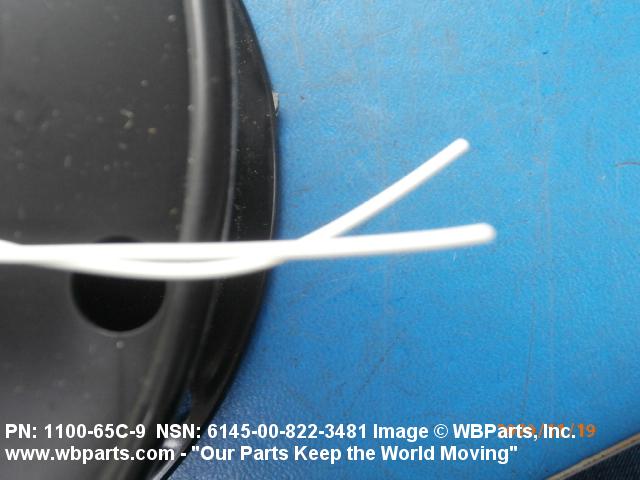

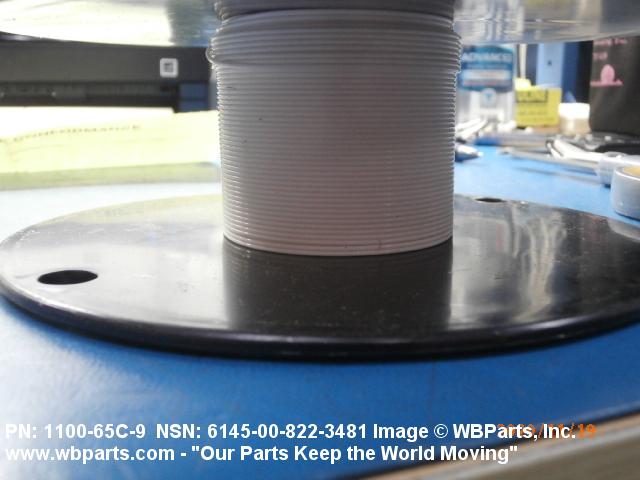

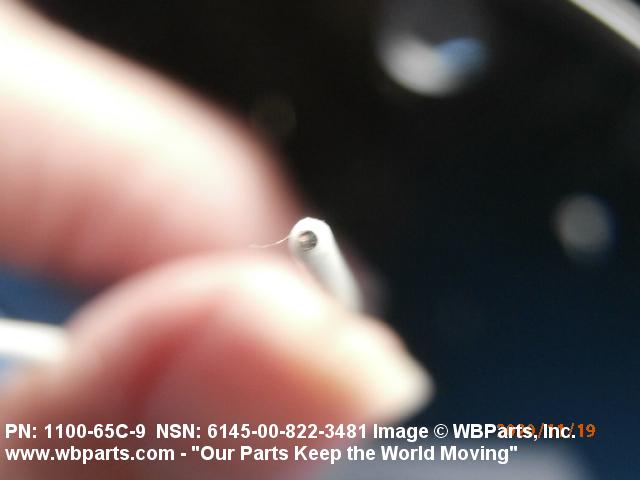

Drawings & Photos | NSN 6145-00-822-3481

Part Number	Request Date	QTY	Origin
6145-00-822-3481	2023-07-191	100	US
HP3EXBFA9	2023-06-153	100	US
HMS211322291	2020-10-294	20	United States
6145-00-822-3481	2014-10-287	70334	DIBBS
6145-00-822-3481	2014-10-275	70334	DIBBS
6145-00-822-3481	2014-09-245	14000	DIBBS
6145-00-822-3481	2014-08-233	14000	DIBBS
6145-00-822-3481	2010-01-15	1	US
6145-00-822-3481	2009-03-89	10000	DIBBS
6145-00-822-3481	2008-05-136	4500	DIBBS
MILW168784	2008-02-44	6000	United States
6145-00-822-3481	2007-07-186	8	Malaysia

Cross Reference | NSN 6145-00-822-3481

Part Number	Cage Code	Manufacturer
11-00049	05973	CHAMPLAIN CABLE CORP SUB OF HUBER AND SUHNER INC
1100-65C-9	04946	STANDARD WIRE & CABLE CO. DBA AMERICAN WIRE SALES
1132-22-9TYPE1	82577	RAYTHEON COMPANY DBA RAYTHEON
11553624-1	18876	U S ARMY AVIATION AND MISSILE COMMAND
1819813	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
22-TE-124-9	12814	CARLISLE INTERCONNECT TECHNOLOGIES, INC.
2459124	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2549174-6	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
273MR163P009REVA	05030	RAYTHEON CO MISSILE SYSTEMS DIV
273MR163P009REVA	49956	RAYTHEON COMPANY DBA RAYTHEON
428-0108-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
428-0108-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
428-4824-00	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
428-4824-00	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
428-4824-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
428-4824-000	90484	ROCKBESTOS-SURPRENANT CABLE CORP
428-4824-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
6091576-1	03640	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
8006.22/1/	06090	TYCO ELECTRONICS CORPORATION
990119-6	00752	EDO CORPORATION DIV EDO CORPORATION AP&T
995421-3	82577	RAYTHEON COMPANY DBA RAYTHEON
999133-9	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
G250099-5	24930	EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA
HMS2-1132-22-9-1	82577	RAYTHEON COMPANY DBA RAYTHEON
HP3-EXBFA9	1P787	NATIONAL ELECTRICAL MFRS ASSN DBA NEMA
HP3-EXFAB9	1P787	NATIONAL ELECTRICAL MFRS ASSN DBA NEMA
M16878/4BFA9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M96-345	54418	MILTOPE CORPORATION
MIL-W-16878/4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NEMA HP3	1P787	NATIONAL ELECTRICAL MFRS ASSN DBA NEMA
S273MR136P504	49956	RAYTHEON COMPANY DBA RAYTHEON
S273MR136P904	30003	NAVAL AIR SYSTEMS COMMAND
SMB601525-6	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
TX-22-122-9	D1427	NEXANS DEUTSCHLAND INDUSTRIES GMBH& CO. KG
TX22-122	34862	ERICSSON INC HITEMP WIRES DIV
WTE22A	90484	ROCKBESTOS-SURPRENANT CABLE CORP
WTE22A9	90484	ROCKBESTOS-SURPRENANT CABLE CORP
XE22-122 NATURAL	27478	HARBOUR INDUSTRIES LLC DIV MARMON ENGINEERED WIRE AND CABLE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-00-822-3481

Compare

Related Products | NSN 6145-00-822-3481

6145-00-822-3482, 6145-00-822-3483, 6145-00-822-3484, 6145-00-822-3485, 6145-00-822-3486

Technical Data | NSN 6145-00-822-3481

Characteristic	Specifications
CONDUCTOR FORM	SOLID SINGLE CONDUCTOR
MATERIAL	COPPER CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	SILVER CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE	22 AWG SINGLE CONDUCTOR
COLOR	WHITE 1ST POSITION COVER SINGLE CONDUCTOR
VOLTAGE RATING	600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND

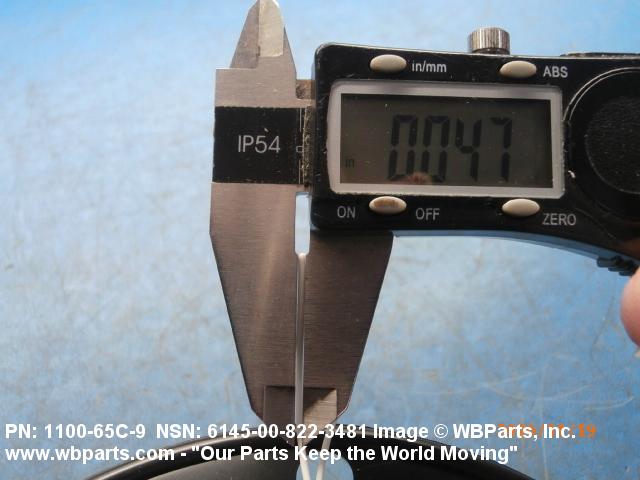

CROSS SECTION OUTSIDE DIAMETER	0.047 INCHES NOMINAL
