NSN 6145-00-914-9010 M915/21-TRXF-84, M91521TRXF84, AA59609
Product Details | ELECTRICAL WIRE
6145-00-914-9010 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M915/21-TRXF-84, M91521TRXF84, AA59609, A-A-59609, A-A-59609 AWG 1, AA59609AWG1, EWSB2212A76, EWSB22-12A76 , MIL-C-915/21, MILC91521, MIL-DTL-915/21, MILDTL91521, TRXF84, TRXF-84, 6145-00-914-9010, 00-914-9010, 6145009149010, 009149010
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1960 | 00-914-9010 | 00798 ( WIRE, ELECTRICAL ) |

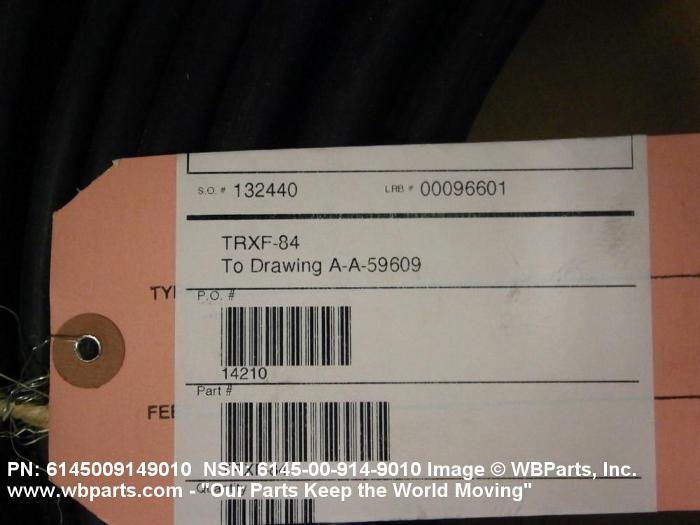

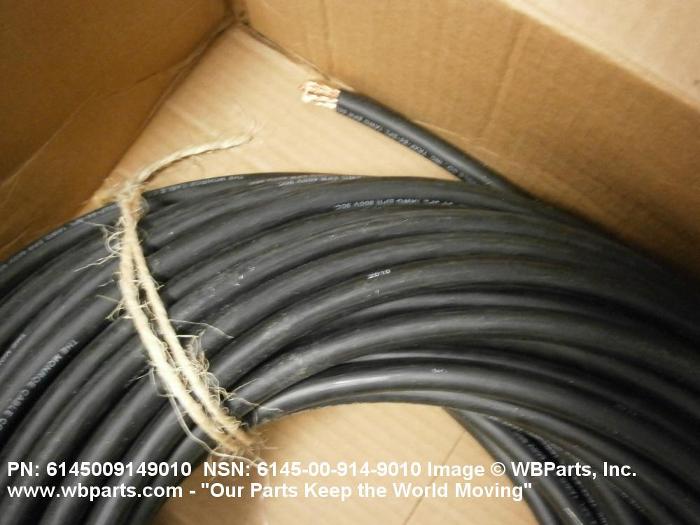

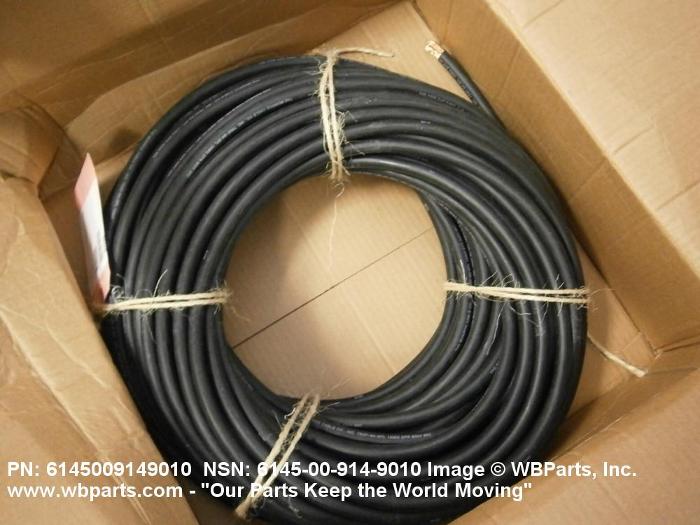

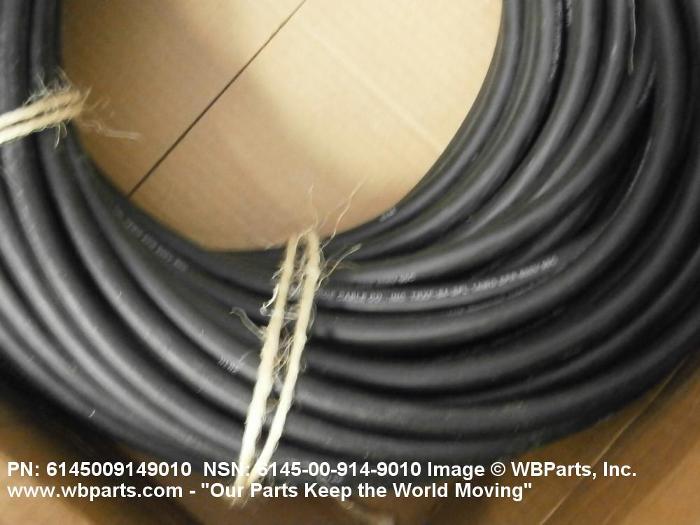

Drawings & Photos | NSN 6145-00-914-9010
Demand History | NSN 6145-00-914-9010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-00-914-9010 | 2025-08-233 | 1000 | DIBBS |
| 6145-00-914-9010 | 2025-05-128 | 4000 | DIBBS |
| 6145-00-914-9010 | 2024-08-218 | 3000 | DIBBS |
| 6145-00-914-9010 | 2024-07-207 | 3000 | DIBBS |
| 6145-00-914-9010 | 2024-02-38 | 4 | US |
| 6145-00-914-9010 | 2023-07-194 | 150 | Taiwan |
| 6145-00-914-9010 | 2023-04-103 | 6000 | DIBBS |
| 6145-00-914-9010 | 2022-06-173 | 26 | DIBBS |
| 6145-00-914-9010 | 2022-06-156 | 8 | DIBBS |
| 6145-00-914-9010 | 2022-03-76 | 8000 | DIBBS |
| 6145-00-914-9010 | 2021-11-326 | 3000 | DIBBS |
| 6145-00-914-9010 | 2021-11-318 | 3000 | DIBBS |
| 6145-00-914-9010 | 2021-04-113 | 75 | US |
| 6145-00-914-9010 | 2020-11-332 | 20 | CA |
| 6145-00-914-9010 | 2019-11-317 | 12000 | DIBBS |
| 6145-00-914-9010 | 2019-09-261 | 2 | US |
| 6145-00-914-9010 | 2018-12-351 | 9000 | DIBBS |
| 6145-00-914-9010 | 2018-12-339 | 9000 | DIBBS |
| 6145-00-914-9010 | 2018-09-247 | 100 | United States |
| 6145-00-914-9010 | 2017-12-347 | 145 | US |
| 6145-00-914-9010 | 2016-05-130 | 14000 | DIBBS |
| 6145-00-914-9010 | 2016-04-119 | 14000 | DIBBS |
| 6145-00-914-9010 | 2014-03-69 | 16000 | DIBBS |
| 6145-00-914-9010 | 2014-02-54 | 16000 | DIBBS |
| 6145-00-914-9010 | 2014-02-35 | 50 | MANUAL |
| 6145-00-914-9010 | 2014-02-35 | 100 | MANUAL |
| 6145-00-914-9010 | 2014-02-35 | 960 | MANUAL |
| A-A-59609 AWG 1 | 2014-02-35 | 50 | US |
| A-A-59609 AWG 1 | 2014-02-35 | 100 | US |
| A-A-59609 AWG 1 | 2014-02-35 | 960 | US |
| 6145-00-914-9010 | 2014-01-29 | 16000 | DIBBS |
| 6145-00-914-9010 | 2013-09-260 | 1000 | DIBBS |
| 6145-00-914-9010 | 2013-09-254 | 5000 | DIBBS |
| TRXF84 | 2013-03-78 | 20 | US |
| 6145-00-914-9010 | 2012-08-228 | 1000 | United States |
| TRXF84 | 2012-03-87 | 50 | Taiwan |
| 6145-00-914-9010 | 2012-02-45 | 200 | United States |
| 6145-00-914-9010 | 2011-10-297 | 200 | us |
| 6145-00-914-9010 | 2011-10-290 | 200 | US |
| 6145-00-914-9010 | 2011-06-173 | 20 | us |
| 6145-00-914-9010 | 2011-06-173 | 180 | us |
| 6145-00-914-9010 | 2011-06-157 | 4000 | DIBBS |
| 6145-00-914-9010 | 2011-06-153 | 4000 | DIBBS |
| 6145-00-914-9010 | 2011-05-123 | 2000 | DIBBS |
| 6145-00-914-9010 | 2009-11-334 | 2000 | DIBBS |
| 6145-00-914-9010 | 2009-03-72 | 1000 | DIBBS |
Cross Reference | NSN 6145-00-914-9010
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-59609 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-59609 AWG 1 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| M915/21-TRXF-84 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-915/21 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-915/21 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TRXF-84 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-00-914-9010
Related Products | NSN 6145-00-914-9010
Technical Data | NSN 6145-00-914-9010
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | RUBBER SYNTHETIC 1ST POSITION JACKET SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 1 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 2107 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 34 SINGLE CONDUCTOR |
| COLOR | BLACK 1ST POSITION COVER SINGLE CONDUCTOR |
| VOLTAGE RATING | 125.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.590 INCHES NOMINAL |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59609 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59609 AWG 1 |
Restrictions/Controls & Freight Information | NSN 6145-00-914-9010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-00-914-9010
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
