NSN 6145-00-939-4964 MS22759/11-20-9, MS2275911209, M16878/4-BGE999
Product Details | ELECTRICAL WIRE
6145-00-939-4964 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: MS22759/11-20-9, MS2275911209, M16878/4-BGE999, M168784BGE999, M22759/11-20-9, M2275911209, AB0150-006-20-9-TY4 CL1 GRA, AB0150006209TY4CL1GRA, AS22759/11, AS2275911, BMS13-16TYPE1CLASS 1SIZE20, BMS1316TYPE1CLASS1SIZE20, C1179800201009, C11798-0020-1009, MIL-W-16878/4-20E9, MILW16878420E9, MIL-W-22759/11, MILW2275911, 75911209, 75911-20-9, 11006729, 11-00672-9, 15464830004, 1546483-0004, 2312536-10, 41705639, 417056-39, 6109D4590, 6109D45-90, 6145-00-939-4964, 00-939-4964, 6145009394964, 231253610, 009394964
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 16 NOV 1965 | 00-939-4964 | 00798 ( WIRE, ELECTRICAL ) |

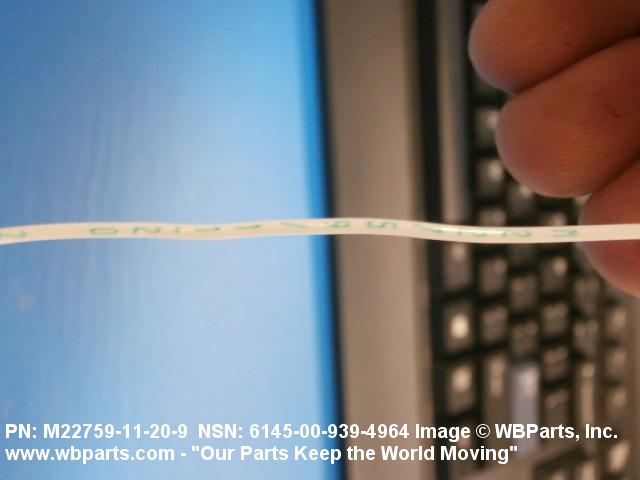

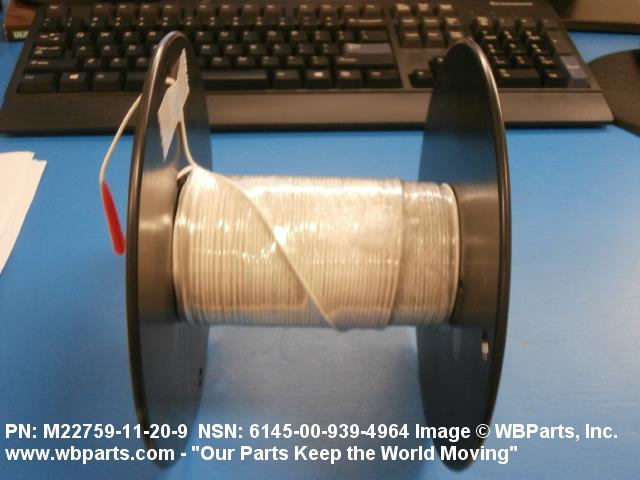

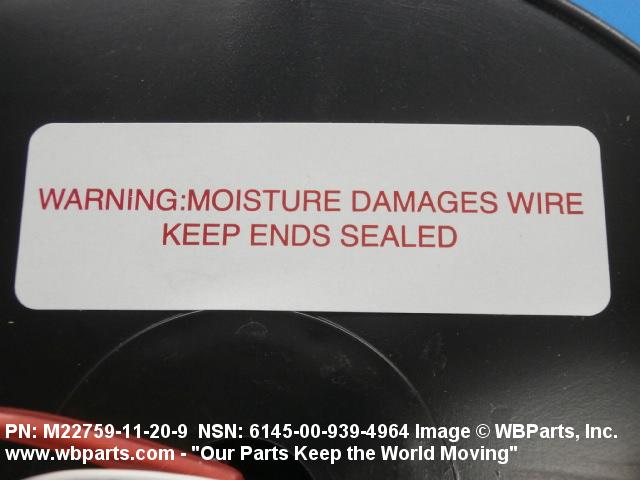

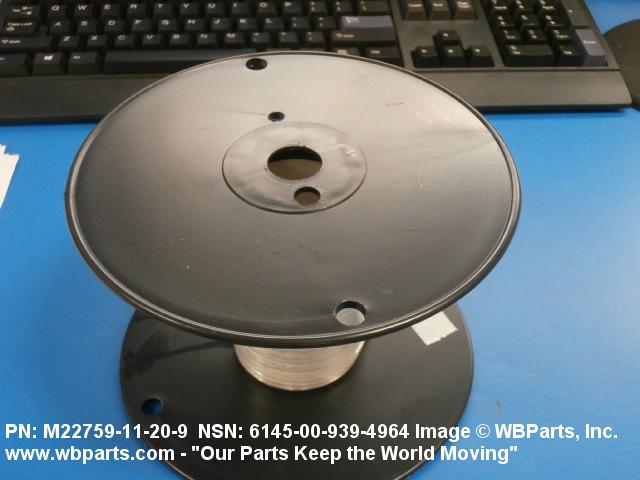

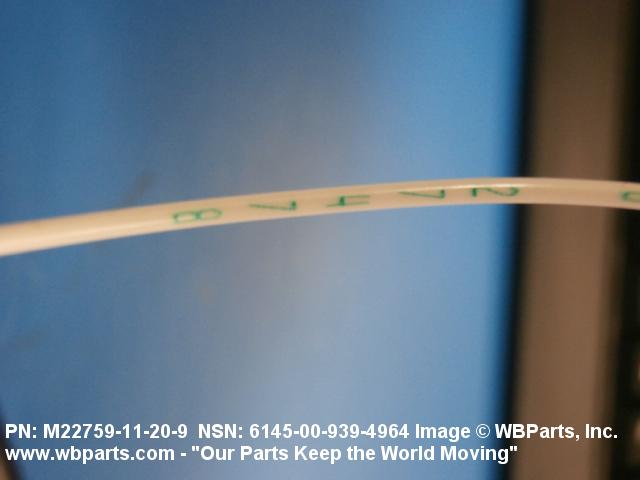

Drawings & Photos | NSN 6145-00-939-4964
Demand History | NSN 6145-00-939-4964
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2275911209 | 2025-11-318 | 20 | Italy |
| 6145-00-939-4964 | 2025-10-300 | 34562 | DIBBS |
| 6145-00-939-4964 | 2025-10-279 | 3000 | Spain |
| 6145-00-939-4964 | 2025-09-246 | 1000 | Spain |
| 6145-00-939-4964 | 2025-09-244 | 500 | Spain |
| M2275911209 | 2025-02-57 | 100 | United States |
| M2275911209 | 2024-06-163 | 14 | United States |
| M2275911209 | 2024-06-163 | 14 | United States |
| 6145-00-939-4964 | 2024-05-151 | 26653 | DIBBS |
| 6145-00-939-4964 | 2024-05-135 | 21255 | DIBBS |
| 6145-00-939-4964 | 2023-09-253 | 24077 | DIBBS |
| 6145-00-939-4964 | 2023-08-233 | 48943 | DIBBS |
| 6145-00-939-4964 | 2022-11-332 | 28488 | DIBBS |
| 6145-00-939-4964 | 2022-11-314 | 20 | United States |
| 6145-00-939-4964 | 2022-10-279 | 38285 | DIBBS |
| 6145-00-939-4964 | 2022-06-157 | 5000 | DIBBS |
| 6145-00-939-4964 | 2022-05-144 | 5000 | DIBBS |
| 6145-00-939-4964 | 2021-06-168 | 41605 | US |
| 6145-00-939-4964 | 2021-06-161 | 41605 | DIBBS |
| 6145-00-939-4964 | 2021-02-49 | 35629 | DIBBS |
| 6145-00-939-4964 | 2020-12-341 | 47351 | DIBBS |
| 6145-00-939-4964 | 2020-06-163 | 53122 | DIBBS |
| 6145-00-939-4964 | 2019-11-328 | 62000 | DIBBS |
| 6145-00-939-4964 | 2019-07-211 | 1000 | DIBBS |
| 6145-00-939-4964 | 2019-06-167 | 2500 | DIBBS |
| 6145-00-939-4964 | 2019-04-95 | 200 | US |
| 6145-00-939-4964 | 2018-01-03 | 88998 | DIBBS |
| M2275911209 | 2016-06-166 | 68 | US |
| M2275911209 | 2016-04-118 | 1 | United States |
| M22759/11-20-9 | 2015-05-141 | 1 | United States |
| M22759/11-20-9 | 2015-05-141 | 1 | United States |
| M2275911209 | 2015-02-56 | 300 | Ukraine |
| 6145-00-939-4964 | 2015-02-56 | 300 | MANUAL |
| M2275911209 | 2015-02-36 | 100 | United States |
| M2275911209 | 2015-02-33 | 100 | United States |
| MILW2275911 | 2015-02-33 | 100 | United States |
| 6145-00-939-4964 | 2014-11-317 | 300 | DIBBS |
| 6145-00-939-4964 | 2014-09-245 | 26000 | DIBBS |
| 6145-00-939-4964 | 2014-08-239 | 268500 | DIBBS |
| MILW2275911 | 2012-07-187 | 1 | US |
| 6145-00-939-4964 | 2012-05-152 | 20000 | DIBBS |
| 6145-00-939-4964 | 2012-05-125 | 97871 | DIBBS |
| 6145-00-939-4964 | 2012-03-62 | 90000 | DIBBS |
| 6145-00-939-4964 | 2012-02-39 | 110404 | DIBBS |
| 6145-00-939-4964 | 2011-11-334 | 2600 | UK |
| 6145-00-939-4964 | 2011-07-211 | 60987 | DIBBS |
| 6145-00-939-4964 | 2011-06-164 | 67000 | DIBBS |
| M2275911209 | 2011-03-89 | 1 | US |
| 6145-00-939-4964 | 2010-12-342 | 87000 | US |
| 6145-00-939-4964 | 2010-11-314 | 2000 | DIBBS |
| 6145-00-939-4964 | 2010-11-309 | 6000 | DIBBS |
| MS2275911209 | 2010-09-260 | 100 | Italy |
| 6145-00-939-4964 | 2010-09-258 | 500 | RO |
| 6145-00-939-4964 | 2010-09-246 | 24500 | DIBBS |
| 6145-00-939-4964 | 2010-04-118 | 29000 | DIBBS |
| 6145-00-939-4964 | 2010-03-74 | 41500 | DIBBS |
| 6145-00-939-4964 | 2010-02-40 | 52000 | DIBBS |
| 6145-00-939-4964 | 2009-12-341 | 1120 | United States |
| 6145-00-939-4964 | 2009-07-208 | 1000 | US |
| 6145-00-939-4964 | 2009-07-190 | 1 | US |
| 6145-00-939-4964 | 2009-01-26 | 11000 | DIBBS |
| 6145-00-939-4964 | 2008-12-340 | 3200 | Taiwan |
| M2275911209 | 2008-04-107 | 400 | United States |
| 6145-00-939-4964 | 2008-04-93 | 50 | United States |
| 6145-00-939-4964 | 2008-01-17 | 200000 | DIBBS |
| 6145-00-939-4964 | 2008-01-11 | 150 | PE |
Cross Reference | NSN 6145-00-939-4964
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-00672-9 | 05973 | CHAMPLAIN CABLE CORP SUB OF HUBER AND SUHNER INC |
| 1546483-0004 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2312536-10 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 417056-39 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 6109D45-90 | 04804 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS |
| 6145009394964 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 75911-20-9 | 12515 | NEXANS AEROSPACE USA LLC |
| AB0150-006-20-9-TY4 CL1 GRA | 94756 | BOEING COMPANY, THE DBA BOEING |
| AS22759/11 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BMS13-16TYPE1CLASS 1SIZE20 | 81205 | THE BOEING COMPANY DBA BOEING |
| C11798-0020-1009 | K5459 | EMERSON PROCESS MANAGEMENT LTD |
| C11798-0020-1009 | U8539 | ROSEMOUNT AEROSPACE LTD |
| M16878/4-BGE999 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M22759/11-20-9 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/11-20-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-W-16878/4-20E9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-W-22759/11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS22759/11-20-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-00-939-4964
Technical Data | NSN 6145-00-939-4964
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 20 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 19 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 32 SINGLE CONDUCTOR |
| COLOR | WHITE 1ST POSITION COVER SINGLE CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

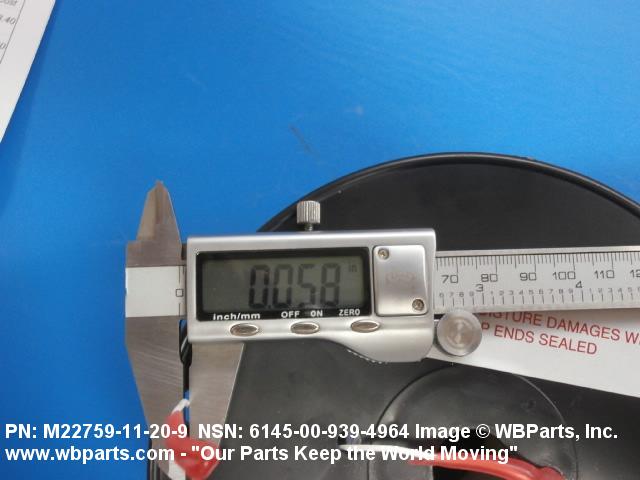

| CROSS SECTION OUTSIDE DIAMETER | 0.058 INCHES NOMINAL |
| TEMP RATING | 200.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | SURFACE SINGLE CONDUCTOR SILVER |
Restrictions/Controls & Freight Information | NSN 6145-00-939-4964
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
