NSN 6145-01-060-7868 MS22759/16-12-9 , MS2275916129, M22759/16-12-9

Product Details | ELECTRICAL WIRE

6145-01-060-7868 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.

Part Alternates: MS22759/16-12-9 , MS2275916129, M22759/16-12-9, M2275916129, MPD2291TYPE1AN12, AS22759/16, AS2275916, MIL-W-22759/16, MILW2275916, R61AWG12/37-9, R61AWG12379, TFZ37X28U00149, 75916129, 75916-12-9, 815UN0022, 8169321, 13230E6653, 13230E66537, 13230E6653-7, 17000109, 17-00010-9, 4371, 503 218-9, 5032189, 6145-01-060-7868, 01-060-7868, 6145010607868, 010607868

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JUN 1978	01-060-7868	00798 ( WIRE, ELECTRICAL )

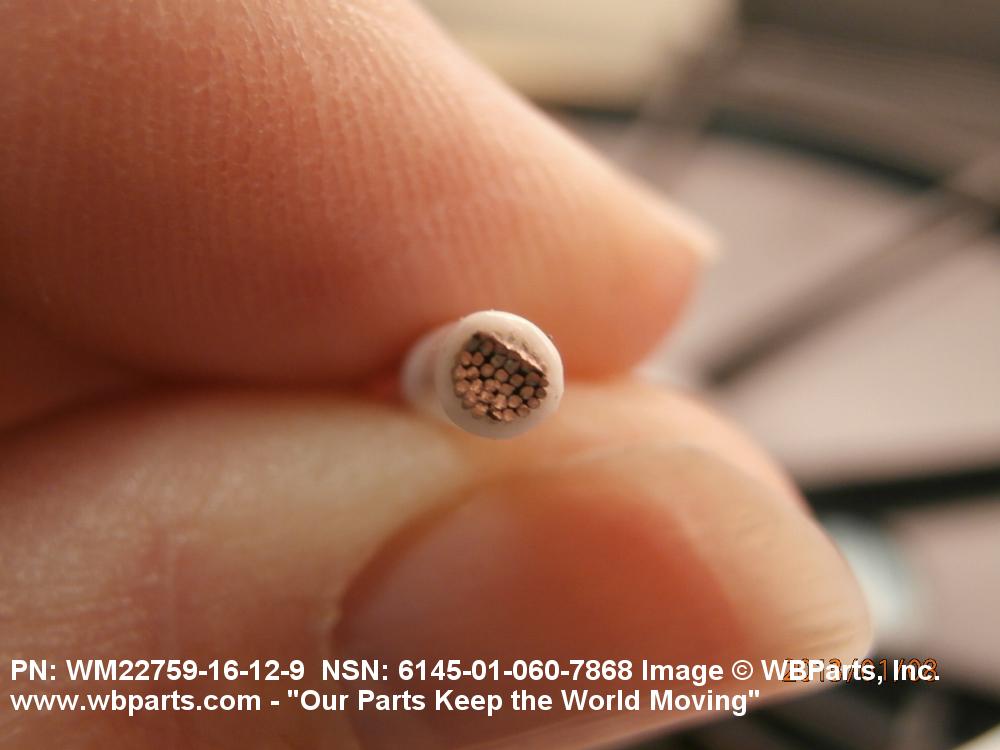

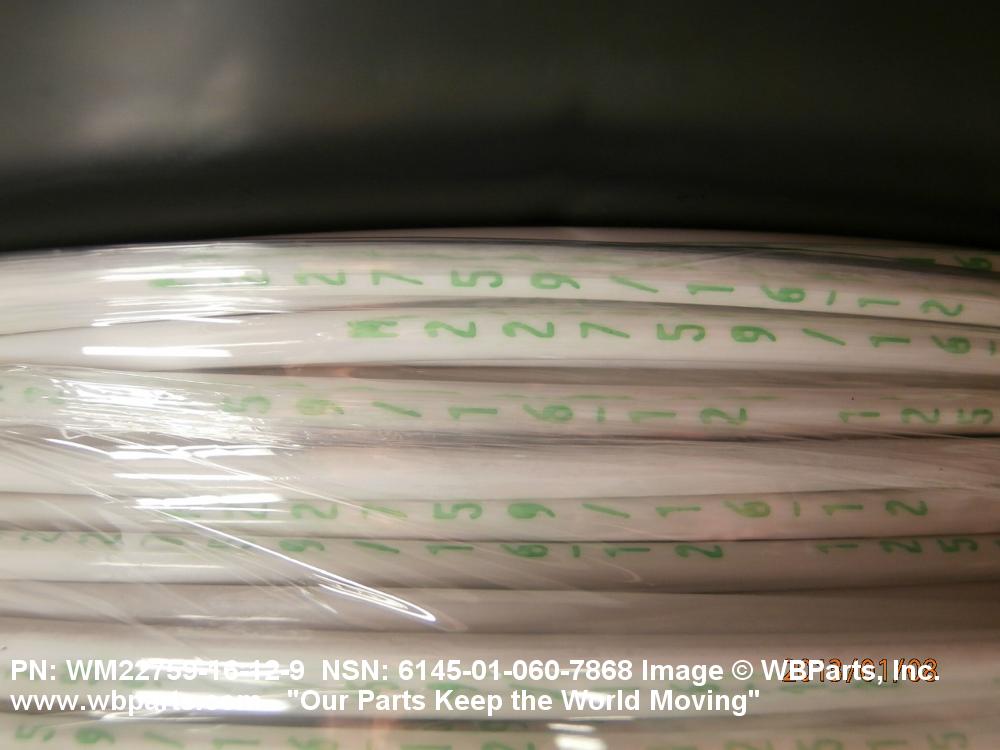

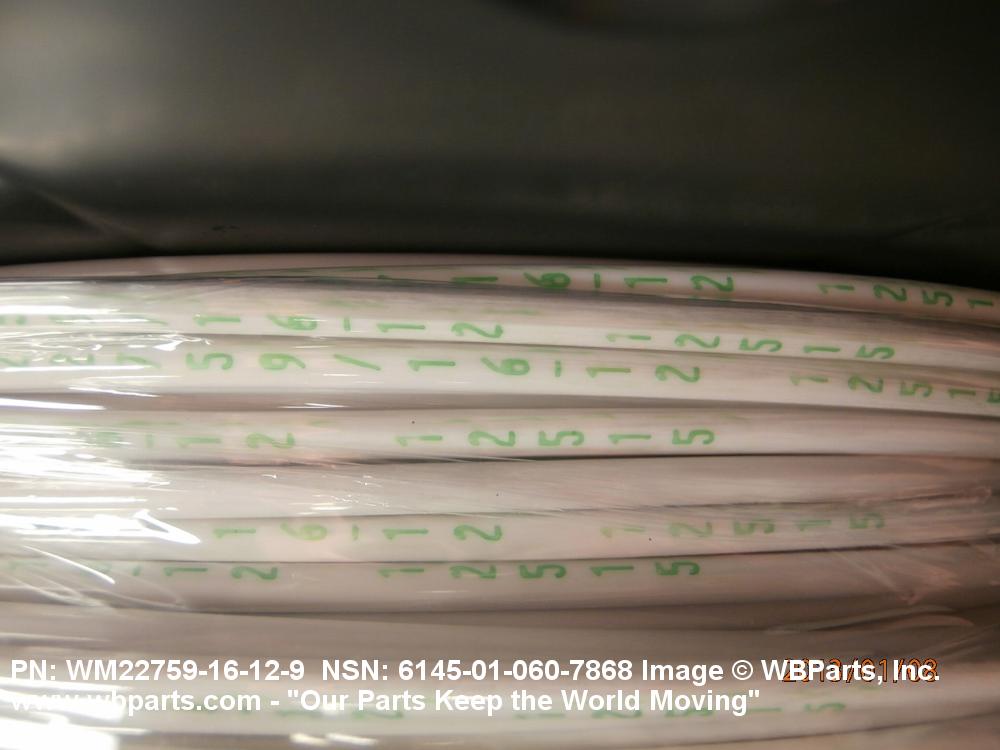

Drawings & Photos | NSN 6145-01-060-7868

Part Number	Request Date	QTY	Origin
6145-01-060-7868	2025-11-316	10000	DIBBS
6145-01-060-7868	2023-08-214	2000	DIBBS
6145-01-060-7868	2022-05-129	10500	DIBBS
6145-01-060-7868	2022-01-31	2000	DIBBS
6145-01-060-7868	2022-01-20	2000	DIBBS
6145-01-060-7868	2021-03-63	2000	DIBBS
6145-01-060-7868	2021-02-59	4000	DIBBS
6145-01-060-7868	2021-01-28	2000	DIBBS
6145-01-060-7868	2020-12-345	2000	DIBBS
4371	2019-01-17	2	PH
M2275916129	2017-10-277	156	US
M2275916129	2015-11-313	1700	IN
MIL-W-22759/16	2015-03-76	400	TH
6145-01-060-7868	2013-03-83	28000	DIBBS
6145-01-060-7868	2012-12-352	1000	Malaysia
6145-01-060-7868	2012-09-264	18000	DIBBS
6145-01-060-7868	2012-07-206	7500	DIBBS
M2275916129	2012-04-103	1	CA
6145-01-060-7868	2011-12-339	21000	DIBBS
6145-01-060-7868	2011-11-334	450	UK
6145-01-060-7868	2011-09-264	15500	DIBBS
6145-01-060-7868	2011-08-222	18500	DIBBS
6145-01-060-7868	2011-08-220	8027	DIBBS
6145-01-060-7868	2011-04-100	9027	DIBBS
6145-01-060-7868	2011-04-91	9027	DIBBS
6145-01-060-7868	2010-03-84	9500	DIBBS
6145-01-060-7868	2010-03-61	8056	DIBBS
6145-01-060-7868	2009-01-08	4000	DIBBS
6145-01-060-7868	2008-02-59	2000	DIBBS
6145-01-060-7868	2006-11-307	100	United Kingdom
4371	2006-09-269	1	US

Cross Reference | NSN 6145-01-060-7868

Part Number	Cage Code	Manufacturer
13230E6653	97403	CECOM LR CENTER
13230E6653-7	97403	CECOM LR CENTER
17-00010-9	05973	CHAMPLAIN CABLE CORP SUB OF HUBER AND SUHNER INC
4371	55944	FALMAT, INC. DBA C B S
503 218-9	C1375	HUBER + SUHNER GMBH
503 218-9	S3708	HUBER AND SUHNER LTD
75916-12-9	12515	NEXANS AEROSPACE USA LLC
815UN0022	A0199	OTO MELARA SPA
8169321	18876	U S ARMY AVIATION AND MISSILE COMMAND
AS22759/16	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M22759/16-12-9	12814	CARLISLE INTERCONNECT TECHNOLOGIES, INC.
M22759/16-12-9	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M22759/16-12-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-22759/16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MPD2291TYPE1AN12	18876	U S ARMY AVIATION AND MISSILE COMMAND
MS22759/16-12-9	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
R61AWG12/37-9	D2773	DRAKA DEUTSCHLAND GMBH & CO. KG
TFZ 37X28U(0.014)-9	90484	ROCKBESTOS-SURPRENANT CABLE CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-01-060-7868

Compare

Related Products | NSN 6145-01-060-7868

6145-01-060-7869, 6145-01-060-8085, 6145-01-060-8086, 6145-01-060-8224, 6145-01-060-8225

Technical Data | NSN 6145-01-060-7868

Characteristic	Specifications
CONDUCTOR FORM	STRANDED SINGLE CONDUCTOR
MATERIAL	COPPER ALLOY 101 OR COPPER ALLOY 102 CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC ETHYLENE-TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B33 ASSN STD ALL MATERIAL RESPONSES CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	TIN CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE	12 AWG SINGLE CONDUCTOR
STRAND QUANTITY PER CONDUCTOR	37 SINGLE CONDUCTOR
STRAND AWG SIZE PER CONDUCTOR	28 SINGLE CONDUCTOR
COLOR	WHITE 1ST POSITION COVER SINGLE CONDUCTOR
VOLTAGE RATING	600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND

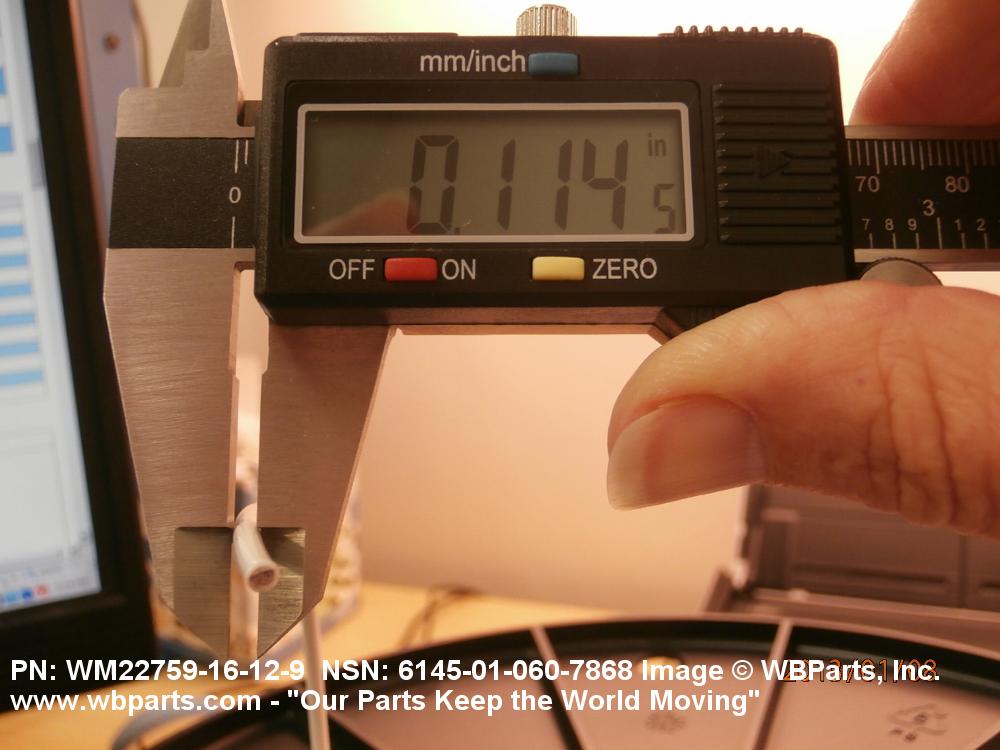

CROSS SECTION OUTSIDE DIAMETER	0.114 INCHES NOMINAL
