NSN 6145-01-110-8894 MS22759/34-22-9, MS2275934229, M22759/34-22-9

Product Details | ELECTRICAL WIRE

6145-01-110-8894 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.

Part Alternates: MS22759/34-22-9, MS2275934229, M22759/34-22-9 , M2275934229, AS22759/34 , AS2275934, B0801250229, B0801250-22-9 , H38340159, T115001229, MIL-W-22759/34, MILW2275934, GACETX1934U9, GW805CF229, GW805CF22-9, 55A6467229, 55A6467-22-9, 6145-01-110-8894, 01-110-8894, 6145011108894, 011108894

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	07 APR 1981	01-110-8894	00798 ( WIRE, ELECTRICAL )

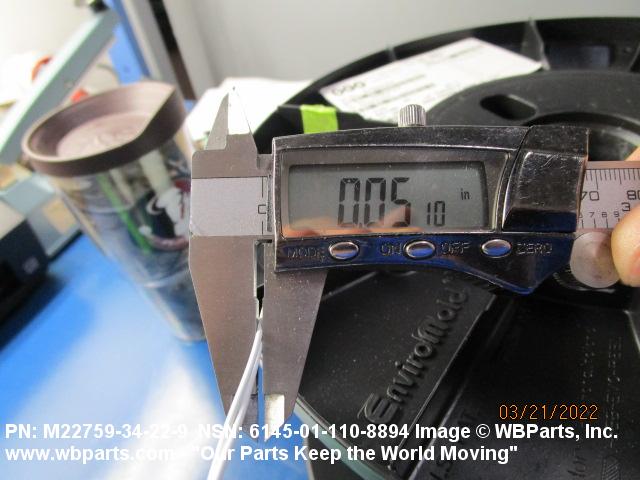

Drawings & Photos | NSN 6145-01-110-8894

Part Number	Request Date	QTY	Origin
6145-01-110-8894	2025-10-304	19722	United States
B0801250229	2025-10-288	1	CA
6145-01-110-8894	2024-09-266	54000	DIBBS
6145-01-110-8894	2024-08-240	200000	DIBBS
6145-01-110-8894	2024-05-138	220000	DIBBS
6145-01-110-8894	2024-03-65	220000	DIBBS
M2275934229	2022-10-278	4000	US
M2275934229	2022-06-160	75	United States
6145-01-110-8894	2022-03-74	300	United States
6145-01-110-8894	2022-03-67	300	United States
6145-01-110-8894	2022-02-52	2000	United States
M2275934229	2022-01-11	1260	Malta
6145-01-110-8894	2021-11-307	7000	MY
6145-01-110-8894	2021-07-204	4	Germany
6145-01-110-8894	2020-07-203	1000	United States
GW805CF229	2020-07-203	1000	United States
6145-01-110-8894	2019-06-165	335	United States
M2275934229	2018-02-45	12	United States
6145-01-110-8894	2017-12-362	1342000	DIBBS
6145-01-110-8894	2017-08-233	333964	DIBBS
6145-01-110-8894	2016-12-354	418000	DIBBS
M2275934229	2016-06-173	2000	US
M2275934229	2015-03-63	1	US
6145-01-110-8894	2013-08-213	643000	DIBBS
M2275934229	2013-05-122	10000	US
6145-01-110-8894	2013-05-122	112000	DIBBS
6145-01-110-8894	2013-02-43	110	US
6145-01-110-8894	2012-12-341	138500	DIBBS
M2275934229	2012-06-177	900	India
M2275934229	2012-04-117	5	US
6145011108894	2012-01-30	500	AE
M2275934229	2011-12-349	3750	US
6145-01-110-8894	2011-09-245	52500	DIBBS
6145-01-110-8894	2011-07-211	158000	DIBBS
6145-01-110-8894	2011-06-165	86000	DIBBS
6145-01-110-8894	2011-05-122	139000	DIBBS
6145-01-110-8894	2011-01-26	200	US
6145-01-110-8894	2010-05-145	1	US
6145-01-110-8894	2009-05-134	135500	DIBBS
M2275934229	2008-02-38	100000	United States
6145-01-110-8894	2008-02-38	343500	DIBBS
6145-01-110-8894	2008-02-37	451500	DIBBS
6145-01-110-8894	2006-11-311	6060	US

Cross Reference | NSN 6145-01-110-8894

Part Number	Cage Code	Manufacturer
55A6467-22-9	06090	TYCO ELECTRONICS CORPORATION
AS22759/34	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
GACETX1934U9	90484	ROCKBESTOS-SURPRENANT CABLE CORP
GW805CF22-9	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
H38340159	12703	JUDD WIRE INC.
M22759/34-22-9	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M22759/34-22-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-W-22759/34	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS22759/34-22-9	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
T-11500 (1/22)-9	71124	GENERAL CABLE INDUSTRIES, INC. DBA WILLIMANTIC, CT PLANT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-01-110-8894

Compare

Related Products | NSN 6145-01-110-8894

6145-01-110-8895, 6145-01-110-8896, 6145-01-110-8897, 6145-01-110-8898, 6145-01-110-8899

Technical Data | NSN 6145-01-110-8894

Characteristic	Specifications
CONDUCTOR FORM	STRANDED SINGLE CONDUCTOR
MATERIAL	COPPER ALLOY 101 OR COPPER ALLOY 102 CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC CROSS-LINKED POLYOLEFIN 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR PLASTIC CROSS-LINKED POLYOLEFIN 2ND POSITION JACKET SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B33 ASSN STD ALL MATERIAL RESPONSES CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	TIN CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
ROUND CONDUCTOR SIZE	22 AWG SINGLE CONDUCTOR
STRAND QUANTITY PER CONDUCTOR	19 SINGLE CONDUCTOR
STRAND AWG SIZE PER CONDUCTOR	34 SINGLE CONDUCTOR
COLOR	WHITE 1ST POSITION COVER SINGLE CONDUCTOR
VOLTAGE RATING	600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND
CROSS SECTION OUTSIDE DIAMETER	0.050 INCHES NOMINAL
TEMP RATING	150.0 DEG CELSIUS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-W-22759/34
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M22759/34-22-9

Restrictions/Controls & Freight Information | NSN 6145-01-110-8894

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	030310	CABLE OR WIRE
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	743	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6145-01-110-8894

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot
