NSN 6145-01-152-7561 M27500225D2T23, M27500-225D2T23, M2750022SD2T23
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE

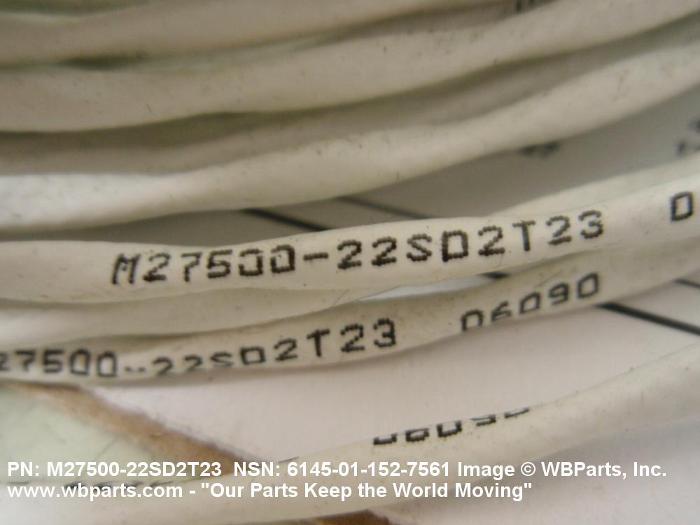

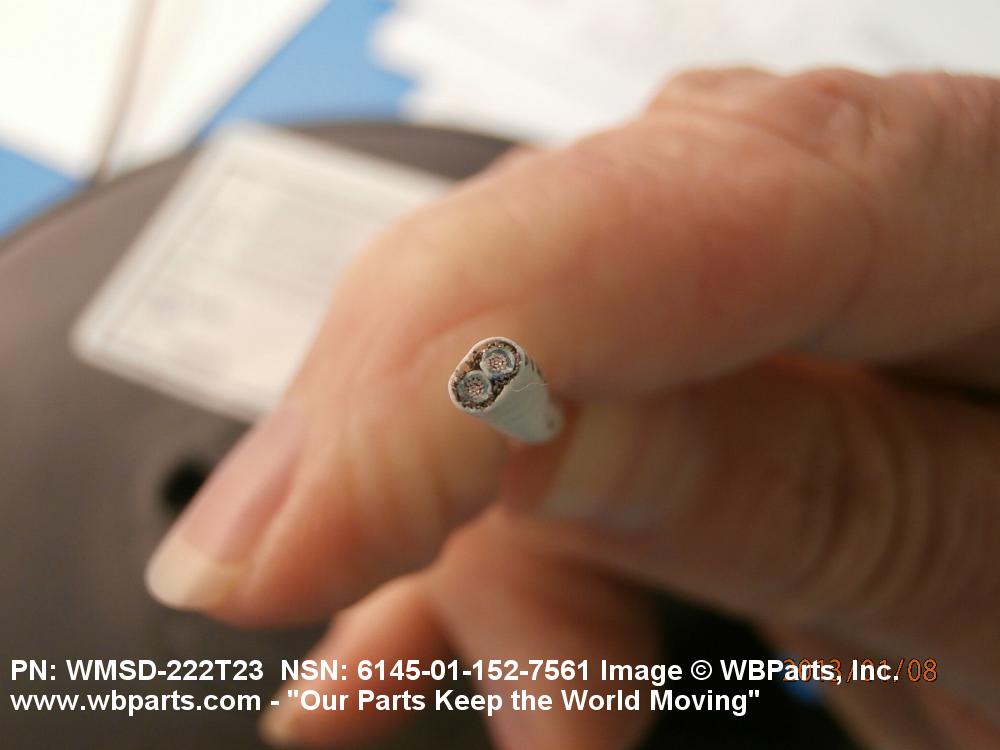

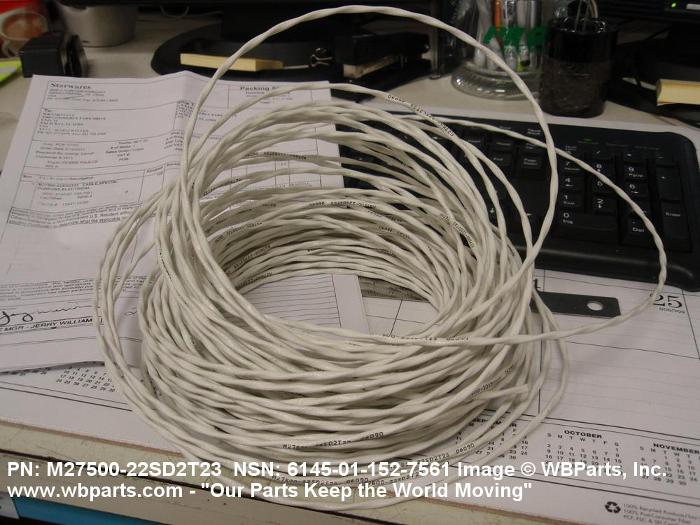

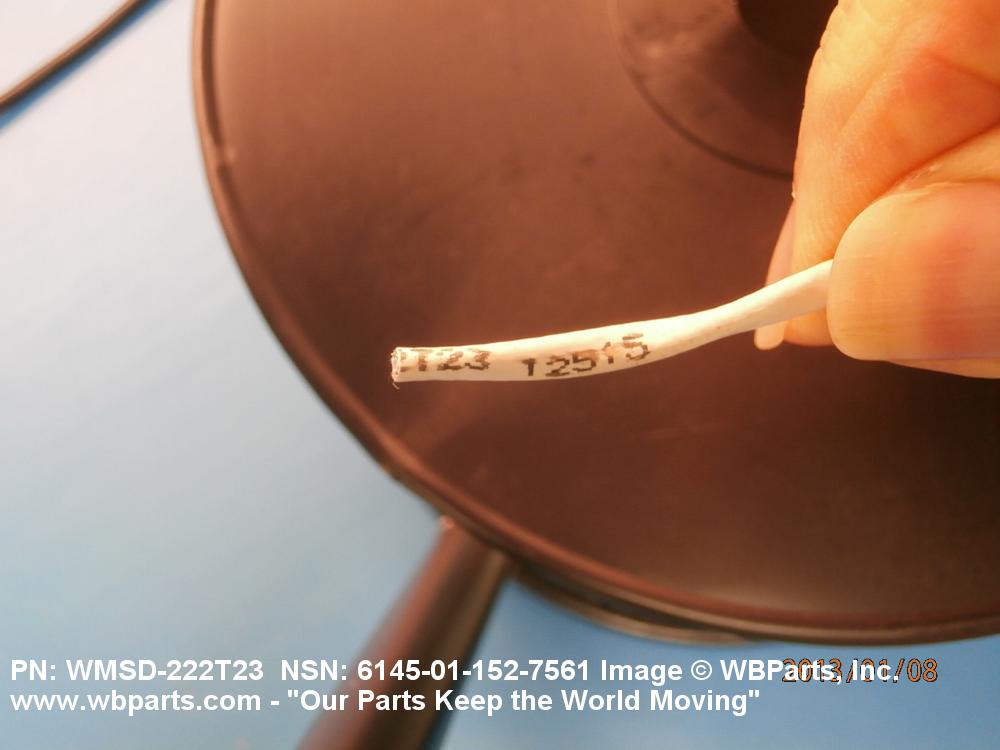

6145-01-152-7561 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.
Part Alternates: M27500225D2T23, M27500-225D2T23, M2750022SD2T23, M27500-22SD2T23, NEMA WC27500, NEMAWC27500, MILDTL27500, MIL-DTL-27500, 6145-01-152-7561, 01-152-7561, 6145011527561, 011527561
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 07 MAY 1983 | 01-152-7561 | 16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL ) |
Drawings & Photos | NSN 6145-01-152-7561
Demand History | NSN 6145-01-152-7561
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-152-7561 | 2025-10-304 | 7746 | United States |
| M2750022SD2T23 | 2023-11-326 | 8500 | United States |
| 6145-01-152-7561 | 2023-03-60 | 1600 | United States |
| M2750022SD2T23 | 2022-07-210 | 4000 | Canada |
| M2750022SD2T23 | 2020-09-272 | 175 | MY |
| M2750022SD2T23 | 2019-12-340 | 5 | Hong Kong |
| 6145-01-152-7561 | 2018-01-10 | 69000 | DIBBS |
| 6145-01-152-7561 | 2017-11-320 | 169000 | DIBBS |
| 6145-01-152-7561 | 2017-11-306 | 255500 | DIBBS |
| 6145-01-152-7561 | 2017-09-249 | 27000 | DIBBS |
| 6145-01-152-7561 | 2017-08-243 | 60500 | DIBBS |
| 6145-01-152-7561 | 2017-05-138 | 16381 | DIBBS |
| 6145-01-152-7561 | 2016-09-273 | 35000 | DIBBS |
| 6145-01-152-7561 | 2016-09-251 | 105500 | DIBBS |
| 6145-01-152-7561 | 2016-07-202 | 2500 | DIBBS |
| 6145-01-152-7561 | 2016-07-195 | 91500 | DIBBS |
| 6145-01-152-7561 | 2016-03-91 | 113000 | DIBBS |
| 6145-01-152-7561 | 2016-02-60 | 48000 | DIBBS |
| M2750022SD2T23 | 2016-01-13 | 35 | Malaysia |
| M2750022SD2T23 | 2016-01-12 | 35 | Malaysia |
| 6145-01-152-7561 | 2015-08-221 | 102 | DIBBS |
| 6145-01-152-7561 | 2015-04-105 | 109000 | DIBBS |
| 6145-01-152-7561 | 2015-04-99 | 40500 | DIBBS |
| 6145-01-152-7561 | 2015-01-30 | 46500 | DIBBS |
| 6145-01-152-7561 | 2014-11-321 | 46000 | DIBBS |
| 6145-01-152-7561 | 2014-10-288 | 23500 | DIBBS |
| 6145-01-152-7561 | 2013-11-311 | 31500 | DIBBS |
| 6145-01-152-7561 | 2013-10-296 | 23000 | DIBBS |
| 6145-01-152-7561 | 2012-12-352 | 400 | Malaysia |
| M2750022SD2T23 | 2012-11-316 | 3000 | Malaysia |
| 6145-01-152-7561 | 2012-07-185 | 31500 | DIBBS |
| 6145-01-152-7561 | 2012-06-181 | 10500 | DIBBS |
| M2750022SD2T23 | 2012-03-73 | 54 | United States |
| M27500-22SD2T23 | 2011-09-265 | 0 | Malaysia |
| 6145-01-152-7561 | 2011-02-41 | 100 | United States |
| 6145-01-152-7561 | 2010-09-257 | 20000 | DIBBS |
| 6145-01-152-7561 | 2010-07-211 | 10000 | DIBBS |
| 6145-01-152-7561 | 2010-06-159 | 360 | United States |
| 6145-01-152-7561 | 2010-04-111 | 17000 | DIBBS |
| 6145-01-152-7561 | 2010-02-42 | 43500 | DIBBS |
| 6145-01-152-7561 | 2009-10-289 | 10000 | DIBBS |
| 6145-01-152-7561 | 2009-03-89 | 1000 | DIBBS |
| 6145-01-152-7561 | 2008-06-178 | 11000 | DIBBS |
| M2750022SD2T23 | 2008-04-114 | 100000 | US |
| M2750022SD2T23 | 2008-04-100 | 300 | United States |
| M2750022SD2T23 | 2008-02-38 | 50000 | United States |
Cross Reference | NSN 6145-01-152-7561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M27500-225D2T23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M27500-22SD2T23 | 1P787 | NATIONAL ELECTRICAL MFRS ASSN DBA NEMA |
| M27500-22SD2T23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-27500 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NEMA WC27500 | 1P787 | NATIONAL ELECTRICAL MFRS ASSN DBA NEMA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-152-7561
Related Products | NSN 6145-01-152-7561
Technical Data | NSN 6145-01-152-7561
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 2ND POSITION SECONDARY INSULATION ALL CONDUCTORS COPPER 3RD POSITION SHIELD BRAID, METALLIC CABLE PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 4TH POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B33 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| SURFACE TREATMENT | TIN CORE CONDUCTOR ALL CONDUCTORS TIN 3RD POSITION SHIELD BRAID, METALLIC CABLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B33 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS ASTM B33 ASSN STD SINGLE TREATMENT RESPONSE 3RD POSITION SHIELD BRAID, METALLIC CABLE |
| ROUND CONDUCTOR SIZE | 22 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 34 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 2 SINGLES |
| COLOR | WHITE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS WHITE 4TH POSITION JACKET CABLE |
| TRACER COLOR | BLUE SINGLE TRACER SECOND CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TEMP RATING | 150.0 DEG CELSIUS |
