NSN 6145-01-202-7772 M24643/43-17UO, M246434317UO, MIL-C-24643/43
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE
6145-01-202-7772 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.
Part Alternates: M24643/43-17UO, M246434317UO, MIL-C-24643/43, MILC2464343, MIL-C-915/60, MILC91560, MIL-DTL-24643/43 , MILDTL2464343, LS4SJ20, LS4SJ-20, 4SJ20, 4SJ-20, 6145-01-202-7772, 01-202-7772, 6145012027772, 012027772
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 06 MAR 1985 | 01-202-7772 | 16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL ) |

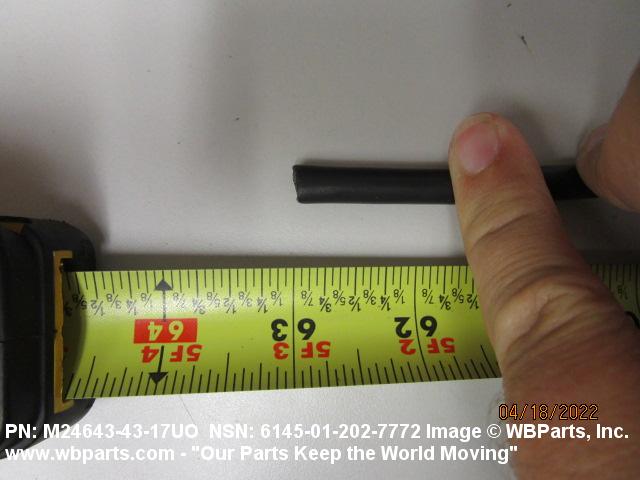

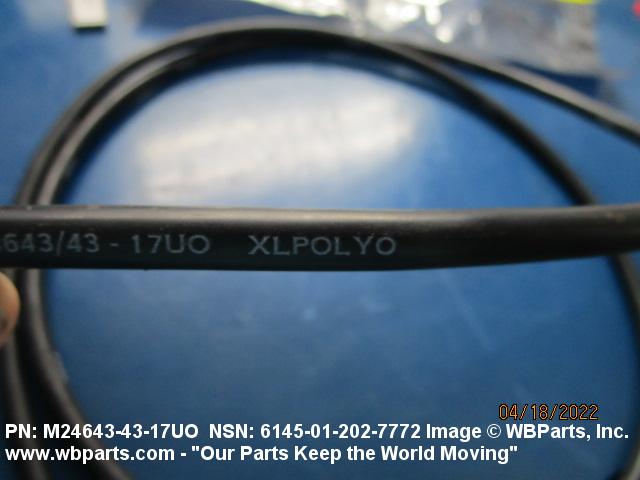

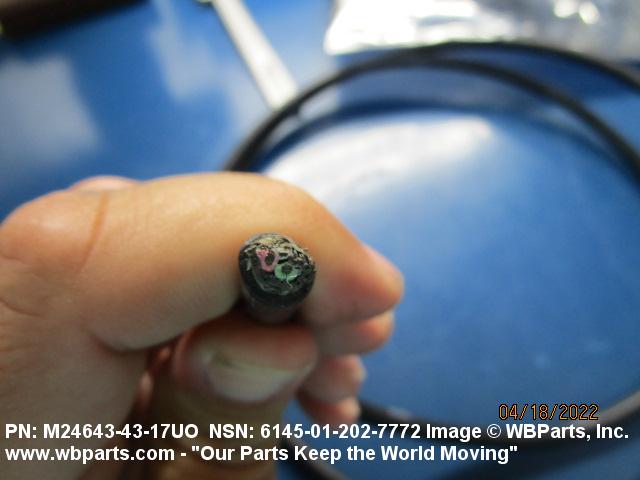

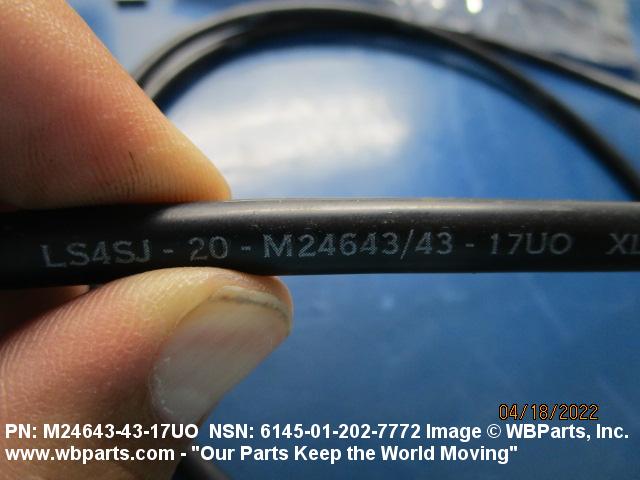

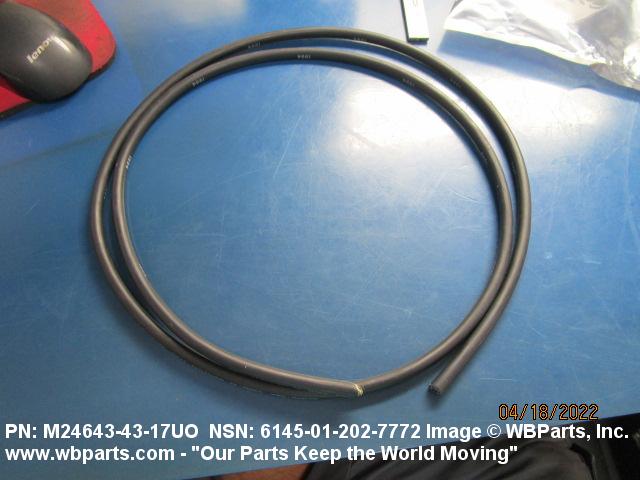

Drawings & Photos | NSN 6145-01-202-7772
Demand History | NSN 6145-01-202-7772
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-202-7772 | 2025-10-293 | 32750 | DIBBS |
| 6145-01-202-7772 | 2025-10-280 | 32750 | DIBBS |
| 6145-01-202-7772 | 2025-07-199 | 5 | US |
| 6145-01-202-7772 | 2025-06-162 | 1500 | DIBBS |
| LS4SJ20 | 2025-04-113 | 300 | United States |
| 6145-01-202-7772 | 2024-11-319 | 16870 | DIBBS |
| M246434317UO | 2022-06-175 | 200 | United States |
| 6145-01-202-7772 | 2022-04-104 | 1 | United States |
| 6145-01-202-7772 | 2022-01-28 | 2 | United States |
| LS4SJ20 | 2020-04-112 | 120 | United States |
| M246434317UO | 2018-10-290 | 10 | US |
| 6145-01-202-7772 | 2018-09-247 | 1000 | United States |
| 6145-01-202-7772 | 2014-06-178 | 40704 | DIBBS |
| 6145-01-202-7772 | 2012-12-345 | 18000 | DIBBS |
| 6145-01-202-7772 | 2012-09-256 | 8000 | US |
| 6145-01-202-7772 | 2012-05-135 | 6000 | DIBBS |
| MILC2464343 | 2011-11-312 | 93 | United States |
| MILC2464343 | 2011-09-255 | 1200 | US |
| MILC2464343 | 2011-08-235 | 93 | SG |
| 6145-01-202-7772 | 2011-07-195 | 3000 | DIBBS |
| 6145-01-202-7772 | 2011-06-168 | 40 | US |
| M246434317UO | 2010-12-347 | 20 | US |
| 6145-01-202-7772 | 2010-12-344 | 11 | US |
| 6145-01-202-7772 | 2010-09-264 | 5000 | DIBBS |
Cross Reference | NSN 6145-01-202-7772
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4SJ-20 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| LS4SJ-20 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24643/43-17UO | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-24643/43 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-915/60 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-24643/43 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-202-7772
Related Products | NSN 6145-01-202-7772
Technical Data | NSN 6145-01-202-7772
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 4 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS LINKED POLYETHYLENE OR RUBBER ETHYLENE-PROPYLENE CLASS EPM 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS COPPER 1ST POSITION SHIELD BRAID, METALLIC CABLE TIN 2ND POSITION SHIELD BRAID, METALLIC CABLE PLASTIC CROSS-LINKED POLYOLEFIN 3RD POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMB3 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| SURFACE TREATMENT | TIN CORE CONDUCTOR ALL CONDUCTORS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 20 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 32 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 4 SINGLES |
| COLOR | BLACK 1ST POSITION JACKET CABLE |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.270 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-24643/43 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24643/43-17UO |
Restrictions/Controls & Freight Information | NSN 6145-01-202-7772
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-202-7772
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z FT : Foot |
