NSN 6145-01-211-9798 M22759/43-22-9, M2275943229, AS22759/43
Product Details | ELECTRICAL WIRE
6145-01-211-9798 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M22759/43-22-9, M2275943229, AS22759/43, AS2275943, SS7614229, SS7614-22-9 , MIL-W-22759/43, MILW2275943, 6145-01-211-9798, 01-211-9798, 6145012119798, 012119798
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 05 JUL 1985 | 01-211-9798 | 00798 ( WIRE, ELECTRICAL ) |

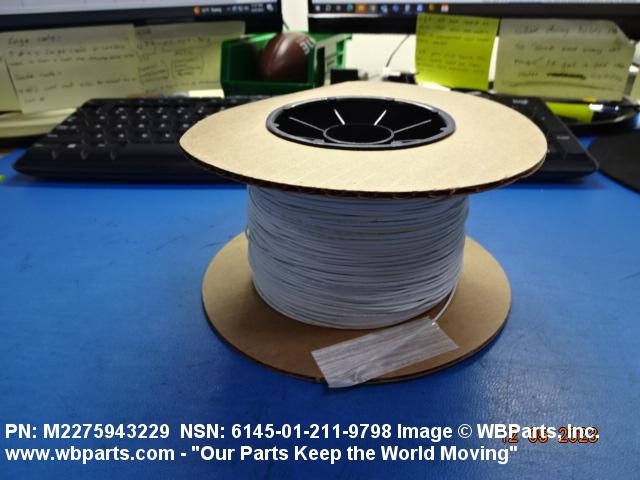

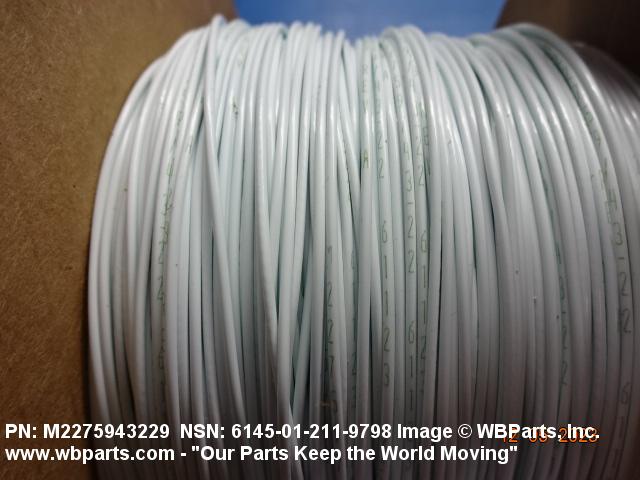

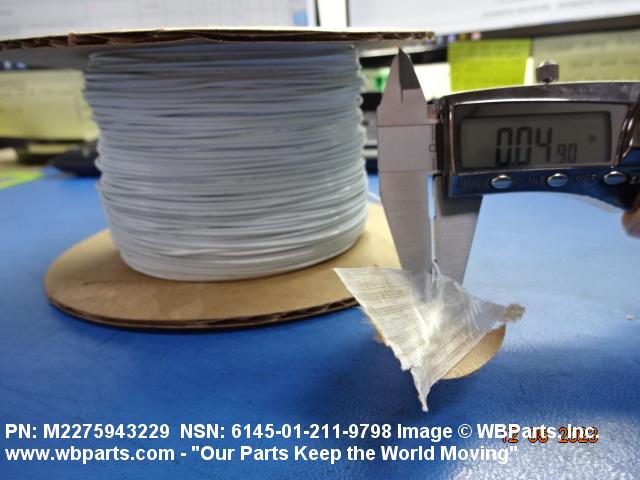

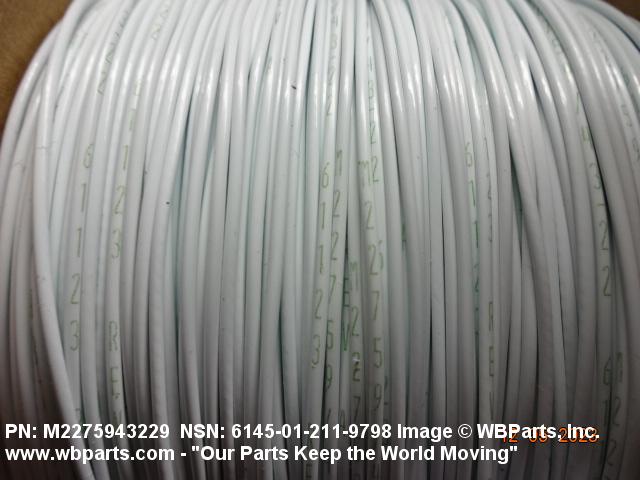

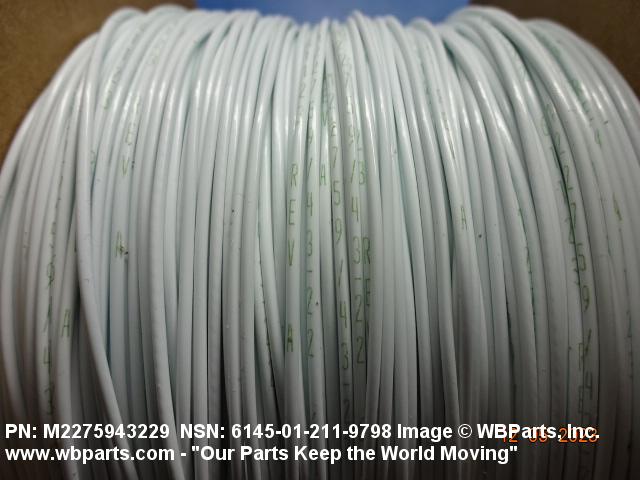

Drawings & Photos | NSN 6145-01-211-9798
Demand History | NSN 6145-01-211-9798
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-211-9798 | 2025-06-180 | 70000 | US |
| 6145-01-211-9798 | 2025-06-178 | 70000 | US |
| M2275943229 | 2023-11-312 | 1000 | United States |
| AS22759/43 | 2022-10-301 | 40 | Saudi Arabia |
| AS22759/43 | 2022-10-294 | 40 | Saudi Arabia |
| AS22759/43 | 2022-08-228 | 40 | Saudi Arabia |
| 6145-01-211-9798 | 2022-08-224 | 572000 | DIBBS |
| 6145-01-211-9798 | 2022-08-213 | 572000 | DIBBS |
| 6145-01-211-9798 | 2020-03-73 | 150 | Singapore |
| M2275943229 | 2019-10-295 | 100 | United States |
| M2275943229 | 2019-06-171 | 154000 | us |
| 6145-01-211-9798 | 2019-04-100 | 1600 | India |
| 6145-01-211-9798 | 2018-12-337 | 880000 | DIBBS |
| M2275943229 | 2018-02-38 | 800 | United States |
| M2275943229 | 2017-09-264 | 204 | United States |
| M2275943229 | 2017-09-264 | 541 | United States |
| 6145-01-211-9798 | 2017-08-220 | 1022000 | DIBBS |
| M2275943229 | 2016-04-99 | 38 | us |
| M2275943229 | 2015-08-230 | 100 | United States |
| M2275943229 | 2015-02-44 | 10000 | SG |
| 6145-01-211-9798 | 2014-07-192 | 1 | DIBBS-RFPs |
| M2275943229 | 2014-02-41 | 50 | us |
| M2275943229 | 2014-01-29 | 2482 | United States |
| M2275943229 | 2013-11-325 | 50 | United States |
| M2275943229 | 2013-09-253 | 7770 | United States |
| M2275943229 | 2013-07-182 | 1944 | United States |
| M22759/43-22-9 | 2013-04-113 | 2500 | United States |
| M22759/43-22-9 | 2012-03-82 | 500 | US |
| M22759/43-22-9 | 2012-02-39 | 45625 | IL |
| 6145-01-211-9798 | 2011-10-293 | 500000 | DIBBS |
| 6145-01-211-9798 | 2011-10-293 | 600000 | DIBBS |
| 6145-01-211-9798 | 2011-10-291 | 34000 | DIBBS |
| 6145-01-211-9798 | 2011-10-290 | 10000 | DIBBS |
| 6145-01-211-9798 | 2011-10-287 | 8000 | DIBBS |
| 6145-01-211-9798 | 2011-10-280 | 10000 | DIBBS |
| 6145-01-211-9798 | 2011-10-278 | 34000 | DIBBS |
| 6145-01-211-9798 | 2011-08-216 | 4000 | DIBBS |
| 6145-01-211-9798 | 2011-08-213 | 8000 | DIBBS |
| 6145-01-211-9798 | 2011-06-173 | 4000 | DIBBS |
| 6145-01-211-9798 | 2011-06-172 | 294000 | DIBBS |
| 6145-01-211-9798 | 2011-05-145 | 163000 | DIBBS |
| 6145-01-211-9798 | 2011-05-145 | 508000 | DIBBS |
| M2275943229 | 2011-05-143 | 96 | United States |
| 6145-01-211-9798 | 2011-05-132 | 508000 | DIBBS |
| 6145-01-211-9798 | 2011-04-103 | 140000 | DIBBS |
| 6145-01-211-9798 | 2011-04-103 | 414000 | DIBBS |
| 6145-01-211-9798 | 2011-03-72 | 30000 | DIBBS |
| 6145-01-211-9798 | 2011-02-35 | 118000 | DIBBS |
| 6145-01-211-9798 | 2011-01-10 | 140000 | DIBBS |
| 6145-01-211-9798 | 2010-12-337 | 76000 | DIBBS |
| 6145-01-211-9798 | 2010-11-314 | 161000 | DIBBS |
| 6145-01-211-9798 | 2010-10-280 | 102000 | DIBBS |
| 6145-01-211-9798 | 2010-09-257 | 155 | United States |
| 6145-01-211-9798 | 2010-06-165 | 1 | US |
| 6145-01-211-9798 | 2009-02-35 | 550000 | DIBBS |
| 6145-01-211-9798 | 2009-01-08 | 304000 | DIBBS |
| 6145-01-211-9798 | 2008-12-352 | 170000 | DIBBS |
| 6145-01-211-9798 | 2008-12-352 | 4000 | DIBBS |
| 6145-01-211-9798 | 2008-11-317 | 69775 | DIBBS |
| 6145-01-211-9798 | 2008-11-317 | 392000 | DIBBS |
| 6145-01-211-9798 | 2008-09-263 | 178000 | DIBBS |
| 6145-01-211-9798 | 2008-06-158 | 46000 | DIBBS |
| 6145-01-211-9798 | 2008-05-129 | 10000 | DIBBS |
| 6145-01-211-9798 | 2008-02-42 | 495 | DIBBS |
| M2275943229 | 2008-02-38 | 50000 | United States |
Cross Reference | NSN 6145-01-211-9798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS22759/43 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/43-22-9 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M22759/43-22-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-W-22759/43 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SS7614-22-9 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-211-9798
Related Products | NSN 6145-01-211-9798
Technical Data | NSN 6145-01-211-9798
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC CROSS-LINKED POLYOLEFIN 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR PLASTIC CROSS-LINKED POLYOLEFIN 2ND POSITION JACKET SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 22 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 19 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 34 SINGLE CONDUCTOR |
| COLOR | WHITE 1ST POSITION COVER SINGLE CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.050 INCHES NOMINAL |
| TEMP RATING | 200.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | SURFACE SINGLE CONDUCTOR SILVER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-22759/43 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22759/43-22-9 |
Restrictions/Controls & Freight Information | NSN 6145-01-211-9798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-211-9798
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z FT : Foot |
