NSN 6145-01-224-6909 M24640/2-02UN2, M24640/2-TX-4, M24640202UN2
Product Details | ELECTRICAL POWER CABLE
6145-01-224-6909 Two or more insulated conductors (solid or stranded) contained in a common covering, or two or more insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering, covering, shield, or outer conductor. The rated working voltage of the item must be 300 volts or more, or in lieu of this the test voltage must be 1,000 volts or more; and the size of each individual conductor must be number 18 American Wire Gage (0.75 SQUARE MILLIMETERS) or larger. For cables with uninsulated neutral conductor use the hightest rated voltage. Refers to bulk quantities only, for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, POWER, ELECTRICAL. For low voltage aircraft and automotive cable, see CABLE, SPECIAL PURPOSE, ELECTRICAL.202411000006145000000
Part Alternates: M24640/2-02UN2, M24640/2-TX-4, M24640202UN2, M246402TX4, MIL-C-0024640/2, MILC00246402, MIL-DTL-24640/2, MILDTL246402, 6145-01-224-6909, 01-224-6909, 6145012246909, 012246909
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 20 JAN 1986 | 01-224-6909 | 00232 ( CABLE, POWER, ELECTRICAL ) |

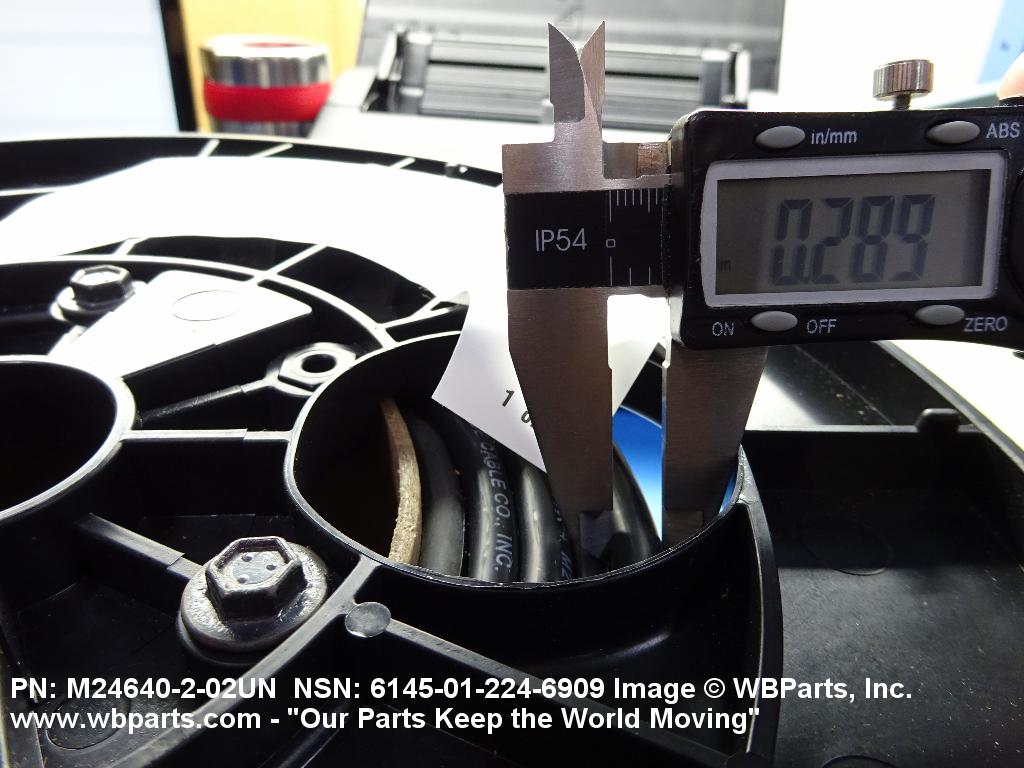

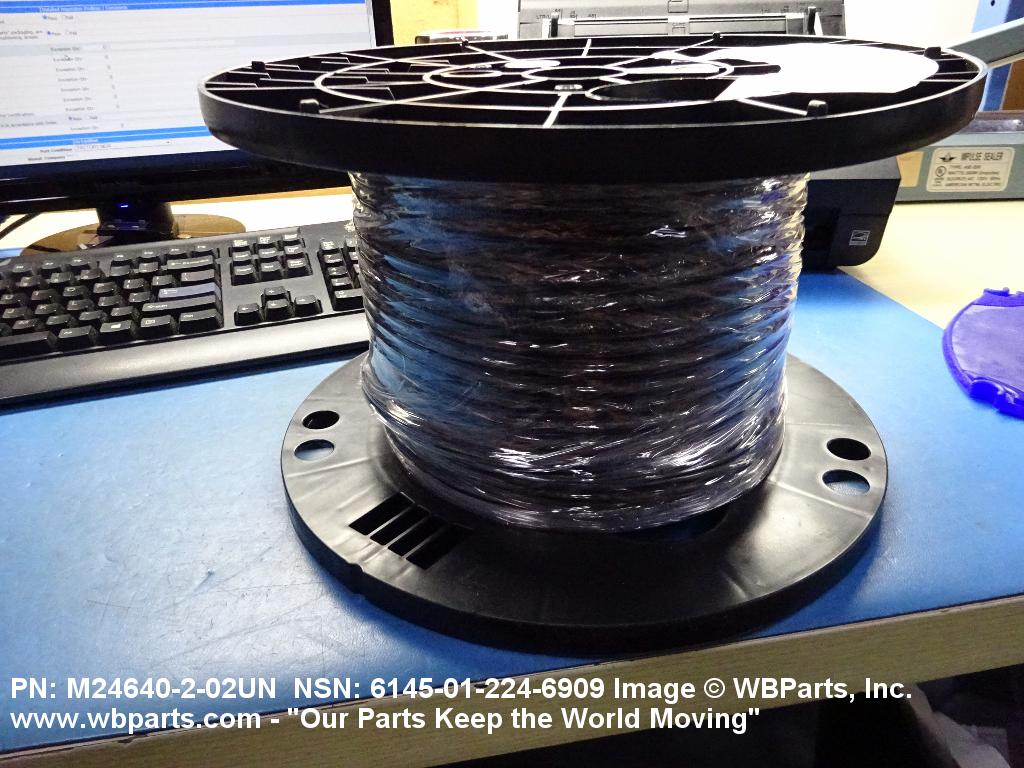

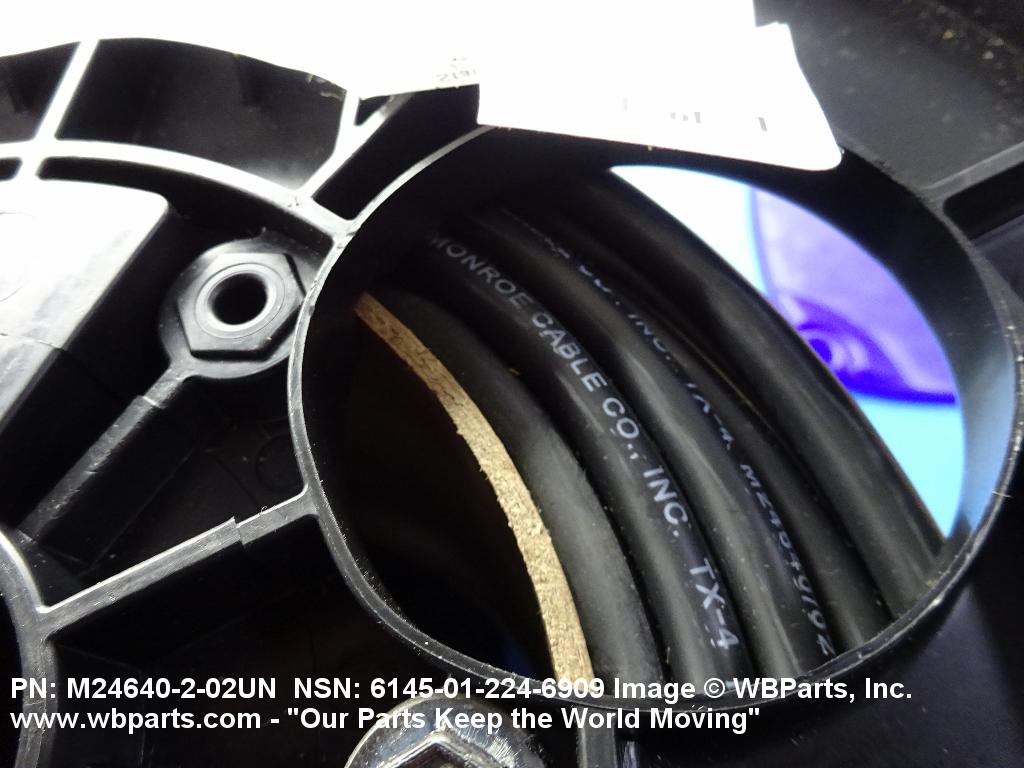

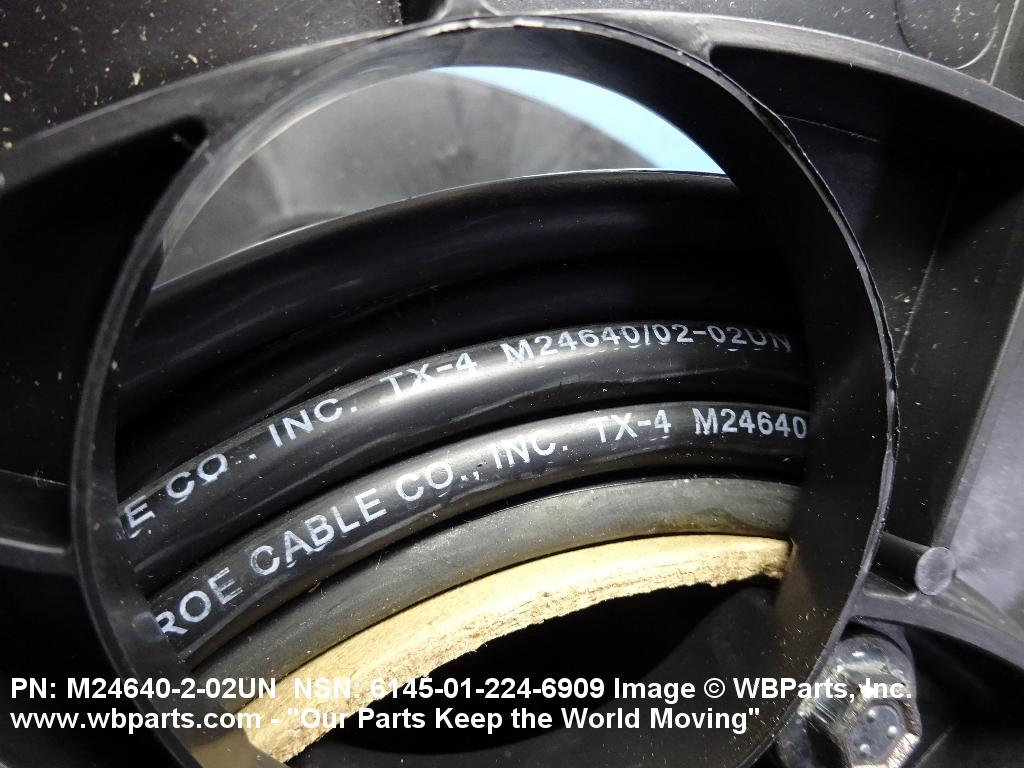

Drawings & Photos | NSN 6145-01-224-6909
Demand History | NSN 6145-01-224-6909
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-224-6909 | 2024-04-93 | 1800 | DIBBS |
| 6145-01-224-6909 | 2022-08-242 | 50 | United States |
| 6145-01-224-6909 | 2021-12-348 | 100 | United States |
| 6145-01-224-6909 | 2019-11-321 | 3500 | DIBBS |
| 6145-01-224-6909 | 2018-05-142 | 70 | DIBBS |
| 6145-01-224-6909 | 2018-03-86 | 75 | DIBBS |
| 6145-01-224-6909 | 2018-01-30 | 170 | DIBBS |
| 6145-01-224-6909 | 2016-02-35 | 4500 | DIBBS |
| 6145-01-224-6909 | 2015-08-230 | 1000 | DIBBS |
| 6145-01-224-6909 | 2011-01-13 | 1500 | DIBBS |
Cross Reference | NSN 6145-01-224-6909
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24640/2-02UN2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24640/2-TX-4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-0024640/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-24640/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-224-6909
Technical Data | NSN 6145-01-224-6909
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 3 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER ALLOY 101 OR COPPER ALLOY 102 CORE CONDUCTOR ALL CONDUCTORS PLASTIC POLYALKENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS PLASTIC POLYESTER 1ST POSITION TAPE CABLE PLASTIC POLYVINYLIDENE FLUORIDE 2ND POSITION JACKET ALL CONDUCTORS PLASTIC CROSS-LINKED POLYOLEFIN 2ND POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B33 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS MIL-I-631,TYPE G MIL SPEC SINGLE MATERIAL RESPONSE 1ST POSITION TAPE CABLE |
| SURFACE TREATMENT | TIN CORE CONDUCTOR ALL CONDUCTORS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 14 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 22 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 3 SINGLES |
| COLOR | BLACK 1ST POSITION JACKET CABLE |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.299 INCHES NOMINAL |
| SPECIAL FEATURES | POLYESTER TAPE UNDER OUTER JACKET IS OPTIONAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-0024640/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24640/2-TX-4 |
Restrictions/Controls & Freight Information | NSN 6145-01-224-6909
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-224-6909
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
