NSN 6145-01-224-9204 M24640/15-03UO, M24640/15-2XSAOW-10, M246401503UO
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE
6145-01-224-9204 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.
Part Alternates: M24640/15-03UO, M24640/15-2XSAOW-10, M246401503UO, M24640152XSAOW10, MIL-C-0024640/15, MILC002464015, MIL-DTL-24640/15, MILDTL2464015, 6145-01-224-9204, 01-224-9204, 6145012249204, 012249204
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 24 JAN 1986 | 01-224-9204 | 16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL ) |

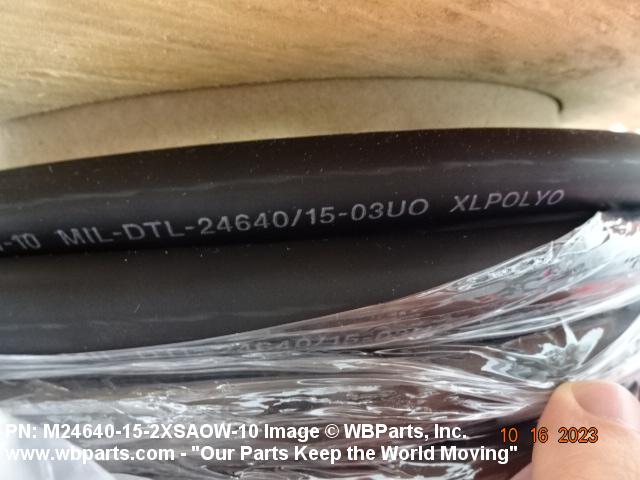

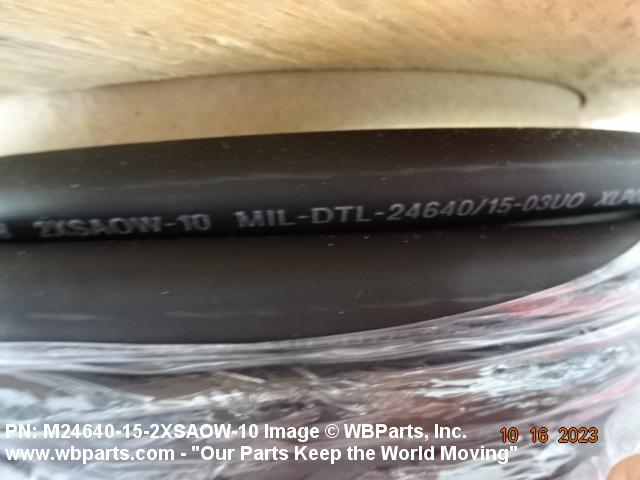

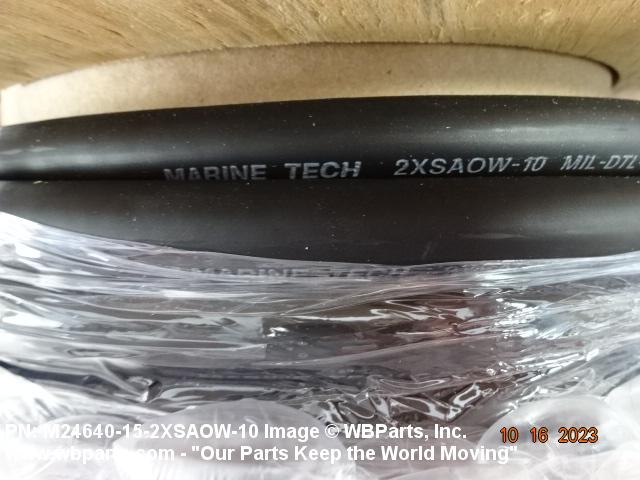

Drawings & Photos | NSN 6145-01-224-9204
Demand History | NSN 6145-01-224-9204
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M24640152XSAOW10 | 2023-07-187 | 90 | United States |
| 6145-01-224-9204 | 2022-08-213 | 319 | US |
| 6145-01-224-9204 | 2022-04-101 | 962 | DIBBS |
| 6145-01-224-9204 | 2022-03-90 | 962 | DIBBS |
| 6145-01-224-9204 | 2022-03-76 | 1722 | DIBBS |
| 6145-01-224-9204 | 2022-03-75 | 5300 | Taiwan |
| 6145-01-224-9204 | 2022-03-66 | 263 | DIBBS |
| 6145-01-224-9204 | 2022-02-55 | 263 | DIBBS |
| 6145-01-224-9204 | 2022-01-25 | 1300 | DIBBS |
| 6145-01-224-9204 | 2022-01-13 | 1300 | DIBBS |
| 6145-01-224-9204 | 2021-11-328 | 899 | DIBBS |
| 6145-01-224-9204 | 2021-07-193 | 899 | DIBBS |
| 6145-01-224-9204 | 2021-07-182 | 899 | DIBBS |
| 6145-01-224-9204 | 2021-04-112 | 878 | DIBBS |
| 6145-01-224-9204 | 2021-02-38 | 930 | DIBBS |
| 6145-01-224-9204 | 2020-10-296 | 411 | DIBBS |
| 6145-01-224-9204 | 2015-04-119 | 2000 | DIBBS |
| 6145-01-224-9204 | 2014-08-217 | 1000 | DIBBS |
| 6145-01-224-9204 | 2014-04-111 | 1000 | DIBBS |
| 6145-01-224-9204 | 2013-11-317 | 1000 | DIBBS |
| 6145-01-224-9204 | 2013-11-311 | 1500 | DIBBS |
| 6145-01-224-9204 | 2013-10-294 | 500 | DIBBS |
| 6145-01-224-9204 | 2012-08-243 | 1500 | DIBBS |
| 6145-01-224-9204 | 2012-01-13 | 2000 | DIBBS |
| MILDTL2464015 | 2011-06-159 | 80 | United States |
| 6145-01-224-9204 | 2010-04-95 | 1000 | DIBBS |
| 6145-01-224-9204 | 2010-02-55 | 1000 | DIBBS |
| 6145-01-224-9204 | 2008-07-204 | 2500 | DIBBS |
| 6145-01-224-9204 | 2008-03-70 | 2500 | DIBBS |
Cross Reference | NSN 6145-01-224-9204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24640/15-03UO | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24640/15-2XSAOW-10 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-0024640/15 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-24640/15 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-224-9204
Related Products | NSN 6145-01-224-9204
Technical Data | NSN 6145-01-224-9204
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 20 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC POLYALKENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS COPPER 1ST POSITION SHIELD BRAID, METALLIC ALL GROUPS PLASTIC POLYESTER 1ST POSITION TAPE CABLE PLASTIC POLYVINYLIDENE FLUORIDE 2ND POSITION JACKET ALL CONDUCTORS TIN 2ND POSITION COATING ALL GROUPS COPPER ALLOY 2ND POSITION SHIELD BRAID, METALLIC CABLE TIN 3RD POSITION COATING CABLE PLASTIC POLYESTER 3RD POSITION TAPE ALL GROUPS PLASTIC POLYESTER 4TH POSITION TAPE CABLE PLASTIC CROSS-LINKED POLYOLEFIN 5TH POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMB3 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS MIL-I-631 TYPE G MIL SPEC SINGLE MATERIAL RESPONSE 1ST POSITION TAPE CABLE MIL-I-631 TYPE G MIL SPEC SINGLE MATERIAL RESPONSE 3RD POSITION TAPE ALL GROUPS MIL-I=631,TYPE G MIL SPEC SINGLE MATERIAL RESPONSE 5TH POSITION TAPE CABLE |
| ROUND CONDUCTOR SIZE | 22 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 7 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 30 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 10 TWISTED PAIR |
| CONDUCTOR GROUPING ARRANGEMENT TYPE AND QUANTITY | 10 TWISTED PAIR ALL GROUPS |
| COLOR | BLACK 1ST POSITION JACKET CABLE |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

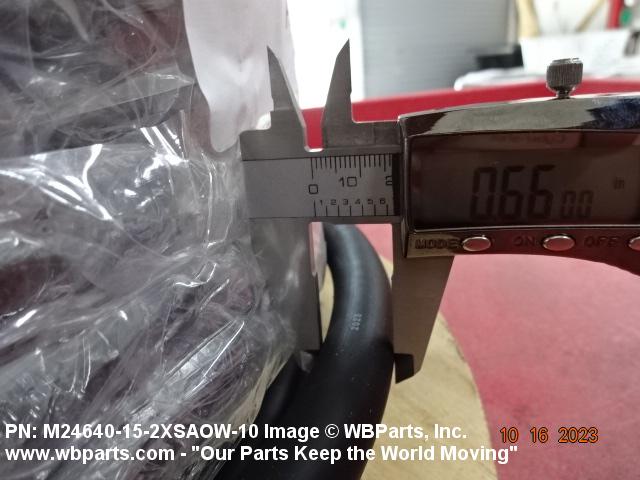

| CROSS SECTION OUTSIDE DIAMETER | 0.656 INCHES NOMINAL |
