NSN 6145-01-283-2482 M343201HOM160520, C001H0M160515, C0-01H0M1-60515
Product Details | ELECTRICAL WIRE
6145-01-283-2482 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M343201HOM160520, C001H0M160515, C0-01H0M1-60515, CO01HOM160520, MILC3432, MIL-C-3432, MILDTL3432, MIL-DTL-3432 , 6145-01-283-2482, 01-283-2482, 6145012832482, 012832482
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 31 JUL 1988 | 01-283-2482 | 00798 ( WIRE, ELECTRICAL ) |

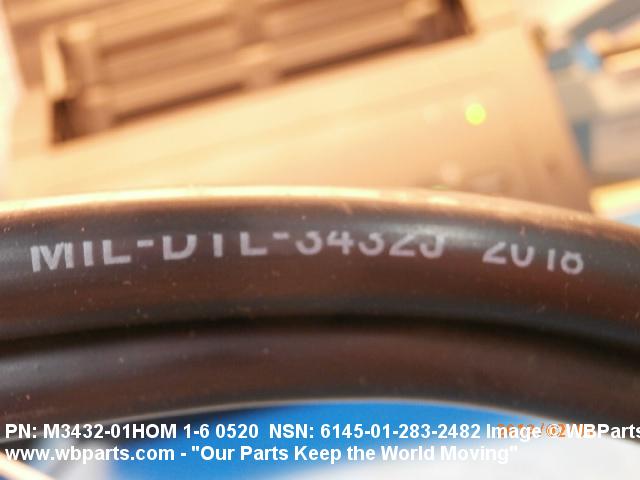

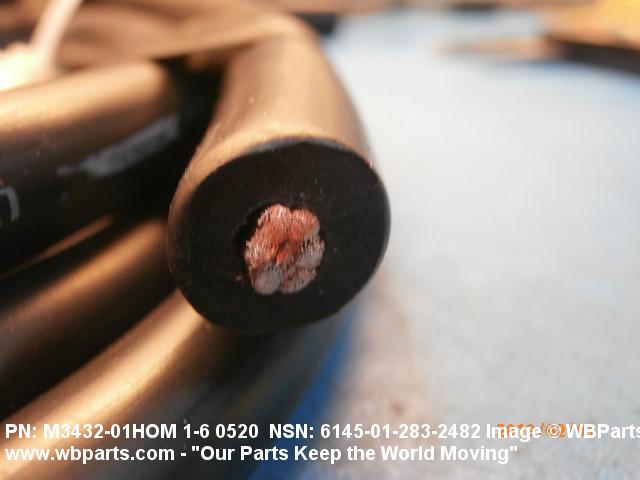

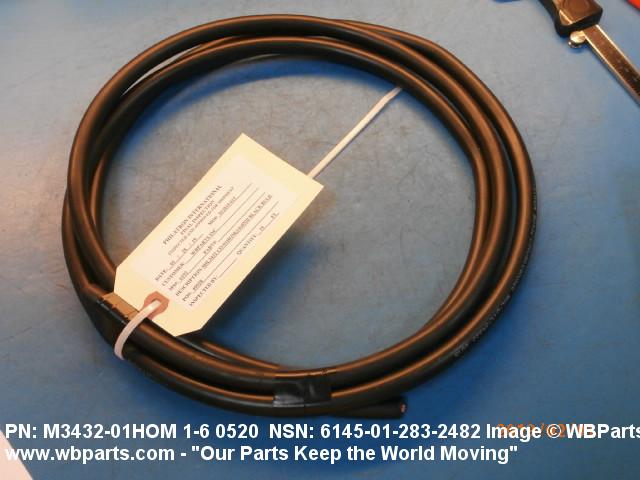

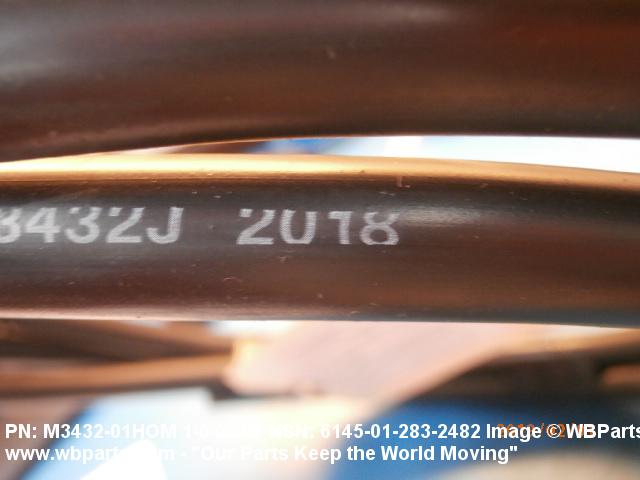

Drawings & Photos | NSN 6145-01-283-2482
Demand History | NSN 6145-01-283-2482
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-283-2482 | 2022-01-10 | 500 | DIBBS |
| 6145-01-283-2482 | 2022-01-03 | 500 | DIBBS |
| 6145-01-283-2482 | 2021-12-355 | 500 | DIBBS |
| 6145-01-283-2482 | 2019-01-25 | 15 | United States |
| 6145-01-283-2482 | 2019-01-23 | 15 | United States |
| 6145-01-283-2482 | 2019-01-14 | 10 | United States |
| 6145-01-283-2482 | 2018-09-263 | 1000 | DIBBS |
| 6145-01-283-2482 | 2015-05-127 | 500 | DIBBS |
| 6145-01-283-2482 | 2011-11-314 | 500 | DIBBS |
| 6145-01-283-2482 | 2011-10-293 | 500 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-283-2482
Technical Data | NSN 6145-01-283-2482
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-343,SOFT FED SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT | TIN CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B33-63 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 6 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 665 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 34 SINGLE CONDUCTOR |
| COLOR | BLACK 1ST POSITION COVER SINGLE CONDUCTOR |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

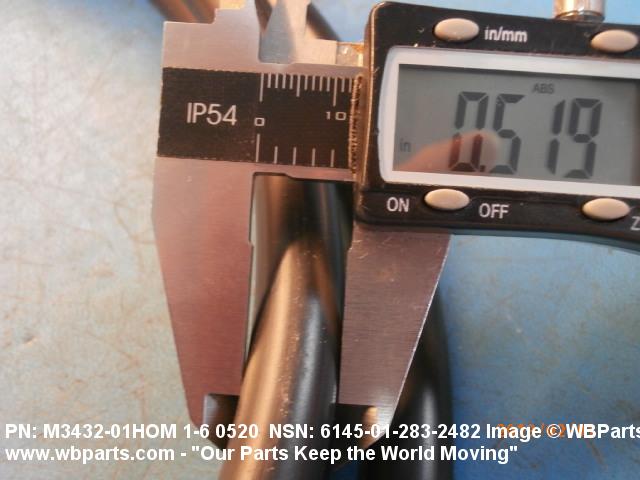

| CROSS SECTION OUTSIDE DIAMETER | 0.520 INCHES NOMINAL |
| TEMP RATING | -40.0 DEG CELSIUS AND 75.0 DEG CELSIUS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CO-01HOM(1/6)0520 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-3432 |
Restrictions/Controls & Freight Information | NSN 6145-01-283-2482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-283-2482
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
