NSN 6145-01-307-5508 G4295761, G429576-1, L/U 17116
Product Details | ELECTRICAL POWER CABLE
6145-01-307-5508 Two or more insulated conductors (solid or stranded) contained in a common covering, or two or more insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering, covering, shield, or outer conductor. The rated working voltage of the item must be 300 volts or more, or in lieu of this the test voltage must be 1,000 volts or more; and the size of each individual conductor must be number 18 American Wire Gage (0.75 SQUARE MILLIMETERS) or larger. For cables with uninsulated neutral conductor use the hightest rated voltage. Refers to bulk quantities only, for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, POWER, ELECTRICAL. For low voltage aircraft and automotive cable, see CABLE, SPECIAL PURPOSE, ELECTRICAL.202411000006145000000
Part Alternates: G4295761, G429576-1, L/U 17116, LU17116, T13401, 6145-01-307-5508, 01-307-5508, 6145013075508, 013075508
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 13 SEP 1989 | 01-307-5508 | 00232 ( CABLE, POWER, ELECTRICAL ) |

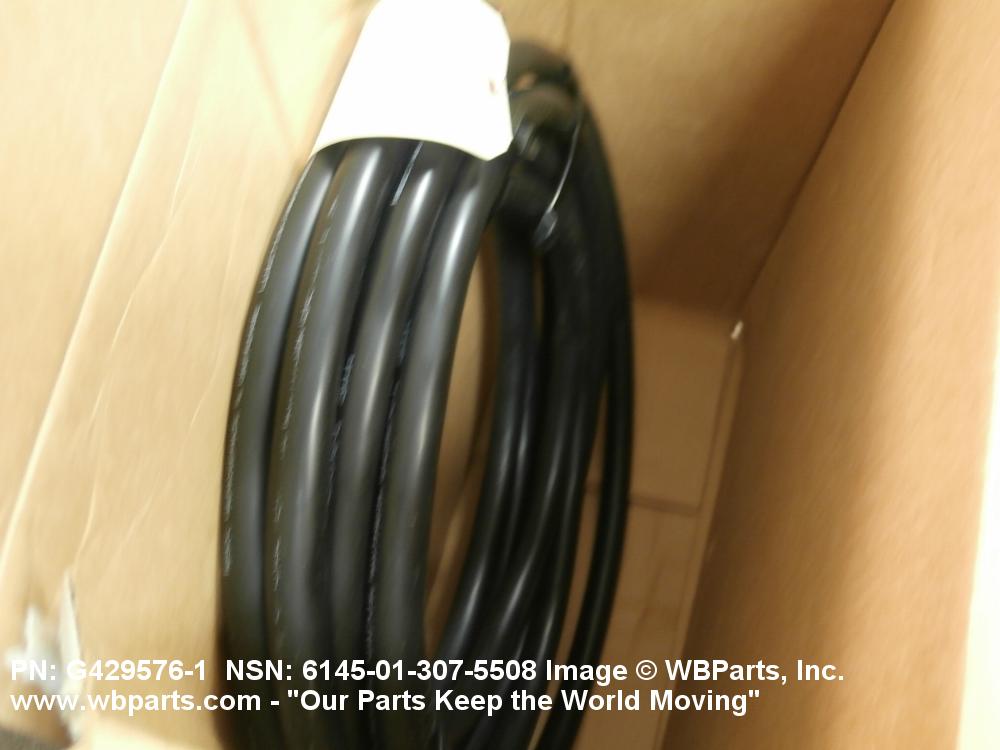

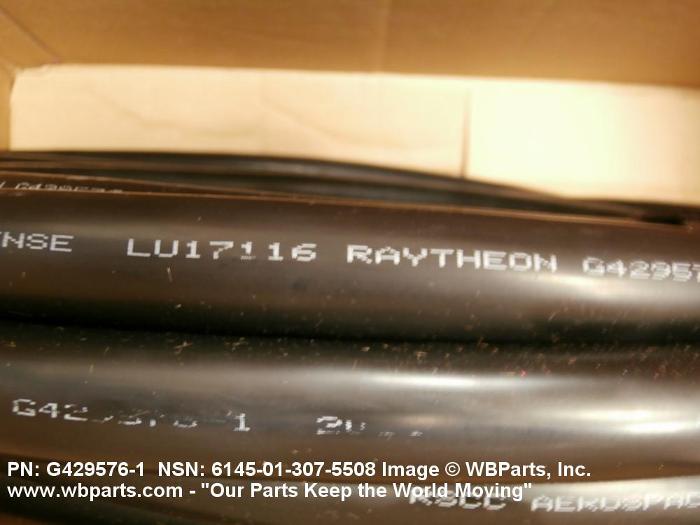

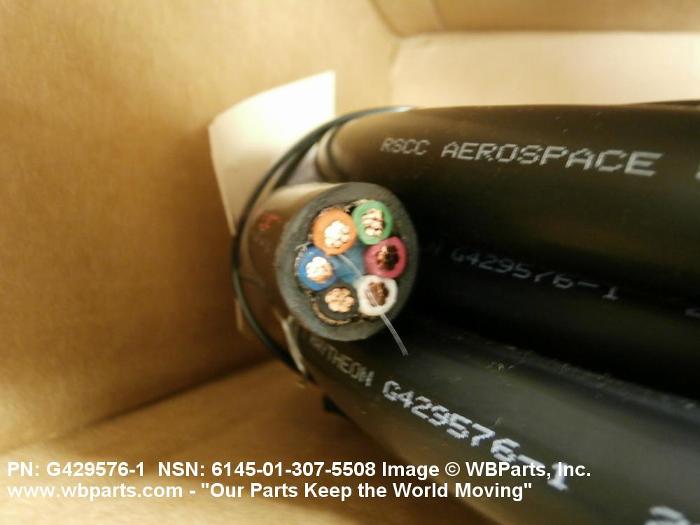

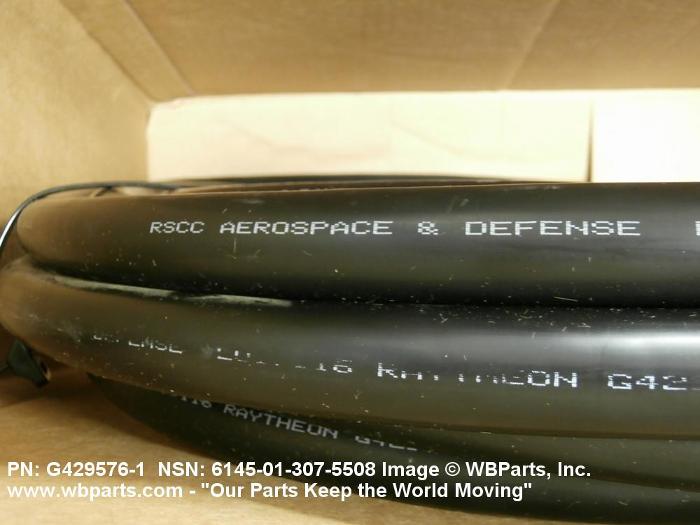

Drawings & Photos | NSN 6145-01-307-5508
Demand History | NSN 6145-01-307-5508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| G429576-1 | 2020-04-96 | 500 | DIBBS |
| L/U 17116 | 2020-04-96 | 500 | DIBBS |
| 6145-01-307-5508 | 2019-02-58 | 100 | United States |
| 6145-01-307-5508 | 2014-02-52 | 1000 | DIBBS |
| 6145-01-307-5508 | 2014-02-41 | 1000 | United States |
| G4295761 | 2014-02-37 | 1000 | US |
| 6145-01-307-5508 | 2014-02-37 | 1000 | DIBBS |
| 6145-01-307-5508 | 2013-10-282 | 1000 | US |
| 6145-01-307-5508 | 2013-10-274 | 500 | DIBBS |
| 6145-01-307-5508 | 2013-09-259 | 500 | DIBBS |
| G4295761 | 2013-01-11 | 20 | United States |
| G4295761 | 2012-11-334 | 20 | US |
| G4295761 | 2012-11-321 | 35 | United States |
| 6145-01-307-5508 | 2012-10-304 | 35 | United States |
| 6145-01-307-5508 | 2012-01-05 | 500 | DIBBS |
| 6145-01-307-5508 | 2010-12-335 | 1000 | DIBBS |
| 6145-01-307-5508 | 2010-05-123 | 500 | DIBBS |
| 6145-01-307-5508 | 2010-04-120 | 500 | DIBBS |
Cross Reference | NSN 6145-01-307-5508
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G429576-1 | 2B487 | RAYTHEON SERVICE CO LOGISTICS SUPPORT CENTER |
| G429576-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| G429576-1 | 90484 | ROCKBESTOS-SURPRENANT CABLE CORP |
| L/U 17116 | 90484 | ROCKBESTOS-SURPRENANT CABLE CORP |
| T13401 | 71124 | GENERAL CABLE INDUSTRIES, INC. DBA WILLIMANTIC, CT PLANT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-307-5508
Technical Data | NSN 6145-01-307-5508
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 6 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS LINKED POLYETHYLENE OR RUBBER ETHYLENE-PROPYLENE CLASS EPM 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS COPPER 2ND POSITION SHIELD BRAID, METALLIC CABLE PLASTIC CROSS-LINKED POLYOLEFIN 3RD POSITION JACKET CABLE |
| SURFACE TREATMENT | TIN 2ND POSITION SHIELD BRAID, METALLIC CABLE |
| ROUND CONDUCTOR SIZE | 7 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 7 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 15 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 6 SINGLES |
| VOLTAGE RATING | 600.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.930 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 6145-01-307-5508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-307-5508
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
