NSN 6145-01-412-9794 D23423, D2342-3, DMS23423
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE
6145-01-412-9794 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.
Part Alternates: D23423, D2342-3, DMS23423, DMS2342-3, 14468, 17722100, 177-221-00, 2013AJD23423, 2013AJ-D2342-3, 22XTN19342SXE, 6145-01-412-9794, 01-412-9794, 6145014129794, 014129794
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 03 MAY 1995 | 01-412-9794 | 16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL ) |

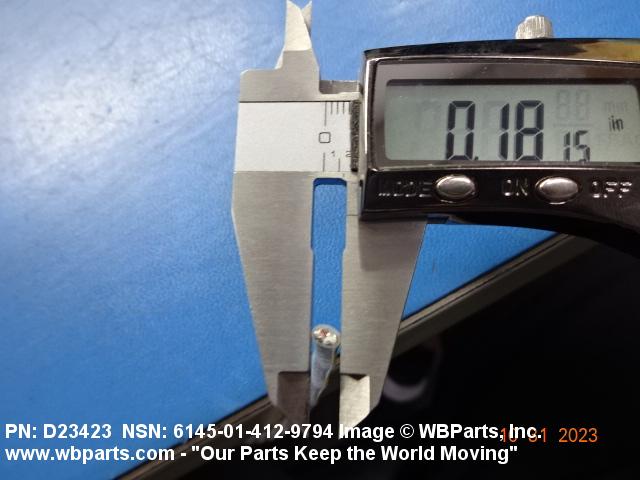

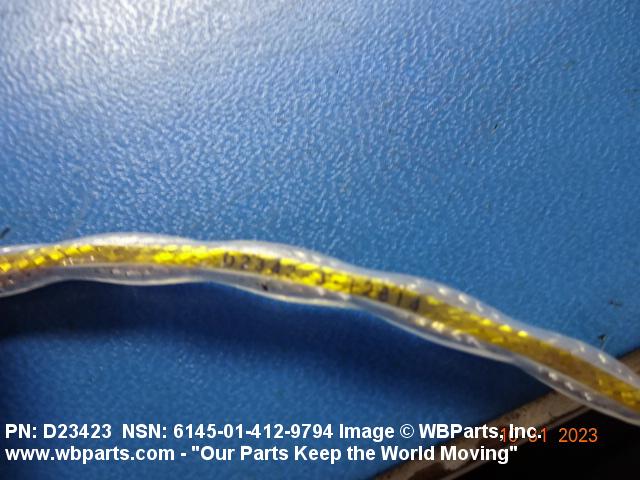

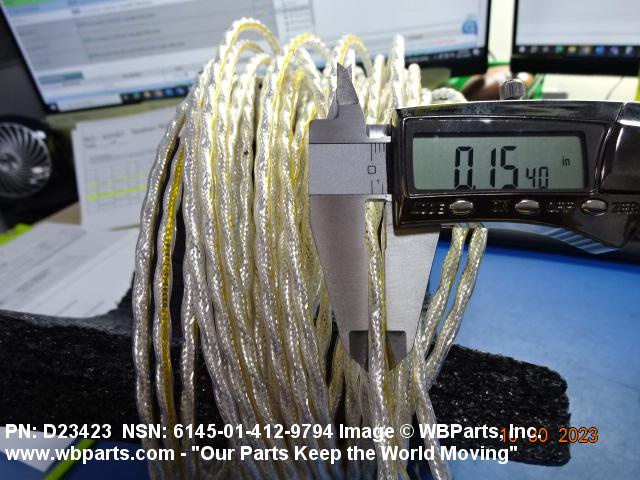

Drawings & Photos | NSN 6145-01-412-9794
Demand History | NSN 6145-01-412-9794
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DMS23423 | 2023-10-283 | 101 | United States |
| 6145-01-412-9794 | 2022-12-349 | 100 | US |
| 6145-01-412-9794 | 2022-12-349 | 500 | US |
| 6145-01-412-9794 | 2022-12-349 | 1000 | US |
| 6145-01-412-9794 | 2022-12-348 | 1 | US |
| DMS23423 | 2008-10-276 | 400 | US |
Cross Reference | NSN 6145-01-412-9794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14468 | 0BTB3 | FL INDUSTRIES INC FL SURPRENANT WIRE AND CABLE DIV |
| 177-221-00 | 77229 | PHILADELPHIA INSULATED WIRE CO INC |
| 2013AJ-D2342-3 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 22-XTN-1934(2)SXE | 12814 | CARLISLE INTERCONNECT TECHNOLOGIES, INC. |
| D2342-3 | 88277 | BOEING COMPANY, THE DBA BOEING |
| DMS2342-3 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-412-9794
Technical Data | NSN 6145-01-412-9794
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS COPPER 2ND POSITION SHIELD BRAID, METALLIC CABLE PLASTIC FLUORINATED ETHYLENE PROPYLENE 3RD POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B355 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE 2ND POSITION SHIELD BRAID, METALLIC CABLE |
| SURFACE TREATMENT | NICKEL CORE CONDUCTOR ALL CONDUCTORS SILVER 2ND POSITION SHIELD BRAID, METALLIC CABLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B355 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE 2ND POSITION SHIELD BRAID, METALLIC CABLE |
| ROUND CONDUCTOR SIZE | 22 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 34 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 TWISTED PAIR |
| COLOR | CLEAR 3RD POSITION JACKET CABLE |
| CROSS-SECTIONAL SHAPE STYLE | 4 OVAL |
| CROSS-SECTIONAL HEIGHT | 0.114 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.190 INCHES NOMINAL |
| SPECIAL FEATURES | DCR PER 1000 FT @ 20C = 15.7 OHMS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | SHIELD SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 6145-01-412-9794
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-412-9794
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
