NSN 6145-01-415-3978 M16878/4BGE2, M168784BGE2, 01-415-3978
Product Details | ELECTRICAL WIRE
6145-01-415-3978 A single metallic conductor of solid, stranded, or tinsel construction, designed to carry current in an electrical circuit. It may be a bare or insulated, may have metalic covering sheath, shield or and additional jacket. Refers to bulk quantities only. For items that are solid or stranded, insulated or uninsulated, and have the chemical composition specified but no conductivity (electrical properties) see WIRE,(as modified), Includes Litz wire and insulated/uninsulated armored, and ground wire. Excludes BRAID, WIRE; FUSE WIRE; RESISTANCE WIRE and MAGNET WIRE.
Part Alternates: M16878/4BGE2, M168784BGE2, 6145-01-415-3978, 01-415-3978, 6145014153978, 014153978
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 26 JUN 1995 | 01-415-3978 | 00798 ( WIRE, ELECTRICAL ) |

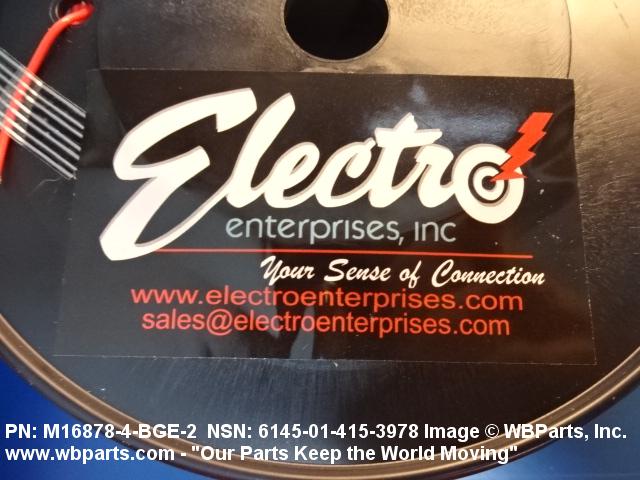

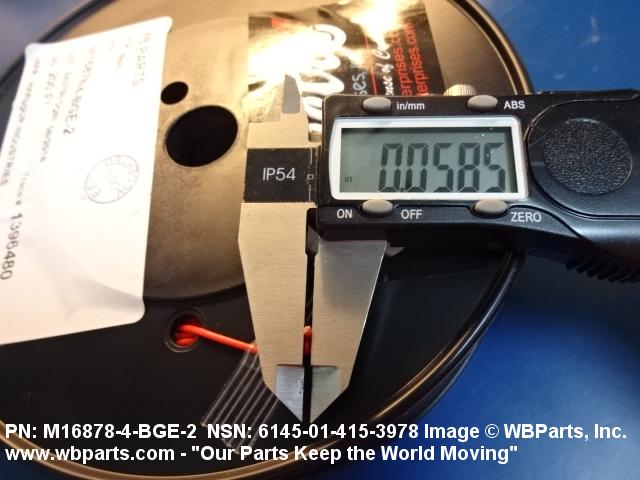

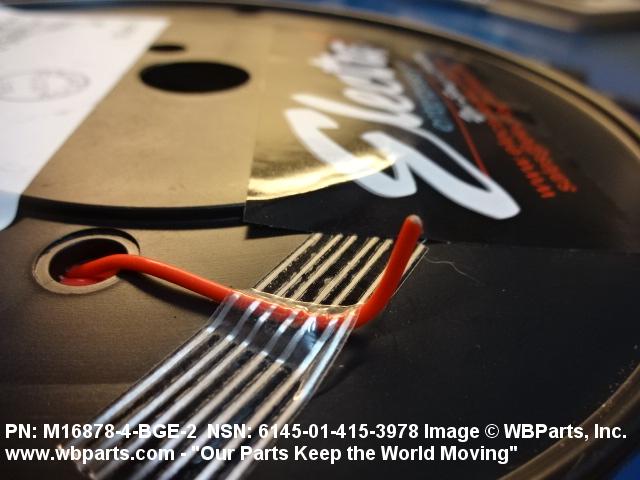

Drawings & Photos | NSN 6145-01-415-3978
Demand History | NSN 6145-01-415-3978
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-415-3978 | 2018-07-192 | 200 | United States |
| 6145-01-415-3978 | 2018-06-174 | 200 | United States |
| 6145-01-415-3978 | 2018-06-159 | 200 | US |
Cross Reference | NSN 6145-01-415-3978
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M16878/4BGE2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-415-3978
Technical Data | NSN 6145-01-415-3978
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| COLOR | RED CORE PRIMARY INSULATION ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16878/4BGE2 |
Restrictions/Controls & Freight Information | NSN 6145-01-415-3978
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
