NSN 6145-01-507-1873 S55122, 01-507-1873, 015071873
Product Details | RADIO FREQUENCY CABLE
6145-01-507-1873 An item consisting of electrical conductors separated from each other by a continuous homogeneous dielectric (including porous types and touching and/or interlocking beads or spacers), and designed primarily for the conduction of radio frequency energy. Includes a single conductor inclosed in an outer concentric conductor (coaxial) with or without a protective sheath; two or more coaxial cables laid parallel with an outer electrical shield and/or common sheath; two or more parallel conductors with an outer electrical shield and/or a common sheath; two or more individually insulated twisted conductors with or without an electrical shield and/or protective covering. All types have low-loss or special characteristics at high frequencies. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, RADIO FREQUENCY. See also LINE, RADIO FREQUENCY TRANSMISSION.
Part Alternates: S55122, 6145-01-507-1873, 01-507-1873, 6145015071873, 015071873
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 22 APR 2003 | 01-507-1873 | 00779 ( CABLE, RADIO FREQUENCY ) |

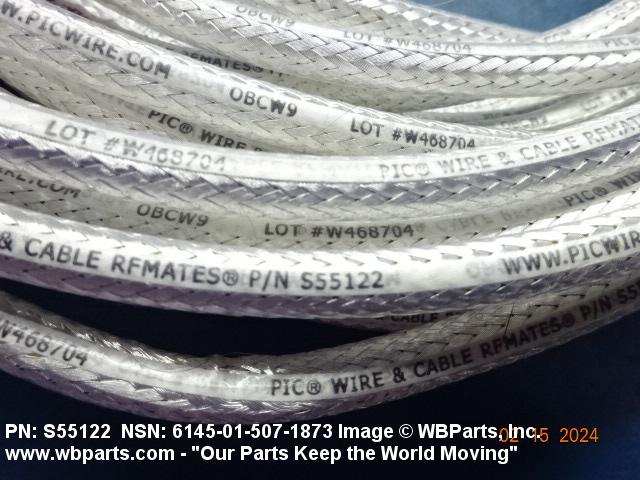

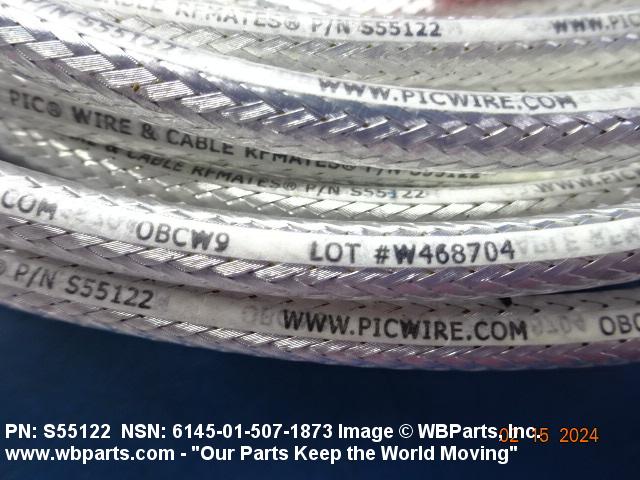

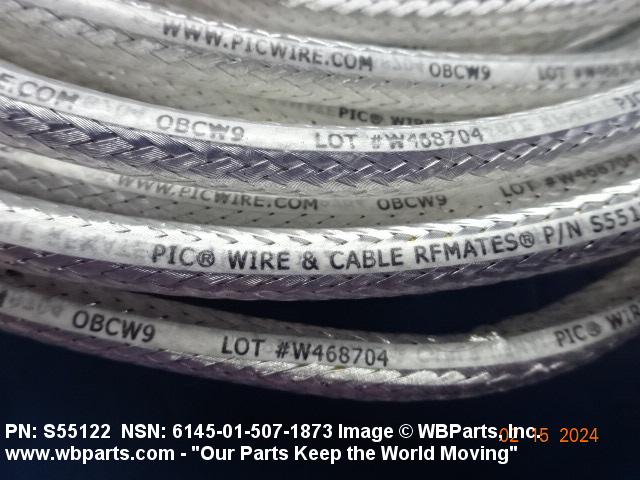

Drawings & Photos | NSN 6145-01-507-1873
Demand History | NSN 6145-01-507-1873
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-507-1873 | 2024-02-33 | 100 | Canada |
| S55122 | 2023-07-192 | 150 | United States |
| 6145-01-507-1873 | 2018-12-351 | 1500 | DIBBS |
| 6145-01-507-1873 | 2018-12-351 | 1500 | DIBBS |
| 6145-01-507-1873 | 2018-12-340 | 1500 | DIBBS |
| 6145-01-507-1873 | 2015-01-26 | 1500 | DIBBS |
| 6145-01-507-1873 | 2015-01-13 | 1500 | DIBBS |
| 6145-01-507-1873 | 2010-10-302 | 1000 | DIBBS |
| 6145-01-507-1873 | 2010-08-214 | 1500 | DIBBS |
| 6145-01-507-1873 | 2010-01-04 | 1000 | DIBBS |
Cross Reference | NSN 6145-01-507-1873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S55122 | 0BCW9 | ANGELUS CORPORATION, THE DBA PIC WIRE & CABLE SUPPLY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-507-1873
Related Products | NSN 6145-01-507-1873
Technical Data | NSN 6145-01-507-1873
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR ALUMINUM AND PLASTIC POLYAMIDE 3RD POSITION SHIELD FOIL SINGLE CONDUCTOR COPPER 4TH POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC FLUORINATED ETHYLENE PROPYLENE 5TH POSITION JACKET SINGLE CONDUCTOR |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR SINGLE CONDUCTOR SILVER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR SILVER 4TH POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 12 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 7 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 20 SINGLE CONDUCTOR |
| NOMINAL CAPACITANCE IN PICOFARADS | 29.0 PER FOOT |
| ELECTRICAL RESISTANCE | 50.0 OHMS IMPEDANCE |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| SPECIAL FEATURES | DESIGN INCORPORATES A MULTI-LAYERED SHIELDING TECHNIQUE THAT COMBINES CONVENTIONAL SHIELDS WITH AN INNER SHIELD WOVEN OF FLAT STRIPS OF SILVER PLATED COPPER; REDUCES ATTENUATION AT FREQUENCIES OVER 1GHZ WHEN COMPARED TO ROUND WIRE BRAIDS IN STANDARD COAXIAL CABLES;VSWR VARIATION DUE TO AGING AND FLEXURE IS SUBSTANTIALLY LESS; MEETS FAA FLAMMABILITY REQUIREMENETS OF FAR 23.1359(D), FAR 25.853(A) AND FAR 25.869(A)(4) |
| III PRECIOUS MATERIAL AND LOCATION | SURFACE CORE CONDUCTOR AND SURFACE COPPER SHIELDS SILVER |
| III END ITEM IDENTIFICATION | HH-60 HELICOPTOR |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FLEXIBLE LOW LOSS 50 OHM COAXIAL CABLE |
Restrictions/Controls & Freight Information | NSN 6145-01-507-1873
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-507-1873
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GC | TG:UH/60A BLACKHAWK |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
