NSN 6145-01-534-7658 M2750020SR2S23, M27500-20SR2S23, NEMA WC27500
Product Details | ELECTRICAL POWER CABLE
6145-01-534-7658 Two or more insulated conductors (solid or stranded) contained in a common covering, or two or more insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering, covering, shield, or outer conductor. The rated working voltage of the item must be 300 volts or more, or in lieu of this the test voltage must be 1,000 volts or more; and the size of each individual conductor must be number 18 American Wire Gage (0.75 SQUARE MILLIMETERS) or larger. For cables with uninsulated neutral conductor use the hightest rated voltage. Refers to bulk quantities only, for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, POWER, ELECTRICAL. For low voltage aircraft and automotive cable, see CABLE, SPECIAL PURPOSE, ELECTRICAL.202411000006145000000
Part Alternates: M2750020SR2S23, M27500-20SR2S23, NEMA WC27500 , NEMAWC27500, 6145-01-534-7658, 01-534-7658, 6145015347658, 015347658
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 NOV 2005 | 01-534-7658 | 00232 ( CABLE, POWER, ELECTRICAL ) |

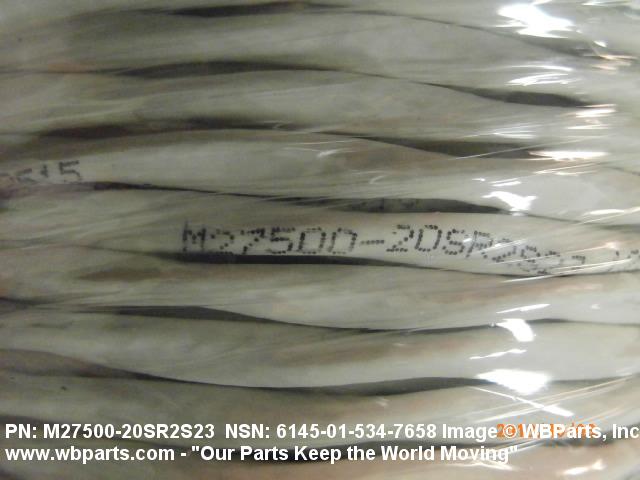

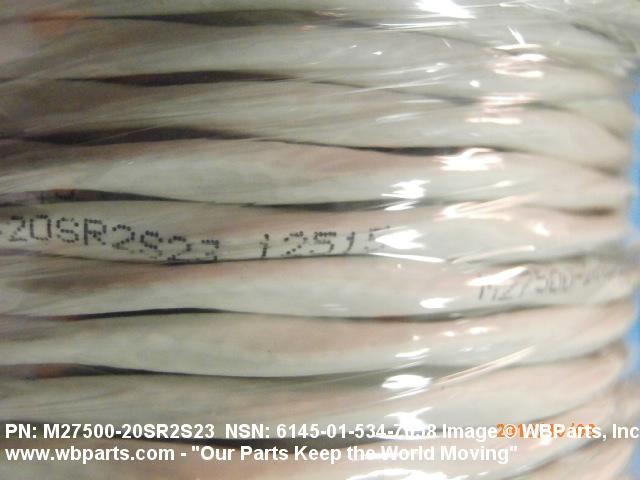

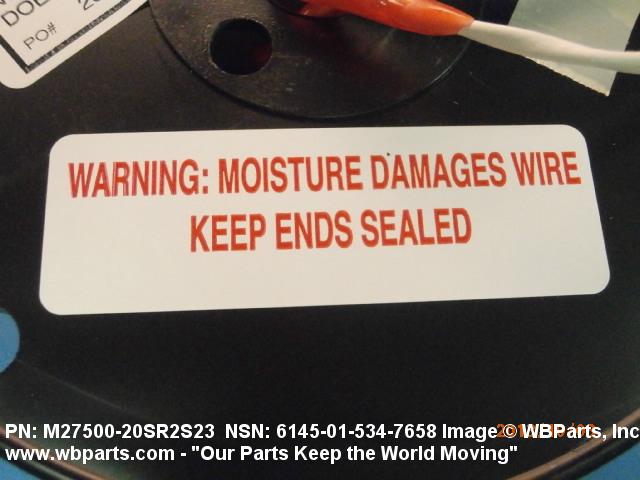

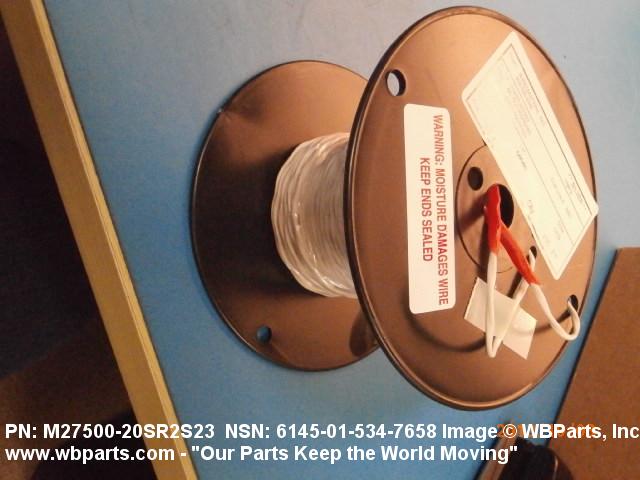

Drawings & Photos | NSN 6145-01-534-7658
Demand History | NSN 6145-01-534-7658
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-534-7658 | 2025-11-321 | 1000 | DIBBS |
| 6145-01-534-7658 | 2025-11-309 | 1000 | DIBBS |
| M2750020SR2S23 | 2022-10-285 | 300 | us |
| 6145-01-534-7658 | 2020-01-21 | 1500 | DIBBS |
| 6145-01-534-7658 | 2020-01-07 | 1500 | DIBBS |
| 6145-01-534-7658 | 2020-01-05 | 1000 | DIBBS |
| 6145-01-534-7658 | 2019-07-182 | 1879 | DIBBS |
| 6145-01-534-7658 | 2019-06-169 | 1879 | DIBBS |
| 6145-01-534-7658 | 2019-05-142 | 500 | DIBBS |
| 6145-01-534-7658 | 2019-05-139 | 500 | DIBBS |
| 6145-01-534-7658 | 2019-04-114 | 1000 | DIBBS |
| 6145-01-534-7658 | 2019-03-77 | 500 | DIBBS |
| 6145-01-534-7658 | 2019-01-27 | 500 | DIBBS |
| 6145-01-534-7658 | 2018-12-347 | 500 | DIBBS |
| 6145-01-534-7658 | 2018-06-158 | 1000 | DIBBS |
| 6145-01-534-7658 | 2018-02-58 | 1500 | DIBBS |
| 6145-01-534-7658 | 2016-08-236 | 1500 | DIBBS |
| 6145-01-534-7658 | 2016-05-140 | 100 | DIBBS |
| 6145-01-534-7658 | 2015-04-96 | 1000 | DIBBS |
| 6145-01-534-7658 | 2014-12-339 | 1000 | DIBBS |
| M2750020SR2S23 | 2013-11-316 | 500 | US |
| M2750020SR2S23 | 2013-09-273 | 100 | Denmark |
| M2750020SR2S23 | 2013-08-225 | 100 | Denmark |
| 6145-01-534-7658 | 2013-05-141 | 100 | DIBBS |
| 6145-01-534-7658 | 2013-01-31 | 500 | DIBBS |
| 6145-01-534-7658 | 2012-03-72 | 500 | DIBBS |
| 6145-01-534-7658 | 2011-12-365 | 1000 | DIBBS |
| 6145-01-534-7658 | 2011-09-261 | 5000 | DIBBS |
| 6145-01-534-7658 | 2011-05-148 | 1000 | DIBBS |
| 6145-01-534-7658 | 2010-11-325 | 100 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-534-7658
Technical Data | NSN 6145-01-534-7658
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE CORE PRIMARY INSULATION ALL CONDUCTORS |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 20 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 37 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 28 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 2 SINGLES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TEMP RATING | 200.0 DEG CELSIUS |
| III PRECIOUS MATERIAL | SILVER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M27500-20SR2S23 |
Restrictions/Controls & Freight Information | NSN 6145-01-534-7658
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-534-7658
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V FT : Foot |
