NSN 6150-00-401-0708 MS250832BB16, MS25083-2BB16, M83413/8-A16BB
Product Details | ELECTRICAL LEAD
6150-00-401-0708 A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also LEAD, TEST and BUS CONDUCTOR. Excludes LEAD, STORAGE BATTERY; LEAD, IGNITION, ENGINE, and items having attached switches, lampholders, suppressors, resistors, and the like.20511350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS250832BB16, MS25083-2BB16, M83413/8-A16BB, M834138A16BB, MIL-C-83413/8, MILC834138, 25832BB16, 2583-2BB16, 6150-00-401-0708, 00-401-0708, 6150004010708, 004010708
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 21 NOV 1969 | 00-401-0708 | 04581 ( LEAD, ELECTRICAL ) |

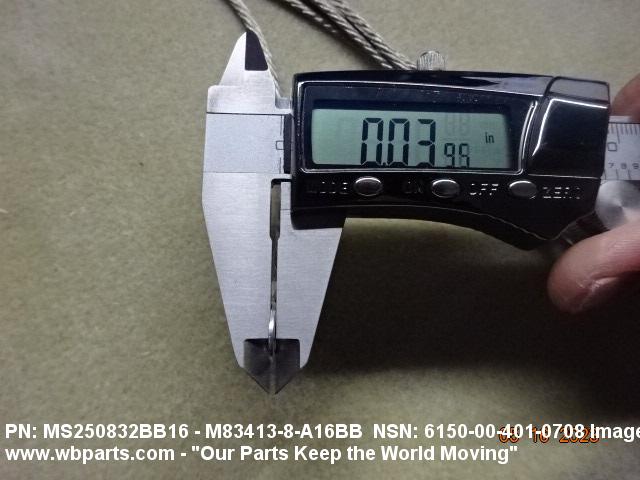

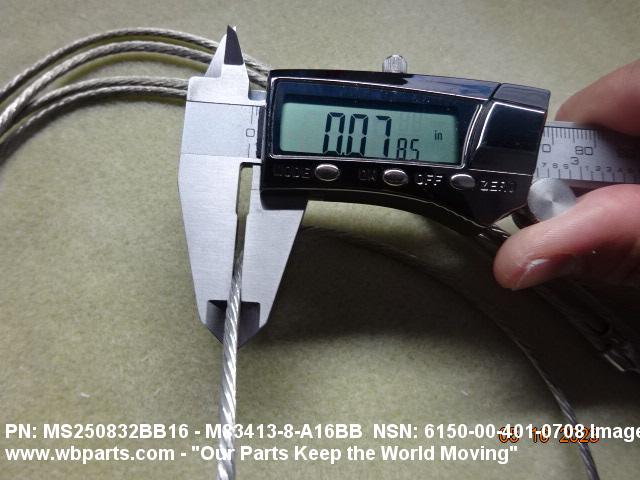

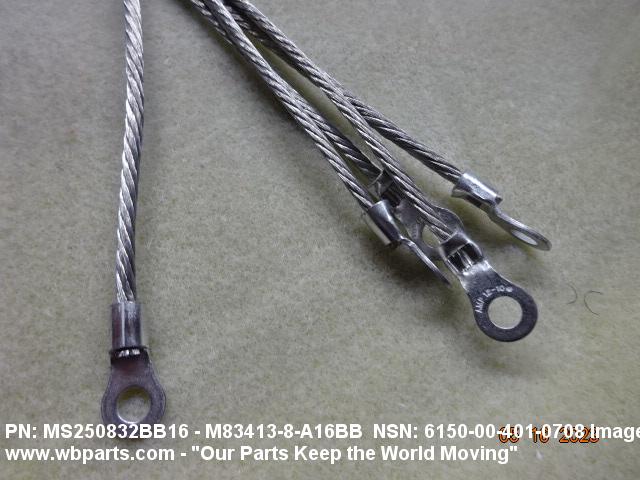

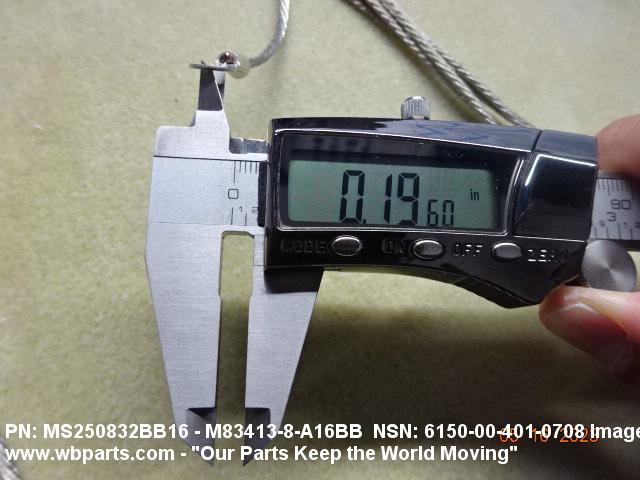

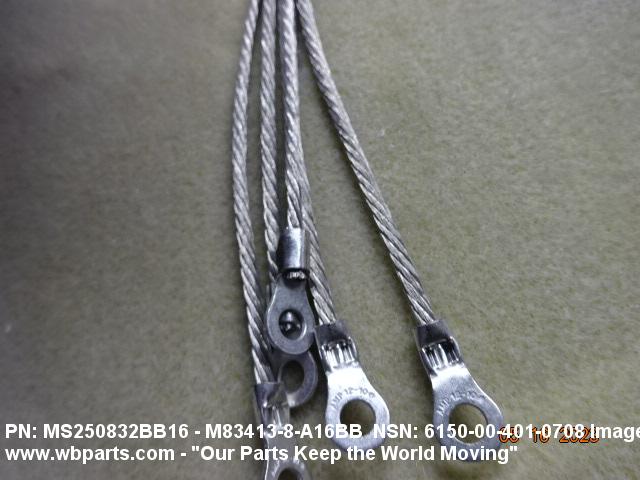

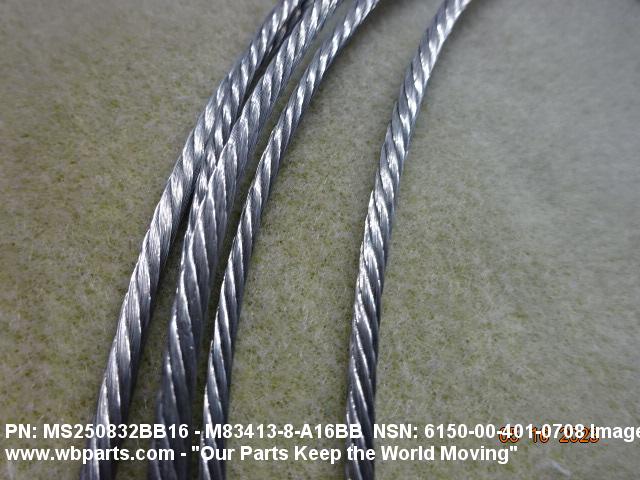

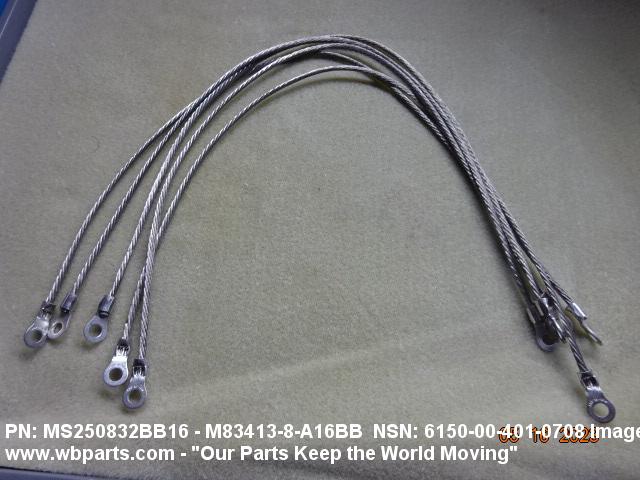

Drawings & Photos | NSN 6150-00-401-0708
Demand History | NSN 6150-00-401-0708
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M834138A16BB | 2023-05-124 | 5 | Canada |
| MS250832BB16 | 2019-08-220 | 35 | US |
Cross Reference | NSN 6150-00-401-0708
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2583-2BB16 | 91812 | JANCO CORPORATION DBA ESTERLINE MASON |
| M83413/8-A16BB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-83413/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25083-2BB16 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-00-401-0708
Technical Data | NSN 6150-00-401-0708
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 12 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 7 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 37 SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.081 INCHES NOMINAL |
| TERMINATION TYPE | TERMINAL LUG BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 96906 BOTH ENDS SINGLE CONDUCTOR |
| LEAD OVERALL LENGTH | 16.365 INCHES NOMINAL |
| LEAD PULL STRENGTH | 110.0 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-83413/8 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83413/8-A16BB |
Restrictions/Controls & Freight Information | NSN 6150-00-401-0708
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062360 | LEADS/LEAD WIRES ELEC ARTICLE ETC |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-00-401-0708
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
