NSN 6150-00-557-7660 MS2522624, MS25226-2-4, AN343324
Product Details | CONDUCTOR BUS
6150-00-557-7660 An item made of rigid or semirigid conductive material, usually employed in the distribution of heavy electrical current. It is cut to specific lengths and is shaped, drilled, tapped or otherwise terminated. It may be fabricated in any of various cross-sectional shapes and sizes and may include terminal lugs. It may be designed to connect two or more screw or stud terminations. Excludes TERMINAL STRIP, GROUNDING.
Part Alternates: MS2522624, MS25226-2-4, AN343324, AN3433-2-4, 643424, 6434-2-4, 8485694, 3670810030, 367-0810-030, 6150-00-557-7660, 00-557-7660, 6150005577660, 005577660
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-557-7660 | 32758 ( BUS, CONDUCTOR ) |

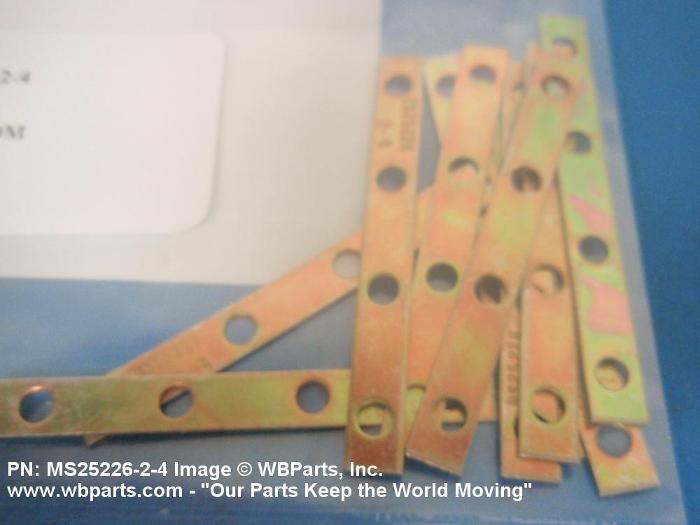

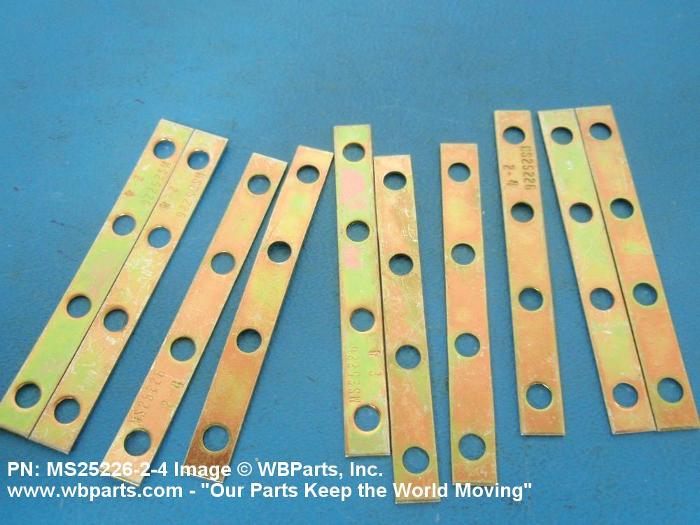

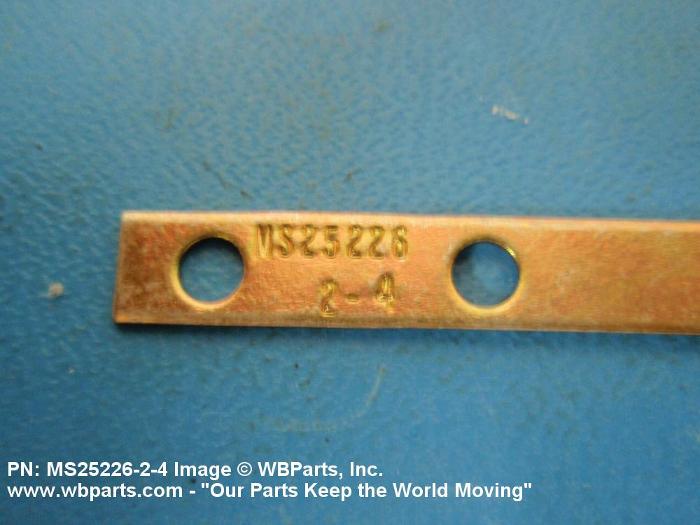

Drawings & Photos | NSN 6150-00-557-7660
Demand History | NSN 6150-00-557-7660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2522624 | 2020-02-37 | 6 | United States |
| MS2522624 | 2015-08-239 | 154 | United States |
| MS2522624 | 2011-02-56 | 1 | United States |
| MS2522624 | 2011-02-46 | 4 | US |
Cross Reference | NSN 6150-00-557-7660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 367-0810-030 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 6434-2-4 | 91812 | JANCO CORPORATION DBA ESTERLINE MASON |
| 8485694 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN3433-2-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS25226-2-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-00-557-7660
Technical Data | NSN 6150-00-557-7660
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER, QQ-C-502 OR COPPER, QQ-C-576 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS C |
| BODY CROSS-SECTIONAL SHAPE | RECTANGULAR W/EDGE RADIUS |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL HEIGHT | 0.032 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 2.220 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR 0.147 IN. DIA HOLES 0.594 IN. C TO C |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25226-2-4 |
Restrictions/Controls & Freight Information | NSN 6150-00-557-7660
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061090 | BUS BARS NOI ALUM/COPPER/IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-00-557-7660
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
