Product Details | BRANCHED WIRING HARNESS
6150-00-659-6895 An item conforming to the definition of WIRING HARNESS with branches (forks). See also CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL, BRANCHED, Excludes LEAD ASSEMBLY, ELECTRICAL; and LEAD, TEST.20711050013Nuclear Bombs11150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance25900034Miscellaneous Vehicular Components59950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 10942655, 6150-00-659-6895, 00-659-6895, 2920006596895, 6150006596895, 006596895
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1961 | 00-659-6895 | 61341 ( WIRING HARNESS, BRANCHED ) |

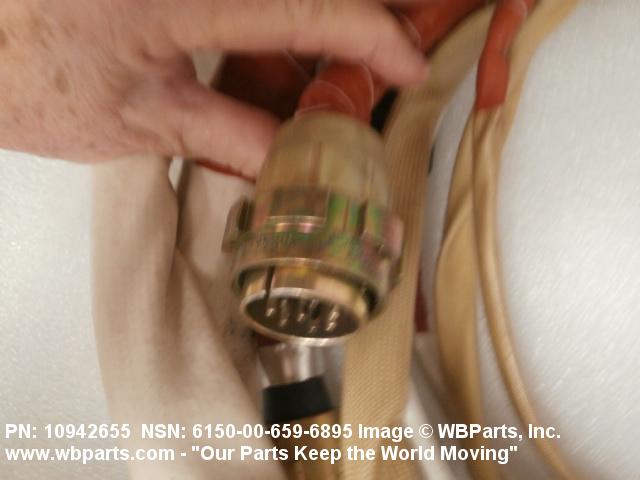

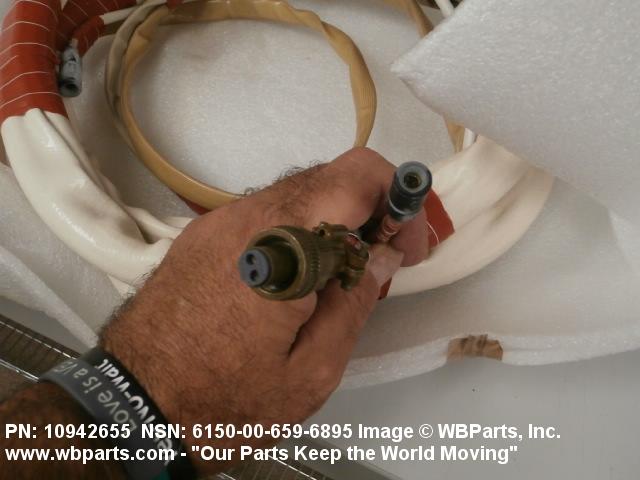

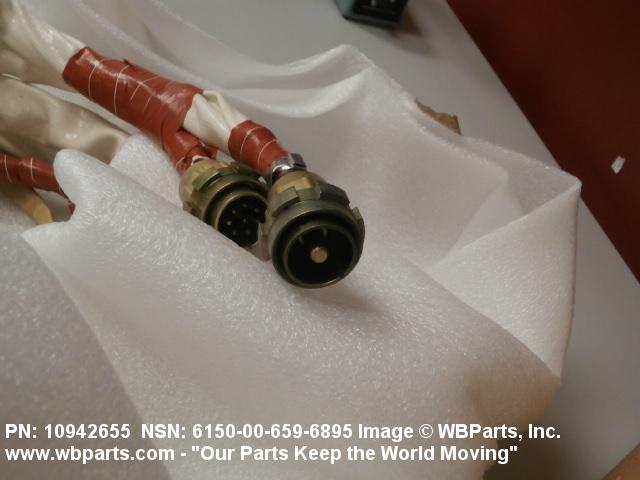

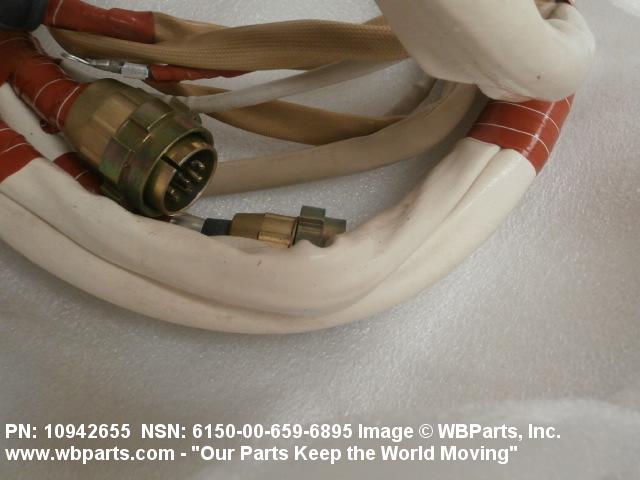

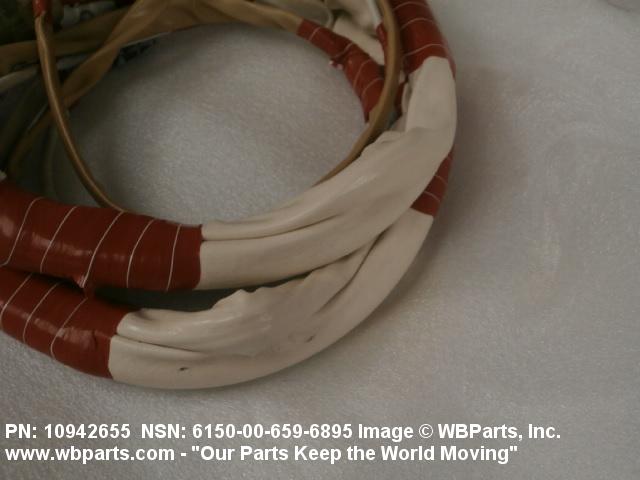

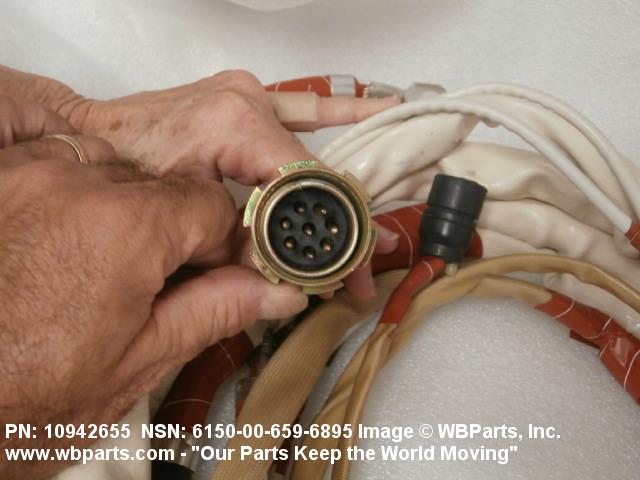

Drawings & Photos | NSN 6150-00-659-6895
Demand History | NSN 6150-00-659-6895
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-00-659-6895 | 2023-09-28 | 8 | DIBBS |
| 6150-00-659-6895 | 2021-03-03 | 15 | DIBBS |
| 6150-00-659-6895 | 2021-03-03 | 10 | DIBBS |
| 6150-00-659-6895 | 2020-12-10 | 15 | DIBBS |
| 6150-00-659-6895 | 2020-12-10 | 10 | DIBBS |
| 6150-00-659-6895 | 2018-12-09 | 9 | DIBBS |
| 6150-00-659-6895 | 2017-03-13 | 20 | DIBBS |
| 6150-00-659-6895 | 2014-05-14 | 3 | United States |
| 6150-00-659-6895 | 2013-11-14 | 3 | DIBBS |
| 6150-00-659-6895 | 2013-11-14 | 100 | DIBBS |
| 6150-00-659-6895 | 2013-07-17 | 100 | DIBBS |
| 6150-00-659-6895 | 2012-05-22 | 100 | DIBBS |
| 6150-00-659-6895 | 2011-08-19 | 12 | DIBBS |
| 6150-00-659-6895 | 2011-08-19 | 13 | DIBBS |
| 6150-00-659-6895 | 2011-06-23 | 12 | DIBBS |
| 6150-00-659-6895 | 2011-06-23 | 13 | DIBBS |
| 6150-00-659-6895 | 2011-04-11 | 12 | DIBBS |
| 6150-00-659-6895 | 2011-04-11 | 100 | DIBBS |
| 6150-00-659-6895 | 2009-12-15 | 20 | DIBBS |
| 6150-00-659-6895 | 2009-10-08 | 1 | DIBBS |
| 6150-00-659-6895 | 2009-09-02 | 6 | DIBBS |
| 6150-00-659-6895 | 2008-12-19 | 1 | DIBBS |
| 6150-00-659-6895 | 2008-07-23 | 6 | DIBBS |
| 6150-00-659-6895 | 2008-07-15 | 15 | United Kingdom |
| 6150-00-659-6895 | 2008-06-24 | 1 | DIBBS |
| 6150-00-659-6895 | 2008-06-24 | 6 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6150-00-659-6895
Related Products | NSN 6150-00-659-6895
6150-00-659-7123, 6150-00-659-9863, 6150-00-660-5026, 6150-00-660-5085, 6150-00-660-8331
Technical Data | NSN 6150-00-659-6895
| Characteristic | Specifications |
|---|---|

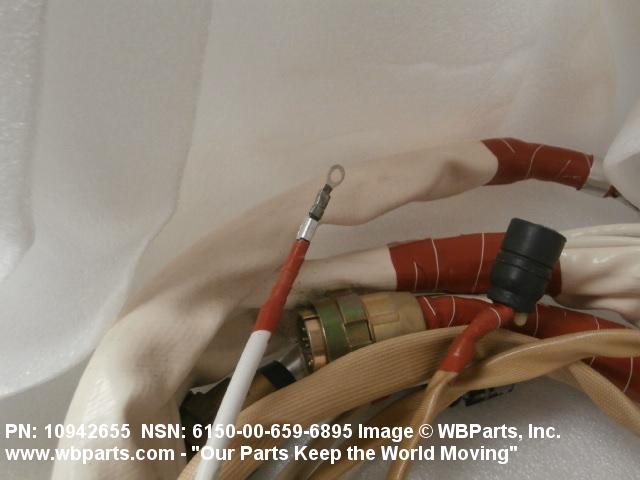

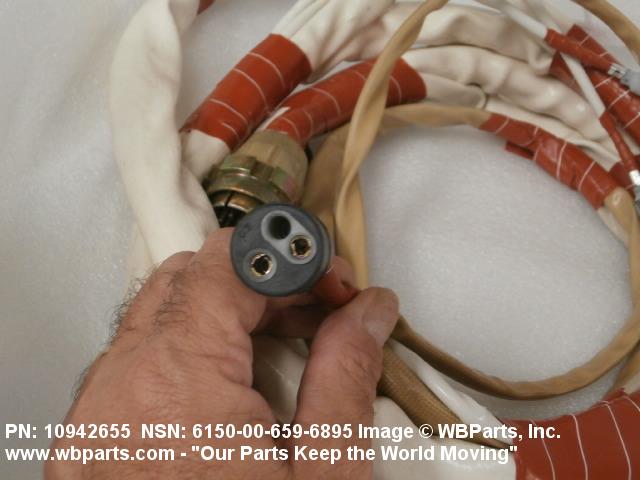

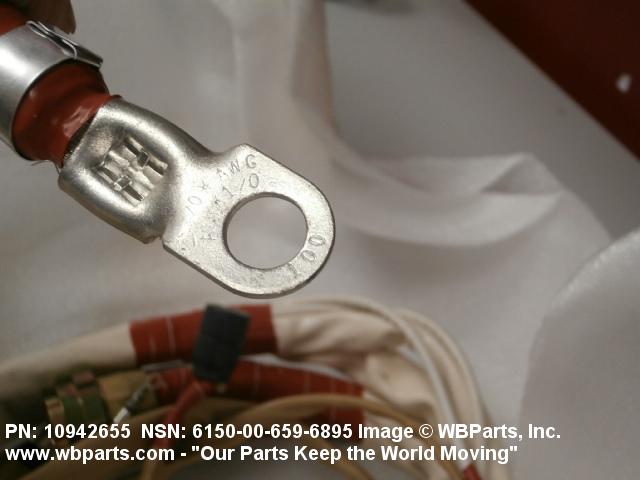

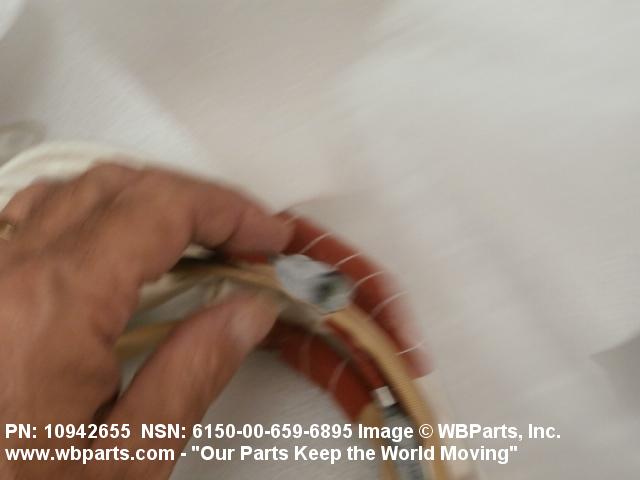

| SPECIAL FEATURES | WIRING HARNESS,BRANCHED CONSISTS OF 2 MAIN CABLES; CABLES SHALL BE BOUND TO LOOM AS REQUIRED WITH ONE HALF OVERLAPPING TURNS OF TAPE; CABLES IN THIS ASSEMBLY WITH EXCEPTION OF CIRCUIT NO. 6 IS M13486/1-5 SPEC MIL-C-13486(AS REQD); CIRCUIT NO. 6 IS CABLE M13486/1-14 SPEC MIL-C-13486 (AS REQD),HAS APPROXIMATE TOTAL OA LGTH OF 83 INCHES,CABLE GOES FROM MAIN WIRING HARNESS-FRONT TO STARTER SOLENOID; OTHER CABLE HAS APPROXIMATE TOTAL OA LGTH OF 120 INCHES,CABLE HAS 8 CIRCUITS FROM MAIN WIRING HARNESS- FRONT,CIRCUIT NUMBERS 1A AND 1B GO TO PRESSURE SW(ALTERNATOR FIELD),NO.406 GOES TO AIR BOX HEATER,NO.33 GOES TO ENGINE WATER TEMP SW,NO.328 GOES TO DIFFERENTIAL HIGH OIL TEMP SW,NO.327 GOES TO TRANSMISSION HIGH OIL TEMP SW,NO.74A GOES TO STARTER RELAY SW,NO.34 GOES TO ENGINE LOW OIL PRESSURE; FOR LIST OF PARTS,NOTES,AND SPECIFICATIONS REFERENCE ENGINEERING PARTS LIST AND DRAWING NUMBER 10942655 |
Restrictions/Controls & Freight Information | NSN 6150-00-659-6895
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-00-659-6895
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
