NSN 6150-00-722-5707 MS250832BC5, MS25083-2BC5, M83413/8-A005BC
Product Details | ELECTRICAL LEAD
6150-00-722-5707 A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also LEAD, TEST and BUS CONDUCTOR. Excludes LEAD, STORAGE BATTERY; LEAD, IGNITION, ENGINE, and items having attached switches, lampholders, suppressors, resistors, and the like.20511350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS250832BC5, MS25083-2BC5, M83413/8-A005BC, M83413/8-A05BC, M834138A005BC, M834138A05BC, BACJ40A215, BAC-J40A-21-5, MIL-C-83413/8, MILC834138, MIL-DTL-83413/8B, MILDTL834138B, 25832BC5, 2583-2BC5, 30496, 7401A215, 7401A-21-5, CE4F, CE5F, CQ5S, 6150-00-722-5707, 00-722-5707, 6150007225707, 007225707
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-722-5707 | 04581 ( LEAD, ELECTRICAL ) |

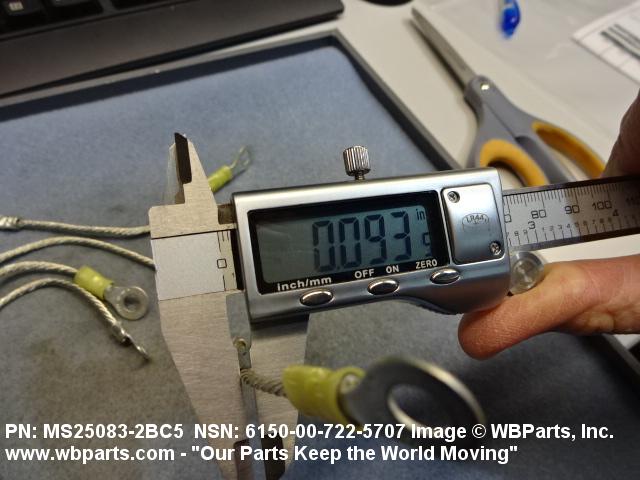

Drawings & Photos | NSN 6150-00-722-5707
Demand History | NSN 6150-00-722-5707
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-00-722-5707 | 2025-01-21 | 2000 | TR |
| 6150-00-722-5707 | 2025-01-05 | 2000 | TR |
| BACJ40A215 | 2020-11-315 | 20 | United States |
| CE5F | 2020-11-315 | 20 | United States |
| 6150-00-722-5707 | 2017-12-341 | 1 | DIBBS-RFPs |
| 6150-00-722-5707 | 2017-11-323 | 622 | DIBBS |
| 6150-00-722-5707 | 2016-07-189 | 1807 | DIBBS |
| M834138A005BC | 2015-04-92 | 8 | United Kingdom |
| 6150-00-722-5707 | 2014-07-201 | 1610 | DIBBS |
| MS250832BC5 | 2010-02-32 | 3 | US |
| 6150-00-722-5707 | 2009-12-341 | 363 | DIBBS |
| 6150-00-722-5707 | 2009-02-57 | 1904 | DIBBS |
Cross Reference | NSN 6150-00-722-5707
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2583-2BC5 | 91812 | JANCO CORPORATION DBA ESTERLINE MASON |
| 30496 | 00779 | TYCO ELECTRONICS CORPORATION |
| 7401A-21-5 | 91812 | JANCO CORPORATION DBA ESTERLINE MASON |
| BAC-J40A-21-5 | 81205 | THE BOEING COMPANY DBA BOEING |
| CE4F | 79550 | ELECTRO-WIRE PRODUCTS INC |
| CE5F | 79550 | ELECTRO-WIRE PRODUCTS INC |
| CQ5S | 56501 | THOMAS & BETTS CORPORATION |
| M83413/8-A005BC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83413/8-A05BC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-83413/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-83413/8B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25083-2BC5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-00-722-5707
Technical Data | NSN 6150-00-722-5707
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 12 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 7 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 37 SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.081 INCHES NOMINAL |
| TERMINATION TYPE | LUG TERMINAL W/MOUNTING HOLE BOTH ENDS SINGLE CONDUCTOR |

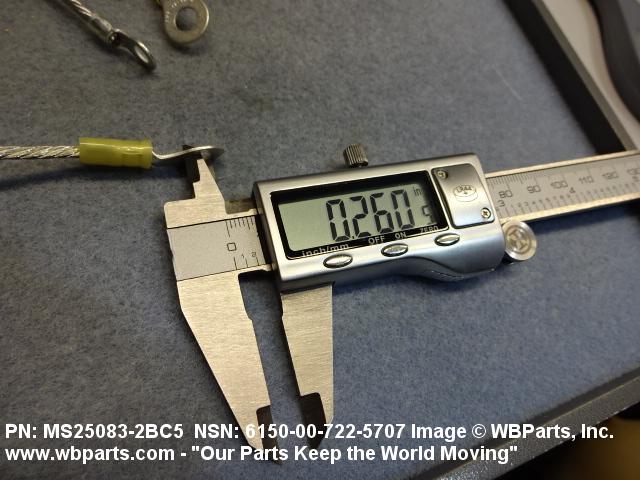

| TERMINAL LUG APERTURE SIZE | 0.193 INCHES 1ST END SINGLE CONDUCTOR 0.260 INCHES 2ND END SINGLE CONDUCTOR |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | MS25036-112 1ST END SINGLE CONDUCTOR MS25036-157 2ND END SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 96906 BOTH ENDS SINGLE CONDUCTOR |

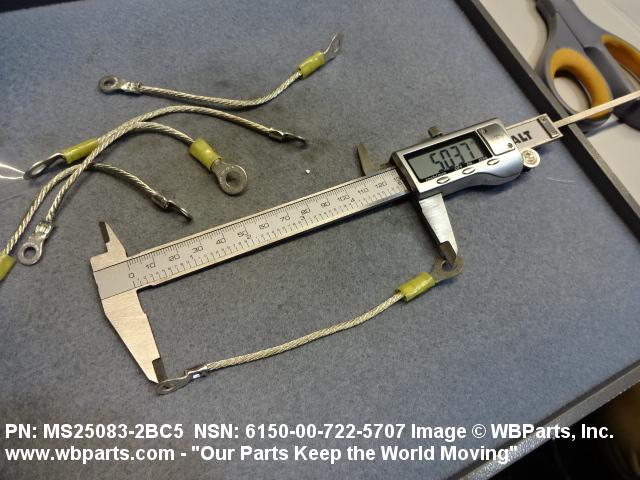

| LEAD OVERALL LENGTH | 5.000 INCHES MINIMUM AND 5.250 INCHES MAXIMUM |
| LEAD PULL STRENGTH | 110.0 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-83413/8 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83413/8-A005BC |
Restrictions/Controls & Freight Information | NSN 6150-00-722-5707
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
