Product Details | ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY
6150-00-819-7146 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL, having one or more ends processed or terminated in fittings which provide for connection to other items. Excludes items having branches or forks. Excludes LEAD, TEST and CABLE AND CONDUIT ASSEMBLY, ELECTRICAL.20611350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance132500004935000059950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: 10-208308-1, 920B535, 920B5351, 920B535-1, 6150-00-819-7146, 00-819-7146, 6150008197146, 102083081, 008197146
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1962 | 00-819-7146 | 00782 ( CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL ) |

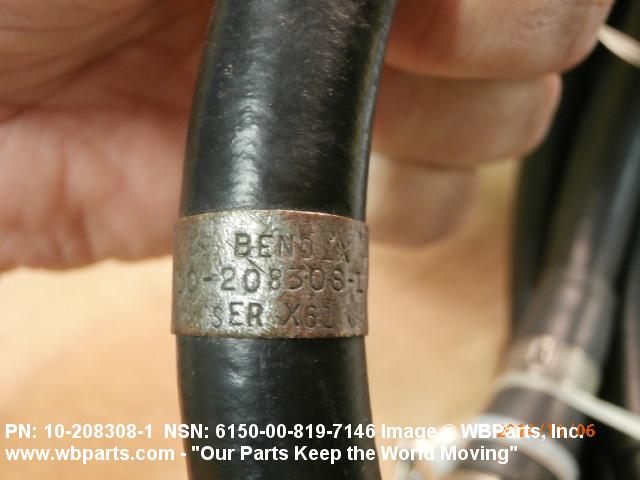

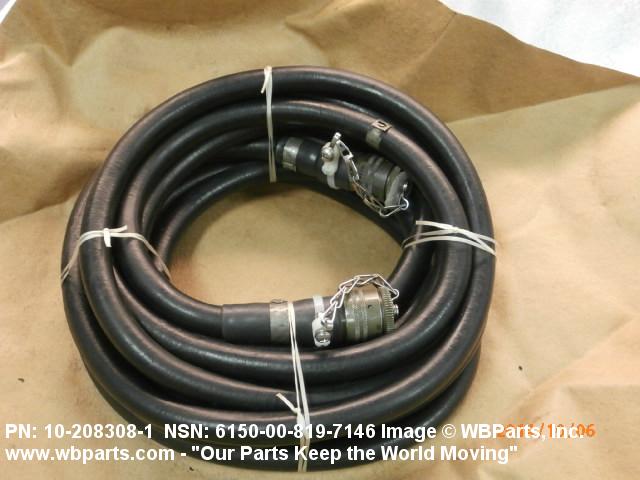

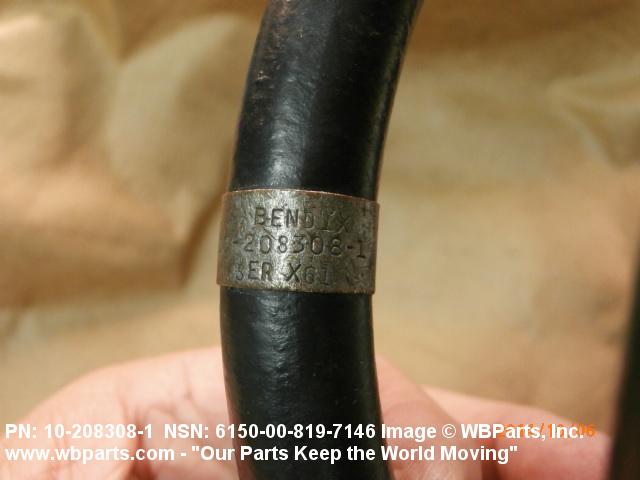

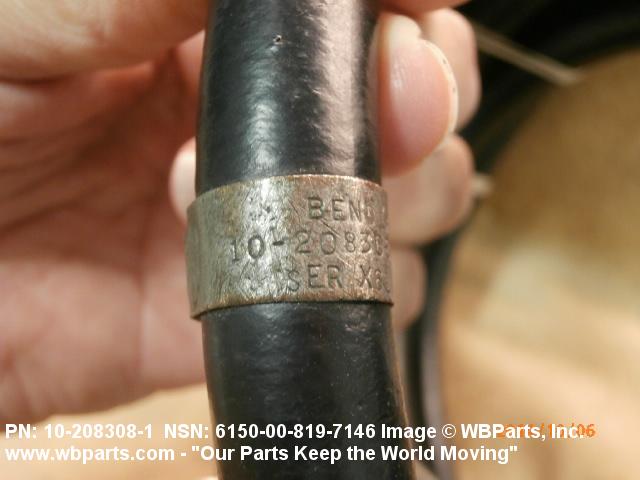

Drawings & Photos | NSN 6150-00-819-7146
Demand History | NSN 6150-00-819-7146
Cross Reference | NSN 6150-00-819-7146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-208308-1 | 06840 | BENDIX CORP THE |
| 10-208308-1 | 59501 | UNISON INDUSTRIES, LLC |
| 10-208308-1 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 920B535 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 920B535-1 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 6150-00-819-7146
6150-00-819-8778, 6150-00-819-8979, 6150-00-819-9932, 6150-00-820-1494, 6150-00-820-2021
Technical Data | NSN 6150-00-819-7146
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 15 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 20 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 32 ALL CONDUCTORS |
| TERMINATION TYPE | CONNECTOR PLUG BOTH ENDS ALL CONDUCTORS |

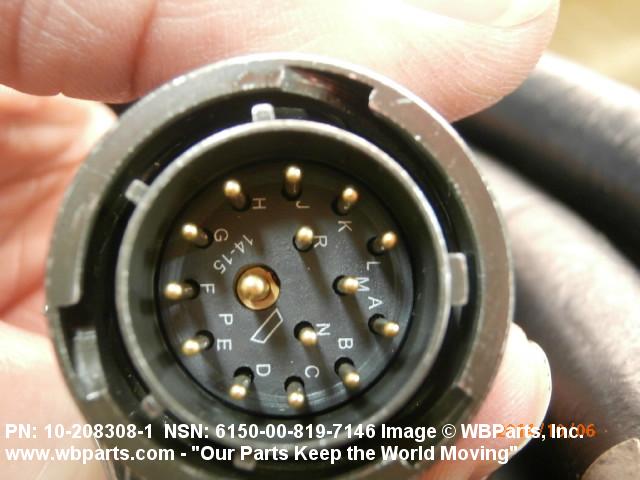

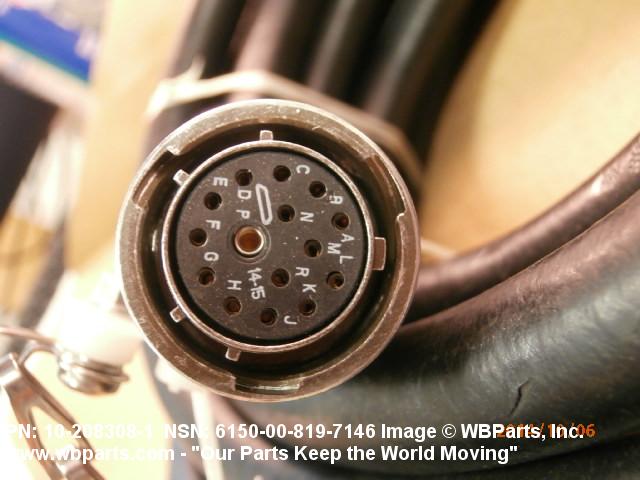

| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | PT06W14-15P 1ST END ALL CONDUCTORS PT06W14-15S 2ND END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 19315 1ST END ALL CONDUCTORS 19315 BOTH ENDS ALL CONDUCTORS |
| III FSC APPLICATION DATA | TEST SET,FLIGHT CONTROL SYSTEM,NOT INTEGRAL WITH EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 6150-00-819-7146
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
